Fuel and braking systems

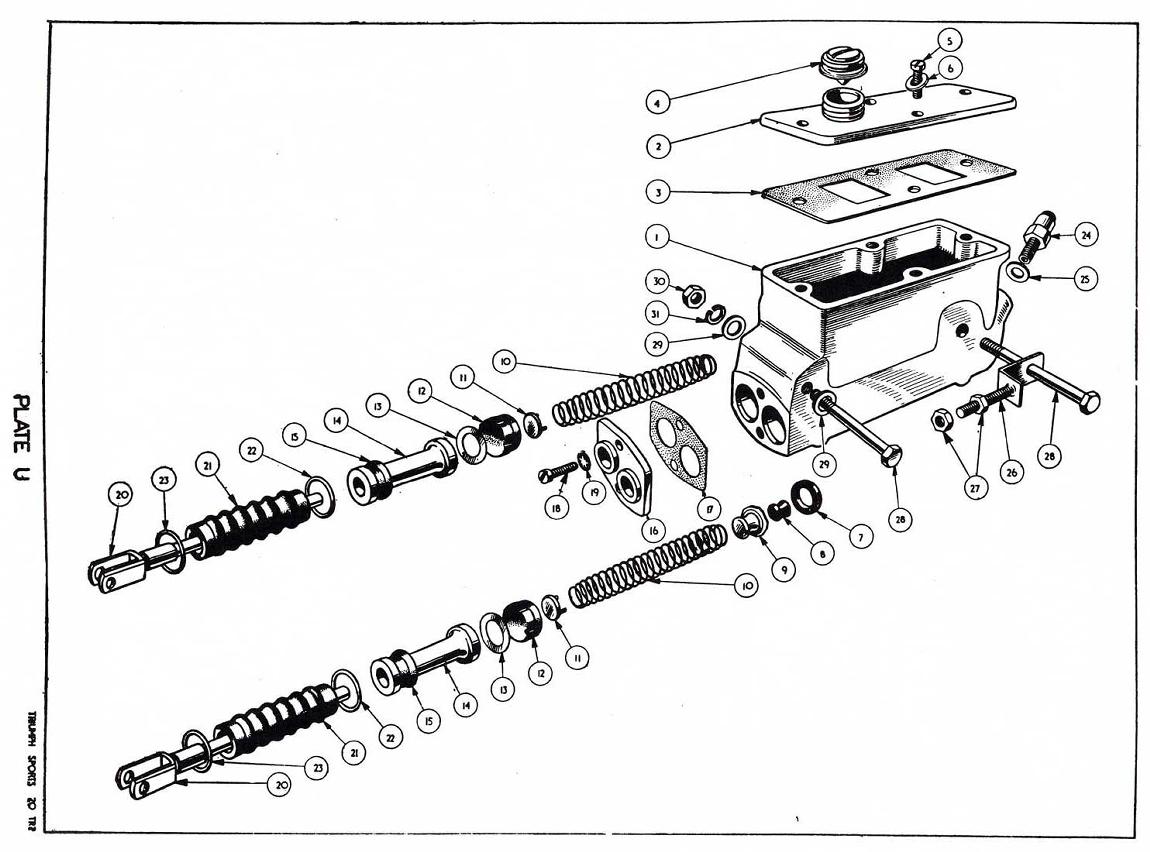

TR2 Plate U - MASTER CYLINDER: TWIN AND LATE SEPARATE CYLINDERS WITH RESERVOIR

  Plate No. Part No. Description and Comments No Per Unit Price Add to Cart
U1AA
201821

CLICK FOR
MORE INFO

TWIN MASTER CYLINDER ASSEMBLY

Not available new, consider RTR4369LAK, RTR4369RAK, RTR4369LMK, RTR4369RMK, which are duel circuit master cylinder kits, or LK36944X which is a kit containing an MG Midget master cylinder with conversion parts.
Remarks: From Comm. No. TS1 to 13045

1
U1
501208

CLICK FOR
MORE INFO

Body

Remarks: From Comm. No. TS1 to 13045

1
U2
501189

CLICK FOR
MORE INFO

Cover, tank

Remarks: From Comm. No. TS1 to 13045

1
U3
501190

CLICK FOR
MORE INFO

Gasket, between tank cover and body

Remarks: From Comm. No. TS1 to 13045

1
Ex VAT: £3.25
Inc VAT: £3.90

U4
501522

CLICK FOR
MORE INFO

Cap, filler, and seal assembly

The original cap is no longer available but we now have a reproduction cap available.
Remarks: From Comm. No. TS1 to 13045

1
Ex VAT: £8.12
Inc VAT: £9.74

U4A
501524

CLICK FOR
MORE INFO

Seal, for filler cap

This item has been superceded by 17H4708 - see below

1
17H4708
WASHER

Remarks: From Comm. No. TS1 to 13045

1
Ex VAT: £2.59
Inc VAT: £3.11

U5
501195

CLICK FOR
MORE INFO

Screw, tank cover attachment

Remarks: From Comm. No. TS1 to 13045

4
U6
WN0707

CLICK FOR
MORE INFO

Washer, shakeproof, on screw

This item has been superceded by WS104070271 - see below

4
WS104070271
WASHER STAR INT 1/4"

Remarks: From Comm. No. TS1 to 13045

4
Ex VAT: £0.22
Inc VAT: £0.26

U7
501185

CLICK FOR
MORE INFO

Seat, valve, brake bore only

Remarks: From Comm. No. TS1 to 13045

1
U8
059269

CLICK FOR
MORE INFO

Cap, valve. brake bore only

Remarks: From Comm. No. TS1 to 13045

1
U9
059267

CLICK FOR
MORE INFO

Body, valve, brake bore only

This item has been superceded by 7H7488 - see below

1
7H7488
VALVE BODY

Remarks: From Comm. No. TS1 to 13045

1
Ex VAT: £1.62
Inc VAT: £1.94

U10
059270

CLICK FOR
MORE INFO

Spring, valve return

Remarks: From Comm. No. TS1 to 13045

2
U11
506672

CLICK FOR
MORE INFO

Retainer, spring

Remarks: From Comm. No. TS1 to 13045

2
U12
500399

CLICK FOR
MORE INFO

Cup, main

This item has been superceded by 7H7485 - see below

2
7H7485

CLICK FOR
MORE INFO

CUP SEAL 7/8 DUAL M/CYL TR2

For seal kit use 8G8224Z
Remarks: From Comm. No. TS1 to 13045

2
Ex VAT: £2.59
Inc VAT: £3.11

U13
103020

CLICK FOR
MORE INFO

Washer, between main cup and piston

Remarks: From Comm. No. TS1 to 13045

2
U14
059273

CLICK FOR
MORE INFO

Piston

Remarks: From Comm. No. TS1 to 13045

2
U15
059274

CLICK FOR
MORE INFO

Cup, secondary, on piston

Remarks: From Comm. No. TS1 to 13045

2
U16
501193

CLICK FOR
MORE INFO

Plate, boot fixing

Remarks: From Comm. No. TS1 to 13045

1
U17
501191

CLICK FOR
MORE INFO

Gasket, between plate and body

This item has been superceded by AAA4757 - see below

1
AAA4757
FRONT GASKET (M/CYL)

Remarks: From Comm. No. TS1 to 13045

1
Ex VAT: £1.34
Inc VAT: £1.61

U18
501195

CLICK FOR
MORE INFO

Screw, plate to body

Remarks: From Comm. No. TS1 to 13045

2
U19
WN0707

CLICK FOR
MORE INFO

Washer, shakeproof, on screw

This item has been superceded by WS104070271 - see below

2
WS104070271
WASHER STAR INT 1/4"

Remarks: From Comm. No. TS1 to 13045

2
Ex VAT: £0.22
Inc VAT: £0.26

U20
501775

CLICK FOR
MORE INFO

Rod, push, assembly

Not available new. Use second hand part 501775SH
Remarks: From Comm. No. TS1 to 13045

2
U21
501194

CLICK FOR
MORE INFO

Boot, push rod

Remarks: From Comm. No. TS1 to 13045

2
Ex VAT: £3.52
Inc VAT: £4.22

U22
501165

CLICK FOR
MORE INFO

Clip, large, boot to fixing plate

Remarks: From Comm. No. TS1 to 13045

2
U23
501187

CLICK FOR
MORE INFO

Clip, small, boot to push rod

Remarks: From Comm. No. TS1 to 13045

2
U24
108415

CLICK FOR
MORE INFO

Adaptor, slave cylinder pipe

This item has been superceded by LK36944A - see below

1
LK36944A

CLICK FOR
MORE INFO

ADAPTOR MASTER CYL. TR2-3

Remarks: From Comm. No. TS1 to 13045

1
U25
059245

CLICK FOR
MORE INFO

Gasket, between adaptor and body

This item has been superceded by WC10610050A - see below

1
WC10610050A
WASHER COPPER 3/8 x 19/32 x 0.050

Remarks: From Comm. No. TS1 to 13045

1
Ex VAT: £0.29
Inc VAT: £0.35

U26
107691

CLICK FOR
MORE INFO

Bracket assembly, master cylinder adjustment

Not available new use second hand
Remarks: From Comm. No. TS1 to 13045

2
U27
JN2107

CLICK FOR
MORE INFO

Nut, jam, adjusting master cylinder

This item has been superceded by NP604051 - see below

4
NP604051
NUT PLAIN 1/4 UNF X 5/32"

Remarks: From Comm. No. TS1 to 13045

4
Ex VAT: £0.21
Inc VAT: £0.25

U28
HB0926

CLICK FOR
MORE INFO

Bolt, master cylinder to support and adjustment brackets

This item has been superceded by BH606261 - see below

2
BH606261
BOLT 3/8 UNF X 3-1/4 INCH

Remarks: From Comm. No. TS1 to 13045

2
Ex VAT: £1.04
Inc VAT: £1.25

U29
WP0009

CLICK FOR
MORE INFO

Washer, plain, on front bolt

This item has been superceded by WP10613050 - see below

2
WP10613050
WASHER PLAIN 3/8 X 13/16 INCH

Remarks: From Comm. No. TS1 to 13045

2
Ex VAT: £0.38
Inc VAT: £0.46

U30
HN2009

CLICK FOR
MORE INFO

Nut, locking bolts

This item has been superceded by NP606111 - see below

2
NP606111
NUT PLAIN 3/8 UNF X 11/32" (STD)

Remarks: From Comm. No. TS1 to 13045

2
Ex VAT: £0.08
Inc VAT: £0.10

U31
WL0209

CLICK FOR
MORE INFO

Washer, spring, under nuts

This item has been superceded by WS106111243 - see below

2
WS106111243
WASHER SPRING 3/8" RECT SECTION

Remarks: From Comm. No. TS1 to 13045

2
Ex VAT: £0.15
Inc VAT: £0.18

U32
203494

CLICK FOR
MORE INFO

MASTER CYLINDER ASSEMBLY (CLUTCH AND BRAKE)

This item has been superceded by 122167 - see below

2
122167

CLICK FOR
MORE INFO

MASTER CYLINDER ASSEMBLY (CLUTCH AND BRAKE)

The body has one ring denoting 0.75" bore. There are two other sizes available 0.7" part number 122167-1 and 5/8" part number RTR4058. A repair kit is available part number GRK1027. Click 'MORE' for details
Remarks: From Comm. No. TS13046

2
Ex VAT: £29.50
Inc VAT: £35.40

U33
122167

CLICK FOR
MORE INFO

MASTER CYLINDER ASSEMBLY (CLUTCH AND BRAKE)

The body has one ring denoting 0.75" bore. There are two other sizes available 0.7" part number 122167-1 and 5/8" part number RTR4058. A repair kit is available part number GRK1027. Click 'MORE' for details
Remarks: From Comm. No. TS34311

2
Ex VAT: £29.50
Inc VAT: £35.40

U34
504841

CLICK FOR
MORE INFO

Body, master cylinder

Remarks: From Comm. No. TS13046

2
U35
507205

CLICK FOR
MORE INFO

Body, master cylinder

Remarks: From Comm. No. TS34311

2
U36
106158

CLICK FOR
MORE INFO

Seal, valve

Not available on its own. Use Repair kit GRK1027 which services a " diameter Girling master cylinder
Remarks: From Comm. No. TS13046

2
U37
106157

CLICK FOR
MORE INFO

Stem, valve

Not available on its own. Either purchase a new cylinder use Repair kit GRK1027 which services a " diameter Girling master cylinder if just the seals are needed
Remarks: From Comm. No. TS13046

2
U38
111163

CLICK FOR
MORE INFO

Spacer, valve

Not available on its own. Either purchase a new cylinder use Repair kit GRK1027 which services a " diameter Girling master cylinder if just the seals are needed
Remarks: From Comm. No. TS13046

2
U39
106090

CLICK FOR
MORE INFO

Washer, spring, between spacer and valve - head

Not available on its own. Use Repair kit GRK1027 which services a " diameter Girling master cylinder
Remarks: From Comm. No. TS13046

2
U40
106156

CLICK FOR
MORE INFO

Spring, plunger return

Not currently available
Remarks: From Comm. No. TS13046

2
U41
106088

CLICK FOR
MORE INFO

Retainer, spring to plunger

Not available on its own. Either purchase a new cylinder use Repair kit GRK1027 which services a " diameter Girling master cylinder if just the seals are needed
Remarks: From Comm. No. TS13046

2
U42
504842

CLICK FOR
MORE INFO

Plunger

Not available on its own. Either purchase a new cylinder use Repair kit GRK1027 which services a " diameter Girling master cylinder if just the seals are needed
Remarks: From Comm. No. TS13046

2
U43
504843

CLICK FOR
MORE INFO

Seal, plunger

Remarks: From Comm. No. TS13046

2
U44
504844

CLICK FOR
MORE INFO

Seal, plunger, taper

Remarks: From Comm. No. TS13046

2
U45
507206

CLICK FOR
MORE INFO

Rod, push

This item has been superceded by PR1365222 - see below

2
PR1365222
PUSH ROD MUSH 4-1/2"X 5/16"X 1-3/8UNF

This push rod has a mushrom head, is 4-1/2" long with 1-3/16" of 5/16 UNF thread
Remarks: From Comm. No. TS13046

2
Ex VAT: £12.99
Inc VAT: £15.59

U46
504846

CLICK FOR
MORE INFO

Washer, retaining push rod in cylinder body

Remarks: From Comm. No. TS13046

2
Ex VAT: £1.32
Inc VAT: £1.58

U47
106092

CLICK FOR
MORE INFO

Circlip, securing retaining washer

Remarks: From Comm. No. TS13046

2
Ex VAT: £1.55
Inc VAT: £1.86

U48
106093

CLICK FOR
MORE INFO

Cover, dust (rubber), cylinder end

Not available on its own. Either purchase a new cylinder use Repair kit GRK1027 which services a " diameter Girling master cylinder if just the seals are needed
Remarks: From Comm. No. TS13046

2
U49
HU0807

CLICK FOR
MORE INFO

Screw, set, master cylinder to support bracket

This item has been superceded by SH605071 - see below

4
SH605071
SCREW 5/16 UNF X 7/8 INCH

Remarks: From Comm. No. TS13046

4
Ex VAT: £0.33
Inc VAT: £0.40

U50
WL0208

CLICK FOR
MORE INFO

Washer, spring, on setscrew

This item has been superceded by WS105090853 - see below

4
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

Remarks: From Comm. No. TS13046

4
Ex VAT: £0.15
Inc VAT: £0.18

U51
HN2008

CLICK FOR
MORE INFO

Nut, locking screw

This item has been superceded by NP605081 - see below

2
NP605081
NUT PLAIN 5/16 UNF

Remarks: From Comm. No. TS13046

2
Ex VAT: £0.10
Inc VAT: £0.12

U52
130561

CLICK FOR
MORE INFO

MASTER CYLINDER ASSEMBLY (CLUTCH AND BRAKE)

This item has been superceded by 122167 - see below

2
122167

CLICK FOR
MORE INFO

MASTER CYLINDER ASSEMBLY (CLUTCH AND BRAKE)

The body has one ring denoting 0.75" bore. There are two other sizes available 0.7" part number 122167-1 and 5/8" part number RTR4058. A repair kit is available part number GRK1027. Click 'MORE' for details
Remarks: To service vehicles from TS.13046 to TS.34310.

2
Ex VAT: £29.50
Inc VAT: £35.40

U53
509997

CLICK FOR
MORE INFO

Adaptor, m/cylinder

Remarks: To service vehicles from TS.13046 to TS.34310.

2
Ex VAT: £13.67
Inc VAT: £16.40

U54
509998

CLICK FOR
MORE INFO

Washer for adaptor

Remarks: To service vehicles from TS.13046 to TS.34310.

2
U55
114530

CLICK FOR
MORE INFO

TWIN MASTER CYLINDER SUPPLY TANK

This tank is not always supplied with the wording marked on it as shown in the photo. Some supplies are left blank.
Remarks: From Comm. No. TS13046

1
Ex VAT: £50.03
Inc VAT: £60.04

U56
113368

CLICK FOR
MORE INFO

Clip, supply tank attachment

This part is not available new. Use second hand part 113368SH.
Remarks: From Comm. No. TS13046

1
U57
HU0706

CLICK FOR
MORE INFO

Screw, set, supply tank to support

This item has been superceded by SH604061 - see below

2
SH604061

CLICK FOR
MORE INFO

SCREW 1/4 UNF X 3/4 INCH

Remarks: From Comm. No. TS13046

2
Ex VAT: £0.16
Inc VAT: £0.19

U58
HN2007

CLICK FOR
MORE INFO

Nut, locking screw

This item has been superceded by NP604071 - see below

2
NP604071
NUT PLAIN 1/4 UNF X 7/32

Remarks: From Comm. No. TS13046

2
Ex VAT: £0.13
Inc VAT: £0.16

U59
WL0207

CLICK FOR
MORE INFO

Washer, spring, under nut

This item has been superceded by WS104070643 - see below

2
WS104070643
WASHER SPRING 1/4" RECT SECTION

Remarks: From Comm. No. TS13046

2
Ex VAT: £0.13
Inc VAT: £0.16

U60
505062

CLICK FOR
MORE INFO

Pipe, supply tank to brake master cylinder

Remarks: From Comm. No. TS13046

1
Ex VAT: £14.58
Inc VAT: £17.50

U61
505063

CLICK FOR
MORE INFO

Pipe, supply tank to brake master cylinder

This item has been superceded by 505062 - see below

1
505062

CLICK FOR
MORE INFO

Pipe, supply tank to brake master cylinder

Remarks: From Comm. No. TS13046

1
Ex VAT: £14.58
Inc VAT: £17.50
