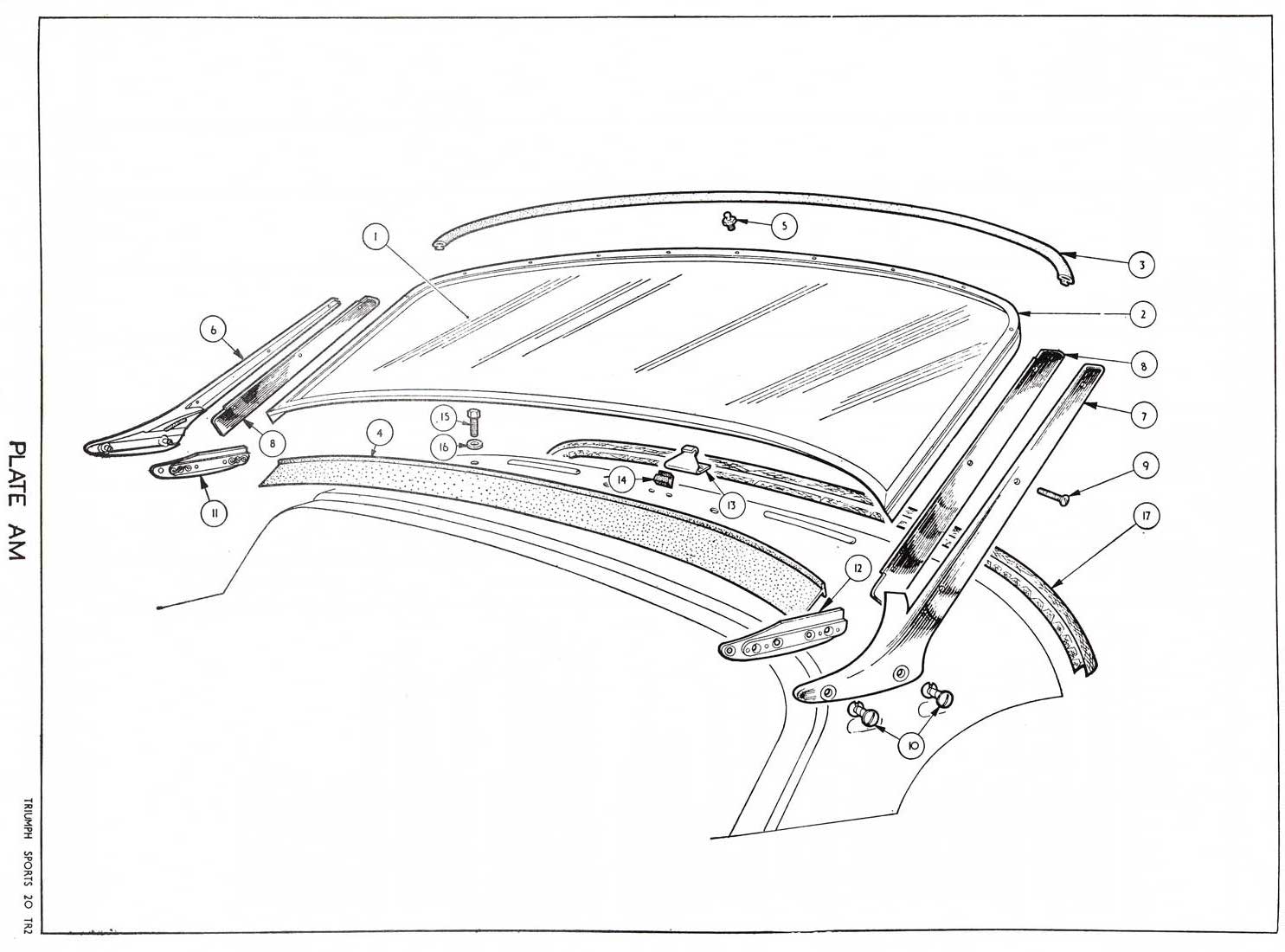

TR3 Plate AM - BODY AND FITTINGS: WINDSCREEN ASSEMBLY, AERO SCREENS AND SCUTTLE EDGE ROLL TRIM.

  Plate No. Part No. Description and Comments No Per Unit Price Add to Cart
AM1AA
900424

CLICK FOR
MORE INFO

WINDSCREEN ASSEMBLY COMPLETE (Chrome Plated Surround, Chrome Stanchions and Dzus Fastener Attachments)

This item has been superceded by 900689 - see below

1
900689

CLICK FOR
MORE INFO

WINDSCREEN ASSEMBLY COMPLETE (Chrome Plated Surround, Chrome Stanchions and Dzus Fastener Attachments)

Call for price and availability
Remarks: From Comm. No. TS1 to Comm. No. TS5513

1
AM1AB
900689

CLICK FOR
MORE INFO

WINDSCREEN ASSEMBLY COMPLETE (Chrome Plated Surround, Chrome Stanchions and Dzus Fastener Attachments)

Call for price and availability
Remarks: From Comm. No. TS5514

1
AM1AC
552788

CLICK FOR
MORE INFO

WINDSCREEN ASSEMBLY (Less Stanchion Assembly)

1
AM1
800592

CLICK FOR
MORE INFO

Glass, windscreen

The screen we offer under this part number is, as the price suggests an economy option. Windscreens in this price range are usually optically poor and are invariably a poor fit. Revington TR recommend our high...

1
Ex VAT: £90.58
Inc VAT: £108.70

AM1A
CD31407

CLICK FOR
MORE INFO

Rubber, glazing, windscreen

CD31407 is the original rubber glazing strip for TR2-3B windscreens. Original windscreens were 6mm thick, ours in common with all others on the market we have come across are 5mm thick.

1
Ex VAT: £7.75
Inc VAT: £9.30

AM2
552113

CLICK FOR
MORE INFO

Surround, chrome plated

Windscreen frame, without glass Chrome plated TR2-3B. The frame consists of an upper hoop and a lower rail held together by corner brackets.

1
AM3
552422

CLICK FOR
MORE INFO

Rubber, sealing, windscreen surround top

The later TR3 seal is 554339

1
Ex VAT: £11.67
Inc VAT: £14.00

AM4
552237

CLICK FOR
MORE INFO

Rubber, sealing, windscreen surround btm.

This item has been superceded by 704126 - see below

1
704126

CLICK FOR
MORE INFO

Rubber, sealing, windscreen surround btm.

Remarks: From Comm. No. TS_______

1
Ex VAT: £10.00
Inc VAT: £12.00

AM4A
704126

CLICK FOR
MORE INFO

Rubber, sealing, windscreen surround btm.

Remarks: From Comm. No. TS_______

1
Ex VAT: £10.00
Inc VAT: £12.00

AM4B
554339

CLICK FOR
MORE INFO

Beading, rubber, windscreen top

Remarks: From Comm. No. TS8637

1
Ex VAT: £12.67
Inc VAT: £15.20

AM5
551866

CLICK FOR
MORE INFO

Peg, hood fastener

These small Tenax pegs and fasteners have not been available for many years. They attach the hood to the windscreen on TR2's up to commission number TS4307.
Remarks: From Comm. No. TS1 to Comm. No. TS5513

10
Ex VAT: £1.45
Inc VAT: £1.74

AM5A
553827

CLICK FOR
MORE INFO

Peg, hood fastener

The thread on these Tenax Pegs is slightly long and will damage your screen if fitted as they are. use fibre washer WF10305055.
Remarks: From Comm. No. TS5514

10
Ex VAT: £1.05
Inc VAT: £1.26

AM6
552182

CLICK FOR
MORE INFO

WINDSCREEN STANCHION ASSEMBLY, R.H.

Stanchion windscreen RH. Not available use 552182SH

1
Ex VAT: £124.79
Inc VAT: £149.75

AM7
552181

CLICK FOR
MORE INFO

WINDSCREEN STANCHION ASSEMBLY, L.H.

Stanchion windscreen LH. Not available use 552181SH

1
AM8
560630

CLICK FOR
MORE INFO

Plate, tenon, between windscreen and stanchion

This tenon plate fits between the TR2-3B windscreen and stanchion and allows the Sidescreen to fit firmly in to the stanchion recess.

2
Ex VAT: £37.75
Inc VAT: £45.30

AM9
552662

CLICK FOR
MORE INFO

Screw, stanchion and tenon plate to windscreen

This screw is used amongst other things to hold the windscreen stanchion to the windscreen frame on TR2-3B.

4
Ex VAT: £1.67
Inc VAT: £2.00

AM10
554720

CLICK FOR
MORE INFO

Fastener, Dzus, stanchion to guide plate

This Dzus fastener is attached to the windscreen stanchion with washer 554721 and released with spring 554722

4
Ex VAT: £10.08
Inc VAT: £12.10

AM10A
554721

CLICK FOR
MORE INFO

Washer, Dzus fastener

This cupped washer is designed to be squashed flat to retain the windscreen stanchion Dzus Fastener.

4
Ex VAT: £0.71
Inc VAT: £0.85

AM11
552819

CLICK FOR
MORE INFO

Plate assembly, stanchion guide-R.H.

This chrome plated left hand windscreen stanchion guide plate is the type that is screwed to the bodywork of TR2-3 and has two Dzus fastener springs attached to the back.

1
Ex VAT: £79.57
Inc VAT: £95.48

AM12
552818

CLICK FOR
MORE INFO

Plate assembly, stanchion guide-L.H.

This chrome plated left hand windscreen stanchion guide plate is the type that is screwed to the bodywork of TR2-3 and has two Dzus fastener springs attached to the back.

1
Ex VAT: £79.57
Inc VAT: £95.48

AM12A
554722

CLICK FOR
MORE INFO

Spring, Dzus, stanchion guide plate

25.4mm between centres. See 603079X for longer version.

4
Ex VAT: £3.48
Inc VAT: £4.18

AM12B
TK4708/P

CLICK FOR
MORE INFO

Screw, stanchion guide plate to scuttle

This item has been superceded by TK4708P - see below

6
TK4708P
SCREW STANCHION GUIDE PLATE TR2/3A

6
Ex VAT: £1.72
Inc VAT: £2.06

AM12C
562605

CLICK FOR
MORE INFO

Finisher, corner, windscreen stanchion-L.H.

1
Ex VAT: £6.00
Inc VAT: £7.20

AM12D
562606

CLICK FOR
MORE INFO

Finisher, corner, windscreen stanchion-R.H.

1
AM12E
YJ2182

CLICK FOR
MORE INFO

Screw, finisher fixing

This item has been superceded by AB604023 - see below

4
AB604023
SCREW No.4 x 1/4" PAN POZI

4
Ex VAT: £0.38
Inc VAT: £0.46

803760

CLICK FOR
MORE INFO

WINDSCREEN ASSEMBLY COMPLETE (Polished Alum Surround, Alum Stanchions and Bolt Attachments)

Remarks: Alternative to 804524 and 902005

1
561151

CLICK FOR
MORE INFO

WINDSCREEN ASSEMBLY (Less Stanchions)

1
AM1
800592

CLICK FOR
MORE INFO

Glass, windscreen

The screen we offer under this part number is, as the price suggests an economy option. Windscreens in this price range are usually optically poor and are invariably a poor fit. Revington TR recommend our high...

1
Ex VAT: £90.58
Inc VAT: £108.70

AM1A
CD31407

CLICK FOR
MORE INFO

Rubber, glazing, windscreen

CD31407 is the original rubber glazing strip for TR2-3B windscreens. Original windscreens were 6mm thick, ours in common with all others on the market we have come across are 5mm thick.

1
Ex VAT: £7.75
Inc VAT: £9.30

AM2
560670

CLICK FOR
MORE INFO

Surround, polished alum

Windscreen frame Aluminium, without glass TR2-3B. The frame consists of an upper hoop and a lower rail held together by corner brackets. We have one only new old stock.It's shop soiled but is new and unused

1
Ex VAT: £636.54
Inc VAT: £763.85

AM3
554339

CLICK FOR
MORE INFO

Rubber, sealing, windscreen surround top

1
Ex VAT: £12.67
Inc VAT: £15.20

AM4
704126

CLICK FOR
MORE INFO

Rubber, sealing, windscreen surround, btm.

1
Ex VAT: £10.00
Inc VAT: £12.00

AM5
553837

CLICK FOR
MORE INFO

Rubber, glazing, windscreen

This item has been superceded by 553827 - see below

10
553827

CLICK FOR
MORE INFO

Peg, hood fastener

The thread on these Tenax Pegs is slightly long and will damage your screen if fitted as they are. use fibre washer WF10305055.

10
Ex VAT: £1.05
Inc VAT: £1.26

AM6
560672

CLICK FOR
MORE INFO

WINDSCREEN STANCHION, R. H.

Stanchion windscreen RH. Not available use 560672SH

1
AM7
560671

CLICK FOR
MORE INFO

WINDSCREEN STANCHION, L. H.

Stanchion windscreen LH. Not available use 560671SH

1
AM8
560630

CLICK FOR
MORE INFO

Weatherstrip (Metal)

This tenon plate fits between the TR2-3B windscreen and stanchion and allows the Sidescreen to fit firmly in to the stanchion recess.

2
Ex VAT: £37.75
Inc VAT: £45.30

AM9
509377

CLICK FOR
MORE INFO

Screw, stanchion and weatherstrip to windscreen

This item has been superceded by CD31441 - see below

4
CD31441

CLICK FOR
MORE INFO

Screw, stanchion attachment

4
Ex VAT: £1.76
Inc VAT: £2.11

AM9A
561206

CLICK FOR
MORE INFO

Screw, stanchion attachment

2
AM9B
609108

CLICK FOR
MORE INFO

Bolt, stanchion to scuttle panel

Bolt TR3A windscreen to body

4
Ex VAT: £2.70
Inc VAT: £3.24

AM9C
WL0208

CLICK FOR
MORE INFO

Washer, lock, on bolt

This item has been superceded by WS105090853 - see below

4
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

4
Ex VAT: £0.15
Inc VAT: £0.18

AM9D
560678

CLICK FOR
MORE INFO

Retainer, lower, sealing rubber-R.H.

1
AM9E
560677

CLICK FOR
MORE INFO

Retainer, lower, sealing rubber-L.H.

1
AM9F
YA0303

CLICK FOR
MORE INFO

Screw, securing sealing rubber retainers

This item has been superceded by SS1060321 - see below

4
SS1060321
SCREW ST No 6x3/8" PAN POZI BZP

4
Ex VAT: £0.23
Inc VAT: £0.28

AM9G
562605

CLICK FOR
MORE INFO

Finisher,corner,windscreen stanchion-L.H.

1
Ex VAT: £6.00
Inc VAT: £7.20

AM9H
562606

CLICK FOR
MORE INFO

Finisher,corner,windscreen stanchion-R.H.

1
AM9J
YJ2182

CLICK FOR
MORE INFO

Screw, finisher fixing

This item has been superceded by AB604023 - see below

4
AB604023
SCREW No.4 x 1/4" PAN POZI

4
Ex VAT: £0.38
Inc VAT: £0.46

902005

CLICK FOR
MORE INFO

WINDSCREEN ASSEMBLY COMPLETE (Chrome Plated Surround, Chrome Stanchions and Bolt Attachments)

This item has been superceded by 902347 - see below

1
902347

CLICK FOR
MORE INFO

WINDSCREEN ASSEMBLY COMPLETE (Chrome Plated Surround and Stanchions with bolt attachments)

Remarks: Alternative to 803760 and 804524

1
Ex VAT: £562.69
Inc VAT: £675.23

552788

CLICK FOR
MORE INFO

WINDSCREEN ASSEMBLY (Less Stanchions)

1
AM1
800592

CLICK FOR
MORE INFO

Glass, windscreen

The screen we offer under this part number is, as the price suggests an economy option. Windscreens in this price range are usually optically poor and are invariably a poor fit. Revington TR recommend our high...

1
Ex VAT: £90.58
Inc VAT: £108.70

AM1A
CD31407

CLICK FOR
MORE INFO

Rubber, glazing

CD31407 is the original rubber glazing strip for TR2-3B windscreens. Original windscreens were 6mm thick, ours in common with all others on the market we have come across are 5mm thick.

1
Ex VAT: £7.75
Inc VAT: £9.30

AM2
552113

CLICK FOR
MORE INFO

Surround, chrome plated

Windscreen frame, without glass Chrome plated TR2-3B. The frame consists of an upper hoop and a lower rail held together by corner brackets.

1
AM3
554339

CLICK FOR
MORE INFO

Rubber, sealing, top

1
Ex VAT: £12.67
Inc VAT: £15.20

AM4
704126

CLICK FOR
MORE INFO

Rubber, sealing, bottom

1
Ex VAT: £10.00
Inc VAT: £12.00

AM5
553827

CLICK FOR
MORE INFO

Peg, hood fastener

The thread on these Tenax Pegs is slightly long and will damage your screen if fitted as they are. use fibre washer WF10305055.

10
Ex VAT: £1.05
Inc VAT: £1.26

AM6
560628

CLICK FOR
MORE INFO

WINDSCREEN STANCHION, R. H. (Complete with Tenon Plate)

Stanchion windscreen RH. Not available use 560628SH

1
AM7
560627

CLICK FOR
MORE INFO

WINDSCREEN STANCHION, L. H. (Complete with Tenon Plate)

Stanchion windscreen LH. Not available use 560627SH

1
AM8
560630

CLICK FOR
MORE INFO

Weatherstrip (Metal)

This tenon plate fits between the TR2-3B windscreen and stanchion and allows the Sidescreen to fit firmly in to the stanchion recess.

2
Ex VAT: £37.75
Inc VAT: £45.30

AM9
552662

CLICK FOR
MORE INFO

Screw, stanchion and weatherstrip to windscreen

This screw is used amongst other things to hold the windscreen stanchion to the windscreen frame on TR2-3B.

4
Ex VAT: £1.67
Inc VAT: £2.00

AM9A
CD31441

CLICK FOR
MORE INFO

Screw, stanchion attachment

2
Ex VAT: £1.76
Inc VAT: £2.11

AM9B
609108

CLICK FOR
MORE INFO

Bolt, stanchion to scuttle panel

Bolt TR3A windscreen to body

4
Ex VAT: £2.70
Inc VAT: £3.24

AM9C
WL0208

CLICK FOR
MORE INFO

Washer, lock, on bolt

This item has been superceded by WS105090853 - see below

4
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

4
Ex VAT: £0.15
Inc VAT: £0.18

AM9D
560678

CLICK FOR
MORE INFO

Retainer, lower, sealing rubber-R.H.

1
AM9E
560677

CLICK FOR
MORE INFO

Retainer, lower, sealing rubber-L.H.

1
AM9F
YA0303

CLICK FOR
MORE INFO

Screw, securing sealing rubber retainers

This item has been superceded by SS1060321 - see below

4
SS1060321
SCREW ST No 6x3/8" PAN POZI BZP

4
Ex VAT: £0.23
Inc VAT: £0.28

AM9G
562605

CLICK FOR
MORE INFO

Finisher, corner, windscreen stanchion-L.H.

1
Ex VAT: £6.00
Inc VAT: £7.20

AM9H
562606

CLICK FOR
MORE INFO

Finisher, corner, windscreen stanchion-R.H.

1
AM9J
YJ2182

CLICK FOR
MORE INFO

Screw, finisher fixing

This item has been superceded by AB604023 - see below

4
AB604023
SCREW No.4 x 1/4" PAN POZI

4
Ex VAT: £0.38
Inc VAT: £0.46

AM1AA
804524

CLICK FOR
MORE INFO

WINDSCREEN ASSEMBLY COMPLETE (Polished Alum Surround, Chrome Stanchions and Bolt Attachments)

Remarks: Alternative to 803760 and 902005

1
AM1AB
561151

CLICK FOR
MORE INFO

WINDSCREEN FRAME ASSEMBLY (Less Stanchions)

1
AM1
800592

CLICK FOR
MORE INFO

Glass, windscreen

The screen we offer under this part number is, as the price suggests an economy option. Windscreens in this price range are usually optically poor and are invariably a poor fit. Revington TR recommend our high...

1
Ex VAT: £90.58
Inc VAT: £108.70

AM1A
CD31407

CLICK FOR
MORE INFO

Rubber, glazing

CD31407 is the original rubber glazing strip for TR2-3B windscreens. Original windscreens were 6mm thick, ours in common with all others on the market we have come across are 5mm thick.

1
Ex VAT: £7.75
Inc VAT: £9.30

AM2
560670

CLICK FOR
MORE INFO

Frame, windscreen

Windscreen frame Aluminium, without glass TR2-3B. The frame consists of an upper hoop and a lower rail held together by corner brackets. We have one only new old stock.It's shop soiled but is new and unused

1
Ex VAT: £636.54
Inc VAT: £763.85

AM3
554339

CLICK FOR
MORE INFO

Rubber, sealing, top

1
Ex VAT: £12.67
Inc VAT: £15.20

AM4
704126

CLICK FOR
MORE INFO

Rubber, sealing, bottom

1
Ex VAT: £10.00
Inc VAT: £12.00

AM5
055387
Peg, hood fastener

10
AM6
560628

CLICK FOR
MORE INFO

WINDSCREEN STANCHION, R. H. (Complete with Tenon Plate)

Stanchion windscreen RH. Not available use 560628SH

1
AM7
560627

CLICK FOR
MORE INFO

WINDSCREEN STANCHION, L. H. (Complete with Tenon Plate)

Stanchion windscreen LH. Not available use 560627SH

1
AM8
560630

CLICK FOR
MORE INFO

Weatherstrip

This tenon plate fits between the TR2-3B windscreen and stanchion and allows the Sidescreen to fit firmly in to the stanchion recess.

2
Ex VAT: £37.75
Inc VAT: £45.30

AM8A
561206

CLICK FOR
MORE INFO

Screw, stanchion to frame

2
AM9
509377

CLICK FOR
MORE INFO

Screw, stanchion to frame

This item has been superceded by CD31441 - see below

4
CD31441

CLICK FOR
MORE INFO

Screw, stanchion attachment

4
Ex VAT: £1.76
Inc VAT: £2.11

AM9A
609108

CLICK FOR
MORE INFO

Bolt, stanchion to scuttle panel

Bolt TR3A windscreen to body

4
Ex VAT: £2.70
Inc VAT: £3.24

AM9B
WL0208

CLICK FOR
MORE INFO

Washer, lock, on bolt

This item has been superceded by WS105090853 - see below

4
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

4
Ex VAT: £0.15
Inc VAT: £0.18

AM9C
560678

CLICK FOR
MORE INFO

Bracket, bottom rubber retaining-R.H.

1
AM9D
560677

CLICK FOR
MORE INFO

Bracket, bottom rubber retaining-L.H.

1
AM9E
YA0303

CLICK FOR
MORE INFO

Screw, S/T, brackets to stanchions

This item has been superceded by SS1060321 - see below

4
SS1060321
SCREW ST No 6x3/8" PAN POZI BZP

4
Ex VAT: £0.23
Inc VAT: £0.28

AM9F
562605

CLICK FOR
MORE INFO

Finisher, corner, windscreen stanchion-L.H.

1
Ex VAT: £6.00
Inc VAT: £7.20

AM9G
562606

CLICK FOR
MORE INFO

Finisher, corner, windscreen stanchion-R.H.

1
AM9H
YJ2182

CLICK FOR
MORE INFO

Screw, finisher fixing

This item has been superceded by AB604023 - see below

4
AB604023
SCREW No.4 x 1/4" PAN POZI

4
Ex VAT: £0.38
Inc VAT: £0.46

AM9J
902347

CLICK FOR
MORE INFO

WINDSCREEN ASSEMBLY COMPLETE (Chrome Plated Surround and Stanchions with bolt attachments)

Remarks: From Comm. No. TS_______

1
Ex VAT: £562.69
Inc VAT: £675.23

AM9K
552788

CLICK FOR
MORE INFO

WINDSCREEN ASSEMBLY (Less Stanchions)

Remarks: From Comm. No. TS_______

1
AM1
800592

CLICK FOR
MORE INFO

Glass, windscreen

The screen we offer under this part number is, as the price suggests an economy option. Windscreens in this price range are usually optically poor and are invariably a poor fit. Revington TR recommend our high...
Remarks: From Comm. No. TS_______

1
Ex VAT: £90.58
Inc VAT: £108.70

AM1A
CD31407

CLICK FOR
MORE INFO

Rubber, glazing

CD31407 is the original rubber glazing strip for TR2-3B windscreens. Original windscreens were 6mm thick, ours in common with all others on the market we have come across are 5mm thick.
Remarks: From Comm. No. TS_______

1
Ex VAT: £7.75
Inc VAT: £9.30

AM2
552113

CLICK FOR
MORE INFO

Frame, windscreen

Windscreen frame, without glass Chrome plated TR2-3B. The frame consists of an upper hoop and a lower rail held together by corner brackets.
Remarks: From Comm. No. TS_______

1
AM3
554339

CLICK FOR
MORE INFO

Rubber, sealing, top

Remarks: From Comm. No. TS_______

1
Ex VAT: £12.67
Inc VAT: £15.20

AM4
704126

CLICK FOR
MORE INFO

Rubber, sealing, bottom

Remarks: From Comm. No. TS_______

1
Ex VAT: £10.00
Inc VAT: £12.00

AM5
553827

CLICK FOR
MORE INFO

Peg, hood fastener

The thread on these Tenax Pegs is slightly long and will damage your screen if fitted as they are. use fibre washer WF10305055.
Remarks: From Comm. No. TS_______

10
Ex VAT: £1.05
Inc VAT: £1.26

AM6
804512

CLICK FOR
MORE INFO

WINDSCREEN STANCHION, R. H.

Stanchion windscreen RH. When not available use 804512SH
Remarks: From Comm. No. TS__________

1
Ex VAT: £128.40
Inc VAT: £154.08

AM7
804511

CLICK FOR
MORE INFO

WINDSCREEN STANCHION, L. H.

Stanchion windscreen LH. When not available use 804511SH
Remarks: From Comm. No. TS__________

1
Ex VAT: £128.40
Inc VAT: £154.08

AM8
560630

CLICK FOR
MORE INFO

Weatherstrip

This tenon plate fits between the TR2-3B windscreen and stanchion and allows the Sidescreen to fit firmly in to the stanchion recess.
Remarks: From Comm. No. TS__________

2
Ex VAT: £37.75
Inc VAT: £45.30

AM8A
CD31441

CLICK FOR
MORE INFO

Screw, stanchion to frame

Remarks: From Comm. No. TS__________

2
Ex VAT: £1.76
Inc VAT: £2.11

AM9
552662

CLICK FOR
MORE INFO

Screw, stanchion to frame

This screw is used amongst other things to hold the windscreen stanchion to the windscreen frame on TR2-3B.
Remarks: From Comm. No. TS__________

4
Ex VAT: £1.67
Inc VAT: £2.00

AM9A
609108

CLICK FOR
MORE INFO

Bolt, stanchion to scuttle panel

Bolt TR3A windscreen to body
Remarks: From Comm. No. TS__________

4
Ex VAT: £2.70
Inc VAT: £3.24

AM9B
WL0208

CLICK FOR
MORE INFO

Washer, lock, on bolt

This item has been superceded by WS105090853 - see below

4
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

Remarks: From Comm. No. TS__________

4
Ex VAT: £0.15
Inc VAT: £0.18

AM9C
560678

CLICK FOR
MORE INFO

Bracket, bottom rubber retaining-R.H.

Remarks: From Comm. No. TS__________

1
AM9D
560677

CLICK FOR
MORE INFO

Bracket, bottom rubber retaining-L.H.

Remarks: From Comm. No. TS__________

1
AM9E
YA0303

CLICK FOR
MORE INFO

Screw, S,/T, brackets to stanchions

This item has been superceded by SS1060321 - see below

4
SS1060321
SCREW ST No 6x3/8" PAN POZI BZP

Remarks: From Comm. No. TS__________

4
Ex VAT: £0.23
Inc VAT: £0.28

AM9F
562605

CLICK FOR
MORE INFO

Finisher, corner, windscreen stanchion-L.H.

Remarks: From Comm. No. TS__________

1
Ex VAT: £6.00
Inc VAT: £7.20

AM9G
562606

CLICK FOR
MORE INFO

Finisher, corner, windscreen stanchion-R.H.

Remarks: From Comm. No. TS__________

1
AM9H
YJ2182

CLICK FOR
MORE INFO

Screw, finisher fixing

This item has been superceded by AB604023 - see below

4
AB604023
SCREW No.4 x 1/4" PAN POZI

Remarks: From Comm. No. TS__________

4
Ex VAT: £0.38
Inc VAT: £0.46

AM13
602229

CLICK FOR
MORE INFO

WINDSCREEN CENTRE SUPPORT BRACKET

Windscreen support. This support is attached to the body with the rear view mirror which does not appear on the same plate (AM) in the original catalogue.

1
Ex VAT: £9.50
Inc VAT: £11.40

AM14
602246

CLICK FOR
MORE INFO

Buffer, fitted in bracket

1
Ex VAT: £6.56
Inc VAT: £7.87

AM14A
602076
Plate, mounting

Remarks: From Comm. No. TS1 to Comm. No. TS32833 approx.

2
AM14B
HN2007

CLICK FOR
MORE INFO

Nut, mounting plate to scuttle rim member

This item has been superceded by NP604071 - see below

4
NP604071
NUT PLAIN 1/4 UNF X 7/32

Remarks: From Comm. No. TS1 to Comm. No. TS32833 approx.

4
Ex VAT: £0.13
Inc VAT: £0.16

AM14C
WQ0307

CLICK FOR
MORE INFO

Washer, spring, under nut

This item has been superceded by WS104070643 - see below

4
WS104070643
WASHER SPRING 1/4" RECT SECTION

Remarks: From Comm. No. TS1 to Comm. No. TS32833 approx.

4
Ex VAT: £0.13
Inc VAT: £0.16

AM14D
WP0023

CLICK FOR
MORE INFO

Washer, plain, under nut

This item has been superceded by WP10408035 - see below

4
WP10408035
WASHER 1/4 X 1/2 X 0.035"

Remarks: From Comm. No. TS1 to Comm. No. TS32833 approx.

4
Ex VAT: £0.34
Inc VAT: £0.41

AM15
602078

CLICK FOR
MORE INFO

Bolt, screen mounting

This chrome dome headed screw is a special as it has a 7/16"AF head rather than 1/2"AF which would be normal for a 5/16"UNF thread. Its primary use is TR2-3 aeroscreen attachment.
Remarks: From Comm. No. TS1 to Comm. No. TS32833 approx.

4
Ex VAT: £9.08
Inc VAT: £10.90

AM16
602077

CLICK FOR
MORE INFO

Washer, on bolt

This item has been superceded by WA108052 - see below

4
WA108052
WASHER 5/16" CHROME

Remarks: From Comm. No. TS1 to Comm. No. TS32833 approx.

4
Ex VAT: £0.72
Inc VAT: £0.86

AM17
552817/BBY
Blackberry

Remarks: From Comm. No. TS1 to Comm. No. TS22013

1
AM17A
552817/BRN
Brown

Remarks: From Comm. No. TS1 to Comm. No. TS22013

1
AM17B
552817/BLU
Blue

Remarks: From Comm. No. TS1 to Comm. No. TS22013

1
AM17C
552817/BLK
Black

Remarks: From Comm. No. TS1 to Comm. No. TS22013

1
AM17D
552817/RED
Red

Remarks: From Comm. No. TS1 to Comm. No. TS22013

1
AM17E
552817/GER
Geranium

Remarks: From Comm. No. TS1 to Comm. No. TS22013

1
AM17F
552817/GRY
Grey

Remarks: From Comm. No. TS1 to Comm. No. TS22013

1
AM17G
552817/STN
Stone

Remarks: From Comm. No. TS1 to Comm. No. TS22013

1
AM17H
900490

CLICK FOR
MORE INFO

Base unit, roll trim

This item has been superceded by 802881FG - see below

1
802881FG

CLICK FOR
MORE INFO

CAPPING FIBREGLASS

No Longer Available. Consider second had part 802881SH
Remarks: From Comm. No. TS1 to Comm. No. TS22013

1
AM17J
556803

CLICK FOR
MORE INFO

Red

Remarks: From Comm. No. TS22014 Vynide trim

1
AM17K
556804

CLICK FOR
MORE INFO

Blue

Remarks: From Comm. No. TS22014 Vynide trim

1
AM17L
556805

CLICK FOR
MORE INFO

Black

Remarks: From Comm. No. TS22014 Vynide trim

1
AM17M
556806

CLICK FOR
MORE INFO

Beige

Remarks: From Comm. No. TS22014 Vynide trim

1
AM17N
556807

CLICK FOR
MORE INFO

Grey

Remarks: From Comm. No. TS22014 Vynide trim

1
AM17O
556808

CLICK FOR
MORE INFO

Brown

Remarks: From Comm. No. TS22014 Vynide trim

1
AM17P
559322

CLICK FOR
MORE INFO

Sliverstone Grey

Remarks: From Comm. No. TS______ Vynide trim

1
AM17Q
559323

CLICK FOR
MORE INFO

Targo Purple

Remarks: From Comm. No. TS______ Vynide trim

1
AM17R
556809

CLICK FOR
MORE INFO

Red

Remarks: From Comm. No. TS22014 Leather trim

1
AM17S
556810

CLICK FOR
MORE INFO

Blue

Remarks: From Comm. No. TS22014 Leather trim

1
AM17T
556811

CLICK FOR
MORE INFO

Black

Remarks: From Comm. No. TS22014 Leather trim

1
AM17U
556812

CLICK FOR
MORE INFO

Beige

Remarks: From Comm. No. TS22014 Leather trim

1
AM17V
556813

CLICK FOR
MORE INFO

Grey

Remarks: From Comm. No. TS22014 Leather trim

1
AM17W
556814

CLICK FOR
MORE INFO

Brown

Remarks: From Comm. No. TS22014 Leather trim

1
AM17X
559324

CLICK FOR
MORE INFO

Silverstone Grey

Remarks: From Comm. No. TS_____ Leather trim

1
AM17Y
559325

CLICK FOR
MORE INFO

Targo Purple

Remarks: From Comm. No. TS_____ Leather trim

1
AM17Z
802553

CLICK FOR
MORE INFO

Base unit, scuttle edge roll trim

This item has been superceded by 802881FG - see below

1
802881FG

CLICK FOR
MORE INFO

CAPPING FIBREGLASS

No Longer Available. Consider second had part 802881SH
Remarks: From Comm. No. TS22014

1
AM17AA
802881

CLICK FOR
MORE INFO

Base unit, scuttle edge roll trim

Remarks: From Comm. No. TS32834 approx.

1
Ex VAT: £72.88
Inc VAT: £87.46

AM17AB
SP89H2/CP

CLICK FOR
MORE INFO

Screw, roll trim assembly attachment

Remarks: From Comm. No. TS1

5
AM17AC
506635

CLICK FOR
MORE INFO

Screw, roll trim assembly attachment

Remarks: From Comm. No. TS32834 approx.

5
AM17AD
SP132B/CP

CLICK FOR
MORE INFO

Washer, cup, on screw

This item has been superceded by SP132BCP - see below

5
SP132BCP
CUP WASHER No 4

CUP WASHER No 4

5
Ex VAT: £0.33
Inc VAT: £0.40
