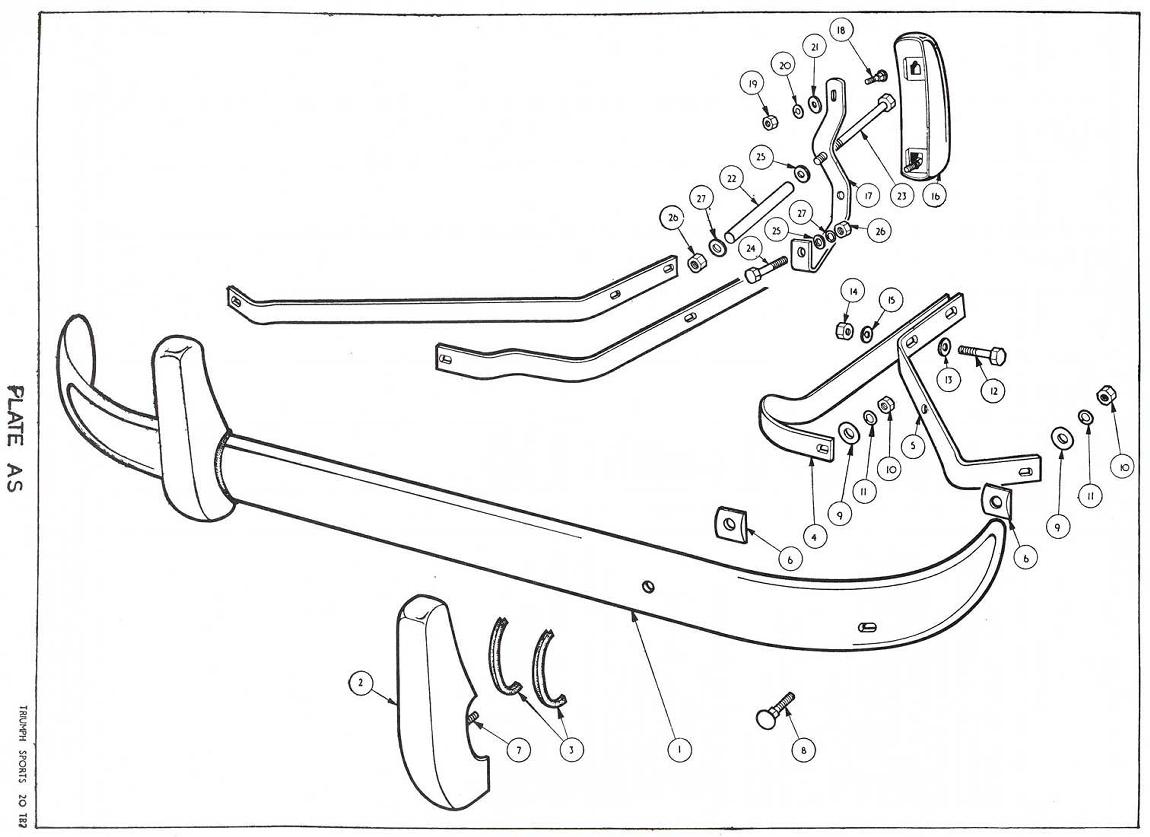

TR3 Plate AS - BODY AND FITTINGS: FRONT BUMPER AND REAR OVERRIDERS, MISCELLANEOUS BODY DETAILS.

Also in this listing

Wing Beads

Also in this listing

Wing Beads
  Plate No. Part No. Description and Comments No Per Unit Price Add to Cart
AS1AA
900443

CLICK FOR
MORE INFO

FRONT BUMPER TR2

This front bumper assembly for TR2-3 up to commission number TS22013 comprised the bumper bar and the overriders supplied as an assembly. Please order the separate parts as the assembly is no longer available.
Remarks: From Comm. No. TS1 to Comm. No. TS22013 See AS15A fro TR3A

1
AS1
800561

CLICK FOR
MORE INFO

Bar

A stainless steel bumper front and back set is also available. See RTR7284-AK below
Remarks: From Comm. No. TS1 to Comm. No. TS22013

1
Ex VAT: £326.67
Inc VAT: £392.00
Quantity

AS2
700911

CLICK FOR
MORE INFO

Over-rider assembly

Remarks: From Comm. No. TS1 to Comm. No. TS22013

2
Ex VAT: £43.56
Inc VAT: £52.27
Quantity

AS3
552218

CLICK FOR
MORE INFO

Moulding, between over-rider and bar

Remarks: From Comm. No. TS1 to Comm. No. TS22013

4
Ex VAT: £0.40
Inc VAT: £0.48
Quantity

AS4
700908

CLICK FOR
MORE INFO

Spring, support, inner-R.H.

Remarks: From Comm. No. TS1 to Comm. No. TS22013

1
Ex VAT: £21.25
Inc VAT: £25.50
Quantity

AS4A
700907

CLICK FOR
MORE INFO

Spring, support, inner-L.H.

Remarks: From Comm. No. TS1 to Comm. No. TS22013

1
Ex VAT: £21.25
Inc VAT: £25.50
Quantity

AS5
800560

CLICK FOR
MORE INFO

Spring, support, outer-R.H.

Remarks: From Comm. No. TS1 to Comm. No. TS22013

1
Ex VAT: £23.67
Inc VAT: £28.40
Quantity

AS5A
800559

CLICK FOR
MORE INFO

Spring, support, outer-L.H.

Remarks: From Comm. No. TS1 to Comm. No. TS22013

1
Ex VAT: £23.67
Inc VAT: £28.40
Quantity

AS6
601681

CLICK FOR
MORE INFO

Packing, between support spring and bar

Remarks: From Comm. No. TS1 to Comm. No. TS22013

4
Ex VAT: £1.79
Inc VAT: £2.15
Quantity

AS7
552874

CLICK FOR
MORE INFO

Bolt, inner support spring and over-rider to bar

This item has been superceded by 554700K - see below

2
554700K
BUMPER BOLT CHROME, WASHER & NUT SET

This bumper bolt has a domed head and is designed to fit into a slotted bumper hole to prevent it rotating. Under this part number is it supplied with the spring washer and 3/8UNF plain nut.
Remarks: From Comm. No. TS1 to Comm. No. TS22013

2
Ex VAT: £1.32
Inc VAT: £1.58
Quantity

AS8
552873

CLICK FOR
MORE INFO

Bolt, outer support spring to bar

This item has been superceded by 554700K - see below

2
554700K
BUMPER BOLT CHROME, WASHER & NUT SET

This bumper bolt has a domed head and is designed to fit into a slotted bumper hole to prevent it rotating. Under this part number is it supplied with the spring washer and 3/8UNF plain nut.
Remarks: From Comm. No. TS1 to Comm. No. TS22013

2
Ex VAT: £1.32
Inc VAT: £1.58
Quantity

AS9
552871
Washer, plain, on bolts

Remarks: From Comm. No. TS1 to Comm. No. TS22013

4
AS10
550092

CLICK FOR
MORE INFO

Nut, locking bolt

This item has been superceded by NP606111 - see below

4
NP606111
NUT PLAIN 3/8 UNF X 11/32" (STD)

Remarks: From Comm. No. TS1 to Comm. No. TS22013

4
Ex VAT: £0.08
Inc VAT: £0.10
Quantity

AS11
552870
Washer, spring, under nut

Remarks: From Comm. No. TS1 to Comm. No. TS22013

4
AS12
HB0929
Bolt, front bumper assembly to chassis frame

Remarks: From Comm. No. TS1 to Comm. No. TS22013

4
AS13
WM0075

CLICK FOR
MORE INFO

Washer, plain, on bolt

This item has been superceded by WP10614075 - see below

4
WP10614075
WASHER PLAIN 3/8 ID X 7/8 OD X 0.075" TAB4

Remarks: From Comm. No. TS1 to Comm. No. TS22013

4
Ex VAT: £0.19
Inc VAT: £0.23
Quantity

AS14
HN2009

CLICK FOR
MORE INFO

Nut, locking bolt

This item has been superceded by NP606111 - see below

4
NP606111
NUT PLAIN 3/8 UNF X 11/32" (STD)

Remarks: From Comm. No. TS1 to Comm. No. TS22013

4
Ex VAT: £0.08
Inc VAT: £0.10
Quantity

AS15
WL0209

CLICK FOR
MORE INFO

Washer, spring, under nut

This item has been superceded by WS106111243 - see below

4
WS106111243
WASHER SPRING 3/8" RECT SECTION

Remarks: From Comm. No. TS1 to Comm. No. TS22013

4
Ex VAT: £0.15
Inc VAT: £0.18
Quantity

AS15A
802310

CLICK FOR
MORE INFO

FRONT BUMPER ASSEMBLY TR3A

This front bumper assembly for TR3A from commission number TS22013 comprised the bumper bar and the overriders supplied as an assembly. Please order the separate parts as the assembly is no longer available.
Remarks: From Comm. No. TS22014

1
AS15B
802259

CLICK FOR
MORE INFO

Bar

A stainless steel bumper front and back set is also available. See RTR7284-BK below
Remarks: From Comm. No. TS22014

1
Ex VAT: £326.67
Inc VAT: £392.00
Quantity

AS15C
703047

CLICK FOR
MORE INFO

Over-rider assembly

Remarks: From Comm. No. TS22014

2
Ex VAT: £52.82
Inc VAT: £63.38
Quantity

AS15D
606500

CLICK FOR
MORE INFO

Spring, support

This part known as 'Spring Support' goes between the front apron and the bumper bar. Consider original second hand part number 606500SH or second hand powder coated part 606500SHPC
Remarks: From Comm. No. TS22014

2
Ex VAT: £7.75
Inc VAT: £9.30
Quantity

AS15E
605812

CLICK FOR
MORE INFO

Piece, packing

This item has been superceded by 607085 - see below

4
607085

CLICK FOR
MORE INFO

BUMPER SPACER TR2-5

Remarks: From Comm. No. TS22014

4
Ex VAT: £1.55
Inc VAT: £1.86
Quantity

AS15F
WQ0309

CLICK FOR
MORE INFO

Washer, lock, support spring to bumper

This item has been superceded by WS106111243 - see below

4
WS106111243
WASHER SPRING 3/8" RECT SECTION

Remarks: From Comm. No. TS22014

4
Ex VAT: £0.15
Inc VAT: £0.18
Quantity

AS15G
WP0130

CLICK FOR
MORE INFO

Washer, plain, support spring to bumper

This item has been superceded by WP10613050 - see below

4
WP10613050
WASHER PLAIN 3/8 X 13/16 INCH

Remarks: From Comm. No. TS22014

4
Ex VAT: £0.38
Inc VAT: £0.46
Quantity

AS15H
550090

CLICK FOR
MORE INFO

Bolt, support spring to bumper

This item has been superceded by 554700K - see below

2
554700K
BUMPER BOLT CHROME, WASHER & NUT SET

This bumper bolt has a domed head and is designed to fit into a slotted bumper hole to prevent it rotating. Under this part number is it supplied with the spring washer and 3/8UNF plain nut.
Remarks: From Comm. No. TS22014

2
Ex VAT: £1.32
Inc VAT: £1.58
Quantity

AS15J
550092

CLICK FOR
MORE INFO

Nut, on bolt

This item has been superceded by NP606111 - see below

2
NP606111
NUT PLAIN 3/8 UNF X 11/32" (STD)

Remarks: From Comm. No. TS22014

2
Ex VAT: £0.08
Inc VAT: £0.10
Quantity

AS15K
HB0912

CLICK FOR
MORE INFO

Bolt, support spring to bumper

This item has been superceded by SH606081 - see below

2
SH606081
SCREW 3/8 UNF X 1 INCH

Remarks: From Comm. No. TS22014

2
Ex VAT: £0.33
Inc VAT: £0.40
Quantity

AS15L
606450

CLICK FOR
MORE INFO

Tube, support, and weld bolt assembly-R.H. Wheelarch to over-rider

Consider second hand part 606450SH
Remarks: From Comm. No. TS22014

1
Ex VAT: £7.33
Inc VAT: £8.80
Quantity

AS15M
606449

CLICK FOR
MORE INFO

Tube, support, and weld bolt assembly-L.H. Wheelarch to over-rider

Consider second hand part 606449SH
Remarks: From Comm. No. TS22014

1
Ex VAT: £7.33
Inc VAT: £8.80
Quantity

AS15N
WP0139

CLICK FOR
MORE INFO

Washer, plain, support tube to front wing valance

Remarks: From Comm. No. TS22014

2
Ex VAT: £0.42
Inc VAT: £0.50
Quantity

AS15O
WL0222

CLICK FOR
MORE INFO

Washer, lock, support tube to front wing valance

This item has been superceded by WS105090853 - see below

2
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

Remarks: From Comm. No. TS22014

2
Ex VAT: £0.15
Inc VAT: £0.18
Quantity

AS15P
HN2008

CLICK FOR
MORE INFO

Nut, supporting tube to front wing valance

This item has been superceded by NP605081 - see below

2
NP605081
NUT PLAIN 5/16 UNF

Remarks: From Comm. No. TS22014

2
Ex VAT: £0.11
Inc VAT: £0.13
Quantity

AS15Q
WP0151

CLICK FOR
MORE INFO

Washer, plain, support tube to over-rider

This item has been superceded by WP10610057 - see below

2
WP10610057
WASHER PLAIN 3/8 X 5/8 X 0.057"

Remarks: From Comm. No. TS22014

2
Ex VAT: £0.36
Inc VAT: £0.43
Quantity

AS15R
WQ0309

CLICK FOR
MORE INFO

Washer, lock, support tube to over-rider

This item has been superceded by WS106111243 - see below

2
WS106111243
WASHER SPRING 3/8" RECT SECTION

Remarks: From Comm. No. TS22014

2
Ex VAT: £0.15
Inc VAT: £0.18
Quantity

AS15S
HU0908

CLICK FOR
MORE INFO

Bolt, support tube to over-rider

This item has been superceded by SH606081 - see below

2
SH606081
SCREW 3/8 UNF X 1 INCH

Remarks: From Comm. No. TS22014

2
Ex VAT: £0.33
Inc VAT: £0.40
Quantity

AS15T
606516

CLICK FOR
MORE INFO

Bracket assembly, bumper support-R.H.

This bumper iron is bolted to the right hand side of the chassis and supports the front bumper via the front apron and the bumper spring.
Remarks: From Comm. No. TS22014

1
AS15U
606515

CLICK FOR
MORE INFO

Bracket assembly, bumper support-L.H.

This bumper iron is bolted to the left hand side of the chassis and supports the front bumper via the front apron and the bumper spring.
Remarks: From Comm. No. TS22014

1
AS15V
HB0910

CLICK FOR
MORE INFO

Bolt, brackets to support springs

This item has been superceded by SH606101 - see below

2
SH606101
SCREW 3/8 UNF X 1-1/4 INCH

Remarks: From Comm. No. TS22014

2
Ex VAT: £0.36
Inc VAT: £0.43
Quantity

AS15W
WQ0309

CLICK FOR
MORE INFO

Washer, lock, brackets to support springs

This item has been superceded by WS106111243 - see below

2
WS106111243
WASHER SPRING 3/8" RECT SECTION

Remarks: From Comm. No. TS22014

2
Ex VAT: £0.15
Inc VAT: £0.18
Quantity

AS15X
WP0009

CLICK FOR
MORE INFO

Washer, plain, brackets to support springs

This item has been superceded by WP10613050 - see below

2
WP10613050
WASHER PLAIN 3/8 X 13/16 INCH

Remarks: From Comm. No. TS22014

2
Ex VAT: £0.38
Inc VAT: £0.46
Quantity

AS15Y
118444

CLICK FOR
MORE INFO

Bracket, stiffening, trunnion to bumper bolt

Remarks: From Comm. No. TS22014

1
AS15Z
118445

CLICK FOR
MORE INFO

Tube, distance, trunnion to bumper bolt

Remarks: From Comm. No. TS22014

1
AS15AA
HB0937

CLICK FOR
MORE INFO

Bolt, support bracket, distance tube and stiffening bracket to chassis

This item has been superceded by BH606401 - see below

1
BH606401
BOLT 3/8 UNF X 5 INCH

Remarks: From Comm. No. TS22014

1
Ex VAT: £1.76
Inc VAT: £2.11
Quantity

AS15AB
WL0209

CLICK FOR
MORE INFO

Washer, lock, on bolt

This item has been superceded by WS106111243 - see below

1
WS106111243
WASHER SPRING 3/8" RECT SECTION

Remarks: From Comm. No. TS22014

1
Ex VAT: £0.15
Inc VAT: £0.18
Quantity

AS15AC
HN2009

CLICK FOR
MORE INFO

Nut, on bolt

This item has been superceded by NP606111 - see below

1
NP606111
NUT PLAIN 3/8 UNF X 11/32" (STD)

Remarks: From Comm. No. TS22014

1
Ex VAT: £0.08
Inc VAT: £0.10
Quantity

AS15AD
HB0926

CLICK FOR
MORE INFO

Bolt, support bracket to chassis

This item has been superceded by BH606261 - see below

3
BH606261
BOLT 3/8 UNF X 3-1/4 INCH

Remarks: From Comm. No. TS22014

3
Ex VAT: £0.92
Inc VAT: £1.10
Quantity

AS15AE
WM0075

CLICK FOR
MORE INFO

Washer, plain, medium, on bolt

This item has been superceded by WP10614075 - see below

3
WP10614075
WASHER PLAIN 3/8 ID X 7/8 OD X 0.075" TAB4

Remarks: From Comm. No. TS22014

3
Ex VAT: £0.19
Inc VAT: £0.23
Quantity

AS15AF
WL0209

CLICK FOR
MORE INFO

Washer, lock, on bolt

This item has been superceded by WS106111243 - see below

3
WS106111243
WASHER SPRING 3/8" RECT SECTION

Remarks: From Comm. No. TS22014

3
Ex VAT: £0.15
Inc VAT: £0.18
Quantity

AS15AG
HN2009

CLICK FOR
MORE INFO

Nut, on bolt

This item has been superceded by NP606111 - see below

3
NP606111
NUT PLAIN 3/8 UNF X 11/32" (STD)

Remarks: From Comm. No. TS22014

3
Ex VAT: £0.08
Inc VAT: £0.10
Quantity

AS15AH
700856
REAR BUMPER ASSEMBLY

2
AS16
700913

CLICK FOR
MORE INFO

Over-rider assembly

2
Ex VAT: £33.17
Inc VAT: £39.80
Quantity

AS17
700912

CLICK FOR
MORE INFO

Spring, support

Consider original second hand part number 700912SH.

2
Ex VAT: £9.00
Inc VAT: £10.80
Quantity

AS18
550797

CLICK FOR
MORE INFO

Bolt, support spring to over-rider

4
AS19
550092

CLICK FOR
MORE INFO

Nut, locking bolt

This item has been superceded by NP606111 - see below

4
NP606111
NUT PLAIN 3/8 UNF X 11/32" (STD)

4
Ex VAT: £0.08
Inc VAT: £0.10
Quantity

AS20
WQ0309

CLICK FOR
MORE INFO

Washer, spring, under nut

This item has been superceded by WS106111243 - see below

4
WS106111243
WASHER SPRING 3/8" RECT SECTION

4
Ex VAT: £0.15
Inc VAT: £0.18
Quantity

AS21
WP0009

CLICK FOR
MORE INFO

Washer, plain, on bolts

This item has been superceded by WP10613050 - see below

4
WP10613050
WASHER PLAIN 3/8 X 13/16 INCH

4
Ex VAT: £0.38
Inc VAT: £0.46
Quantity

AS22
602001

CLICK FOR
MORE INFO

Tube, distance, fitted In rear body panel

Tube TR2-3B Rear overrider support. Used with bolt HB606441. This arrangement is rarely used these days as it is almost impossible to remove after a short time in service as the bolt and tube corrode together.

2
AS23
HB0942

CLICK FOR
MORE INFO

Bolt, support spring to chassis frame upper attachment

This item has been superceded by BH606441 - see below

2
BH606441
BOLT 3/8 UNF X 5-1/2 INCH

2
Ex VAT: £3.00
Inc VAT: £3.60
Quantity

AS24
HU0907

CLICK FOR
MORE INFO

Screw, set, support spring to chassis frame lower attachment

This item has been superceded by SH606081 - see below

2
SH606081
SCREW 3/8 UNF X 1 INCH

2
Ex VAT: £0.33
Inc VAT: £0.40
Quantity

AS25
WP0009

CLICK FOR
MORE INFO

Washer, plain, on bolt and screw

This item has been superceded by WP10613050 - see below

6
WP10613050
WASHER PLAIN 3/8 X 13/16 INCH

6
Ex VAT: £0.38
Inc VAT: £0.46
Quantity

AS26
HN2009

CLICK FOR
MORE INFO

Nut, locking bolt and screw

This item has been superceded by NP606111 - see below

4
NP606111
NUT PLAIN 3/8 UNF X 11/32" (STD)

4
Ex VAT: £0.08
Inc VAT: £0.10
Quantity

AS27
WL0209

CLICK FOR
MORE INFO

Washer, spring, under nut

This item has been superceded by WS106111243 - see below


WS106111243
WASHER SPRING 3/8" RECT SECTION

Ex VAT: £0.15
Inc VAT: £0.18
Quantity

MISCELLANEOUS BODY FITTINGS


AS28
CD27769

CLICK FOR
MORE INFO

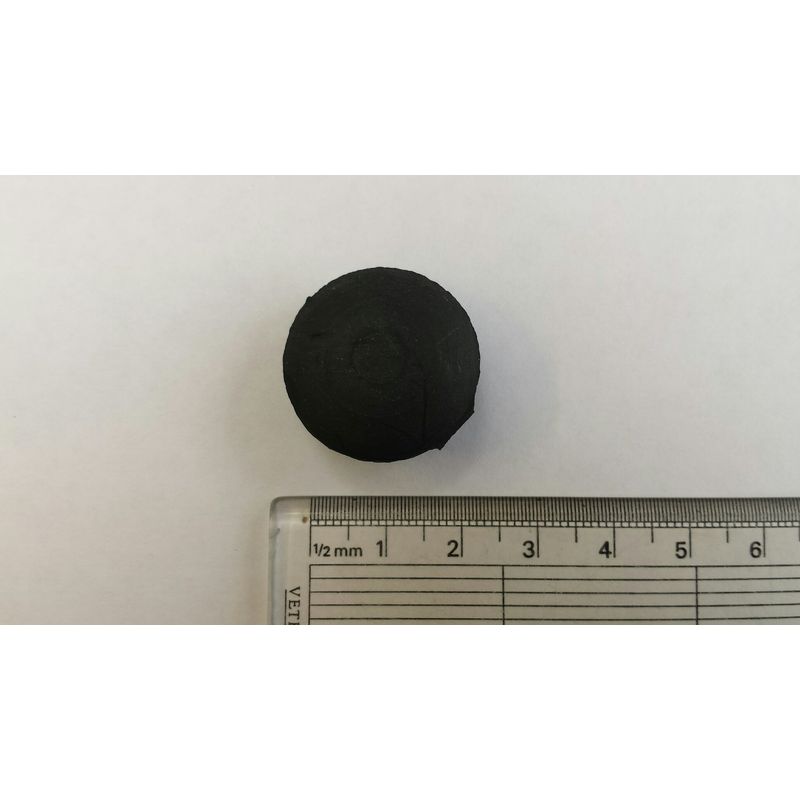

Plug, rubber, heater hole

Remarks: Not required when heater is fitted

1
Ex VAT: £1.42
Inc VAT: £1.70
Quantity

AS29
601948

CLICK FOR
MORE INFO

Plate, blanking, heater holes

Remarks: Not required when heater is fitted

2
Ex VAT: £4.92
Inc VAT: £5.90
Quantity

AS30
601952

CLICK FOR
MORE INFO

Pad, sealing, blanking plate

Remarks: Not required when heater is fitted

2
AS31
YA0564

CLICK FOR
MORE INFO

Screw, pad and plate attachment

This item has been superceded by SS1100451 - see below

4
SS1100451
SCREW ST No10 X 1/2" CKS-RAISED-SLOT-BZP

Remarks: Not required when heater is fitted

4
AS32
FU2585

CLICK FOR
MORE INFO

Nut, spire, locking screw

note: - Some suppliers refer to this 'U' section spire nut as number 8 but it is in fact number 10 according to the original Simmons catalogue
Remarks: Not required when heater is fitted

4
Ex VAT: £0.42
Inc VAT: £0.50
Quantity

AS33
600400

CLICK FOR
MORE INFO

Plug, rubber, bulkhead end panels

2
Ex VAT: £1.80
Inc VAT: £2.16
Quantity

AS34
600399

CLICK FOR
MORE INFO

Plug, speedometer cable

Remarks: Not required for L.H.S. when dual speed windscreen wiper is fitted

1
Ex VAT: £1.26
Inc VAT: £1.51
Quantity

AS35
600399

CLICK FOR
MORE INFO

Plug, overdrive cable hole

Remarks: Not required when overdrive is fitted

1
Ex VAT: £1.26
Inc VAT: £1.51
Quantity

AS36
600400

CLICK FOR
MORE INFO

Plug, accelerator pedal bearing hole

Remarks: Right-hand steering only

1
Ex VAT: £1.80
Inc VAT: £2.16
Quantity

AS37
600421

CLICK FOR
MORE INFO

Plug, master cylinder pocket

Panel Hole Size: 20.64mm (13/16") Cupped Clear Plastic

1
Ex VAT: £0.67
Inc VAT: £0.80
Quantity

AS38
600398

CLICK FOR
MORE INFO

Plug, steering column anchor bracket hole

This item has been superceded by 14A7031 - see below

1
14A7031
GROMMET STEERING PLUG 1/2" DIAM.

1
Ex VAT: £0.60
Inc VAT: £0.72
Quantity

AS39
600399

CLICK FOR
MORE INFO

Plug, rear floor 1' dia. holes

2
Ex VAT: £1.26
Inc VAT: £1.51
Quantity

AS40
CD27769

CLICK FOR
MORE INFO

Plug, steering column anchor bracket hole

2
Ex VAT: £1.42
Inc VAT: £1.70
Quantity

AS41
700922

CLICK FOR
MORE INFO

Grommet, handbrake and speedometer cable cover

1
Ex VAT: £21.25
Inc VAT: £25.50
Quantity

AS42
605602

CLICK FOR
MORE INFO

Plug, gearbox cover

2
Ex VAT: £3.93
Inc VAT: £4.72
Quantity

AS43
CD25672

CLICK FOR
MORE INFO

Plug, spare wheel pan

I
AS44
CD25672

CLICK FOR
MORE INFO

Plug, master cylinder spring

2
AS45
607517

CLICK FOR
MORE INFO

Plug, plastic, paint drain holes

Remarks: From Comm. No. TS39084

16
AS46
601999

CLICK FOR
MORE INFO

DRIVING MIRROR

This item has been superceded by 609317 - see below

1
609317

CLICK FOR
MORE INFO

DRIVING MIRROR

Mirror Late TR3A. This mirror differs from the earlier mirror in that it has a protective plastic edge. Consider also our dipping version 609317-1
Remarks: From Comm. No. TS_____

1
Ex VAT: £26.07
Inc VAT: £31.28
Quantity

AS47
609317

CLICK FOR
MORE INFO

DRIVING MIRROR

Mirror Late TR3A. This mirror differs from the earlier mirror in that it has a protective plastic edge. Consider also our dipping version 609317-1
Remarks: From Comm. No. TS_____

1
Ex VAT: £26.07
Inc VAT: £31.28
Quantity

AS48
SP87/K5

CLICK FOR
MORE INFO

Screw, driving mirror attachment

This item has been superceded by SP87K5 - see below

2
SP87K5
CSK 10/32UNF CHRM SR

2
Ex VAT: £2.40
Inc VAT: £2.88
Quantity

AS49
CD25624

CLICK FOR
MORE INFO

LICENCE HOLDER

Remarks: Home market only

I
AS50
603088

CLICK FOR
MORE INFO

GRAB HANDLE

1
Ex VAT: £45.00
Inc VAT: £54.00
Quantity

AS51
SP87/K7/CP

CLICK FOR
MORE INFO

Screw, grab handle attachment

This item has been superceded by SP87K7CP - see below

4
SP87K7CP
WOOD SCREW-GRAB HNDL

Remarks: From Comm. No. TS_____

4
Ex VAT: £0.70
Inc VAT: £0.84
Quantity

AS52
YJ2526

CLICK FOR
MORE INFO

Screw, grab handle attachment

This item has been superceded by 510125 - see below

4
510125

CLICK FOR
MORE INFO

SCREW CHROME CKS 10X 1"

Remarks: From Comm. No. TS_____

4
Ex VAT: £0.96
Inc VAT: £1.15
Quantity

AS53
FU2555

CLICK FOR
MORE INFO

Nut, spire

This item has been superceded by RTR5090 - see below

4
RTR5090

RTR Upgrade

NUT SPIRE U TYPE No10 20mm (0.787") X 13mm(1/2")

4
Ex VAT: £0.23
Inc VAT: £0.28
Quantity

AS54
601990

CLICK FOR
MORE INFO

DIPPER SWITCH BRACKET

NLA use Second Hand part 601991SH
Remarks: From Comm. No. TS_____ Right-hand steering only

1
AS55
609385

CLICK FOR
MORE INFO

DIPPER SWITCH BRACKET

Not required for cars after vin 60k
Remarks: From Comm. No. TS_____ Right-hand steering only

1
Ex VAT: £22.74
Inc VAT: £27.29
Quantity

AS56
601991

CLICK FOR
MORE INFO

DIPPER SWITCH BRACKET

NLA use Second Hand part 601991SH
Remarks: From Comm. No. TS_____ Left-hand steering only

1
AS57
608811

CLICK FOR
MORE INFO

DIPPER SWITCH BRACKET

This item has been superceded by 609384 - see below

1
609384

CLICK FOR
MORE INFO

DIPPER SWITCH BRACKET

Remarks: From Comm. No. TS_____ Left-hand steering only

1
AS58
609384

CLICK FOR
MORE INFO

DIPPER SWITCH BRACKET

Remarks: From Comm. No. TS_____ Left-hand steering only

1
AS59
HU0705/P

CLICK FOR
MORE INFO

Screw, set, bracket attachment

This item has been superceded by SH604051 - see below

5
SH604051
SCREW 1/4 UNF X 5/8 INCH

5
Ex VAT: £0.39
Inc VAT: £0.47
Quantity

AS60
WL0207

CLICK FOR
MORE INFO

Washer, spring, on screw

This item has been superceded by WS104070643 - see below

5
WS104070643
WASHER SPRING 1/4" RECT SECTION

5
Ex VAT: £0.09
Inc VAT: £0.11
Quantity

AS61
602138

CLICK FOR
MORE INFO

COVER PLATE-GEARBOX COVER

Plate gaiter to tunnel

1
Ex VAT: £5.38
Inc VAT: £6.46
Quantity

AS62
YA0504
Screw, securing cover plate

2
AS63
FU2545

CLICK FOR
MORE INFO

Nut, spire, locking screw

2
AS64
602137

CLICK FOR
MORE INFO

COVER PLATE-FLOOR

Plate gaiter to floor

1
Ex VAT: £9.58
Inc VAT: £11.50
Quantity

AS65
YA0164

CLICK FOR
MORE INFO

Screw, cover plate attachment

This item has been superceded by AD604062 - see below

3
AD604062
SCREW CHR.CSK No.4x3/4"SLOT

3
Ex VAT: £0.24
Inc VAT: £0.29
Quantity

AS66
WP0103
Washer, plain, on screw

3
AS67
603384

CLICK FOR
MORE INFO

LIFTING JACK APERTURE COVER

2
Ex VAT: £2.75
Inc VAT: £3.30
Quantity

AS68
602012

CLICK FOR
MORE INFO

BUDGET LOCK KEY

This item has been superceded by 650161 - see below

1
650161
KEY COACH File end to fit bonnet

T key Small TR2-3B Dzus

1
Ex VAT: £5.29
Inc VAT: £6.35
Quantity

AS69
601898

CLICK FOR
MORE INFO

Angle, battery retaining

Battery Bar 13" between hole centres

1
Ex VAT: £4.58
Inc VAT: £5.50
Quantity

AS70
601552

CLICK FOR
MORE INFO

Rod, battery

You may also need wing nut RTR8125.

2
Ex VAT: £2.67
Inc VAT: £3.20
Quantity

AS71
RTR8125

CLICK FOR
MORE INFO

RTR Upgrade

Nut, wing, battery fixing

Wing nut holding battery bar.

2
Ex VAT: £0.72
Inc VAT: £0.86
Quantity

AS72
551814

CLICK FOR
MORE INFO

Felt, battery

Remarks: From Comm. No. TS1

1
AS73
602945

CLICK FOR
MORE INFO

Rubber, battery shelf

Remarks: From Comm. No. TS3268

2
Ex VAT: £2.79
Inc VAT: £3.35
Quantity

AS74
602946

CLICK FOR
MORE INFO

Tube, drain

Remarks: From Comm. No. TS3268

1
AS75
604390

CLICK FOR
MORE INFO

Clip, drain tube attachment

Remarks: From Comm. No. TS3268

1
AS76
TR6705

CLICK FOR
MORE INFO

Screw, front number plate attachment

2
AS77
WP0023

CLICK FOR
MORE INFO

Washer, plain, on screw

This item has been superceded by WP10408035 - see below

4
WP10408035
WASHER 1/4 X 1/2 X 0.035"

4
Ex VAT: £0.34
Inc VAT: £0.41
Quantity

AS78
HN2007

CLICK FOR
MORE INFO

Nut, locking screw

This item has been superceded by NP604071 - see below

2
NP604071
NUT PLAIN 1/4 UNF X 7/32

2
Ex VAT: £0.13
Inc VAT: £0.16
Quantity

AS79
WL0207

CLICK FOR
MORE INFO

Washer, spring, under nut

This item has been superceded by WS104070643 - see below

4
WS104070643
WASHER SPRING 1/4" RECT SECTION

4
Ex VAT: £0.09
Inc VAT: £0.11
Quantity

AS80
PT0705

CLICK FOR
MORE INFO

Screw, set, front number plate attachment

Remarks: From Comm. No. TS22014

3
AS81
WP0035

CLICK FOR
MORE INFO

Washer, plain, on screw

This item has been superceded by WP10408035 - see below

3
WP10408035
WASHER 1/4 X 1/2 X 0.035"

Remarks: From Comm. No. TS22014

3
Ex VAT: £0.34
Inc VAT: £0.41
Quantity

AS82
WL0207

CLICK FOR
MORE INFO

Washer, lock, on screw

This item has been superceded by WS104070643 - see below

3
WS104070643
WASHER SPRING 1/4" RECT SECTION

Remarks: From Comm. No. TS22014

3
Ex VAT: £0.09
Inc VAT: £0.11
Quantity

AS83
HN2007

CLICK FOR
MORE INFO

Nut, on screw

This item has been superceded by NP604071 - see below

3
NP604071
NUT PLAIN 1/4 UNF X 7/32

Remarks: From Comm. No. TS22014

3
Ex VAT: £0.13
Inc VAT: £0.16
Quantity

AS84
602045

CLICK FOR
MORE INFO

Boss, distance, between rear number plate and spare wheel lid

4
AS85
TR6709

CLICK FOR
MORE INFO

Screw, rear number plate attachment

4
AS86
WP0023

CLICK FOR
MORE INFO

Washer, plain, on screw

This item has been superceded by WP10408035 - see below

8
WP10408035
WASHER 1/4 X 1/2 X 0.035"

8
Ex VAT: £0.34
Inc VAT: £0.41
Quantity

AS87
HN2007

CLICK FOR
MORE INFO

Nut, locking screw

This item has been superceded by NP604071 - see below

4
NP604071
NUT PLAIN 1/4 UNF X 7/32

4
Ex VAT: £0.13
Inc VAT: £0.16
Quantity

AS88
WL0207

CLICK FOR
MORE INFO

Washer, spring, under nut

This item has been superceded by WS104070643 - see below

4
WS104070643
WASHER SPRING 1/4" RECT SECTION

4
Ex VAT: £0.09
Inc VAT: £0.11
Quantity

AS89
552877/BBY

CLICK FOR
MORE INFO

Blackberry

Exact matches to original colours are not available. Please use one of the following: - 552887BLK, 552887BLU, 552887GRY, 552887RED or 552887TAN.
Remarks: When ordering please state colour required

2
AS90
552877/BRN

CLICK FOR
MORE INFO

Brown

Exact matches to original colours are not available. Please use one of the following: - 552887BLK, 552887BLU, 552887GRY, 552887RED or 552887TAN.
Remarks: When ordering please state colour required

2
AS91
552877/GER

CLICK FOR
MORE INFO

Geranium

Exact matches to original colours are not available. Please use one of the following: - 552887BLK, 552887BLU, 552887GRY, 552887RED or 552887TAN.
Remarks: When ordering please state colour required

2
AS92
552877/GRY

CLICK FOR
MORE INFO

Grey

Exact matches to original colours are not available. Please use one of the following: - 552887BLK, 552887BLU, 552887GRY, 552887RED or 552887TAN.
Remarks: When ordering please state colour required

2
AS93
552878/BBY
Blackberry

Remarks: When ordering please state colour required

2
AS94
552878/BRN
Brown

Remarks: When ordering please state colour required

2
AS95
552878/BLU
Blue

Remarks: When ordering please state colour required

2
AS96
552878/BLK
Black

Remarks: When ordering please state colour required

2
AS97
552878/RED
Red

Remarks: When ordering please state colour required

2
AS98
552878/GER
Geranium

Remarks: When ordering please state colour required

2
AS99
552878/GRY
Grey

Remarks: When ordering please state colour required

2
AS100
552878/STN
Stone

Remarks: When ordering please state colour required

2
AS101
700947
Piping, wing (sold In feet)

Remarks: From Comm. No. TS1 to Comm. No. TS8636 When ordering please state colour required

A/R
AS102
700947/BLK
Black

Remarks: From Comm. No. TS1 to Comm. No. TS8636 When ordering please state colour required


AS103
700947/OY
Olive Yellow

Remarks: From Comm. No. TS1 to Comm. No. TS8636 When ordering please state colour required


AS104
700947/GN
Green

Remarks: From Comm. No. TS1 to Comm. No. TS8636 When ordering please state colour required


AS105
700947/RED
Red

Remarks: From Comm. No. TS1 to Comm. No. TS8636 When ordering please state colour required


AS106
700947/GER
Geranium

Remarks: From Comm. No. TS1 to Comm. No. TS8636 When ordering please state colour required


AS107
700947/WHI
White

Remarks: From Comm. No. TS1 to Comm. No. TS8636 When ordering please state colour required


AS108
554100

CLICK FOR
MORE INFO

WING BEAD ASSEMBLY-FRONT

This item has been superceded by 553924 - see below

2
553924

CLICK FOR
MORE INFO

WINGBEAD TR3/3A FR

If you require a full set of 6 wing beads, order Part Number TR23WBS.
Remarks: From Comm. No. TS8637

2
Ex VAT: £15.08
Inc VAT: £18.10
Quantity

AS109
554099

CLICK FOR
MORE INFO

Strip, retaining wing bead

Remarks: From Comm. No. TS8637

2
Ex VAT: £4.00
Inc VAT: £4.80
Quantity

AS110
553926

CLICK FOR
MORE INFO

Tabs, fixing wing bead

Remarks: From Comm. No. TS8637

16
Ex VAT: £0.34
Inc VAT: £0.41
Quantity

AS111
553925

CLICK FOR
MORE INFO

WING BEAD ASSEMBLY-REAR (LONG)

If you require a full set of 6 wing beads, order Part Number TR23WBS.
Remarks: From Comm. No. TS8637

2
Ex VAT: £14.75
Inc VAT: £17.70
Quantity

AS112
553926

CLICK FOR
MORE INFO

Tabs, fixing wing bead

Remarks: From Comm. No. TS8637

26
Ex VAT: £0.34
Inc VAT: £0.41
Quantity

AS113
YA0183

CLICK FOR
MORE INFO

Screws, bead to wing

This item has been superceded by GHF400 - see below

14
GHF400
SELF TAPPING SCREW

Remarks: From Comm. No. TS8637

14
Ex VAT: £0.11
Inc VAT: £0.13
Quantity

AS114
554172

CLICK FOR
MORE INFO

WING BEAD ASSEMBLY-REAR (SHORT)

If you require a full set of 6 wing beads, order Part Number TR23WBS.
Remarks: From Comm. No. TS8637

2
Ex VAT: £6.75
Inc VAT: £8.10
Quantity

AS115
553926

CLICK FOR
MORE INFO

Tabs, fixing wing bead

Remarks: From Comm. No. TS8637

6
Ex VAT: £0.34
Inc VAT: £0.41
Quantity

AS116
CD31406
Scuttle trim fillet-R.H.

Remarks: Wood only

1
AS117
CD31405

CLICK FOR
MORE INFO

Scuttle trim fillet-L.H.

Remarks: Wood only

1
AS118
555440
Scuttle trim fillet

Remarks: From Comm. No. TS____

2
AS119
YA0165/CP

CLICK FOR
MORE INFO

Screw, trim fillet to scuttle side

This item has been superceded by YA0165CP - see below

10
YA0165CP
SCREW NO.4 X 5/8"

10
Ex VAT: £0.32
Inc VAT: £0.38
Quantity

AS120
SP132B/CP

CLICK FOR
MORE INFO

Washer, cup, on screw

This item has been superceded by SP132BCP - see below

10
SP132BCP
CUP WASHER No 4

CUP WASHER No 4

10
Ex VAT: £0.29
Inc VAT: £0.35
Quantity
