Engine, Transmission and Heating/Cooling

TR4 Plate AR - HEATER KIT.

  Plate No. Part No. Description and Comments No Per Unit Price Add to Cart
AR1AA
566583

CLICK FOR
MORE INFO

HEATER KIT

This is a complete heater fitting kit, which provides all the parts to fit a heater to a care not fitted with one. This kit is no longer available. Please order the separate parts from the...
Remarks: Supplied to Special Orders only

1
AR1
566579

CLICK FOR
MORE INFO

Heater unit assembly

Not available new. Use uprated heater kits RTR1396-1K or RTR1396-2K or second hand part 566579SH.

1
AR1A
566374

CLICK FOR
MORE INFO

Spacer, heater unit

Our stock is genuine Stanpart. See also SPF2463K which is a full kit including 3 spacers & 3 Bushes

3
Ex VAT: £0.83
Inc VAT: £1.00
Quantity

AR1B
566375

CLICK FOR
MORE INFO

Washer, heater unit

This item has been superceded by WP10412057 - see below

3
WP10412057

CLICK FOR
MORE INFO

WASHER 1/4 X 3/4 INCH OD

3
Ex VAT: £0.24
Inc VAT: £0.29
Quantity

AR1C
HBO708
Bolt Heater to plenum chamber

3
AR1D
WPO167
Washer, plain Heater to plenum chamber

3
AR1E
612241

CLICK FOR
MORE INFO

Washer, rubber

1
Ex VAT: £0.57
Inc VAT: £0.68
Quantity

AR1F
HN2007

CLICK FOR
MORE INFO

Nut

This item has been superceded by NP604071 - see below

1
NP604071
NUT PLAIN 1/4 UNF X 7/32

1
Ex VAT: £0.13
Inc VAT: £0.16
Quantity

AR2
611725

CLICK FOR
MORE INFO

Hose, inlet, water

This item has been superceded by 623284 - see below

1
623284

CLICK FOR
MORE INFO

HEATER HOSE INLET TR4-6

1
Ex VAT: £5.36
Inc VAT: £6.43
Quantity

AR3
611726

CLICK FOR
MORE INFO

Hose, outlet, water

This item has been superceded by 623285 - see below

1
623285

CLICK FOR
MORE INFO

HOSE HEATER OUTLET

1
Ex VAT: £5.35
Inc VAT: £6.42
Quantity

AR4
CS4012

CLICK FOR
MORE INFO

Clip, hose attachment to heater connections and connector pipe assembly

If you prefer a modern 'Julilee' type clip order GHC10412.

4
Ex VAT: £0.97
Inc VAT: £1.16
Quantity

AR5
611043

CLICK FOR
MORE INFO

Pipe, connector, assembly

Consider also stainless steel part 611043SS and mounting pad 611040

1
Ex VAT: £17.00
Inc VAT: £20.40
Quantity

AR6
611040

CLICK FOR
MORE INFO

Pad, sealing Connector pipe assembly to bulkhead

1
Ex VAT: £1.13
Inc VAT: £1.36
Quantity

AR6A
YJ2464

CLICK FOR
MORE INFO

Screw, S/T Connector pipe assembly to bulkhead

This item has been superceded by GHF402 - see below

2
GHF402
SELF TAPPING SCREW 8x1/2" CK SLOTTED

2
Ex VAT: £0.16
Inc VAT: £0.19
Quantity

AR6B
FU2544

CLICK FOR
MORE INFO

Nut, spire Connector pipe assembly to bulkhead

This item has been superceded by RTR5089 - see below

2
RTR5089

CLICK FOR
MORE INFO

RTR Upgrade

NUT SPIRE No8 U TYPE 16 X 11MM

2
Ex VAT: £0.20
Inc VAT: £0.24
Quantity

AR7
602575

CLICK FOR
MORE INFO

Hose, water Feed

This item has been superceded by 622141 - see below

1
622141

CLICK FOR
MORE INFO

HEATER FEED/RETURN HOSE TR4-6 BLACK STRAIGHT

Various part numbers have been used by Triumph for this heater water feed hose, from TR4 to TR6. It is also the return hose on TR4-4A

1
Ex VAT: £6.20
Inc VAT: £7.44
Quantity

ARS
602569

CLICK FOR
MORE INFO

Hose, water Return

This item has been superceded by 622141 - see below

1
622141

CLICK FOR
MORE INFO

HEATER FEED/RETURN HOSE TR4-6 BLACK STRAIGHT

Various part numbers have been used by Triumph for this heater water feed hose, from TR4 to TR6. It is also the return hose on TR4-4A

1
Ex VAT: £6.20
Inc VAT: £7.44
Quantity

AR9
CS4012

CLICK FOR
MORE INFO

Clip, hose, water hose attachment to connector pipe assembly and engine

If you prefer a modern 'Julilee' type clip order GHC10412.

4
Ex VAT: £0.97
Inc VAT: £1.16
Quantity

AR10
133061

CLICK FOR
MORE INFO

Elbow, cylinder head

Three types of water valve adaptor were fitted to TR4-6: - 133061 is a short slightly angled adaptor fitted to TR4, 4A, TR250 and carburettor TR6 148435 is a straight adaptor with a hexagon at the top....

1
Ex VAT: £8.51
Inc VAT: £10.21
Quantity

AR11
565755

CLICK FOR
MORE INFO

Valve, water, cylinder head

Consider second hand part 565755SH or improved part RTR1486-2K. The original heater valve is notoriously difficult to operate and can in extreme cased refuse to either turn off or on (or both!).

1
Ex VAT: £19.83
Inc VAT: £23.80
Quantity

AR12
208606

CLICK FOR
MORE INFO

Pipe, heater, assembly, water hose to water pump

You will also need nut 101302 and olive TL11 and possiblt adaptor 101343.

1
Ex VAT: £14.88
Inc VAT: £17.86
Quantity

AR13
101343

CLICK FOR
MORE INFO

Adaptor, water pump body

Consider second-hand part 101343SH or stainless steel part 101343SS.

1
Ex VAT: £5.96
Inc VAT: £7.15
Quantity

AR14
101302

CLICK FOR
MORE INFO

Nut Securing heater pipe to adaptor

Our stock is genuine Stanpart

1
Ex VAT: £2.21
Inc VAT: £2.65
Quantity

AR15
TL0011

CLICK FOR
MORE INFO

Sleeve Securing heater pipe to adaptor

This item has been superceded by TL11 - see below

1
TL11

CLICK FOR
MORE INFO

OLIVE 1/2"

1/2" bore brass barrel olive.

1
Ex VAT: £1.29
Inc VAT: £1.55
Quantity

AR16
611825

CLICK FOR
MORE INFO

Hose, demister R.H.

Consider part listed below

1
AR17
611826
Hose, demister L.H.

1
AR19
CS4024

CLICK FOR
MORE INFO

Clip, demister hose attachment

If you prefer modern stainless steel flat hose clips, order GHC10415.

4
Ex VAT: £1.25
Inc VAT: £1.50
Quantity

AR20
806740

CLICK FOR
MORE INFO

Duct, demister R.H.

1
AR21
806741

CLICK FOR
MORE INFO

Duct, demister L.H.

1
AR22
130544

CLICK FOR
MORE INFO

Switch, heater control

This item has been superceded by 2H4841 - see below

1
2H4841
SWITCH PUSH PULL 2-3A SCREW CONN

1
Ex VAT: £12.25
Inc VAT: £14.70
Quantity

AR23
609933

CLICK FOR
MORE INFO

Bezel, heater switch

Not currently available. Use 609933SH

1
AR24
704883

CLICK FOR
MORE INFO

Knob, heater switch

1
Ex VAT: £5.50
Inc VAT: £6.60
Quantity

AR24A
059445

CLICK FOR
MORE INFO

Washer, for knob

1
AR25
611284

CLICK FOR
MORE INFO

Control, Push/Pull, assembly, water valve

CABLE HEATER TR4-4A. Not including knob.

1
Ex VAT: £21.25
Inc VAT: £25.50
Quantity

AR26
566407
Bezel, Push/Pull control

1
AR27
704884

CLICK FOR
MORE INFO

Knob, heater

1
Ex VAT: £5.50
Inc VAT: £6.60
Quantity

AR28
612262

CLICK FOR
MORE INFO

Control, Push/Pull assembly, outlet duct

1
Ex VAT: £19.58
Inc VAT: £23.50
Quantity

AR29
566047

CLICK FOR
MORE INFO

Bezel, Push/Pull control

See 566047X for a suitable replacement

1
AR30
704881

CLICK FOR
MORE INFO

Knob, air distribution

1
Ex VAT: £5.50
Inc VAT: £6.60
Quantity

AR30A
059445

CLICK FOR
MORE INFO

Washer, for knob

1
AR30B
602037

CLICK FOR
MORE INFO

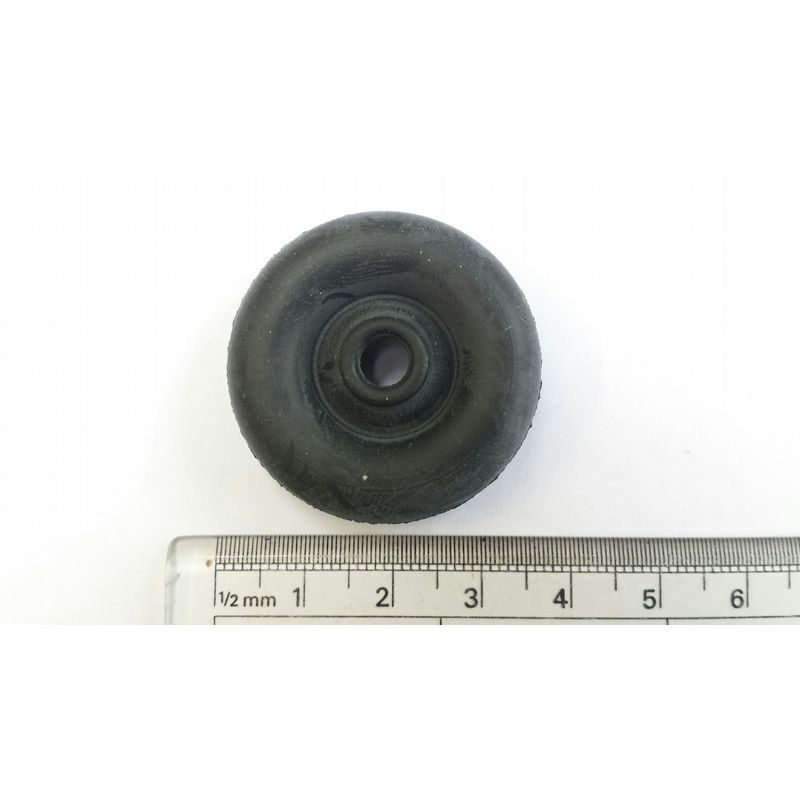

Grommet, fitted in dash

This item has been superceded by 600395 - see below

1
600395

CLICK FOR
MORE INFO

GROMMET GAUGE TR2-6 1 INCH

1
Ex VAT: £0.88
Inc VAT: £1.06
Quantity

AR31
610181

CLICK FOR
MORE INFO

DEMISTER OUTLET

TR4-6 Heater Demister Vent Escutcheon. This escutcheon sits on the top of the TR4-6 dash, allowing air from the heater to pass to the screen for demisting.

2
Ex VAT: £35.00
Inc VAT: £42.00
Quantity

AR31A
HN2005

CLICK FOR
MORE INFO

Nut Demister outlet to scuttle

This item has been superceded by NP603041 - see below

4
NP603041
NUT PLAIN 10-32 UNF 3/8 AF

4
Ex VAT: £0.13
Inc VAT: £0.16
Quantity

AR31B
WPO138
Washer, plain Demister outlet to scuttle

4
AR31C
WL0205

CLICK FOR
MORE INFO

Washer, lock scuttle Demister outlet to scuttle

This item has been superceded by WS10306048 - see below

4
WS10306048

CLICK FOR
MORE INFO

SPRING WASHER 3/16" x 3/8"x 0.048"

4
Ex VAT: £0.09
Inc VAT: £0.11
Quantity

AR31D
611041

CLICK FOR
MORE INFO

Plate, blanking

Remarks: Required when heater not fitted

1
AR31E
611040

CLICK FOR
MORE INFO

Pad, sealing

Remarks: Required when heater not fitted

1
Ex VAT: £1.13
Inc VAT: £1.36
Quantity

AR31F
YJ2464

CLICK FOR
MORE INFO

Screw, SIT Blanking plate attachment

This item has been superceded by GHF402 - see below

2
GHF402
SELF TAPPING SCREW 8x1/2" CK SLOTTED

Remarks: Required when heater not fitted

2
Ex VAT: £0.16
Inc VAT: £0.19
Quantity

AR31G
FU2584

CLICK FOR
MORE INFO

Nut, spire Blanking plate attachment

This item has been superceded by FU2585 - see below

2
FU2585

CLICK FOR
MORE INFO

SPIRE NUT NO 10 'U' TYPE

note: - Some suppliers refer to this 'U' section spire nut as number 8 but it is in fact number 10 according to the original Simmons catalogue
Remarks: Required when heater not fitted

2
Ex VAT: £0.42
Inc VAT: £0.50
Quantity

AR31H
600399

CLICK FOR
MORE INFO

Plug, rubber, blanking hole in dash

Remarks: Required when heater not fitted

1
Ex VAT: £1.26
Inc VAT: £1.51
Quantity

AR31I
612125
Plate, cover, heater aperture

Remarks: Required when heater not fitted

1
AR31J
YA0303

CLICK FOR
MORE INFO

Screw, dri cove r plate to plenum chamber

This item has been superceded by SS1060321 - see below

4
SS1060321
SCREW ST No 6x3/8" PAN POZI BZP

Remarks: Required when heater not fitted

4
Ex VAT: £0.23
Inc VAT: £0.28
Quantity

AR31K
612390
Plate deflector

Remarks: Fitted from commission No. CT and future

2
