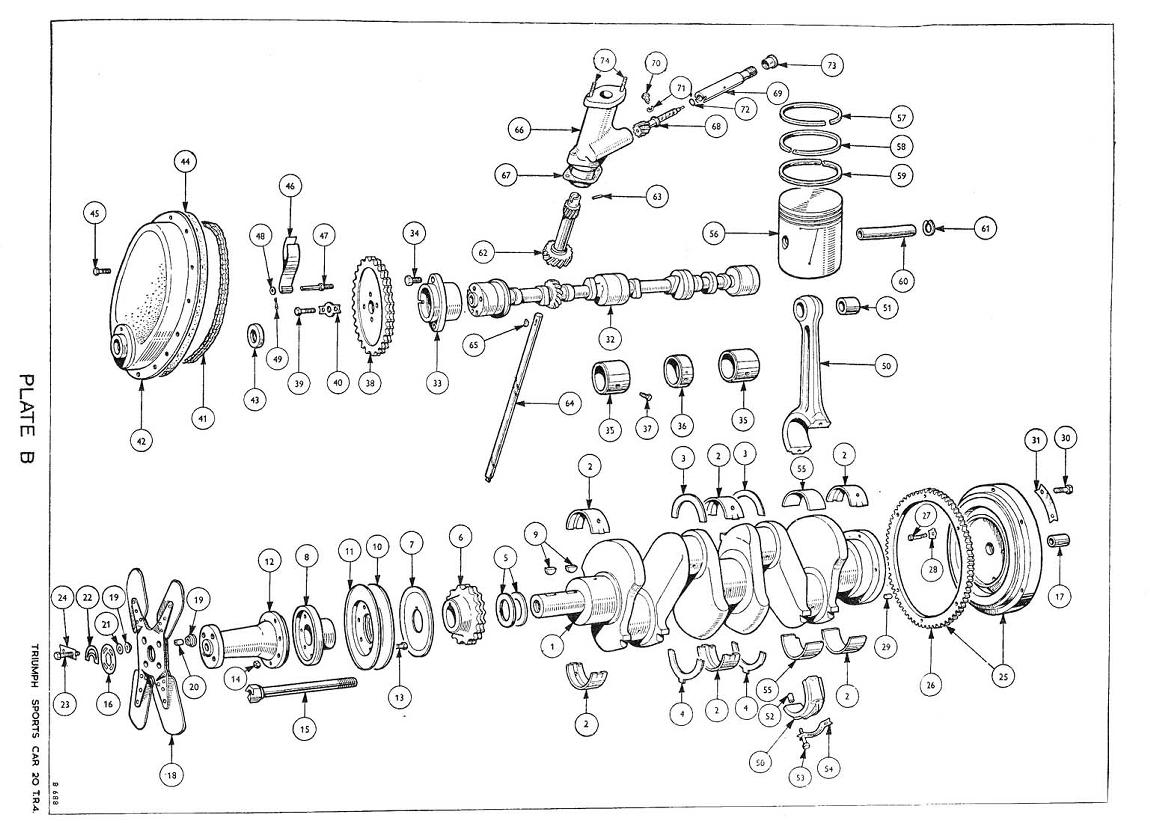

TR4 Plate B - ENGINE: CRANK, PISTONS, CONNECTING RODS AND FLYWHEEL.

  Plate No. Part No. Description and Comments No Per Unit Price Add to Cart
B1
301815

CLICK FOR
MORE INFO

CRANKSHAFT

Crankshaft Cross drilled type, from TS881E. This Crankshaft is rarely if ever available new. Consider second hand part 301815SH, 301815-1SH, 301815-2SH or a Steel billet Crankshaft RTR1214, RTR1215, RTR1469.

1
B2
108910

CLICK FOR
MORE INFO

Bearing, main

This item has been superceded by AEM3196STD - see below

3 prs.
AEM3196STD

CLICK FOR
MORE INFO

TR2-4A MAIN BEARING SET STANDARD

TR2-4A Main Bearing set std. Bi metal equivalent to Glacier AM, Alecular alloy on high strength steel.

3 prs.
Ex VAT: £30.64
Inc VAT: £36.77
Quantity

B3
045918

CLICK FOR
MORE INFO

Washer, thrust Top centre bearing

2
Ex VAT: £1.51
Inc VAT: £1.81
Quantity

B3A
112617

CLICK FOR
MORE INFO

Washer, thrust Top centre bearing, .005" oversize

This item has been superceded by AEW2004005 - see below

2
AEW2004005

CLICK FOR
MORE INFO

TR2-4A THRUST WASHER 0.005" OVERSIZE

TR2-4A Thrust Washer set of 4 pieces 0.005" oversize.

2
Ex VAT: £7.50
Inc VAT: £9.00
Quantity

B4
045919

CLICK FOR
MORE INFO

Washer, thrust Bottom centre bearing

Use AEW2004STD

2
B4A
112618

CLICK FOR
MORE INFO

Washer, thrust Bottom centre bearing, .005" oversize

This item has been superceded by AEW2004005 - see below

2
AEW2004005

CLICK FOR
MORE INFO

TR2-4A THRUST WASHER 0.005" OVERSIZE

TR2-4A Thrust Washer set of 4 pieces 0.005" oversize.

2
Ex VAT: £7.50
Inc VAT: £9.00
Quantity

B5
056522

CLICK FOR
MORE INFO

Shim, chain wheel location .004"

as req'd.
Ex VAT: £3.61
Inc VAT: £4.33
Quantity

B5
056523

CLICK FOR
MORE INFO

Shim, chain wheel location .006"

as req'd.
Ex VAT: £0.92
Inc VAT: £1.10
Quantity

B6
055971

CLICK FOR
MORE INFO

Wheel, chain, duplex, on crankshaft

Consider second hand part 055971SH.

1
Ex VAT: £24.00
Inc VAT: £28.80
Quantity

B7
057196

CLICK FOR
MORE INFO

Deflector, oil

Consider second hand part 057196SH.

1
Ex VAT: £4.09
Inc VAT: £4.91
Quantity

B8
107250

CLICK FOR
MORE INFO

Hub, fan pulley

Consider original second hand part number 107252SH

1
Ex VAT: £34.08
Inc VAT: £40.90
Quantity

B9
KW0624

CLICK FOR
MORE INFO

Key, hub, deflector and chain wheel to crankshaft

This item has been superceded by WKN606 - see below

2
WKN606
WOODRUFF KEY-CRANK-

2
Ex VAT: £1.55
Inc VAT: £1.86
Quantity

B10
110023

CLICK FOR
MORE INFO

Pulley Rear half

Not currently available, consider original second hand part below

1
B11
107252

CLICK FOR
MORE INFO

Pulley Front half

Not currently available, consider second hand part below

1
B12
128318

CLICK FOR
MORE INFO

Extension, fan hub

Consider second hand part 128318SH

1
Ex VAT: £39.92
Inc VAT: £47.90
Quantity

B12A
109370

CLICK FOR
MORE INFO

Piece, balance

This item has been superceded by 107858 - see below

as req'd.
107858

CLICK FOR
MORE INFO

Piece, balance

as req'd.
Ex VAT: £6.06
Inc VAT: £7.27
Quantity

B13
HJ90711
Bolt Pulley and extension to hub

6
B14
TN3207

CLICK FOR
MORE INFO

Nut, nyloc Pulley and extension to hub

This item has been superceded by NY604101 - see below

6
NY604101
NUT NYLOC 1/4 UNF X 5/16

6
Ex VAT: £0.20
Inc VAT: £0.24
Quantity

B14A
WP0127

CLICK FOR
MORE INFO

Washer, plain Pulley and extension to hub

This item has been superceded by WP127 - see below

6
WP127

CLICK FOR
MORE INFO

WASHER 1/4"x9/16"

6
Ex VAT: £0.40
Inc VAT: £0.48
Quantity

B15
128319

CLICK FOR
MORE INFO

Bolt Extension and fan pulley hub to crankshaft

Not currently available new. Use Second Hand.

1
B15A
108494

CLICK FOR
MORE INFO

Shim Extension and fan pulley hub to crankshaft

as req'd.
Ex VAT: £0.57
Inc VAT: £0.68
Quantity

B16
108497

CLICK FOR
MORE INFO

Washer, lock Extension and fan pulley hub to crankshaft

1
Ex VAT: £4.61
Inc VAT: £5.53
Quantity

817
047246

CLICK FOR
MORE INFO

Bush, constant pinion pilot, in rear end of shaft

Size is approx 1"x 1" fitted in the crankshaft

1
Ex VAT: £4.18
Inc VAT: £5.02
Quantity

B18
202025

CLICK FOR
MORE INFO

FAN ASSEMBLY

Consider using second hand part 202025SH. Note that this part number is shown in the TR4 parts book incorrectly. The correct part number for TR4 is 209792, which was corrected by Triumph at amendment number 11....

1
Ex VAT: £71.49
Inc VAT: £85.79
Quantity

B19
108496

CLICK FOR
MORE INFO

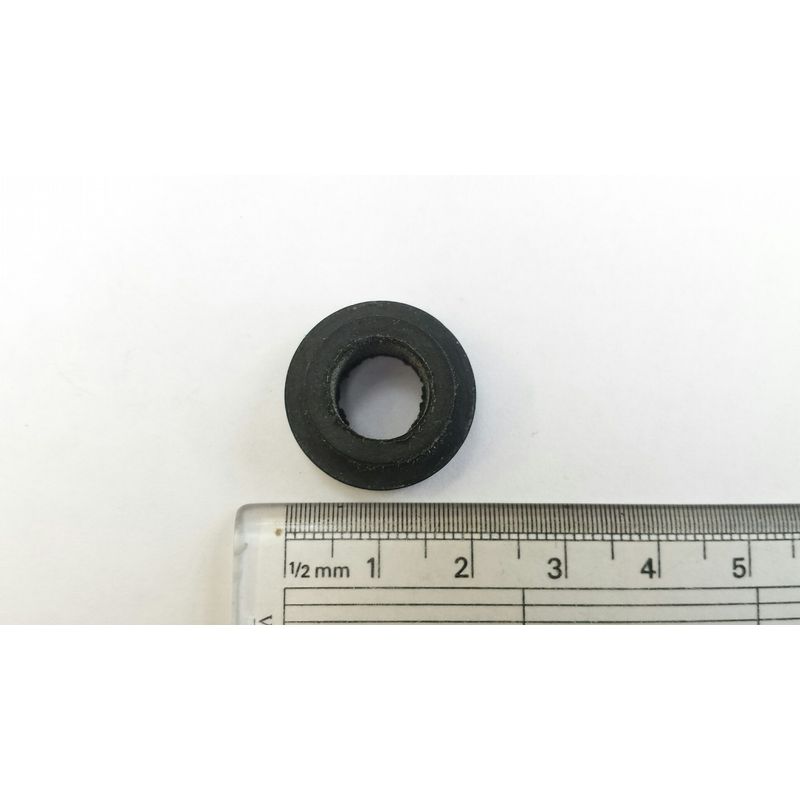

Bush, rubber, fitted in attachment holes

Superpro Polyurethane offer an improved kit please see SPF0275K in more

8
Ex VAT: £0.78
Inc VAT: £0.94
Quantity

B20
108499

CLICK FOR
MORE INFO

Sleeve, in rubber bushes

4
Ex VAT: £1.63
Inc VAT: £1.96
Quantity

B21
108495

CLICK FOR
MORE INFO

Washer, plain over outer rubber bush

This item has been superceded by WP10511075 - see below

4
WP10511075
WASHER PLAIN 5/16 X 11/16 INCH OD

TR4 late washer plain

4
Ex VAT: £0.11
Inc VAT: £0.13
Quantity

B22
107858

CLICK FOR
MORE INFO

Piece, balance

as req'd.
Ex VAT: £6.06
Inc VAT: £7.27
Quantity

B23
H80811

CLICK FOR
MORE INFO

Bolt Securing balance piece and fan

This item has been superceded by BH605111 - see below

4
BH605111

CLICK FOR
MORE INFO

BOLT 5/16 UNF X 1-3/8 INCH

For dynamo mounting detail see plate M in the TR4A original parts book or web site.

4
Ex VAT: £0.56
Inc VAT: £0.67
Quantity

B23A
WP0034

CLICK FOR
MORE INFO

Washer, plain Securing balance piece and fan

This item has been superceded by WP10511075 - see below

4
WP10511075
WASHER PLAIN 5/16 X 11/16 INCH OD

TR4 late washer plain

4
Ex VAT: £0.11
Inc VAT: £0.13
Quantity

B24
107857

CLICK FOR
MORE INFO

Washer, tab Securing balance piece and fan

The TR4 parts book shows 4 required. In fact only 2 are required. The TR2-3 and TR4A parts books are correct.

4
Ex VAT: £1.49
Inc VAT: £1.79
Quantity

B25
115785

CLICK FOR
MORE INFO

FLYWHEEL ASSEMBLY

not available new. Use 115785SH.

1
826
202834

CLICK FOR
MORE INFO

Gear, ring

This bolt on Ring Gear has 90 teeth and is suitable for standard TR3A from commission number TS50001 to TR4A and our aluminium Flywheel RTR1011.

1
Ex VAT: £31.50
Inc VAT: £37.80
Quantity

B27
112030

CLICK FOR
MORE INFO

Bolt Ring gear to flywheel

This item has been superceded by 112653 - see below

6
112653

CLICK FOR
MORE INFO

BOLT

6
Ex VAT: £1.31
Inc VAT: £1.57
Quantity

B28
115776

CLICK FOR
MORE INFO

Washer, tab Ring gear to flywheel

6
Ex VAT: £0.74
Inc VAT: £0.89
Quantity

B29
127883

CLICK FOR
MORE INFO

Dowel Flywheel assembly to crankshaft

This item has been superceded by DP619 - see below

1
DP619
DOWEL 3/8" DIA x 1.5" LONG Cut to fit

1
Ex VAT: £1.29
Inc VAT: £1.55
Quantity

B30
138527

CLICK FOR
MORE INFO

Screw, set Flywheel assembly to crankshaft

This TR4A flywheel bolt does not require a tab washer when used on a steel flywheel.

4
Ex VAT: £2.83
Inc VAT: £3.40
Quantity

B31
056524

CLICK FOR
MORE INFO

Plate, locking Flywheel assembly to crankshaft

2
Ex VAT: £0.76
Inc VAT: £0.91
Quantity

B32
301466

CLICK FOR
MORE INFO

CAMSHAFT

New Camshaft standard profile TR2-TR4 with timing 15-55 55-15 degrees. New blanks of sufficiently high quality are currently very difficult to find therefore an exchange camshaft 301466EX may need to be supplied. Our preferred option is...
Remarks: Also available on exchange

1
Ex VAT: £292.31
Inc VAT: £350.77
Quantity

B33
060214

CLICK FOR
MORE INFO

Bearing, front

1
Ex VAT: £49.78
Inc VAT: £59.74
Quantity

B34
056384

CLICK FOR
MORE INFO

Screw, set Front bearing to cylinder block

This item has been superceded by 056370 - see below

2
056370

CLICK FOR
MORE INFO

Screw, set Chain wheel to camshaft

2
Ex VAT: £1.63
Inc VAT: £1.96
Quantity

B34A
WL0208

CLICK FOR
MORE INFO

Washer, lock Front bearing to cylinder block

This item has been superceded by WS105090853 - see below

2
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

2
Ex VAT: £0.15
Inc VAT: £0.18
Quantity

B35
113522

CLICK FOR
MORE INFO

Bearing Centre and rear

2
Ex VAT: £7.80
Inc VAT: £9.36
Quantity

B36
113523

CLICK FOR
MORE INFO

Bearing Intermediate

This item has been superceded by AEC3027 - see below

1
AEC3027

CLICK FOR
MORE INFO

TR3-4A CAM BEARING SET

TR3-4A Cam bearing set consisting of 2 off 113522 wide bearing and 1 off 113523 narrow bearing. TR2's did not have cam bearings but these engines can be converted to accept bearings

1
Ex VAT: £20.29
Inc VAT: £24.35
Quantity

B37
110462

CLICK FOR
MORE INFO

Screw Bearing to block

3
Ex VAT: £1.42
Inc VAT: £1.70
Quantity

B37A
WPOI07
Washer, plain Bearing to block

3
B38
057113

CLICK FOR
MORE INFO

Wheel, chain (Duplex)

Consider second hand part 057113SH

1
Ex VAT: £32.09
Inc VAT: £38.51
Quantity

839
056370

CLICK FOR
MORE INFO

Screw, set Chain wheel to camshaft

2
Ex VAT: £1.63
Inc VAT: £1.96
Quantity

B40
056293

CLICK FOR
MORE INFO

Plate, locking Chain wheel to camshaft

1
Ex VAT: £0.60
Inc VAT: £0.72
Quantity

B41
057151

CLICK FOR
MORE INFO

Chain, timing (Duplex)

1
Ex VAT: £8.70
Inc VAT: £10.44
Quantity

B42
056327

CLICK FOR
MORE INFO

TIMING COVER ASSEMBLY

This item has been superceded by 203681 - see below

1
203681

CLICK FOR
MORE INFO

TIMING COVER TR2-4A

not available new. Please order second hand part 203681SH

1
B43
104662

CLICK FOR
MORE INFO

SEAL OIL TIMING COVER ASSEMBLY

1
Ex VAT: £4.22
Inc VAT: £5.06
Quantity

B44
056328

CLICK FOR
MORE INFO

Washer Joint cover to engine plate

This item has been superceded by 211122 - see below

1
211122

CLICK FOR
MORE INFO

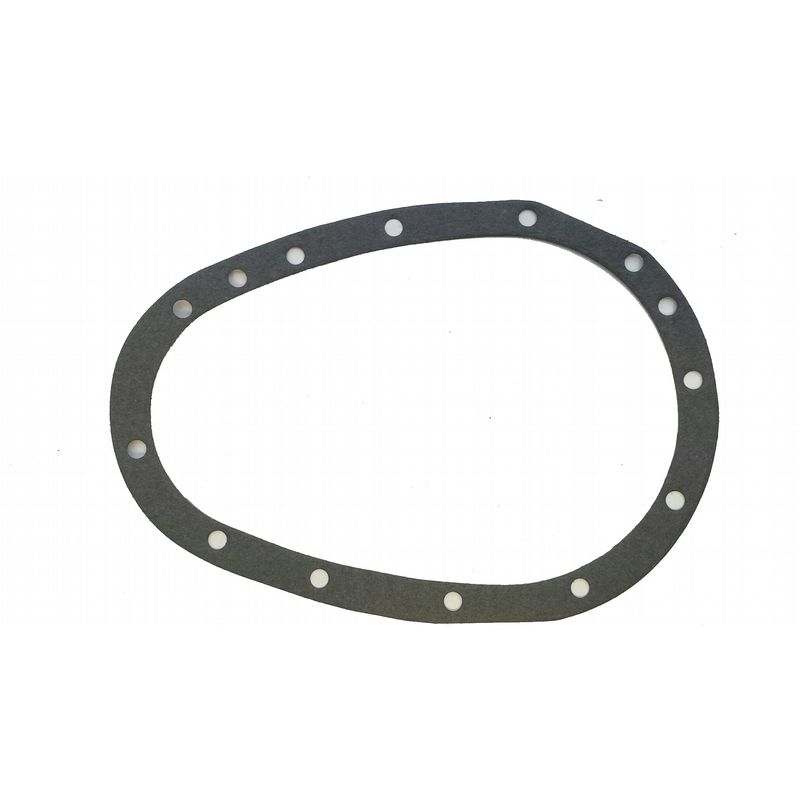

T/COVER GASKET TR2-4

Gasket, Front cover to engine plate.

1
Ex VAT: £3.28
Inc VAT: £3.94
Quantity

B44A
056763

CLICK FOR
MORE INFO

Support, timing cover

Consider original second hand part number 056763SH. .

1
Ex VAT: £3.82
Inc VAT: £4.58
Quantity

B44B
WL0208

CLICK FOR
MORE INFO

Washer, spring support bolt to cylinder block and timing cover

This item has been superceded by WS105090853 - see below

1
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

1
Ex VAT: £0.15
Inc VAT: £0.18
Quantity

B44C
033805

CLICK FOR
MORE INFO

Washer, fiblre support bolt to cylinder block and timing cover

This item has been superceded by WF10510056 - see below

1
WF10510056
WASHER FIBRE 5/16 I/D X 5/8 OD

1
Ex VAT: £0.45
Inc VAT: £0.54
Quantity

B44D
HN2008

CLICK FOR
MORE INFO

Nut, support bolt to cylinder block and timing cover

This item has been superceded by NP605081 - see below

1
NP605081
NUT PLAIN 5/16 UNF

1
Ex VAT: £0.11
Inc VAT: £0.13
Quantity

B45
HU0857

CLICK FOR
MORE INFO

Screw, set cover to cylinder block

This item has been superceded by SH505071 - see below

7
SH505071

CLICK FOR
MORE INFO

SCREW 5/16 UNC X 7/8 INCH

7
Ex VAT: £0.24
Inc VAT: £0.29
Quantity

B45A
HU0805

CLICK FOR
MORE INFO

Screw, set timing cover to front engine plate

This item has been superceded by SH605051 - see below

2
SH605051

CLICK FOR
MORE INFO

SCREW 5/16 UNF X 5/8 INCH

2
Ex VAT: £0.20
Inc VAT: £0.24
Quantity

B45B
HU0811

CLICK FOR
MORE INFO

Screw, set timing cover to front engine plate

This item has been superceded by SH605111 - see below

2
SH605111
SCREW 5/16 UNF X 1-3/8 INCH

2
Ex VAT: £1.34
Inc VAT: £1.61
Quantity

B45C
HN2008

CLICK FOR
MORE INFO

Nut, timing cover to front engine plate

This item has been superceded by NP605081 - see below

5
NP605081
NUT PLAIN 5/16 UNF

5
Ex VAT: £0.11
Inc VAT: £0.13
Quantity

B45D
WL0208

CLICK FOR
MORE INFO

Washer, spring cover attachment

This item has been superceded by WS105090853 - see below

12
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

12
Ex VAT: £0.15
Inc VAT: £0.18
Quantity

B46
043404

CLICK FOR
MORE INFO

TIMING CHAIN TENSIONER

Tensioner Timing Chain TR2-4A

1
Ex VAT: £4.10
Inc VAT: £4.92
Quantity

B47
058701

CLICK FOR
MORE INFO

Pin anchoring tensioner

1
Ex VAT: £4.21
Inc VAT: £5.05
Quantity

B48
WP0018X

CLICK FOR
MORE INFO

Washer tensioner to pin

This item has been superceded by WP104080571 - see below

as req'd.
WP104080571
WASHER 9/32 ID X 1/2 INCH OD

as req'd.
Ex VAT: £0.38
Inc VAT: £0.46
Quantity

B49
PC0005

CLICK FOR
MORE INFO

Pin, split tensioner to pin

This item has been superceded by PS104121 - see below

1
PS104121
SPLIT PIN 1/16 X 1-1/2 INCH

1
Ex VAT: £0.13
Inc VAT: £0.16
Quantity

B50
201782

CLICK FOR
MORE INFO

CONNECTING ROD ASSEMBLY (less bearing)

This item has been superceded by 211044 - see below

4
211044

CLICK FOR
MORE INFO

CON ROD TR2-4A

Not available new, use second hand part 211044SH

4
B51
056251

CLICK FOR
MORE INFO

Bush, small end

This item has been superceded by C17164 - see below

4
C17164
SMALL END BUSH TR2-4A

4
Ex VAT: £3.15
Inc VAT: £3.78
Quantity

852
106771

CLICK FOR
MORE INFO

Dowel, hollow, connecting rod bolt

4
B53
105312

CLICK FOR
MORE INFO

Bolt, connecting rod attachment

8
Ex VAT: £8.50
Inc VAT: £10.20
Quantity

B54
105313

CLICK FOR
MORE INFO

Washer, tab locking bolt

4
Ex VAT: £0.70
Inc VAT: £0.84
Quantity

B55
117590

CLICK FOR
MORE INFO

Bearing, big end

This item has been superceded by AEB4331STD - see below

4 prs.
AEB4331STD
TR2-4A BIG END BEARING STANDARD

TR2-4A Big End Bearing set standard.

4 prs.
Ex VAT: £50.83
Inc VAT: £61.00
Quantity

B56
122208

CLICK FOR
MORE INFO

PISTON ASSEMBLY - 86 mm (Graded F, G, H)

4
Ex VAT: £51.99
Inc VAT: £62.39
Quantity

B57
122169

CLICK FOR
MORE INFO

Ring, compression Plain

Individual piston rings are no longer available. Order complete engine piston ring set RTR1186000 for standard 86mm bore, RTR1186020 for 0.020" overbore, RTR1186030 for 0.030" overbore and RTR1186040 for 0.040" overbore.

4
Ex VAT: £3.54
Inc VAT: £4.25
Quantity

B58
122168

CLICK FOR
MORE INFO

Ring, compression Tapered

Individual piston rings are no longer available. Order complete engine piston ring set RTR1186000 for standard 86mm bore, RTR1186020 for 0.020" overbore, RTR1186030 for 0.030" overbore and RTR1186040 for 0.040" overbore.

4
B59
122170

CLICK FOR
MORE INFO

Ring, scraper

Individual piston rings are no longer available. Order complete engine piston ring set RTR1186000 for standard 86mm bore, RTR1186020 for 0.020" overbore, RTR1186030 for 0.030" overbore and RTR1186040 for 0.040" overbore.

4
Ex VAT: £6.44
Inc VAT: £7.73
Quantity

B60
122171

CLICK FOR
MORE INFO

Pin, gudgeon

4
B61
045985

CLICK FOR
MORE INFO

Circlip

8
Ex VAT: £1.45
Inc VAT: £1.74
Quantity

B56
506691

CLICK FOR
MORE INFO

PISTON ASSEMBLY - 83 mm (Graded F, G, H)

4
B58
107582

CLICK FOR
MORE INFO

Ring, compression Plain

4
B58A
113550

CLICK FOR
MORE INFO

Ring, compression Tapered

This item has been superceded by 107582 - see below

4
107582

CLICK FOR
MORE INFO

Ring, compression Plain

4
B59
113549

CLICK FOR
MORE INFO

Ring, scraper

4
B60
060254

CLICK FOR
MORE INFO

Pin, gudgeon

This item has been superceded by 60254 - see below

4
60254
GUDGEON PIN *NCA*

4
B61
045985

CLICK FOR
MORE INFO

Circlip, retaining gudgeon pin in piston

8
Ex VAT: £1.45
Inc VAT: £1.74
Quantity

B62
106981

CLICK FOR
MORE INFO

Gear, driving

Consider second hand. .

1
B63
058334

CLICK FOR
MORE INFO

Pin (Mills), fitted in gear

This item has been superceded by 500975 - see below

1
500975

CLICK FOR
MORE INFO

MILLS PIN 1/8"x1"

1
Ex VAT: £0.42
Inc VAT: £0.50
Quantity

B64
104966

CLICK FOR
MORE INFO

Shaft, oil pump drive

1
Ex VAT: £44.00
Inc VAT: £52.80
Quantity

B65
KW0316

CLICK FOR
MORE INFO

Key, gear to shaft

This item has been superceded by WKN304 - see below

1
WKN304
WOODRUFF KEY

1
Ex VAT: £0.61
Inc VAT: £0.73
Quantity

B66
201623

CLICK FOR
MORE INFO

Pedestal, distributor, and rev. counter housing

1
B67
056407

CLICK FOR
MORE INFO

Washer, joint, between pedestal and block B67

This item has been superceded by 125251 - see below

as req'd
125251

CLICK FOR
MORE INFO

Washer, joint, between pedestal and block B67

TR2-4A

as req'd
Ex VAT: £0.68
Inc VAT: £0.82
Quantity

B67A
125251

CLICK FOR
MORE INFO

Washer, joint, between pedestal and block B67

TR2-4A

as req'd
Ex VAT: £0.68
Inc VAT: £0.82
Quantity

B68
106184

CLICK FOR
MORE INFO

Gear, driven, rev. counter

Not available new, consider second hand part 106184SH

1
B68A
HN2008

CLICK FOR
MORE INFO

Nut Pedestal attachment

This item has been superceded by NP605081 - see below

2
NP605081
NUT PLAIN 5/16 UNF

2
Ex VAT: £0.11
Inc VAT: £0.13
Quantity

B68B
WL0208

CLICK FOR
MORE INFO

Washer, lock Pedestal attachment

This item has been superceded by WS105090853 - see below

2
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

2
Ex VAT: £0.15
Inc VAT: £0.18
Quantity

B68C
132472

CLICK FOR
MORE INFO

Bearing assembly, rev. counter drive

Not available new, consider second hand part 132472SH

1
B69
058968

CLICK FOR
MORE INFO

Bearing, driven gear

This item has been superceded by 132472 - see below

1
132472

CLICK FOR
MORE INFO

Bearing assembly, rev. counter drive

Not available new, consider second hand part 132472SH

1
B70
056305

CLICK FOR
MORE INFO

Screw, locking Bearing to dist. pedestal

1
B71
WL0208

CLICK FOR
MORE INFO

Washer, locking Bearing to dist. Pedestal

This item has been superceded by WS105090853 - see below

1
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

1
Ex VAT: £0.15
Inc VAT: £0.18
Quantity

872
060247

CLICK FOR
MORE INFO

Seal, oil

1
Ex VAT: £2.58
Inc VAT: £3.10
Quantity

B73
060246

CLICK FOR
MORE INFO

Screwed end, rev. counter bearing

1
B74
105280

CLICK FOR
MORE INFO

Stud Distributor to pedestal

This item has been superceded by ST704071 - see below

2
ST704071
STUD 1/4 x 7/8" UNF+ UNC

2
Ex VAT: £0.67
Inc VAT: £0.80
Quantity

B74A
HN2007

CLICK FOR
MORE INFO

Nut Distributor to pedestal

This item has been superceded by NP604071 - see below

2
NP604071
NUT PLAIN 1/4 UNF X 7/32

2
Ex VAT: £0.13
Inc VAT: £0.16
Quantity

B74B
WL0207

CLICK FOR
MORE INFO

Washer, spring Distributor to pedestal

This item has been superceded by WS104070643 - see below

2
WS104070643
WASHER SPRING 1/4" RECT SECTION

2
Ex VAT: £0.09
Inc VAT: £0.11
Quantity

B74C
WPOO42
Washer, plain Distributor to pedestal

2
