Fuel and braking systems

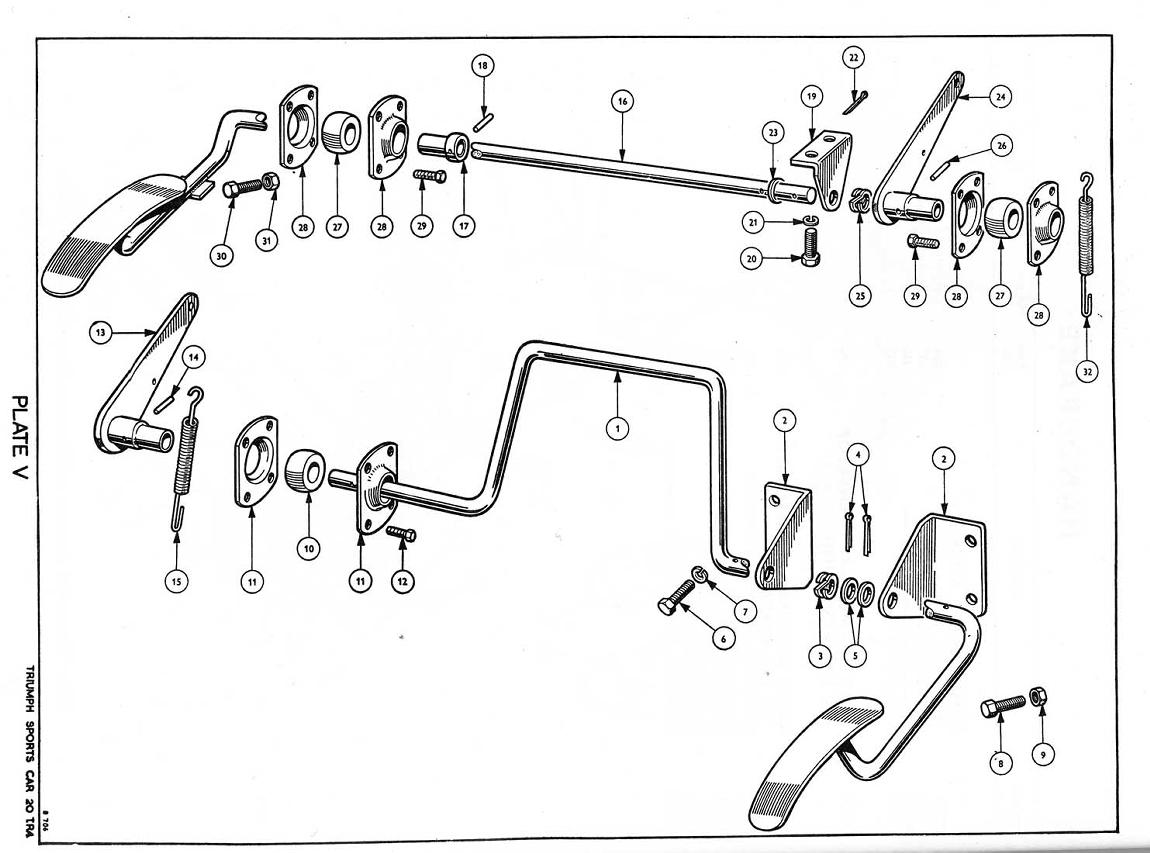

TR4 Plate V - ACCELERATION CONTROL: ACCELERATOR PEDAL AND LEVER.

  Plate No. Part No. Description and Comments No Per Unit Price Add to Cart
V1
209411

CLICK FOR
MORE INFO

ACCELERATOR PEDAL ASSEMBLY R.H.S.

The TR4-4A accelerator pedal part number 209411, has a slight kink in the pedal support, to the right whereas the accelerator pedal assembly for TR2-3B part number 208437 has a straight pedal support.

1
Ex VAT: £31.58
Inc VAT: £37.90
Quantity

V2
131253

CLICK FOR
MORE INFO

Bracket, fulcrum, pedal to toe board

This item has been superceded by 106752 - see below

2
106752

CLICK FOR
MORE INFO

BRACKET ACCELERATOR CONTROL RHD TR2-4A

consider original second hand part 106752SH

2
Ex VAT: £17.70
Inc VAT: £21.24
Quantity

V3
WD0159

CLICK FOR
MORE INFO

Washer, lock (double coil), pedal shaft

This item has been superceded by WT10611 - see below

1
WT10611
WASHER THACKERY 3/8 INCH

1
Ex VAT: £1.70
Inc VAT: £2.04
Quantity

V4
PC0009

CLICK FOR
MORE INFO

Pin, cotter, locating pedal shaft in fulcrum bracket

This item has been superceded by PS106121 - see below

2
PS106121
SPLIT PIN 3/32 X 1-1/2 INCH

2
Ex VAT: £0.12
Inc VAT: £0.14
Quantity

V5
WP0036

CLICK FOR
MORE INFO

Washer, plain, between cotter pin and bracket

This item has been superceded by WP10610057 - see below

2
WP10610057
WASHER PLAIN 3/8 X 5/8 X 0.057"

2
Ex VAT: £0.36
Inc VAT: £0.43
Quantity

V6
HU0705P

CLICK FOR
MORE INFO

Screw, set Fulcrum bracket to bulkhead

This item has been superceded by SH604051 - see below

4
SH604051
SCREW 1/4 UNF X 5/8 INCH

4
Ex VAT: £0.39
Inc VAT: £0.47
Quantity

V7
WL0207

CLICK FOR
MORE INFO

Washer, spring Fulcrum bracket to bulkhead

This item has been superceded by WS104070643 - see below

4
WS104070643
WASHER SPRING 1/4" RECT SECTION

4
Ex VAT: £0.09
Inc VAT: £0.11
Quantity

V8
HU0716P

CLICK FOR
MORE INFO

Screw, set Accelerator pedal limit stop

This item has been superceded by SH604161 - see below

1
SH604161
SCREW 1/4 UNF X 2 INCH

1
Ex VAT: £0.36
Inc VAT: £0.43
Quantity

V9
JN2107

CLICK FOR
MORE INFO

Nut, jam Accelerator pedal limit stop

This item has been superceded by NP604051 - see below

1
NP604051
NUT PLAIN 1/4 UNF X 5/32"

1
Ex VAT: £0.21
Inc VAT: £0.25
Quantity

V9A
HU0705P

CLICK FOR
MORE INFO

Screw, set Blanking redundant holes on R.H.S. models

This item has been superceded by SH604051 - see below

3
SH604051
SCREW 1/4 UNF X 5/8 INCH

3
Ex VAT: £0.39
Inc VAT: £0.47
Quantity

V9B
WL0207

CLICK FOR
MORE INFO

Washer, lock

This item has been superceded by WS104070643 - see below

3
WS104070643
WASHER SPRING 1/4" RECT SECTION

3
Ex VAT: £0.09
Inc VAT: £0.11
Quantity

V9C
600400

CLICK FOR
MORE INFO

Plug, blanking

1
Ex VAT: £1.80
Inc VAT: £2.16
Quantity

V10
058282

CLICK FOR
MORE INFO

Bearing, self aligning, on pedal shaft

Consider second hand original part 058282SH.

1
Ex VAT: £7.08
Inc VAT: £8.50
Quantity

V11
105226

CLICK FOR
MORE INFO

Housing, bearing (half)

Consider second hand original part 105226SH

2
V12
YH7503

CLICK FOR
MORE INFO

Screw, s/tapping, bearing housing attachment

This item has been superceded by SS1100321 - see below

4
SS1100321
SCREW ST NO.10 X 3/8 POZI PAN BZP

4
Ex VAT: £0.12
Inc VAT: £0.14
Quantity

V13
106753

CLICK FOR
MORE INFO

Lever assembly

Consider second hand original part 106753SH.

1
V14
500555

CLICK FOR
MORE INFO

Pin, mills, securing lever to pedal shaft

This item has been superceded by DS1312 - see below

1
DS1312

CLICK FOR
MORE INFO

Dowel, spring, securing lever to pedal shaft

This part can be used when 500555 is not available. It maybe a little shorter than the correct part but is useable.
Remarks: Fitted up to Commission No. CT only

1
Ex VAT: £0.45
Inc VAT: £0.54
Quantity

V15
027645

CLICK FOR
MORE INFO

Spring, return

Heavy spring 88mm long. Our stock is genuine Leyland

1
Ex VAT: £2.20
Inc VAT: £2.64
Quantity

V15A
DS1312

CLICK FOR
MORE INFO

Dowel, spring, securing lever to pedal shaft

This part can be used when 500555 is not available. It maybe a little shorter than the correct part but is useable.
Remarks: Fitted from Commission No. CT and future

1
Ex VAT: £0.45
Inc VAT: £0.54
Quantity

V16
206590

CLICK FOR
MORE INFO

ACCELERATOR PEDAL ASSEMBLY L.H.S.

TR3 LHD throttle pedal fitted to TR3-3A. this is the pedal part of a two piece assemble that was fitted in conjunction with straight bar 106762

1
V17
120443

CLICK FOR
MORE INFO

Bush, pedal

No longer available use second hand part.

1
V18
500555

CLICK FOR
MORE INFO

Pin, mills

This item has been superceded by DS1312 - see below

1
DS1312

CLICK FOR
MORE INFO

Dowel, spring, securing lever to pedal shaft

This part can be used when 500555 is not available. It maybe a little shorter than the correct part but is useable.

1
Ex VAT: £0.45
Inc VAT: £0.54
Quantity

V19
106763

CLICK FOR
MORE INFO

Bracket

Consider second hand original part 106763SH.

1
V20
HU0705P

CLICK FOR
MORE INFO

Screw, set Bracket attachment

This item has been superceded by SH604051 - see below

2
SH604051
SCREW 1/4 UNF X 5/8 INCH

2
Ex VAT: £0.39
Inc VAT: £0.47
Quantity

V21
WL0207

CLICK FOR
MORE INFO

Washer, lock Bracket attachment

This item has been superceded by WS104070643 - see below

2
WS104070643
WASHER SPRING 1/4" RECT SECTION

2
Ex VAT: £0.09
Inc VAT: £0.11
Quantity

V22
PC0009

CLICK FOR
MORE INFO

Pin, cotter

This item has been superceded by PS106121 - see below

1
PS106121
SPLIT PIN 3/32 X 1-1/2 INCH

1
Ex VAT: £0.12
Inc VAT: £0.14
Quantity

V23
WP0036

CLICK FOR
MORE INFO

Washer, plain

This item has been superceded by WP10610057 - see below

9
WP10610057
WASHER PLAIN 3/8 X 5/8 X 0.057"

9
Ex VAT: £0.36
Inc VAT: £0.43
Quantity

V24
106753

CLICK FOR
MORE INFO

Lever assembly

Consider second hand original part 106753SH.

1
V25
WD0159

CLICK FOR
MORE INFO

Washer, spring, between lever and bracket

This item has been superceded by WT10611 - see below

1
WT10611
WASHER THACKERY 3/8 INCH

1
Ex VAT: £1.70
Inc VAT: £2.04
Quantity

V26
500555

CLICK FOR
MORE INFO

Pin, mills, securing lever

This item has been superceded by DS1312 - see below

1
DS1312

CLICK FOR
MORE INFO

Dowel, spring, securing lever to pedal shaft

This part can be used when 500555 is not available. It maybe a little shorter than the correct part but is useable.

1
Ex VAT: £0.45
Inc VAT: £0.54
Quantity

V27
S68282

CLICK FOR
MORE INFO

Bearing, self aligning, on shaft

This item has been superceded by 058282 - see below

2
058282

CLICK FOR
MORE INFO

Bearing, self aligning, on pedal shaft

Consider second hand original part 058282SH.

2
Ex VAT: £7.08
Inc VAT: £8.50
Quantity

V28
105226

CLICK FOR
MORE INFO

Housing, bearing (half)

Consider second hand original part 105226SH

4
V29
YH7503

CLICK FOR
MORE INFO

Screw, s/tapping, bearing housing attachment

This item has been superceded by SS1100321 - see below

8
SS1100321
SCREW ST NO.10 X 3/8 POZI PAN BZP

8
Ex VAT: £0.12
Inc VAT: £0.14
Quantity

V30
HU0716F

CLICK FOR
MORE INFO

Screw, pedal limit stop

This item has been superceded by SH604161 - see below

1
SH604161
SCREW 1/4 UNF X 2 INCH

1
Ex VAT: £0.36
Inc VAT: £0.43
Quantity

V31
JN2107

CLICK FOR
MORE INFO

Nut, jam

This item has been superceded by NP604051 - see below

1
NP604051
NUT PLAIN 1/4 UNF X 5/32"

1
Ex VAT: £0.21
Inc VAT: £0.25
Quantity

V32
027645

CLICK FOR
MORE INFO

Spring, return

Heavy spring 88mm long. Our stock is genuine Leyland

1
Ex VAT: £2.20
Inc VAT: £2.64
Quantity
