Fuel and braking systems

Fuel and braking systems

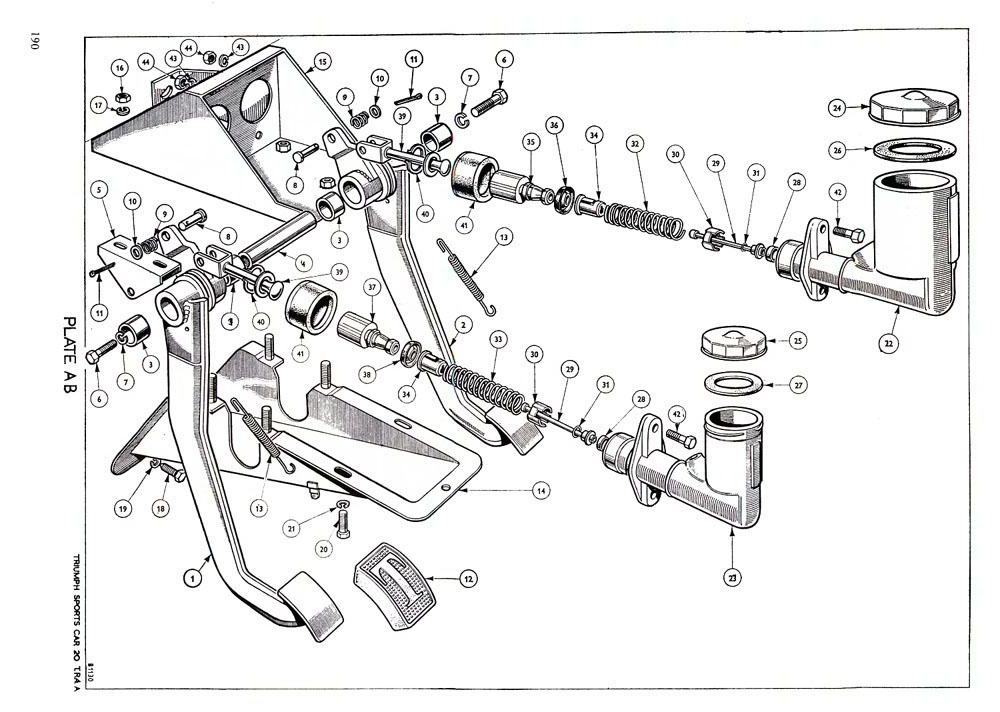

TR4A Plate AB - CLUTCH AND BRAKE PEDALS: MASTER CYLINDERS AND SUPPORT BRACKET.

  Plate No. Part No. Description and Comments No Per Unit Price Add to Cart
AB1
133810

CLICK FOR
MORE INFO

CLUTCH PEDAL ASSEMBLY R.H.S.

Not available new, use second hand part 133810SH or second hand part painted black 133810SHPC

1
AB1A
129275

CLICK FOR
MORE INFO

CLUTCH PEDAL ASSEMBLY L.H.S.

Not available new, use second hand part 129275SH or second hand part painted black 129275SHPC

1
AB2
133808

CLICK FOR
MORE INFO

BRAKE PEDAL ASSEMBLY R.H.S.

Not available new, use second hand part 133808SH or second hand part painted black 133808HPC

1
AB2A
129277

CLICK FOR
MORE INFO

BRAKE PEDAL ASSEMBLY L.H.S.

Not available new, use second hand part 129277SH or second hand part painted black 129277SHPC

1
AB3
100954

CLICK FOR
MORE INFO

Bush; pedal pivot

This item has been superceded by RTR3128 - see below

4
RTR3128

CLICK FOR
MORE INFO

RTR Upgrade

BUSH OILITE

TR2-4 bush oilite in outer wishbone. 2 of these replace one 101615.

4
Ex VAT: £2.34
Inc VAT: £2.81

AB4
110016

CLICK FOR
MORE INFO

Shaft, pedal

When refurbishing the clutch and brake pedals you will need 4 x RTR3128 Bush too. Shaft 110016 is available manufactured from stainless steel. See 110016SS

1
Ex VAT: £4.52
Inc VAT: £5.42

AB5
106678

CLICK FOR
MORE INFO

Bracket, supporting, pedal shaft

This part is no longer available new. Use second hand part 106678SH or second hand powder coated part 106678SHPC.

2
AB6
HU0905

CLICK FOR
MORE INFO

Screw, set Shaft to bracket

This item has been superceded by SH606051 - see below

2
SH606051
SCREW 3/8 UNF X 5/8 INCH

2
Ex VAT: £0.58
Inc VAT: £0.70

AB7
WL0209

CLICK FOR
MORE INFO

Washer, spring Shaft to bracket

This item has been superceded by WS106111243 - see below

2
WS106111243
WASHER SPRING 3/8" RECT SECTION

2
Ex VAT: £0.15
Inc VAT: £0.18

AB8
PJ8812

CLICK FOR
MORE INFO

Pin, joint Master cylinder fork ends to pedals

This item has been superceded by PC1202461 - see below

2
PC1202461
PIN CLEVIS 5/16 x 3/4 x 3/32

2
Ex VAT: £0.65
Inc VAT: £0.78

AB9
131787

CLICK FOR
MORE INFO

Spring, anti-rattle Master cylinder fork ends to pedals

This item has been superceded by 216421A - see below

2
216421A

CLICK FOR
MORE INFO

CLEVIS PIN & SPRING

2
Ex VAT: £5.05
Inc VAT: £6.06

AB10
WP0008

CLICK FOR
MORE INFO

Washer, plain Master cylinder fork ends to pedals

This item has been superceded by WP10510075 - see below

2
WP10510075
WASHER PLAIN 5/16 X 5/8 X .075

2
Ex VAT: £0.23
Inc VAT: £0.28

AB11
PC0009

CLICK FOR
MORE INFO

Pin, cotter Master cylinder fork ends to pedals

This item has been superceded by PS106121 - see below

2
PS106121
SPLIT PIN 3/32 X 1-1/2 INCH

2
Ex VAT: £0.12
Inc VAT: £0.14

AB12
122289

CLICK FOR
MORE INFO

Pad, rubber, on pedals

2
Ex VAT: £3.00
Inc VAT: £3.60

AB13
057950

CLICK FOR
MORE INFO

Spring, return, pedal

70mm long heavy duty

2
Ex VAT: £3.15
Inc VAT: £3.78

AB14
106670

CLICK FOR
MORE INFO

PEDAL SHAFT COVER ASSEMBLY

This part is no longer available new. Use second hand part 106670SH or second hand powder coated part 106670SHPC.

1
AB15
138910

CLICK FOR
MORE INFO

MASTER CYLINDER SUPPORT BRACKET ASSEMBLY

Consider second-hand original part 138910SH.

1
Ex VAT: £62.50
Inc VAT: £75.00

AB16
HN2008

CLICK FOR
MORE INFO

Nut Pedal shaft support bracket, cover and m/cylinder bracket to bulkhead

This item has been superceded by NP605081 - see below

4
NP605081
NUT PLAIN 5/16 UNF

4
Ex VAT: £0.10
Inc VAT: £0.12

AB17
WL0208

CLICK FOR
MORE INFO

Washer, lock Pedal shaft support bracket, cover and m/cylinder bracket to bulkhead

This item has been superceded by WS105090853 - see below

4
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

4
Ex VAT: £0.15
Inc VAT: £0.18

AB18
HU0805P

CLICK FOR
MORE INFO

Screw, set Pedal shaft cover to bulkhead

This item has been superceded by SH605051 - see below

2
SH605051

CLICK FOR
MORE INFO

SCREW 5/16 UNF X 5/8 INCH

2
Ex VAT: £0.25
Inc VAT: £0.30

AB19
WL0208

CLICK FOR
MORE INFO

Washer, lock Pedal shaft cover to bulkhead

This item has been superceded by WS105090853 - see below

2
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

2
Ex VAT: £0.15
Inc VAT: £0.18

AB20
HU0806

CLICK FOR
MORE INFO

Screw, set Pedal shaft cover and m/cylinder bracket to bulkhead

This item has been superceded by SH605061 - see below

2
SH605061

CLICK FOR
MORE INFO

SCREW 5/16 UNF X 3/4 INCH

2
Ex VAT: £0.28
Inc VAT: £0.34

AB21
WL0208

CLICK FOR
MORE INFO

Washer, lock Pedal shaft cover and m/cylinder bracket to bulkhead

This item has been superceded by WS105090853 - see below

2
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

2
Ex VAT: £0.15
Inc VAT: £0.18

AB22AA
132909

CLICK FOR
MORE INFO

BRAKE MASTER CYLINDER ASSEMBLY

Brake Master Cylinder TR4 with a 0.7" bore. Fitted from CT5856 (wire wheels) and CT5783 (disc wheels) and all TR4A. If a seal kit alone is required, order part number 18G8986. Earlier cars had a 0.75"...

1
Ex VAT: £65.03
Inc VAT: £78.04

AB22BB
130887

CLICK FOR
MORE INFO

CLUTCH MASTER CYLINDER ASSEMBLY

Bore diameter 0.75", outlet 3/8"UNF and comes with push rod PR2235092. If you require a repair kit order GRK1027

1
Ex VAT: £46.39
Inc VAT: £55.67

AB22
Barrel and tank assembly Brake

Remarks: Not serviced


AB23
Barrel and tank assembly Clutch

Remarks: Not serviced


AB24
510844

CLICK FOR
MORE INFO

Cap, filler, brake

1
Ex VAT: £16.00
Inc VAT: £19.20

AB25
106094

CLICK FOR
MORE INFO

Cap, filler, clutch

This item has been superceded by 500201A - see below

1
500201A

CLICK FOR
MORE INFO

CAP FOR M/CYL (GIR) TR4-8

1
Ex VAT: £4.25
Inc VAT: £5.10

AB26
510845

CLICK FOR
MORE INFO

Gasket, filler, brake

This item has been superceded by 606404A - see below

1
606404A
SEAL - M/CYL CAP

1
Ex VAT: £1.38
Inc VAT: £1.66

AB27
106095

CLICK FOR
MORE INFO

Washer, rubber, clutch

1
Ex VAT: £0.96
Inc VAT: £1.15

A628
106158

CLICK FOR
MORE INFO

Seal Valve

Not available on its own. Use Repair kit GRK1027 which services a " diameter Girling master cylinder

2
AB29
106157

CLICK FOR
MORE INFO

Stem Valve

Not available on its own. Either purchase a new cylinder use Repair kit GRK1027 which services a " diameter Girling master cylinder if just the seals are needed

2
AB30
111163

CLICK FOR
MORE INFO

Spacer Valve

Not available on its own. Either purchase a new cylinder use Repair kit GRK1027 which services a " diameter Girling master cylinder if just the seals are needed

2
AB31
106090

CLICK FOR
MORE INFO

Washer, spring, between spacer and valve head

Not available on its own. Use Repair kit GRK1027 which services a " diameter Girling master cylinder

2
AB32
106156

CLICK FOR
MORE INFO

Spring, plunger return, brake

Not currently available

1
AB33
510815

CLICK FOR
MORE INFO

Spring, plunger return, clutch

This item has been superceded by 510812A - see below

1
510812A
SPRING (PKT=10)

1
AB34
106088

CLICK FOR
MORE INFO

Retainer, spring to plunger

Not available on its own. Either purchase a new cylinder use Repair kit GRK1027 which services a " diameter Girling master cylinder if just the seals are needed

2
AB35
511137

CLICK FOR
MORE INFO

Plunger Brake

1
AB36
511138

CLICK FOR
MORE INFO

Seal, plunger Brake

This item has been superceded by 18G8986 - see below

1
18G8986

CLICK FOR
MORE INFO

0.7" SEAL KIT TR4 BK &TR5/6 M/CL

Use this kit on TR4, 4A brake master cylinder and TR250, 5, 6 clutch master cylinder where a 0.7" diameter cylinder is fitted. Note: - A 0.7" cylinder may be fitted to TR2-3B in which case...

1
Ex VAT: £10.00
Inc VAT: £12.00

AB37
504842

CLICK FOR
MORE INFO

Plunger Clutch

Not available on its own. Either purchase a new cylinder use Repair kit GRK1027 which services a " diameter Girling master cylinder if just the seals are needed

1
AB38
510847

CLICK FOR
MORE INFO

Seal, plunger Clutch

Not available on its own. Use Repair kit GRK1027 which services a " diameter Girling master cylinder

1
AB39
510198

CLICK FOR
MORE INFO

Rod, push, assembly

This item has been superceded by PR2225081 - currently not available

2
106092

CLICK FOR
MORE INFO

Circlip, securing retaining washer

2
Ex VAT: £1.55
Inc VAT: £1.86

AB41
106093

CLICK FOR
MORE INFO

Cover, dust, (rubber) cylinder head

Not available on its own. Either purchase a new cylinder use Repair kit GRK1027 which services a " diameter Girling master cylinder if just the seals are needed

2
AB42
HU0807

CLICK FOR
MORE INFO

Screw, set Master cylinder to support bracket

This item has been superceded by SH605071 - see below

4
SH605071
SCREW 5/16 UNF X 7/8 INCH

4
Ex VAT: £0.33
Inc VAT: £0.40

AB43
WL0208

CLICK FOR
MORE INFO

Washer, lock Master cylinder to support bracket

This item has been superceded by WS105090853 - see below

4
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

4
Ex VAT: £0.15
Inc VAT: £0.18

AB44
HN2008

CLICK FOR
MORE INFO

Nut Master cylinder to support bracket

This item has been superceded by NP605081 - see below

2
NP605081
NUT PLAIN 5/16 UNF

2
Ex VAT: £0.10
Inc VAT: £0.12
