Electrical systems, Instruments etc.

TR6 CP (EARLY PI) Plate BD - ELECTRICAL EQUIPMENT: Tail, Number Plate and Interior Lamps

Also in this listing

Stop/Tail/Flasher/Marker Reflex and Reverse Lamp Assembly, Number Plate Illumination Lamp Cover, Interior Lamp, Boot Lamp

Also in this listing

Stop/Tail/Flasher/Marker Reflex and Reverse Lamp Assembly, Number Plate Illumination Lamp Cover, Interior Lamp, Boot Lamp
  Plate No. Part No. Description and Comments No Per Unit Price Add to Cart
BD1AA
215249

CLICK FOR
MORE INFO

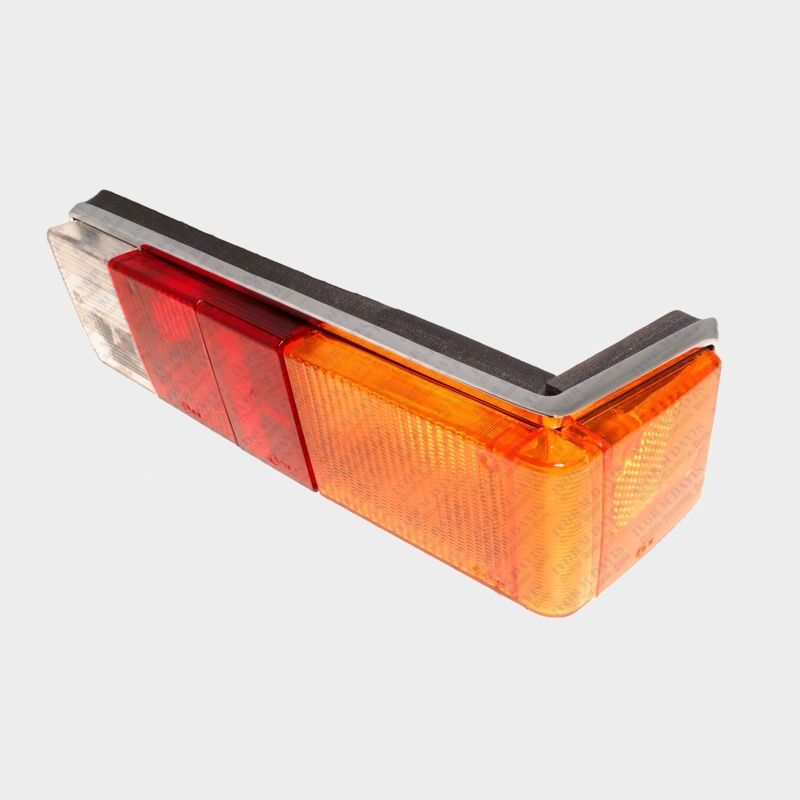

STOP/TAIL/FLASHER/MARKER REFLEX AND REVERSE LAMP ASSEMBLY - R.H.

This item has been superceded by 218870 - see below

1
218870

CLICK FOR
MORE INFO

STOP TAIL REFLEX AND REVERSE LAMP R.H.

Remarks: Fitted up to Body No. 62020CC

1
Ex VAT: £229.95
Inc VAT: £275.94
Quantity

BD1AB
217313
STOP/TAIL/FLASHER/MARKER REFLEX AND REVERSE LAMP ASSEMBLY - R.H.

Remarks: Fitted from Body No. 62021CC up to Comm. No. CF1

1
BD1AC
215250

CLICK FOR
MORE INFO

STOP/TAIL/FLASHER/MARKER REFLEX AND REVERSE LAMP ASSEMBLY - L.H.

This item has been superceded by 218871 - see below

1
218871

CLICK FOR
MORE INFO

STOP TAIL REFLEX AND REVERSE LAMP L.H.

Remarks: Fitted up to Body No. 62020CC

1
Ex VAT: £229.95
Inc VAT: £275.94
Quantity

BD1AD
217312
STOP/TAIL/FLASHER/MARKER REFLEX AND REVERSE LAMP ASSEMBLY - L.H.

Remarks: Fitted from Body No. 62021CC up to Comm. No. CF1

1
BD1
518037

CLICK FOR
MORE INFO

LENS assembly, flasher - Amber - R.H.

Remarks: U.S.A. and other American markets

1
Ex VAT: £23.33
Inc VAT: £28.00
Quantity

BD1A
518037

CLICK FOR
MORE INFO

LENS assembly, flasher - Amber - R.H.

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

1
Ex VAT: £23.33
Inc VAT: £28.00
Quantity

BD1B
518047

CLICK FOR
MORE INFO

LENS assembly, flasher - Amber - L.H.

Remarks: U.S.A. and other American markets

1
Ex VAT: £18.57
Inc VAT: £22.28
Quantity

BD1C
518047

CLICK FOR
MORE INFO

LENS assembly, flasher - Amber - L.H.

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

1
Ex VAT: £18.57
Inc VAT: £22.28
Quantity

BD2A
518036

CLICK FOR
MORE INFO

LENS assembly, stop tail - Red - R.H.

Remarks: U.S.A. and other American markets

1
Ex VAT: £17.98
Inc VAT: £21.58
Quantity

BD2B
518036

CLICK FOR
MORE INFO

LENS assembly, stop tail - Red - R.H.

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

1
Ex VAT: £17.98
Inc VAT: £21.58
Quantity

BD2C
518046

CLICK FOR
MORE INFO

LENS assembly, stop tail - Red - L.H.

Remarks: U.S.A. and other American markets

1
Ex VAT: £18.57
Inc VAT: £22.28
Quantity

BD2D
518046

CLICK FOR
MORE INFO

LENS assembly, stop tail - Red - L.H.

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

1
Ex VAT: £18.57
Inc VAT: £22.28
Quantity

BD3
518038

CLICK FOR
MORE INFO

LENS assembly, reverse - White - R.H.

Remarks: U.S.A. and other American markets

1
Ex VAT: £12.33
Inc VAT: £14.80
Quantity

BD3A
518048

CLICK FOR
MORE INFO

LENS assembly, reverse - White - L.H.

This item has been superceded by RTC281 - see below

1
RTC281

CLICK FOR
MORE INFO

LENS REVERSE TR6 LH

Remarks: U.S.A. and other American markets

1
Ex VAT: £12.33
Inc VAT: £14.80
Quantity

BD3B
RTC0283
LENS, reverse R.H.

Remarks: Fitted from Comm No CF1 U.S.A. and other American markets

1
BD3C
RTC0281
LENS, reverse L.H.

Remarks: Fitted from Comm. No. CF.1 Home and Export except French, American and German Markets

1
BD3D
RTC0281
LENS, reverse L.H.

Remarks: Fitted from Comm No CF1 U.S.A. and other American markets

1
BD3E
RTC0283
LENS, reverse R.H.

Remarks: Fitted from Comm. No. CF.1 Home and Export except French, American and German Markets

1
BD3D
518038

CLICK FOR
MORE INFO

LENS assembly, reverse - White - R.H.

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

1
Ex VAT: £12.33
Inc VAT: £14.80
Quantity

BD3E
518048

CLICK FOR
MORE INFO

LENS assembly, reverse - White - L.H.

This item has been superceded by RTC281 - see below

1
RTC281

CLICK FOR
MORE INFO

LENS REVERSE TR6 LH

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

1
Ex VAT: £12.33
Inc VAT: £14.80
Quantity

BD4
518039

CLICK FOR
MORE INFO

LENS assembly, side marker and reflex - Red - R.H.

Consider second hand part 518039SH
Remarks: U.S.A. and other American markets

1
Ex VAT: £10.83
Inc VAT: £13.00
Quantity

BD4A
518049

CLICK FOR
MORE INFO

LENS assembly, side marker and reflex - Red - L. H.

Consider original second hand part number 518049SH. .
Remarks: U.S.A. and other American markets

1
Ex VAT: £10.83
Inc VAT: £13.00
Quantity

BD4B
518039

CLICK FOR
MORE INFO

LENS, side marker R.H.

Consider second hand part 518039SH
Remarks: Fitted from Comm. No. CF.1 Home and Export except French, American and German Markets

1
Ex VAT: £10.83
Inc VAT: £13.00
Quantity

BD4C
518049

CLICK FOR
MORE INFO

LENS, side marker L.H.

Consider original second hand part number 518049SH. .
Remarks: Fitted from Comm. No. CF.1 Home and Export except French, American and German Markets

1
Ex VAT: £10.83
Inc VAT: £13.00
Quantity

BD4D
518130

CLICK FOR
MORE INFO

LENS assembly, side marker - Amber - R.H.

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

1
Ex VAT: £12.62
Inc VAT: £15.14
Quantity

BD4E
518132

CLICK FOR
MORE INFO

LENS assembly, side marker - Amber - L.H.

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

1
Ex VAT: £13.00
Inc VAT: £15.60
Quantity

BD5
518040

CLICK FOR
MORE INFO

GASKET, seating lens, stop tail, flasher, reverse

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

2
Ex VAT: £2.02
Inc VAT: £2.42
Quantity

BD5A
518040

CLICK FOR
MORE INFO

GASKET, seating lens - Stop tail, flasher, reverse

Remarks: U.S.A. and other American markets

2
Ex VAT: £2.02
Inc VAT: £2.42
Quantity

BD6
518147

CLICK FOR
MORE INFO

SCREW, lens attachment

Remarks: U.S.A. and other American markets

20
Ex VAT: £0.30
Inc VAT: £0.36
Quantity

BD7
Not Serviced
BASE

Remarks: U.S.A. and other American markets


BD8
518042

CLICK FOR
MORE INFO

BULBHOLDER, flasher

Remarks: U.S.A. and other American markets

2
Ex VAT: £4.68
Inc VAT: £5.62
Quantity

BD9
502379

CLICK FOR
MORE INFO

BULB, flasher

This item has been superceded by GLB382 - see below

2
GLB382

CLICK FOR
MORE INFO

BULB 21W INDICATOR/ REVERSE LIGHT

Amber version is GLB343.
Remarks: U.S.A. and other American markets

2
Ex VAT: £0.59
Inc VAT: £0.71
Quantity

BD10
518041

CLICK FOR
MORE INFO

BULBHOLDER, stop tail

Remarks: U.S.A. and other American markets

2
Ex VAT: £5.38
Inc VAT: £6.46
Quantity

BD11
502287

CLICK FOR
MORE INFO

BULB, stop tail

This item has been superceded by GLB380 - see below

2
GLB380

CLICK FOR
MORE INFO

BULB 21/5 WATT 12V STOP TAIL

A version of this Stop/tail bulb is available with red glass. Order GLB380R.
Remarks: U.S.A. and other American markets

2
Ex VAT: £0.43
Inc VAT: £0.52
Quantity

BD12
518042

CLICK FOR
MORE INFO

BULBHOLDER, reverse

Remarks: U.S.A. and other American markets

2
Ex VAT: £4.68
Inc VAT: £5.62
Quantity

BD13
502379

CLICK FOR
MORE INFO

BULB, reverse

This item has been superceded by GLB382 - see below

2
GLB382

CLICK FOR
MORE INFO

BULB 21W INDICATOR/ REVERSE LIGHT

Amber version is GLB343.
Remarks: U.S.A. and other American markets

2
Ex VAT: £0.59
Inc VAT: £0.71
Quantity

BD14
518043

CLICK FOR
MORE INFO

BULBHOLDER, side marker

This item has been superceded by AEU1745 - see below

2
AEU1745
BULB HOLDER TR6 WITH EARTH WIRE

Bulb holder TR5-6 glove box.
Remarks: U.S.A. and other American markets

2
Ex VAT: £7.74
Inc VAT: £9.29
Quantity

BD15
059467

CLICK FOR
MORE INFO

BULB, side marker

This item has been superceded by GLB989 - see below

2
GLB989

CLICK FOR
MORE INFO

BULB 12V 5W BAYONET

Remarks: U.S.A. and other American markets

2
Ex VAT: £0.61
Inc VAT: £0.73
Quantity

BD16
153103

CLICK FOR
MORE INFO

GASKET, seating lamp (Alternative fitment to 152139 and 152140)

Remarks: U.S.A. and other American markets

2
BD16A
152139

CLICK FOR
MORE INFO

GASKET, lamp seating (Alternative fitment to 153103)

Remarks: U.S.A. and other American markets

2
Ex VAT: £2.01
Inc VAT: £2.41
Quantity

BD16B
152140

CLICK FOR
MORE INFO

GASKET, lamp seating (Alternative fitment to 153103)

Remarks: U.S.A. and other American markets

2
Ex VAT: £1.59
Inc VAT: £1.91
Quantity

BD17
HN2005

CLICK FOR
MORE INFO

NUT - Securing stop/tail reflex and reverse lamps

This item has been superceded by NP603041 - see below

12
NP603041
NUT PLAIN 10-32 UNF 3/8 AF

Remarks: U.S.A. and other American markets

12
Ex VAT: £0.13
Inc VAT: £0.16
Quantity

BD18
WL0205

CLICK FOR
MORE INFO

WASHER, lock - Securing stop/tail reflex and reverse lamps

This item has been superceded by WS10306048 - see below

12
WS10306048

CLICK FOR
MORE INFO

SPRING WASHER 3/16" x 3/8"x 0.048"

Remarks: U.S.A. and other American markets

12
Ex VAT: £0.09
Inc VAT: £0.11
Quantity

BD19
WM0055

CLICK FOR
MORE INFO

WASHER, plain - Securing stop/tail reflex and reverse lamps

Remarks: U.S.A. and other American markets

12
Ex VAT: £0.13
Inc VAT: £0.16
Quantity

BD19A
155750
REFLECTOR

Remarks: Fitted with 215249 and 215250 only

2
BD19B
629623
PLINTH

Remarks: Fitted with 215249 and 215250 only

2
BD19C
519172
SCREW, reflector and plinth to body

Remarks: U.S.A. markets only from Comm. No. CC52453 up to Comm. No. CF.1

2
BD19D
519173

CLICK FOR
MORE INFO

SCREW, reflector and plinth to body

This item has been superceded by SS1060421 - see below

2
SS1060421
SCREW ST No 6x1/2" PAN POZ1 BZP

0
Remarks: U.S.A. markets only from Comm. No. CC52453 up to Comm. No. CF.2

2
Ex VAT: £0.10
Inc VAT: £0.12
Quantity

BD19E
218870

CLICK FOR
MORE INFO

STOP TAIL REFLEX AND REVERSE LAMP R.H.

Remarks: Fitted from Comm No CF1 U.S.A. and other American markets

1
Ex VAT: £229.95
Inc VAT: £275.94
Quantity

BD19F
218871

CLICK FOR
MORE INFO

STOP TAIL REFLEX AND REVERSE LAMP L.H.

Remarks: Fitted from Comm No CF1 U.S.A. and other American markets

1
Ex VAT: £229.95
Inc VAT: £275.94
Quantity

BD19G
RTC0284
GASKET, seating lamp R.H.

Remarks: Fitted from Comm No CF1 U.S.A. and other American markets

1
BD19H
RTC0282
GASKET, seating lamp L.H.

Remarks: Fitted from Comm No CF1 U.S.A. and other American markets

1
BD19I
159735
RESISTOR in line tail lamp

Remarks: Fitted from Comm No CF1 U.S.A. and other American markets

2
BD16
218906

CLICK FOR
MORE INFO

GASKET, base lamp L.H.

This item has been superceded by 152139 - see below

1
152139

CLICK FOR
MORE INFO

GASKET, lamp seating (Alternative fitment to 153103)

Remarks: Fitted from Comm No CF1 U.S.A. and other American markets

1
Ex VAT: £2.01
Inc VAT: £2.41
Quantity

BD16A
218905

CLICK FOR
MORE INFO

GASKET, base lamp R.H.

This item has been superceded by 152139 - see below

1
152139

CLICK FOR
MORE INFO

GASKET, lamp seating (Alternative fitment to 153103)

Remarks: Fitted from Comm No CF1 U.S.A. and other American markets

1
Ex VAT: £2.01
Inc VAT: £2.41
Quantity

All other details as 215249 and 215250


BD16B
216045

CLICK FOR
MORE INFO

STOP/TAIL/FLASHER/REFLEX/REVERSE LAMP ASSEMBLY R.H.

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

1
Ex VAT: £229.95
Inc VAT: £275.94
Quantity

BD16C
216046

CLICK FOR
MORE INFO

STOP/TAIL/FLASHER/REFLEX/REVERSE LAMP ASSEMBLY L.H.

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

1
Ex VAT: £229.95
Inc VAT: £275.94
Quantity

BD6
518147

CLICK FOR
MORE INFO

SCREW, lens attachment

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

20
Ex VAT: £0.30
Inc VAT: £0.36
Quantity

BD7
Not Serviced
BASE

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1


BD8
518042

CLICK FOR
MORE INFO

BULBHOLDER, flasher

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

2
Ex VAT: £4.68
Inc VAT: £5.62
Quantity

BD9
502379

CLICK FOR
MORE INFO

BULB, flasher

This item has been superceded by GLB382 - see below

2
GLB382

CLICK FOR
MORE INFO

BULB 21W INDICATOR/ REVERSE LIGHT

Amber version is GLB343.
Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

2
Ex VAT: £0.59
Inc VAT: £0.71
Quantity

BD10
518041

CLICK FOR
MORE INFO

BULBHOLDER, stop tail

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

2
Ex VAT: £5.38
Inc VAT: £6.46
Quantity

BD11
502287

CLICK FOR
MORE INFO

BULB, stop tail

This item has been superceded by GLB380 - see below

2
GLB380

CLICK FOR
MORE INFO

BULB 21/5 WATT 12V STOP TAIL

A version of this Stop/tail bulb is available with red glass. Order GLB380R.
Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

2
Ex VAT: £0.43
Inc VAT: £0.52
Quantity

BD12
518042

CLICK FOR
MORE INFO

BULBHOLDER, reverse

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

2
Ex VAT: £4.68
Inc VAT: £5.62
Quantity

BD13
502379

CLICK FOR
MORE INFO

BULB, reverse

This item has been superceded by GLB382 - see below

2
GLB382

CLICK FOR
MORE INFO

BULB 21W INDICATOR/ REVERSE LIGHT

Amber version is GLB343.
Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

2
Ex VAT: £0.59
Inc VAT: £0.71
Quantity

BD16
153103

CLICK FOR
MORE INFO

GASKET, seating lamp (Alternative to 152139 and 152140)

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

2
BD16A
152139

CLICK FOR
MORE INFO

GASKET, lamp seating - Large (Alternative to 153103)

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

2
Ex VAT: £2.01
Inc VAT: £2.41
Quantity

BD16B
152140

CLICK FOR
MORE INFO

GASKET, lamp seating - Small (Alternative to 153103)

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

2
Ex VAT: £1.59
Inc VAT: £1.91
Quantity

BD17
HN2005

CLICK FOR
MORE INFO

NUT - Securing stop tail, flasher, reflex, reverse lamps

This item has been superceded by NP603041 - see below

12
NP603041
NUT PLAIN 10-32 UNF 3/8 AF

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

12
Ex VAT: £0.13
Inc VAT: £0.16
Quantity

BD18
WL0205

CLICK FOR
MORE INFO

WASHER, lock-Securing stop tail, flasher, reflex, reverse lamps

This item has been superceded by WS10306048 - see below

12
WS10306048

CLICK FOR
MORE INFO

SPRING WASHER 3/16" x 3/8"x 0.048"

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

12
Ex VAT: £0.09
Inc VAT: £0.11
Quantity

BD19
WM0055

CLICK FOR
MORE INFO

WASHER, plain - Securing stop tail, flasher, reflex, reverse lamps

Remarks: Home and Export, except French and American markets. Fitted up to Comm. No. CF1

12
Ex VAT: £0.13
Inc VAT: £0.16
Quantity

BD19A
132028
FUSE - Tail lamp

Remarks: Germany only. Fitted up to ............

2
BD19B
157940
FUSE - Tail lamp

Remarks: Germany only. Fitted from ............

2
BD19C
218870

CLICK FOR
MORE INFO

STOP TAIL, REFLEX REVERSE LAMP R.H.

Remarks: Fitted from Comm. No. CF.1 Home and Export except French, American and German Markets

1
Ex VAT: £229.95
Inc VAT: £275.94
Quantity

BD19D
218871

CLICK FOR
MORE INFO

STOP TAIL, REFLEX REVERSE LAMP L.H.

Remarks: Fitted from Comm. No. CF.1 Home and Export except French, American and German Markets

1
Ex VAT: £229.95
Inc VAT: £275.94
Quantity

BD19E
518043

CLICK FOR
MORE INFO

BULBHOLDER, side marker

This item has been superceded by AEU1745 - see below

1
AEU1745
BULB HOLDER TR6 WITH EARTH WIRE

Bulb holder TR5-6 glove box.
Remarks: Fitted from Comm. No. CF.1 Home and Export except French, American and German Markets

1
Ex VAT: £7.74
Inc VAT: £9.29
Quantity

BD19F
501436

CLICK FOR
MORE INFO

BULB, side marker

This item has been superceded by GLB233 - see below

1
GLB233

CLICK FOR
MORE INFO

LIGHT BULB

Remarks: Fitted from Comm. No. CF.1 Home and Export except French, American and German Markets

1
Ex VAT: £0.54
Inc VAT: £0.65
Quantity

BD16
RTC0282
GASKET, seating lamp

Remarks: Fitted from Comm. No. CF.1 Home and Export except French, American and German Markets

1
BD16A
RTC0284
GASKET, seating lamp

Remarks: Fitted from Comm. No. CF.1 Home and Export except French, American and German Markets

1
BD16B
218906

CLICK FOR
MORE INFO

GASKET, base lamp L.H.

This item has been superceded by 152139 - see below

1
152139

CLICK FOR
MORE INFO

GASKET, lamp seating (Alternative fitment to 153103)

Remarks: Fitted from Comm. No. CF.1 Home and Export except French, American and German Markets

1
Ex VAT: £2.01
Inc VAT: £2.41
Quantity

BD16C
218905

CLICK FOR
MORE INFO

GASKET, base lamp R.H.

This item has been superceded by 152139 - see below

1
152139

CLICK FOR
MORE INFO

GASKET, lamp seating (Alternative fitment to 153103)

Remarks: Fitted from Comm. No. CF.1 Home and Export except French, American and German Markets

1
Ex VAT: £2.01
Inc VAT: £2.41
Quantity

BD16D
159735
RESISTOR, In line tail lamp

Remarks: Fitted from Comm. No. CF.1 Home and Export except French, American and German Markets

1
BD16E
All other details as 216045 and 216046


BD16F
215761
STOP/TAIL/FLASHER/REFLEX/REVERSE LAMP ASSEMBLY - R.H.

Remarks: France and all French markets

1
BD16G
215762
STOP/TAIL/FLASHER/REFLEX/REVERSE LAMP ASSEMBLY - L.H.

Remarks: France and all French markets

1
BD1
518037

CLICK FOR
MORE INFO

LENS assembly, flasher - Amber - R.H.

Remarks: France and all French markets

1
Ex VAT: £23.33
Inc VAT: £28.00
Quantity

BD1A
518047

CLICK FOR
MORE INFO

LENS assembly, flasher - Amber - L.H.

Remarks: France and all French markets

1
Ex VAT: £18.57
Inc VAT: £22.28
Quantity

BD2
518036

CLICK FOR
MORE INFO

LENS assembly, stop tail - Red - R.H.

Remarks: France and all French markets

1
Ex VAT: £17.98
Inc VAT: £21.58
Quantity

BD2A
518046

CLICK FOR
MORE INFO

LENS assembly, stop tail - Red - L.H.

Remarks: France and all French markets

1
Ex VAT: £18.57
Inc VAT: £22.28
Quantity

BD3
518129
LENS assembly, reverse - Amber - R.H.

Remarks: France and all French markets

1
BD3A
518131

CLICK FOR
MORE INFO

LENS assembly, reverse - Amber - L.H.

Remarks: France and all French markets

1
Ex VAT: £21.47
Inc VAT: £25.76
Quantity

BD4
518130

CLICK FOR
MORE INFO

LENS assembly, side marker - Amber - R.H.

Remarks: France and all French markets

1
Ex VAT: £12.62
Inc VAT: £15.14
Quantity

BD4A
518132

CLICK FOR
MORE INFO

LENS assembly, side marker - Amber - L.H.

Remarks: France and all French markets

1
Ex VAT: £13.00
Inc VAT: £15.60
Quantity

BD5
518040

CLICK FOR
MORE INFO

GASKET, seating lens - Stop tail, flasher, reverse

Remarks: France and all French markets

2
Ex VAT: £2.02
Inc VAT: £2.42
Quantity

BD6
518147

CLICK FOR
MORE INFO

SCREW, lens attachment

Remarks: France and all French markets

20
Ex VAT: £0.30
Inc VAT: £0.36
Quantity

BD7
Not Serviced
BASE

Remarks: France and all French markets


BD8
518042

CLICK FOR
MORE INFO

BULBHOLDER, flasher

Remarks: France and all French markets

2
Ex VAT: £4.68
Inc VAT: £5.62
Quantity

BD9
502379

CLICK FOR
MORE INFO

BULB, flasher

This item has been superceded by GLB382 - see below

2
GLB382

CLICK FOR
MORE INFO

BULB 21W INDICATOR/ REVERSE LIGHT

Amber version is GLB343.
Remarks: France and all French markets

2
Ex VAT: £0.59
Inc VAT: £0.71
Quantity

BD10
518041

CLICK FOR
MORE INFO

BULBHOLDER, stop tail

Remarks: France and all French markets

2
Ex VAT: £5.38
Inc VAT: £6.46
Quantity

BD11
502287

CLICK FOR
MORE INFO

BULB, stop tail

This item has been superceded by GLB380 - see below

2
GLB380

CLICK FOR
MORE INFO

BULB 21/5 WATT 12V STOP TAIL

A version of this Stop/tail bulb is available with red glass. Order GLB380R.
Remarks: France and all French markets

2
Ex VAT: £0.43
Inc VAT: £0.52
Quantity

BD12
518042

CLICK FOR
MORE INFO

BULBHOLDER, reverse

Remarks: France and all French markets

2
Ex VAT: £4.68
Inc VAT: £5.62
Quantity

BD13
502379

CLICK FOR
MORE INFO

BULB, reverse

This item has been superceded by GLB382 - see below

2
GLB382

CLICK FOR
MORE INFO

BULB 21W INDICATOR/ REVERSE LIGHT

Amber version is GLB343.
Remarks: France and all French markets

2
Ex VAT: £0.59
Inc VAT: £0.71
Quantity

BD16
153103

CLICK FOR
MORE INFO

GASKET, seating lamp (Alternative to 152139 and 152140)

Remarks: France and all French markets

2
BD16A
152139

CLICK FOR
MORE INFO

GASKET, lamp seating - Large (Alternative to 153103)

Remarks: France and all French markets

2
Ex VAT: £2.01
Inc VAT: £2.41
Quantity

BD16B
152140

CLICK FOR
MORE INFO

GASKET, lamp seating - Small (Alternative to 153103)

Remarks: France and all French markets

2
Ex VAT: £1.59
Inc VAT: £1.91
Quantity

BD17
HN2005

CLICK FOR
MORE INFO

NUT - Securing stop tail flasher, reflex, reverse lamps

This item has been superceded by NP603041 - see below

12
NP603041
NUT PLAIN 10-32 UNF 3/8 AF

Remarks: France and all French markets

12
Ex VAT: £0.13
Inc VAT: £0.16
Quantity

BD18
WL0205

CLICK FOR
MORE INFO

WASHER, lock - Securing stop tail flasher, reflex, reverse lamps

This item has been superceded by WS10306048 - see below

12
WS10306048

CLICK FOR
MORE INFO

SPRING WASHER 3/16" x 3/8"x 0.048"

Remarks: France and all French markets

12
Ex VAT: £0.09
Inc VAT: £0.11
Quantity

BD19
WM0055

CLICK FOR
MORE INFO

WASHER, plain - Securing stop tail flasher, reflex, reverse lamps

Remarks: France and all French markets

12
Ex VAT: £0.13
Inc VAT: £0.16
Quantity

BD19A
TKC0174
STOP TAIL,FLASHER,REFLEX,REVERSE LAMP ASSEMBLY L.H.

Remarks: Germany only 1973. Fitted from Comm. No. CF1 and CR1

1
BD19B
TKC0175
STOP TAIL,FLASHER,REFLEX,REVERSE LAMP ASSEMBLY R.H.

Remarks: Germany only 1973. Fitted from Comm. No. CF1 and CR1

1
BD19C
UKC0428
LEAD, Extension, Marker lamps

Remarks: Germany only 1973. Fitted from Comm. No. CF1 and CR1

2
BD19D
13H5805
CONNECTOR

Remarks: Germany only 1973. Fitted from Comm. No. CF1 and CR1

2
BD19E
151954

CLICK FOR
MORE INFO

NUMBER PLATE ILLUMINATION LAMP

Remarks: Fitted up to Comm. No. CF1

1
Ex VAT: £93.92
Inc VAT: £112.70
Quantity

BD20
518030

CLICK FOR
MORE INFO

COVER

1
Ex VAT: £30.83
Inc VAT: £37.00
Quantity

BD21
518031
LENS - R.H.

1
BD22
518032
LENS - L.H.

1
BD22A
510907

CLICK FOR
MORE INFO

INTERIOR, bulbholder

2
Ex VAT: £3.16
Inc VAT: £3.79
Quantity

BD23
511029

CLICK FOR
MORE INFO

BULB

This item has been superceded by GLB207 - see below

2
GLB207

CLICK FOR
MORE INFO

BULB 12V-5W NO PLATE

2
Ex VAT: £0.47
Inc VAT: £0.56
Quantity

BD24
Not Serviced
BASE


BD25
518148
SCREW, cover attachment

2
BD26
215823

CLICK FOR
MORE INFO

GASKET, base, number plate lamp

Remarks: Fitted up to Comm. No. CF1

1
Ex VAT: £15.50
Inc VAT: £18.60
Quantity

BD27
WM0055

CLICK FOR
MORE INFO

WASHER, plain-Number. plate lamp to rear bumper

Remarks: Fitted up to Comm. No. CF1

2
Ex VAT: £0.13
Inc VAT: £0.16
Quantity

BD28
WL0205

CLICK FOR
MORE INFO

WASHER, lock - Number plate lamp to rear bumper

This item has been superceded by WS10306048 - see below

2
WS10306048

CLICK FOR
MORE INFO

SPRING WASHER 3/16" x 3/8"x 0.048"

Remarks: Fitted up to Comm. No. CF1

2
Ex VAT: £0.09
Inc VAT: £0.11
Quantity

BD29
HN2005

CLICK FOR
MORE INFO

NUT - Number plate lamp to rear bumper

This item has been superceded by NP603041 - see below

2
NP603041
NUT PLAIN 10-32 UNF 3/8 AF

Remarks: Fitted up to Comm. No. CF1

2
Ex VAT: £0.13
Inc VAT: £0.16
Quantity

BD30
061917

CLICK FOR
MORE INFO

GROMMET, number plate lamp lead

Remarks: Fitted up to Comm. No. CF1

1
Ex VAT: £0.43
Inc VAT: £0.52
Quantity

BD30A
600399

CLICK FOR
MORE INFO

PLUG, blanking, in rear valance

Remarks: Fitted up to Comm. No. CF1

1
Ex VAT: £1.26
Inc VAT: £1.51
Quantity

BD30B
632043

CLICK FOR
MORE INFO

PLINTH, Number Plate Lamp

Remarks: Fitted up to Comm. No. CF1

1
Ex VAT: £6.56
Inc VAT: £7.87
Quantity

BD30C
159896
NUMBER PLATE LAMP AND PLINTH ASSEMBLY

Remarks: Fitted from Comm. No. CF1

2
BD30D
159895
NUMBER PLATE LAMP AND PLINTH ASSEMBLY

Remarks: Fitted from Comm. No. CF1

2
BD30E
513071
SCREW, self tapping, No. 6 5/8" long-pan head - chrome plated

Remarks: Fitted from Comm. No. CF1

4
BD30F
519173

CLICK FOR
MORE INFO

SCREW, self tapping

This item has been superceded by SS1060421 - see below

4
SS1060421
SCREW ST No 6x1/2" PAN POZ1 BZP

0
Remarks: Fitted from Comm. No. CF1

4
Ex VAT: £0.10
Inc VAT: £0.12
Quantity

BD30G
FJ2442/4

CLICK FOR
MORE INFO

NUT, FIX No. 6 'J' type

This item has been superceded by AK606021 - see below

4
AK606021
SPRING NUT

Remarks: Fitted from Comm. No. CF1

4
Ex VAT: £0.34
Inc VAT: £0.41
Quantity

BD30H
634570

CLICK FOR
MORE INFO

WASHER, securing lamps and plinths to rear valance

Remarks: Fitted from Comm. No. CF1

4
Ex VAT: £0.28
Inc VAT: £0.34
Quantity

BD31
151273

CLICK FOR
MORE INFO

INTERIOR LAMP (Transmission Tunnel)

This item has been superceded by BHA5138 - see below

1
BHA5138

CLICK FOR
MORE INFO

LAMP INTERIOR TRANSMISSION TUNNEL

The TR6 used this interior lamp mounted on an interior colour coded plinth which was it self mounted on the transmission tunnel. The original lamp had a chromed metal base.

1
Ex VAT: £11.08
Inc VAT: £13.30
Quantity

BD32
059897

CLICK FOR
MORE INFO

BULB

This item has been superceded by GLB239 - see below

1
GLB239

CLICK FOR
MORE INFO

BULB 5W INT/NO PLATE

1
Ex VAT: £0.57
Inc VAT: £0.68
Quantity

BD33
717241

CLICK FOR
MORE INFO

PLINTH assembly, tunnel courtesy light - Black

1
Ex VAT: £33.67
Inc VAT: £40.40
Quantity

BD33A
717242

CLICK FOR
MORE INFO

PLINTH assembly, tunnel courtesy light - Matador Red

1
BD33B
717243

CLICK FOR
MORE INFO

PLINTH assembly, tunnel courtesy light - Light Tan

1
BD33C
725353
PLINTH assembly, tunnel courtesy light - New Tan


BD33D
717247

CLICK FOR
MORE INFO

PLINTH assembly, tunnel courtesy light - Shadow Blue

1
BD34
502658
SCREW - Plinth to tunnel

Remarks: Fitted up to Comm. No. CF1

2
BD35
619627

CLICK FOR
MORE INFO

WASHER, cup - Plinth to tunnel

This item has been superceded by CD24152 - see below

2
CD24152

CLICK FOR
MORE INFO

WASHER CUP No.6 CR SINGLE FLAIR

2
Ex VAT: £0.19
Inc VAT: £0.23
Quantity

BD35
YZ3164

CLICK FOR
MORE INFO

SCREW, lamp to plinth

This item has been superceded by AD604062 - see below

2
AD604062
SCREW CHR.CSK No.4x3/4"SLOT

2
Ex VAT: £0.24
Inc VAT: £0.29
Quantity

BD36
625561

CLICK FOR
MORE INFO

SWITCH, tunnel lamp in 'A' posts

This item has been superceded by BHA4593Z - see below

2
BHA4593Z
SWITCH COURTESY LIGHT METAL

2
Ex VAT: £4.93
Inc VAT: £5.92
Quantity

BD37
YZ3304

CLICK FOR
MORE INFO

SCREW, s/t, securing switches to 'A' posts

This item has been superceded by SS1060421 - see below

4
SS1060421
SCREW ST No 6x1/2" PAN POZ1 BZP

0

4
Ex VAT: £0.10
Inc VAT: £0.12
Quantity

BD37A
627318
BRACKET, interior lamp - Lock type steering

Remarks: U.S.A. type markets Fitted from CC50,001

1
BD37B
YZ3304

CLICK FOR
MORE INFO

SCREW, set - Securing bracket, interior lamp

This item has been superceded by SS1060421 - see below

1
SS1060421
SCREW ST No 6x1/2" PAN POZ1 BZP

0
Remarks: U.S.A. type markets Fitted from CC50,001

1
Ex VAT: £0.10
Inc VAT: £0.12
Quantity

BD37C
FJ2443/8
NUT, spire - Securing bracket, interior lamp

Remarks: U.S.A. type markets Fitted from CC50,001

1
BD37D
151353

CLICK FOR
MORE INFO

INTERIOR LAMP (Trunk Compartment)

Lamp boot TR6

1
Ex VAT: £5.29
Inc VAT: £6.35
Quantity

BD37E
FJ2462/8

CLICK FOR
MORE INFO

NUT, spire - Securing lamp

This item has been superceded by RTR5093 - see below

2
RTR5093

RTR Upgrade

NUT SPIRE No6 J TYPE 16 X 11MM

2
Ex VAT: £0.31
Inc VAT: £0.37
Quantity

BD37F
YX5363

CLICK FOR
MORE INFO

SCREW - Securing lamp

This item has been superceded by 510273 - see below

2
510273
CHROME SCREW510273

2
Ex VAT: £0.82
Inc VAT: £0.98
Quantity

BD36
625561

CLICK FOR
MORE INFO

SWITCH, trunk lamp

This item has been superceded by BHA4593Z - see below

1
BHA4593Z
SWITCH COURTESY LIGHT METAL

Remarks: Fitted up to CC50,000 U.S.A. type markets

1
Ex VAT: £4.93
Inc VAT: £5.92
Quantity

BD37
YZ3304

CLICK FOR
MORE INFO

SCREW, s/t, securing switch to trunk compartment

This item has been superceded by SS1060421 - see below

2
SS1060421
SCREW ST No 6x1/2" PAN POZ1 BZP

0

2
Ex VAT: £0.10
Inc VAT: £0.12
Quantity

BD37A
627742

CLICK FOR
MORE INFO

SWITCH, courtesy light - Passenger's side

NLA
Remarks: U.S.A. type markets Fitted from CC50,001

1
BD37B
627748

CLICK FOR
MORE INFO

SWITCH, courtesy light (Driver's side) and audible warning

This item has been superceded by YKC940Z - see below

1
YKC940Z
SWITCH COURTESY CTF

Remarks: U.S.A. type markets Fitted from CC50,001

1
Ex VAT: £5.38
Inc VAT: £6.46
Quantity

BD37C
YZ3304

CLICK FOR
MORE INFO

SCREW set - Securing switches, passenger's and driver's

This item has been superceded by SS1060421 - see below

4
SS1060421
SCREW ST No 6x1/2" PAN POZ1 BZP

0
Remarks: U.S.A. type markets Fitted from CC50,001

4
Ex VAT: £0.10
Inc VAT: £0.12
Quantity

BD37D
627742

CLICK FOR
MORE INFO

SWITCH, courtesy light

NLA
Remarks: All markets except U.S.A. Fitted from CP50,001

2
BD37E
YZ3304

CLICK FOR
MORE INFO

SCREW, set - Securing switch, courtesy light

This item has been superceded by SS1060421 - see below

4
SS1060421
SCREW ST No 6x1/2" PAN POZ1 BZP

0
Remarks: All markets except U.S.A. Fitted from CP50,001

4
Ex VAT: £0.10
Inc VAT: £0.12
Quantity

BD37F
151275
BULB, cubby box light

1
BD37G
Not Serviced
LAMPHOLDER , forming cubby box courtesy light

Remarks: Part of wiring harness


BD37H
619071
SWITCH, cubby box light pressed into metal facia

1
BD37I
631001
BUFFER, cubby box lid - fitted to plunger on light switch (Cubby Box)

1
BD37J
219139

CLICK FOR
MORE INFO

ESCUTCHEON CONTROL ASSEMBLY, Heater controls illumination

No Longer Available

1
BD37K
160121
BULB

1
BD37L
160021

CLICK FOR
MORE INFO

LAMP HOLDER

1
Ex VAT: £4.09
Inc VAT: £4.91
Quantity

BD37M
160022
CLIP, mask

Remarks: Fitted from Comm. No. CF1

1
BD37N
160079
HOLDER, bulb

1
BD37O
WQ0305

CLICK FOR
MORE INFO

WASHER, lock to secure heater escutcheon to support bracket facia to floor

This item has been superceded by WL105001 - see below

2
WL105001

CLICK FOR
MORE INFO

WASHER SPRING 5mm

2
Ex VAT: £0.27
Inc VAT: £0.32
Quantity

BD37P
PX0506
SCREW, set to secure heater escutcheon to support bracket facia to floor

2
