MAINSHAFT 'A' TR2, 3, 3A

Part No:

204044

Price

£417.79

Price Ex VAT @ 20%

£348.16

AVAILABLE This part is available to order

main

1 image

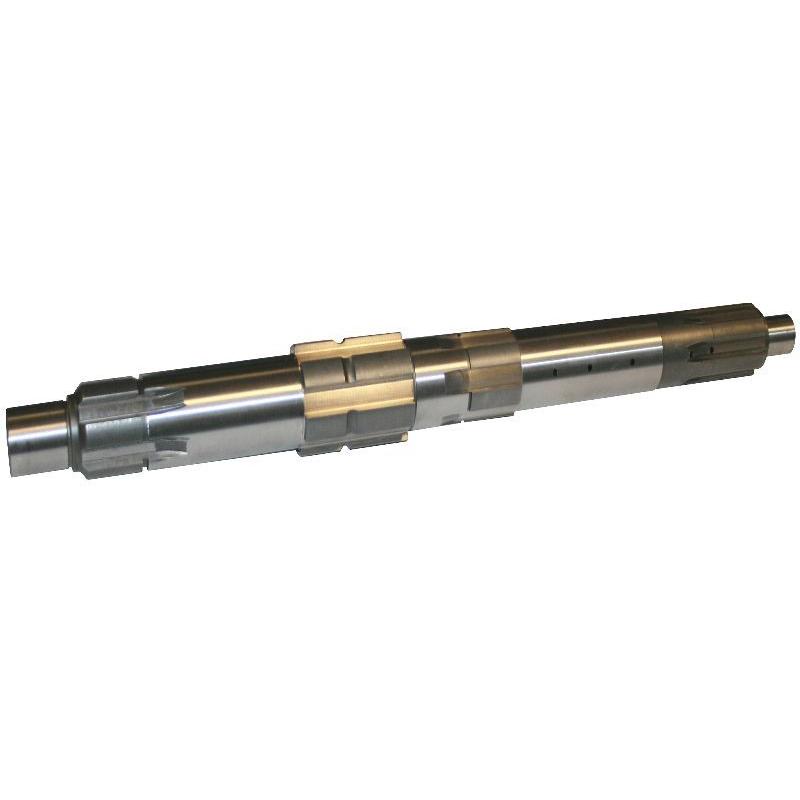

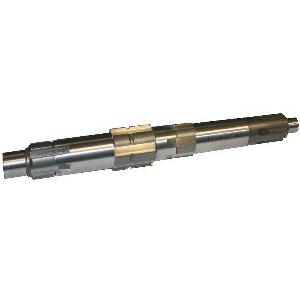

Late TR3-3A Overdrive Mainshaft. Also consider second hand part 204044SH

Two overdrive mainshafts were used on TR2-3B the early one 110736 used a sintered bronze bearing between the mainshaft and the input shaft, the later one 204044 used a press fit needle roller bearing that was carried over to TR4-5-EARLY 6

The noses of the mainshafts 110736 and 204044 are totally different and they cant be converted to make one from the other.

Mainshafts + input shafts can be swapped as pairs, but the early mainshaft needs a rear washer 060569 which is triangular. The later one is circular but cannot be fitted to early shafts, it is the same washers 116496 as used on TR4-6 four synchromesh gearboxes.

Triangular washers 060569 are available but early overdrive mainshafts 110736 are difficult to find

204044 mainshaft is readily available

To view the Triumph Catalogue Plates, please pick a car type

Part No.	Description and Comments	Price	Add to Cart
110736 CLICK FOR MORE INFO	MAINSHAFT O/D TR2-3A Revington TR information: Early TR2-3 Overdrive Mainshaft. Two overdrive mainshafts were used on TR2-3B the early one 110736 used a sintered bronze bearing between the mainshaft and the input shaft, the later one 204044 used a press fit needle... READ MORE	£901.60 Ex VAT @ 20% £751.33	Available to order
204044SH CLICK FOR MORE INFO	Second Hand MAINSHAFT 'A' TR2-3B Revington TR information: Second Hand Late TR3-3A Overdrive Mainshaft. If you want original parts use this part. Reproduction part new number is listed below Two overdrive mainshafts were used on TR2-3B the early one 110736 used a sintered bronze... READ MORE	£401.74 Ex VAT @ 20% £334.78
116496 CLICK FOR MORE INFO	WASHER REAR	£43.81 Ex VAT @ 20% £36.51

110736

CLICK FOR
MORE INFO

MAINSHAFT O/D TR2-3A

Revington TR information: Early TR2-3 Overdrive Mainshaft. Two overdrive mainshafts were used on TR2-3B the early one 110736 used a sintered bronze bearing between the mainshaft and the input shaft, the later one 204044 used a press fit needle... READ MORE

£901.60

Ex VAT @ 20%
£751.33

204044SH

CLICK FOR
MORE INFO

Second Hand MAINSHAFT 'A' TR2-3B

Revington TR information: Second Hand Late TR3-3A Overdrive Mainshaft. If you want original parts use this part. Reproduction part new number is listed below Two overdrive mainshafts were used on TR2-3B the early one 110736 used a sintered bronze... READ MORE

£401.74

Ex VAT @ 20%
£334.78

116496

CLICK FOR
MORE INFO

WASHER REAR

£43.81

Ex VAT @ 20%
£36.51

Car Type	Plate	Plate Title	Plate No.	Triumph Part Description	No per Unit
TR2	AT	HIGH SPEED EQUIPMENT: GEARBOX AND OVERDRIVE, COMPETITION PARTS AND TONNEAU COVER	AT3A	Mainshaft, gearbox From Comm. No. TS26825 to TS27050	1
TR2	AT	HIGH SPEED EQUIPMENT: GEARBOX AND OVERDRIVE, COMPETITION PARTS AND TONNEAU COVER	AT3A	Mainshaft, gearbox From Comm. No. TS26825 to TS27050	1
TR2	AT	HIGH SPEED EQUIPMENT: GEARBOX AND OVERDRIVE, COMPETITION PARTS AND TONNEAU COVER	AT3A	Mainshaft, gearbox From Comm. No. TS26825 to TS27050	1
TR2	AT	HIGH SPEED EQUIPMENT: GEARBOX AND OVERDRIVE, COMPETITION PARTS AND TONNEAU COVER	AT3A	Mainshaft, gearbox From Comm. No. TS26825 to TS27050	1
TR2	AT	HIGH SPEED EQUIPMENT: GEARBOX AND OVERDRIVE, COMPETITION PARTS AND TONNEAU COVER	AT3C	Mainshaft, gearbox From Comm. No. TS27063 onwards	1
TR2	AT	HIGH SPEED EQUIPMENT: GEARBOX AND OVERDRIVE, COMPETITION PARTS AND TONNEAU COVER	AT3C	Mainshaft, gearbox From Comm. No. TS27063 onwards	1
TR2	AT	HIGH SPEED EQUIPMENT: GEARBOX AND OVERDRIVE, COMPETITION PARTS AND TONNEAU COVER	AT3C	Mainshaft, gearbox From Comm. No. TS27063 onwards	1
TR2	AT	HIGH SPEED EQUIPMENT: GEARBOX AND OVERDRIVE, COMPETITION PARTS AND TONNEAU COVER	AT3C	Mainshaft, gearbox From Comm. No. TS27063 onwards	1
TR2	AW	OVERDRIVE UNIT DETAILS.	AW3A	Mainshaft, gearbox From Comm. No. TS26825	1
TR2	AW	OVERDRIVE UNIT DETAILS.	AW3A	Mainshaft, gearbox From Comm. No. TS26825	1
TR2	AW	OVERDRIVE UNIT DETAILS.	AW3C	Mainshaft, gearbox From Comm. No. TS27063	1
TR2	AW	OVERDRIVE UNIT DETAILS.	AW3C	Mainshaft, gearbox From Comm. No. TS27063	1
TR3	AT	HIGH SPEED EQUIPMENT: GEARBOX AND OVERDRIVE, COMPETITION PARTS AND TONNEAU COVER	AT3A	Mainshaft, gearbox From Comm. No. TS26825 to TS27050	1
TR3	AT	HIGH SPEED EQUIPMENT: GEARBOX AND OVERDRIVE, COMPETITION PARTS AND TONNEAU COVER	AT3A	Mainshaft, gearbox From Comm. No. TS26825 to TS27050	1
TR3	AT	HIGH SPEED EQUIPMENT: GEARBOX AND OVERDRIVE, COMPETITION PARTS AND TONNEAU COVER	AT3A	Mainshaft, gearbox From Comm. No. TS26825 to TS27050	1
TR3	AT	HIGH SPEED EQUIPMENT: GEARBOX AND OVERDRIVE, COMPETITION PARTS AND TONNEAU COVER	AT3A	Mainshaft, gearbox From Comm. No. TS26825 to TS27050	1
TR3	AT	HIGH SPEED EQUIPMENT: GEARBOX AND OVERDRIVE, COMPETITION PARTS AND TONNEAU COVER	AT3C	Mainshaft, gearbox From Comm. No. TS27063 onwards	1
TR3	AT	HIGH SPEED EQUIPMENT: GEARBOX AND OVERDRIVE, COMPETITION PARTS AND TONNEAU COVER	AT3C	Mainshaft, gearbox From Comm. No. TS27063 onwards	1
TR3	AT	HIGH SPEED EQUIPMENT: GEARBOX AND OVERDRIVE, COMPETITION PARTS AND TONNEAU COVER	AT3C	Mainshaft, gearbox From Comm. No. TS27063 onwards	1
TR3	AT	HIGH SPEED EQUIPMENT: GEARBOX AND OVERDRIVE, COMPETITION PARTS AND TONNEAU COVER	AT3C	Mainshaft, gearbox From Comm. No. TS27063 onwards	1
TR3	AW	OVERDRIVE UNIT DETAILS.	AW3A	Mainshaft, gearbox From Comm. No. TS26825	1
TR3	AW	OVERDRIVE UNIT DETAILS.	AW3A	Mainshaft, gearbox From Comm. No. TS26825	1
TR3	AW	OVERDRIVE UNIT DETAILS.	AW3C	Mainshaft, gearbox From Comm. No. TS27063	1
TR3	AW	OVERDRIVE UNIT DETAILS.	AW3C	Mainshaft, gearbox From Comm. No. TS27063	1
