OUTLET CONN 1,3,4,6 LATER O RING TYPE
NOT AVAILABLE This part is no longer available
Metering unit Outlet Union for numbers one, three, four and six outlet pipes. This is the later type used from engine number CP75315 and uses a steel ring and 'O' ring type seal. As new parts are currently unavailable please use exchange part 521029EX or second hand part 521029SH.
This part must not be confused with the earlier part 518629 fitted up to CP75314 which uses a Dowty type seal. If the unions (which house the non return valve) are used with the incorrect sealing method there will be serious consequences.
If the early union is used with the later seal and ring, the ring will not be located properly and the seal will not seal resulting massive fuel leakage.
If the later union is used with the early Dowty seal, the nose of the union will not seal properly in the 'doughnut ' or 'bung' seal in the metering unit causing over-fuelling by the addition of un-metered fuel to the metered charge.

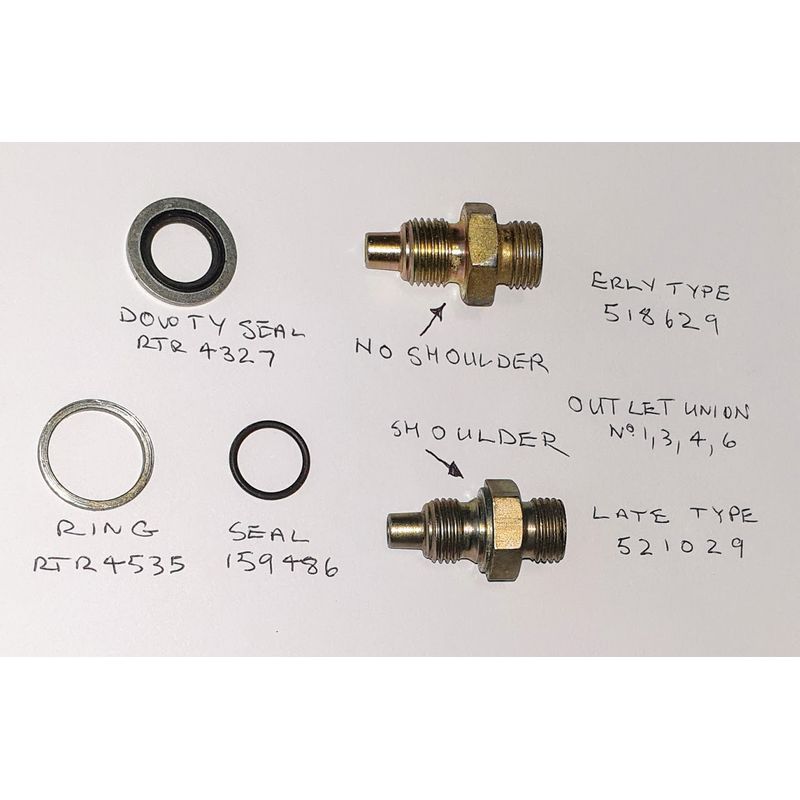

To assist with identifying the correct the parts please see the photo of the parts laid out for comparison.
Whilst fitting this part it is usual to change the bung seals RTR4077 too.
To view the Triumph Catalogue Plates, please pick a car type
| Part No. | Description and Comments | Price | Add to Cart | |
|---|---|---|---|---|
 |
521029EX |
Revington TR information: Metering unit Outlet Union for numbers one, three, four and six outlet pipes second hand. This is the later type used from engine number CP75315 and uses a steel ring and 'O' ring type seal. As... READ MORE |
||
 |
521029SH |
[521029SH]Revington TR information: Metering unit Outlet Union for numbers one, three, four and six outlet pipes. This is the later type used from engine number CP75315 and uses a steel ring and 'O' ring type seal. As new parts... READ MORE |
||
 |
RTR4077
|
SEAL BUNG MU SLEEVERevington TR information: Bung seal in sleeve, sealing outlet unions. 6 required |
£7.07 Ex VAT @ 20% |
|
 |
159486 |
O RING M/U OUTLET LATERevington TR information: Earlier units use Dowty type sealing washers RTR4327 |
£4.06 Ex VAT @ 20% |
|
|
RTR4535
|
WASHER STEEL FOR 'O' RINGRevington TR information: Washer retaining 'O' ring Late outlet unions one, three, four and six. Not available new please use second hand part RTR4535SH W |
||
 |
518629 |
OUTLET UNION 1,6,3,4 DOWTY TYPERevington TR information: Metering unit Outlet Union for numbers one, three, four and six outlet pipes. This is the early type used up to engine number CP75314 and uses a Dowty type seal. As new parts are currently unavailable... READ MORE |
£131.77 Ex VAT @ 20% |
|
|
518630EX |
BOLT BANJO EXCHANGERevington TR information: Banjo bolt. Also available new 518630 and second hand 518630SH |
£60.01 Ex VAT @ 20% |
