TR2-3B Fast Road / Rally configuration using Superpro polyurethane suspension bushes.

This set up is a derivative of RTR3105NK and is essentially the same kit but with the harsher nylon suspension bushes replaced with inherently softer SuperPro Polyurethane suspension bushes.The kit provides good ground clearance (155-165mm), reasonably soft springing, coupled with heavy anti-roll bars to assist the springing in roll.The system has proved very popular with drivers who use their cars for fast touring where ground clearance is important - or just enjoy driving their car with gusto!

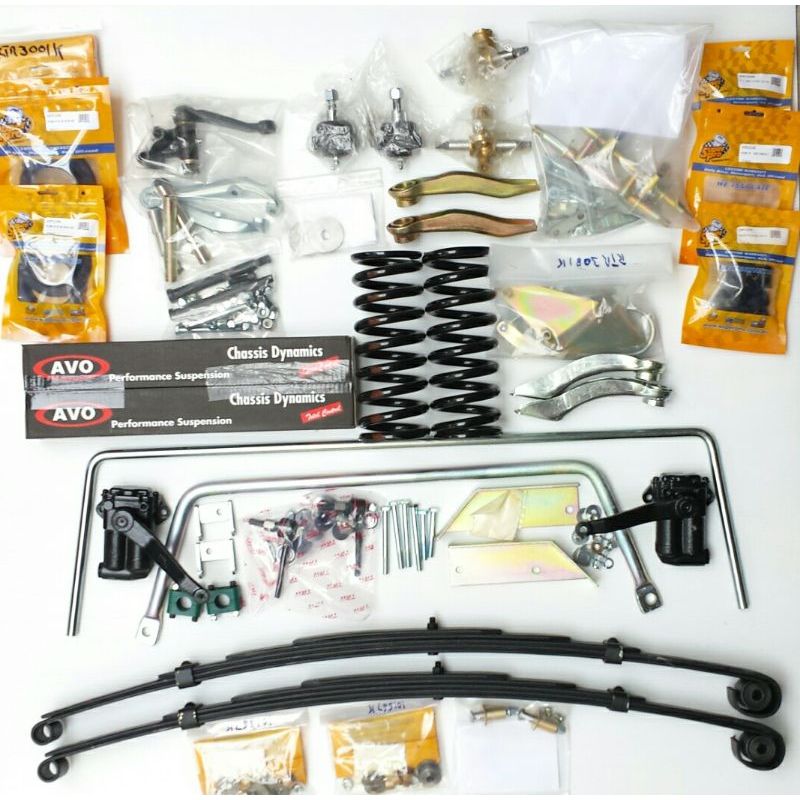

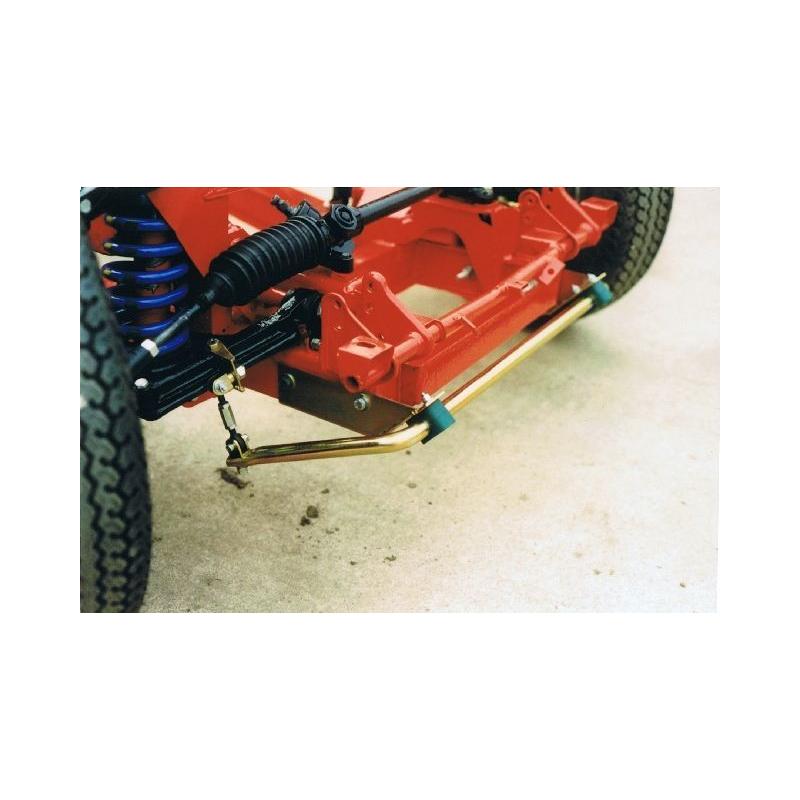

The anti-roll bar configuration incorporates SuperPro polyurethane links at the front and aircraft quality spherical bearing joints at the rear. Steering geometry is changed to incorporate toe-out on turns, and is positively located by a bushed idler block and solid track control pins. The kit includes all springs, dampers, SuperPro polyurethane suspension bushes, trunnions etc. In fact everything for a complete suspension rebuild and more!

A deposit applies until certain exchange parts are returned. These being: Rear dampers, steering arms and Idler.

Mere words cannot adequately describe the phenomenal benefits that this kit can provide. Please see Information sheet IS0013 under the 'Product Data Sheets' tab, which includes more information and testimonials from winners.
If you are going to use our steering rack conversion you will not need the steering parts of this kit. Revington TR will remove these to avoid duplication. The current value of the parts that will be removed can be found by looking up part number RTR3454. See below

This part is listed on the following pages of the website, where further information and background reading may be found.

Suspension and steering » TR2-3B INTEGRATED SUSPENSION PACKAGES
Information Sheets » IS0013 - Integrated Suspension Packs TR2-6

TESTIMONIAL

Our suspension packages are renowned the world over for their engineering standards and performance.

We recently had this email from Andreas in Germany who has just fitted our complete suspension package to his TR3A chassis : I am just finishing the Revington Suspension on the TR3 and I have to tell you it is a piece of art, I just cannot look somewhere else. Very nice!
