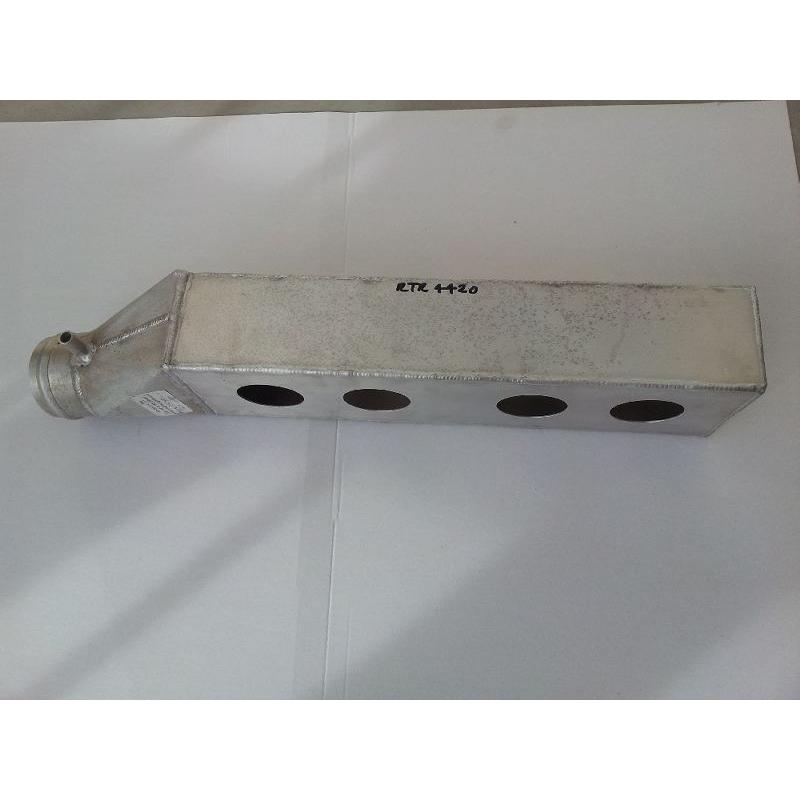

AIRBOX TR4-4A 2 OFF ALPHA+BODIES

TR4-4A suitable for Webcon EFI with an inlet of 80mm diameter

NOTE: The nature of the air box is such that inner wing modification will be necessary on TR2-4A cars. A Nacelle needs to be introduced into the right hand inner wing to ensure there is sufficient room for the air box. Revington TR have produces such a nacelle, manufactured from aluminium. See below

This part is listed on the following page of the website, where further information and background reading may be found.

Fuel and braking systems » AIR BOXES

Q: I've got a Revington TR airbox fitted to my car. The lid is not airtight and rattles badly under hard acceleration and the 6 self tapping screws work loose. How can prevent the rattling and what form of seal/gasket and fasteners work best?

A:

The retention of the lid can be improved by using 'U' nuts on the flange for the self-tapping screws to tighten into. Use RTR5032 nut and SS1060462 screw.

Sealant may not really worth it as the small amount of unfiltered air entering will not affect the engine, however you can make an instant gasket with a tube of RTV rubber sealant. This can be purchased on the internet. Farnell sell a suitable product.

To ensure the sealant sticks to one side only, say the main part of the box, put cling film on the mating face of the lid and screw the lid down. Then the sealant has set you should have a suitable gasket that will prevent almost all air entering and should prevent rattling too.
