MODIFIED PARTS - Browse Original Triumph Catalogue Plates
TR2 Plate T - PEDALS: ACCELERATOR, CLUTCH AND BRAKE.
Plate No. | Part No. | Description and Comments | No Per Unit | Price | Add to Cart | |
---|---|---|---|---|---|---|
T1 | 201726 |
ACCELERATOR PEDAL ASSEMBLYTriumph Catalogue Remarks: From Comm. No. TS_______ Right-hand Steering only |
1 | |||
208437 |
ACCELERATOR PEDAL ASSEMBLYRevington TR information: The accelerator pedal assembly for TR2-3B, part number 208437 has a straight pedal support whereas the TR4-4A accelerator pedal part number 209411 has a slight kink in the pedal support, to the right. Another identifying feature... READ MORE |
1 |
£129.48 Ex VAT @ 20% |
|||
T1A | 208437 |
ACCELERATOR PEDAL ASSEMBLYTriumph Catalogue Remarks: From Comm. No. TS_______ Right-hand Steering only |
1 |
£129.48 Ex VAT @ 20% |
||

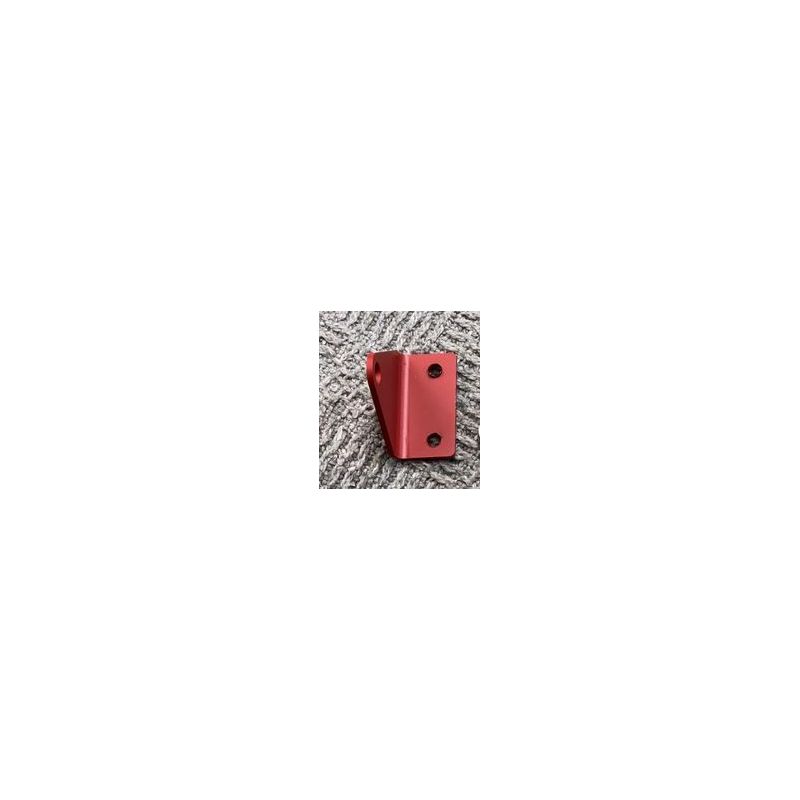

T2 | 106752 |
Bracket, fulcrum, pedal to toe boardRevington TR information: Bracket supporting RHD throttle pedal to bulkhead. Consider also original second hand part 106752SH |
2 |
£44.18 Ex VAT @ 20% |
||
T3 | WD0159 |
Washer, spring, double coil, on pedal shaftThis item has been superceded by WT10611 - see below |
1 | |||
WT10611 |
WASHER THACKERY 3/8 INCH |
1 |
£2.59 Ex VAT @ 20% |
|||
T4 | PC0009 |
Pin, cotter, locating pedal shaft in fulcrum bracketThis item has been superceded by PS106121 - see below |
2 | |||
PS106121 |
SPLIT PIN 3/32 X 1-1/2 INCH |
2 |
£0.26 Ex VAT @ 20% |
|||
T5 | WP0036 |
Washer, plain, between cotter pin and bracketThis item has been superceded by WP10610057 - see below |
2 | |||
WP10610057 |
WASHER PLAIN 3/8 X 5/8 X 0.057" |
2 |
£0.65 Ex VAT @ 20% |
|||
T6 | HU0705P |
Screw, set, fulcrum bracket to bulkheadThis item has been superceded by SH604051 - see below |
3 | |||
SH604051 |
SCREW 1/4 UNF X 5/8 INCH |
3 |
£0.62 Ex VAT @ 20% |
|||
T6A | WL0207 |
Washer, spring, on setscrewThis item has been superceded by WS104070643 - see below |
3 | |||
WS104070643 |
WASHER SPRING 1/4" RECT SECTION |
3 |
£0.20 Ex VAT @ 20% |
|||
T7 | HU0716P |
Screw, pedal limit stopThis item has been superceded by SH604161 - see below |
1 | |||
SH604161 |
SCREW 1/4 UNF X 2 INCH |
1 |
£0.65 Ex VAT @ 20% |
|||
T8 | JN2107 |
Nut, jam, locking screwThis item has been superceded by NP604051 - see below |
1 | |||
NP604051 |
NUT PLAIN 1/4 UNF X 5/32" |
1 |
£0.42 Ex VAT @ 20% |
|||
T9 | 058282 |
Bearing, self-aligning, on pedal shaftRevington TR information: Consider second hand original part 058282SH. |
1 |
£10.69 Ex VAT @ 20% |
||
T10 | 105226 |
Housing, bearingRevington TR information: Ball cup holder, throttle pedal TR2-4A. supplied in primer. Consider second hand original part 105226SH |
2 Hvs. |
£36.07 Ex VAT @ 20% |
||
T11 | YH7503 |
Screw, self-tapping, bearing housing attachment |
4 | |||
T12 | 106753 |
Lever assemblyRevington TR information: Supplied in primer, also consider second hand original part 106753SH. |
1 |
£85.26 Ex VAT @ 20% |
||
T13 | 500555 |
Pin, Mills, securing lever assembly to pedal shaftThis item has been superceded by DS1312 - see below |
1 | |||
DS1312 |
MILLS PIN 1/8"x3/4"Revington TR information: This part can be used when 500555 is not available. It maybe a little shorter than the correct part but is useable. |
1 |
£0.80 Ex VAT @ 20% |
|||
T14 | 027645 |
Spring, returnRevington TR information: Heavy spring 88mm long. Our stock is genuine Leyland |
1 |
£5.16 Ex VAT @ 20% |
||
T15 | 106749 |
ACCELERATOR PEDAL ASSEMBLYTriumph Catalogue Remarks: From Comm. No. TS1 Left-hand Steering only |
1 | |||
T15A | 120442 |
ACCELERATOR PEDAL ASSEMBLYTriumph Catalogue Remarks: From Comm. No. TS28921 Left-hand Steering only |
1 | |||
206590 |
ACCELERATOR PEDAL ASSEMBLYRevington TR information: TR3 LHD throttle pedal fitted to TR3-3A. this is the pedal part of a two piece assemble that was fitted in conjunction with straight bar 106762 3 types of accelerator pedal were fitted... READ MORE |
1 |
£128.36 Ex VAT @ 20% |
|||
T15B | 206590 |
ACCELERATOR PEDAL ASSEMBLYTriumph Catalogue Remarks: From Comm. No. TS_______ Left-hand Steering only |
1 |
£128.36 Ex VAT @ 20% |
||
T16 | 106762 |
Bar, connecting lever to pedalTriumph Catalogue Remarks: From Comm. No. TS1 |
1 | |||
T17 | 108614 |
Bush, between connecting bar and pedal shaftTriumph Catalogue Remarks: From Comm. No. TS1 |
1 | |||
T17A | 120443 |
Bush, between connecting bar and pedal shaftTriumph Catalogue Remarks: From Comm. No. TS28921 |
1 | |||
T18 | 500555 |
Pin, Mills, securing bush to bar and shaftTriumph Catalogue Remarks: From Comm. No. TS1 |
2 | |||
DS1312 |
MILLS PIN 1/8"x3/4"Revington TR information: This part can be used when 500555 is not available. It maybe a little shorter than the correct part but is useable. |
2 |
£0.80 Ex VAT @ 20% |
|||
T18A | 500555 |
Pin, Mills, securing bush to bar and shaftTriumph Catalogue Remarks: From Comm. No. TS28921 |
1 | |||
DS1312 |
MILLS PIN 1/8"x3/4"Revington TR information: This part can be used when 500555 is not available. It maybe a little shorter than the correct part but is useable. |
1 |
£0.80 Ex VAT @ 20% |
|||
T19 | 106763 |
Bracket, supporting connecting barRevington TR information: Consider second hand original part 106763SH. |
1 | |||
T19A | HU0705P |
Screw, set, bracket attachmentThis item has been superceded by SH604051 - see below |
2 | |||
SH604051 |
SCREW 1/4 UNF X 5/8 INCH |
2 |
£0.62 Ex VAT @ 20% |
|||
T19B | WL0207 |
Washer, spring, on setscrewThis item has been superceded by WS104070643 - see below |
2 | |||
WS104070643 |
WASHER SPRING 1/4" RECT SECTION |
2 |
£0.20 Ex VAT @ 20% |
|||
T19C | PC0009 |
Pin,cotter, locating connecting barinsupport bracketThis item has been superceded by PS106121 - see below |
1 | |||
PS106121 |
SPLIT PIN 3/32 X 1-1/2 INCH |
1 |
£0.26 Ex VAT @ 20% |
|||
T19D | WP0036 |
Washer, plain, between cotter pin and support bracketThis item has been superceded by WP10610057 - see below |
1 | |||
WP10610057 |
WASHER PLAIN 3/8 X 5/8 X 0.057" |
1 |
£0.65 Ex VAT @ 20% |
|||
T20 | 106753 |
Lever assemblyRevington TR information: Supplied in primer, also consider second hand original part 106753SH. |
1 |
£85.26 Ex VAT @ 20% |
||
T21 | WD0159 |
Washer, spring, double coil, between lever and bracketThis item has been superceded by WT10611 - see below |
I | |||
WT10611 |
WASHER THACKERY 3/8 INCH |
I |
£2.59 Ex VAT @ 20% |
|||
T22 | 500555 |
Pin, Mills, securing lever to connecting barThis item has been superceded by DS1312 - see below |
1 | |||
DS1312 |
MILLS PIN 1/8"x3/4"Revington TR information: This part can be used when 500555 is not available. It maybe a little shorter than the correct part but is useable. |
1 |
£0.80 Ex VAT @ 20% |
|||
T23 | 058282 |
Bearing, self-aligning, on shaft and barRevington TR information: Consider second hand original part 058282SH. |
2 |
£10.69 Ex VAT @ 20% |
||
T24 | 105226 |
Housing, bearingTriumph Catalogue Remarks: RHD cars use grommet 600400 in this position see T24A (also listed on Plate AS no.36) |
4 Hvs. |
£36.07 Ex VAT @ 20% |
||
T24A | 600400 |
Plug, accelerator pedal bearing hole Right-hand steering only |
1 |
£3.37 Ex VAT @ 20% |
||
T25 | YH7503 |
Screw, self-tapping, bearing housing attach-ment |
8 | |||
T25A | HU0716F |
Screw, pedal limit stopThis item has been superceded by SH604161 - see below |
1 | |||
SH604161 |
SCREW 1/4 UNF X 2 INCH |
1 |
£0.65 Ex VAT @ 20% |
|||
T25B | JN2107 |
Nut, jam, locking screwThis item has been superceded by NP604051 - see below |
1 | |||
NP604051 |
NUT PLAIN 1/4 UNF X 5/32" |
1 |
£0.42 Ex VAT @ 20% |
|||
T25C | 027645 |
Spring, returnRevington TR information: Heavy spring 88mm long. Our stock is genuine Leyland |
1 |
£5.16 Ex VAT @ 20% |
||
T26 | 106672 |
CLUTCH PEDAL ASSEMBLYTriumph Catalogue Remarks: From Comm. No. TS1 Right-hand steering only |
1 |
£114.80 Ex VAT @ 20% |
||
T26A | 113363 |
CLUTCH PEDAL ASSEMBLYTriumph Catalogue Remarks: From Comm. No. TS13046 Right-hand steering only |
1 | |||
T27 | 106673 |
BRAKE PEDAL ASSEMBLYTriumph Catalogue Remarks: From Comm. No. TS1 Right-hand steering only |
1 |
£86.81 Ex VAT @ 20% |
||
T27A | 113366 |
BRAKE PEDAL ASSEMBLYTriumph Catalogue Remarks: From Comm. No. TS13046 Right-hand steering only |
1 | |||
T27B | 106766 |
CLUTCH PEDAL ASSEMBLYTriumph Catalogue Remarks: From Comm. No. TS1 Left-hand steering only |
1 | |||
T27C | 113363 |
CLUTCH PEDAL ASSEMBLYTriumph Catalogue Remarks: From Comm. No. TS13046 Left-hand steering only |
1 | |||
T27D | 106767 |
BRAKE PEDAL ASSEMBLYTriumph Catalogue Remarks: From Comm. No. TS1 Left-hand steering only |
1 |
£114.80 Ex VAT @ 20% |
||
T27E | 113364 |
BRAKE PEDAL ASSEMBLYTriumph Catalogue Remarks: From Comm. No. TS13046 Left-hand steering only |
1 | |||
T28 | 100954 |
Bush, pedal pivotThis item has been superceded by RTR3128 - see below |
4 | |||
RTR3128 |
BUSH OILITERevington TR information: TR2-4 bush oilite in outer wishbone. 2 of these replace one 101615. An oilite bush has a larger wear depth than the standard steel backed bush and is less prone to seizure as the bush retains... READ MORE |
4 |
£4.31 Ex VAT @ 20% |
|||
T29 | 110016 |
Shaft, pedalRevington TR information: When refurbishing the clutch and brake pedals you will need 4 x RTR3128 Bush too. Shaft 110016 is available manufactured from stainless steel. See 110016SS |
1 |
£8.04 Ex VAT @ 20% |
||
T30 | 106678 |
Bracket, supporting pedal shaftRevington TR information: This part is no longer available new. Use second hand part 106678SH or second hand powder coated part 106678SHPC. |
2 | |||
T31 | HU0905 |
Screw, set, securing bracket to shaftThis item has been superceded by SH606051 - see below |
2 | |||
SH606051 |
SCREW 3/8 UNF X 5/8 INCH |
2 |
£1.30 Ex VAT @ 20% |
|||
T32 | WL0209 |
Washer, spring, on screwsThis item has been superceded by WS106111243 - see below |
2 | |||
WS106111243 |
WASHER SPRING 3/8" RECT SECTION |
2 |
£0.37 Ex VAT @ 20% |
|||
T33 | 105129 |
Pin, joint, pedal to master cylinder fork-endTriumph Catalogue Remarks: From Comm. No. TS1 |
2 | |||
PC1202461 |
PIN CLEVIS 5/16 x 3/4 x 3/32 |
2 |
£1.20 Ex VAT @ 20% |
|||
T34 | WD0158 |
Washer, spring, double coil, on joint pinTriumph Catalogue Remarks: From Comm. No. TS1 |
2 | |||
WT10509 |
WASHER THACKERY 5/16 |
2 |
£0.94 Ex VAT @ 20% |
|||
T35 | WP0008 |
Washer, plain, between spring washer and cotter pinTriumph Catalogue Remarks: From Comm. No. TS1 |
2 | |||
WP10510075 |
WASHER PLAIN 5/16" x 5/8" x 0.075" |
2 |
£0.44 Ex VAT @ 20% |
|||
T36 | PC0007 |
Pin, cotter, retaining joint pin in fork-endTriumph Catalogue Remarks: From Comm. No. TS1 |
2 | |||
PS103121 |
PIN SPLIT |
2 | ||||
T36A | 057193 |
Clevis joint assembly, pedal to master cylinder push rodTriumph Catalogue Remarks: From Comm. No. TS13046 |
2 | |||
057194K |
FORK ASSEMBLY WITH PIN and spring TR3-3B M/cyl rod & TR2-4 clutchRevington TR information: This fork assembly suits a 5/16" UNF shaft and is used on the TR2-4A clutch slave cylinder shaft and TR3A-B master cylinder shafts. It consists of a fork CF523572 and a pin and spring assembly 216421A... READ MORE |
2 |
£20.06 Ex VAT @ 20% |
|||
T36B | 057195 |
Pin, clevis jointTriumph Catalogue Remarks: From Comm. No. TS13046 |
2 |
£8.95 Ex VAT @ 20% |
||
T36C | 057240 |
Spring, clevis joint pinTriumph Catalogue Remarks: From Comm. No. TS13046 |
2 |
£2.56 Ex VAT @ 20% |
||
T36D | JN2108 |
Nut, jam, clevis joint to master cylinder push rodTriumph Catalogue Remarks: From Comm. No. TS13046 |
2 | |||
NP605061 |
NUT PLAIN 5/16 UNF X 3/16" |
2 |
£0.46 Ex VAT @ 20% |
|||
T36E | PC0035 |
Pin, split, locking clevis joint on pedalTriumph Catalogue Remarks: From Comm. No. TS13046 |
2 | |||
PS106121 |
SPLIT PIN 3/32 X 1-1/2 INCH |
2 |
£0.26 Ex VAT @ 20% |
|||
T37 | 105159 |
Pad, rubber, on pedalsTriumph Catalogue Remarks: From Comm. No. TS_____ |
2 |
£6.98 Ex VAT @ 20% |
||
T37A | 122289 |
Pad, rubber, on pedalsTriumph Catalogue Remarks: From Comm. No. TS_____ |
2 |
£7.10 Ex VAT @ 20% |
||
T38 | 057950 |
Spring, pedal returnRevington TR information: 70mm long heavy duty |
2 |
£6.90 Ex VAT @ 20% |
||
T39 | 106670 |
PEDAL SHAFT COVER ASSEMBLYRevington TR information: This part is no longer available new. Use second hand part 106670SH or second hand powder coated part 106670SHPC. |
1 | |||
T40 | 106668 |
MASTER CYLINDER SUPPORT BRACKET ASSEMBLYTriumph Catalogue Remarks: From Comm. No. TS1 |
1 | |||
T40A | 203239 |
MASTER CYLINDER SUPPORT BRACKET ASSEMBLYTriumph Catalogue Remarks: From Comm. No. TS13046 |
1 | |||
T41 | HN2008 |
Nut, securing support bracket and cover to bulkheadThis item has been superceded by NP605081 - see below |
4 | |||
NP605081 |
NUT PLAIN 5/16 UNF |
4 |
£0.17 Ex VAT @ 20% |
|||
T42 | WL0208 |
Washer, spring, under nutThis item has been superceded by WS105090853 - see below |
4 | |||
WS105090853 |
WASHER SPRING 5/16" ID RECT SECTION |
4 |
£0.25 Ex VAT @ 20% |
|||
T43 | HU0806 |
Screw, cover and master cylinder to bulkheadThis item has been superceded by SH605061 - see below |
2 | |||
SH605061 |
SCREW 5/16 UNF X 3/4 INCH |
2 |
£0.54 Ex VAT @ 20% |
|||
T43A | WL0208 |
Washer, spring, on screwThis item has been superceded by WS105090853 - see below |
2 | |||
WS105090853 |
WASHER SPRING 5/16" ID RECT SECTION |
2 |
£0.25 Ex VAT @ 20% |
|||
T44 | HU0805/P |
Screw, cover to bulkheadThis item has been superceded by SH605051 - see below |
2 | |||
SH605051 |
SCREW 5/16 UNF X 5/8 INCH |
2 |
£1.39 Ex VAT @ 20% |
|||
T45 | WL0208 |
Washer, spring, on screwThis item has been superceded by WS105090853 - see below |
2 | |||
WS105090853 |
WASHER SPRING 5/16" ID RECT SECTION |
2 |
£0.25 Ex VAT @ 20% |
|||
T46 | HU0709 |
Screw, pedal limit stopTriumph Catalogue Remarks: From Comm. No. TS1 |
2 | |||
SH604091 |
SCREW 1/4 UNF X 1-1/8 INCH |
2 |
£0.95 Ex VAT @ 20% |
|||
T47 | JN2107 |
Nut, jam, locking screwTriumph Catalogue Remarks: From Comm. No. TS1 |
2 | |||
NP604051 |
NUT PLAIN 1/4 UNF X 5/32" |
2 |
£0.42 Ex VAT @ 20% |
