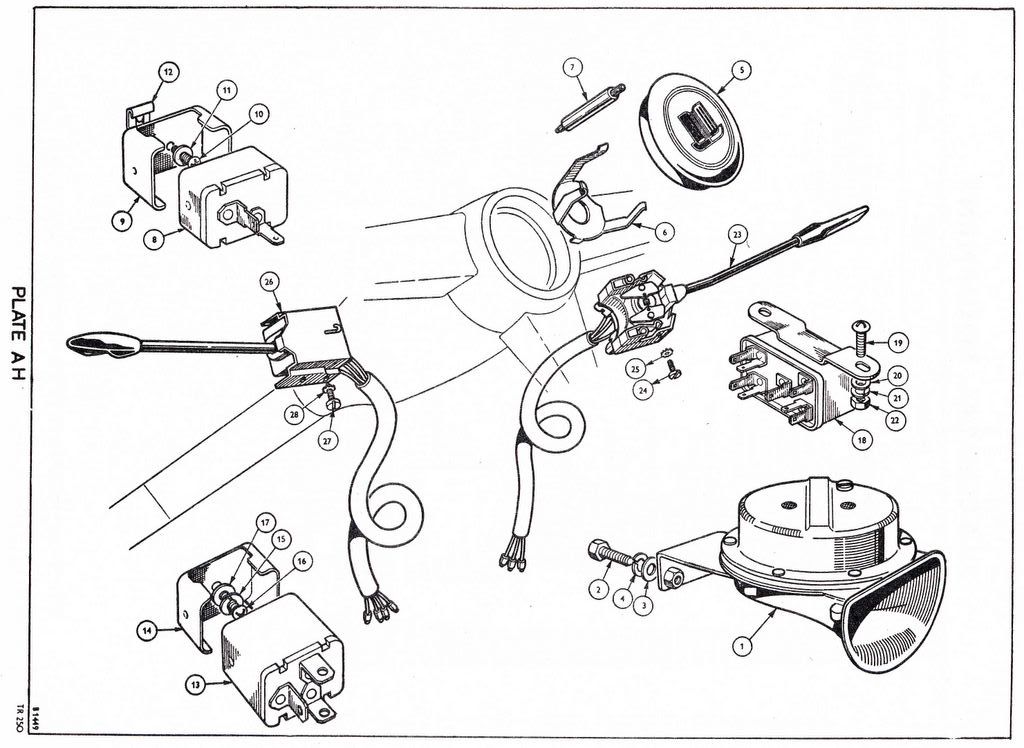

TR250 Plate AH - ELECTRICAL EQUIPMENT: Head Controls and Horn

> Open plate

> Open plate in new window

> Print Plate

> Close plate

> Open plate in new window

> Print Plate

Plate No.	Part No.	Description and Comments	No Per Unit	Price	Add to Cart
AH1AA	148622/2 CLICK FOR MORE INFO	HORN, HIGH NOTE - LUCAS Triumph Catalogue Remarks: Alternative to 148622/1 below This item has been superceded by GGE164 - see below	1
	GGE164 CLICK FOR MORE INFO	HORN - HIGH NOTE Revington TR information: Horn High note. Modern equivalent of TR4-8 horn, which can be used on TR2-3B as well in conjunction with its high note partner GGE165. Consider also PIAA options RTR8478, RTR8478-1 and RTR8478-2, which are very loud!... READ MORE	1	£14.63 Ex VAT @ 20% £12.19
AH1BB	148623/2 CLICK FOR MORE INFO	HORN, VERY HIGH NOTE - LUCAS Triumph Catalogue Remarks: Alternative to 148623/1 below	1		No longer available
AH1	148622/1 CLICK FOR MORE INFO	HORN, POST - CLEARHOOTERS Triumph Catalogue Remarks: Alternative to 148622/2 above This item has been superceded by GGE165 - see below	1
	GGE165 CLICK FOR MORE INFO	HORN - LOW NOTE Revington TR information: Horn low note. Modern equivalent of TR4-8 horn, which can be used on TR2-3B as well in conjunction with its high note partner GGE164. Consider also PIAA options RTR8478, RTR8478-1 and RTR8478-2 which are very loud!... READ MORE	1	£14.63 Ex VAT @ 20% £12.19
AH1A	148623/1 CLICK FOR MORE INFO	HORN, SUPER POST - CLEARHOOTERS Triumph Catalogue Remarks: Alternative to 148623/2 above	1		No longer available
AH2	HU0704 CLICK FOR MORE INFO	Screw, set - Securing horns to bumper support bracket This item has been superceded by SH604041 - see below	4
	SH604041 CLICK FOR MORE INFO	SCREW 1/4 UNF X 1/2 INCH	4	£0.58 Ex VAT @ 20% £0.48
AH3	WP0007 CLICK FOR MORE INFO	Washer, plain - Securing horns to bumper support bracket This item has been superceded by WP10408057 - see below	4
	WP10408057	WASHER PLAIN 1/4" x 1/2" x 0.057"	4		No longer available
AH4	WL0207 CLICK FOR MORE INFO	Washer, lock - Securing horns to bumper support bracket This item has been superceded by WS104070643 - see below	4
	WS104070643	WASHER SPRING 1/4" RECT SECTION	4	£0.20 Ex VAT @ 20% £0.17
AH5	150277 CLICK FOR MORE INFO	HORN PUSH ASSEMBLY Revington TR information: consider Second Hand part 150277SH	1	£57.25 Ex VAT @ 20% £47.71	Available to order
AH6	204741 CLICK FOR MORE INFO	Clip, horn push assembly	1	£17.98 Ex VAT @ 20% £14.98	Available to order
AH7	108657 CLICK FOR MORE INFO	Brush, horn push connection This item has been superceded by 142534 - see below	1
	142534 CLICK FOR MORE INFO	HORN BRUSH TR4-6 Revington TR information: 2.25"-2.625" long. A longer connector maybe required if you have a Motalita steering wheel hub fitted. Use 142534X.	1	£14.38 Ex VAT @ 20% £11.98
AH8	148644	FLASHER UNIT	1		No longer available
AH9	148621 CLICK FOR MORE INFO	Clip, flasher unit - Securing flasher unit This item has been superceded by BHA4780 - see below	1
	BHA4780	SQUARE FLASHER CLIP	1	£4.24 Ex VAT @ 20% £3.53	Available to order
AH10	YAD304 CLICK FOR MORE INFO	Screw, self tapping - Securing flasher unit This item has been superceded by SS1060421 - see below	1
	SS1060421	SCREW ST No 6x1/2" PAN POZ1 BZP Revington TR information: 0	1	£0.17 Ex VAT @ 20% £0.14
AH11	WP0005 CLICK FOR MORE INFO	Washer, plain - Securing flasher unit This item has been superceded by WP10308050 - see below	1
	WP10308050	WASHER PLAIN 3/16" x 1/2" x 0.050"	1	£0.40 Ex VAT @ 20% £0.33
AH12	F12463/4	Clip, spire - Securing flasher unit	1		No longer available
AH13	148576 CLICK FOR MORE INFO	HAZARD FLASHER UNIT This item has been superceded by C28520 - see below	1
	C28520 CLICK FOR MORE INFO	3 PIN HAZARD UNIT Revington TR information: Also LHD TR5 flasher hazaerd unit	1	£11.84 Ex VAT @ 20% £9.87
AH14	148621 CLICK FOR MORE INFO	Clip, securing unit This item has been superceded by BHA4780 - see below	1
	BHA4780	SQUARE FLASHER CLIP	1	£4.24 Ex VAT @ 20% £3.53	Available to order
AH15	WL0205 CLICK FOR MORE INFO	Washer, lock - Flasher unit to wheelarch closing panel-L.H. This item has been superceded by WS10306048 - see below	1
	WS10306048 CLICK FOR MORE INFO	SPRING WASHER 3/16" x 3/8"x 0.048"	1	£0.16 Ex VAT @ 20% £0.13
AH16	PX0505 CLICK FOR MORE INFO	Screw, set - Flasher unit to wheelarch closing panel-L.H. This item has been superceded by SE910201 - see below	1
	SE910201	SCREW PAN HD 10.32	1	£0.82 Ex VAT @ 20% £0.68
AH17	WP0005 CLICK FOR MORE INFO	Washer, plain - Flasher unit to wheelarch closing panel-L.H. This item has been superceded by WP10308050 - see below	1
	WP10308050	WASHER PLAIN 3/16" x 1/2" x 0.050"	1	£0.40 Ex VAT @ 20% £0.33
AH18	148643 CLICK FOR MORE INFO	HAZARD SYSTEM RELAY	1	£22.30 Ex VAT @ 20% £18.58	Available to order
AH19	PX0505 CLICK FOR MORE INFO	Screw, set - Hazard relay to mounting bracket on front wheelarch-L.H. This item has been superceded by SE910201 - see below	2
	SE910201	SCREW PAN HD 10.32	2	£0.82 Ex VAT @ 20% £0.68
AH20	WP0005 CLICK FOR MORE INFO	Washer, plain - Hazard relay to mounting bracket on front wheelarch-L.H. This item has been superceded by WP10308050 - see below	2
	WP10308050	WASHER PLAIN 3/16" x 1/2" x 0.050"	2	£0.40 Ex VAT @ 20% £0.33
AH21	WL0205 CLICK FOR MORE INFO	Washer, lock - Hazard relay to mounting bracket on front wheelarch-L.H. This item has been superceded by WS10306048 - see below	2
	WS10306048 CLICK FOR MORE INFO	SPRING WASHER 3/16" x 3/8"x 0.048"	2	£0.16 Ex VAT @ 20% £0.13
AH22	HN2006	Nut - Hazard relay to mounting bracket on front wheelarch-L.H.	2		No longer available
AH23	147277 CLICK FOR MORE INFO	TRAFFICATOR SWITCH This item has been superceded by 158966 - see below	1
	158966 CLICK FOR MORE INFO	SWITCH INDICATOR TR4-5-6 Revington TR information: Indicator switch TR4-6.This switch has black sleeving covering the stem which can be removed to reveal a bright zinc plated (not chrome) stem that would better suit fitment to TR4 and 4A. We have noticed on... READ MORE	1	£67.42 Ex VAT @ 20% £56.18
AH24	TP0402 CLICK FOR MORE INFO	Screw, set - Securing switch This item has been superceded by TP402 - see below	2
	TP402 CLICK FOR MORE INFO	PAN HD SCREW-NO8X.25	2	£0.73 Ex VAT @ 20% £0.61
AH25	WE0604 CLICK FOR MORE INFO	Washer, shakeproof - Securing switch This item has been superceded by WE604 - see below	2
	WE604 CLICK FOR MORE INFO	4BA S/PROOF WASHER(EXT.TEETH) Revington TR information: No longer available	2		No longer available
AH26	141858 CLICK FOR MORE INFO	HEAD AND HEADLAMP FLASHER (L.H.S.) Revington TR information: Lighting switch TR4A LHD mounted on the RH side of the column. Consider second hand part 141858. This switch has a short chrome stem. Up = off, middle = side, down = side+main, towards the wheel... READ MORE	1	£96.00 Ex VAT @ 20% £80.00
AH27	TP0402 CLICK FOR MORE INFO	Screw - Securing switch to column shroud This item has been superceded by TP402 - see below	2
	TP402 CLICK FOR MORE INFO	PAN HD SCREW-NO8X.25	2	£0.73 Ex VAT @ 20% £0.61
AH28	WE0604 CLICK FOR MORE INFO	Washer, shakeproof - Securing switch to column shroud This item has been superceded by WE604 - see below	2
	WE604 CLICK FOR MORE INFO	4BA S/PROOF WASHER(EXT.TEETH) Revington TR information: No longer available	2		No longer available
