Engine, Transmission, wheels/Tyres and Heating/Cooling

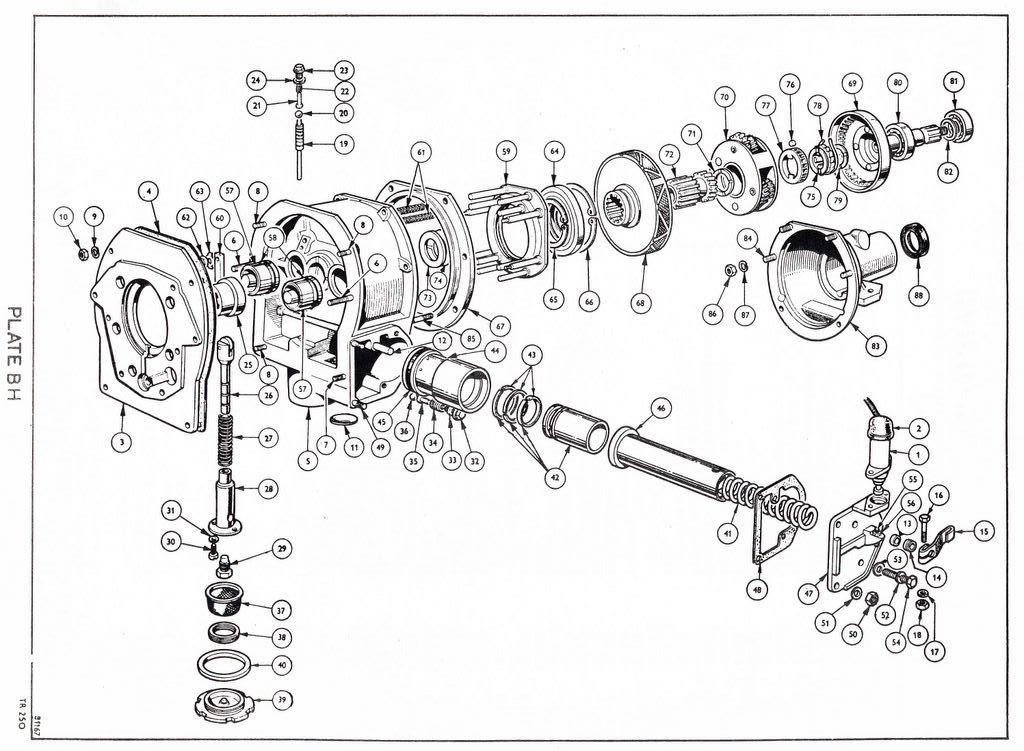

TR250 Plate BH - OVERDRIVE: Assembly

  Plate No. Part No. Description and Comments No Per Unit Price Add to Cart
BH1AA
307603

CLICK FOR
MORE INFO

OVERDRIVE UNIT ASSEMBLY

Revington TR information: Not available new. Please call or email for options

1
No longer available
BH1
112946

CLICK FOR
MORE INFO

Solenoid

This item has been superceded by 508794 - see below

1
508794

CLICK FOR
MORE INFO

SOLENOID O/D A TYPE TR2-6

Revington TR information: Occassionally this part is supplied with a lucar not a bullet connector. A change of connector maybe required.

1

£52.48

Ex VAT @ 20%
£43.73



BH1A
513226

CLICK FOR
MORE INFO

Screw, set - Securing solenoid to bracket

This item has been superceded by SH603041 - see below

2
SH603041
SCREW 3/16 UNF x 1/2 INCH

2

£0.71

Ex VAT @ 20%
£0.59



BH1B
513903

CLICK FOR
MORE INFO

Washer, lock - Securing solenoid to bracket

This item has been superceded by WL105001 - see below

2
WL105001

CLICK FOR
MORE INFO

WASHER SPRING 5mm

2

£2.74

Ex VAT @ 20%
£2.28



BH2
109521

CLICK FOR
MORE INFO

Cover, rubber, solenoid

Revington TR information: Consider Second hand part 109521SH.

1
No longer available
BH3
208098

CLICK FOR
MORE INFO

Plate, adaptor, overdrive unit to gearbox

Revington TR information: consider second hand part 208098SH

1

£175.64

Ex VAT @ 20%
£146.37



Available to order
BH4
502556

CLICK FOR
MORE INFO

Washer, joint, between adaptor plate and front casing assembly

1

£2.46

Ex VAT @ 20%
£2.05



BH5
513889
Casing, front assembly

1
No longer available
BH6
500576

CLICK FOR
MORE INFO

Stud, 2 5/8" - Adaptor plate attachment

2

£4.18

Ex VAT @ 20%
£3.48



BH7
500666

CLICK FOR
MORE INFO

Stud, 1" - Adaptor plate attachment

1

£3.11

Ex VAT @ 20%
£2.59



Available to order
BH8
500578

CLICK FOR
MORE INFO

Stud, 11/4" - Adaptor plate attachment

This item has been superceded by ST605101 - see below

3
ST605101
STUD 5/16 X 1-1/4" UNF+ UNF

3

£3.04

Ex VAT @ 20%
£2.53



BH9
WL0208

CLICK FOR
MORE INFO

Washer, lock - Adaptor plate attachment

This item has been superceded by WS105090853 - see below

6
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

6

£0.25

Ex VAT @ 20%
£0.21



BH10
HN2008

CLICK FOR
MORE INFO

Nut - Adaptor plate attachment

This item has been superceded by NP605081 - see below

6
NP605081
NUT PLAIN 5/16 UNF

6

£0.17

Ex VAT @ 20%
£0.14



BH11
500570

CLICK FOR
MORE INFO

Plug, welch, in casing

Revington TR information: No longer available

1
No longer available
BH12
513908

CLICK FOR
MORE INFO

Shaft, valve operating

Revington TR information: O/D operating shaft - No Longer Available

1
No longer available
BH12A
513909

CLICK FOR
MORE INFO

Lever, setting, for shaft

1

£12.12

Ex VAT @ 20%
£10.10



Available to order
BH12B
513910

CLICK FOR
MORE INFO

Cam, on shaft

1
No longer available
BH12C
513888

CLICK FOR
MORE INFO

Dowel, spring lever to shaft

Revington TR information: No longer available but consider DS1312 or 500975?

1

£0.80

Ex VAT @ 20%
£0.67



Available to order
BH12D
500593

CLICK FOR
MORE INFO

Pin, taper, cam to shaft

Revington TR information: No longer available

1
No longer available
BH13
500594

CLICK FOR
MORE INFO

Seal, oil, for shaft

2

£1.56

Ex VAT @ 20%
£1.30



BH14
502567

CLICK FOR
MORE INFO

Collar, for shaft

1

£5.14

Ex VAT @ 20%
£4.28



BH15
502568

CLICK FOR
MORE INFO

Lever, solenoid

Revington TR information: Our current stock is unipart TR TYPE HAS HOOK TYPE END,SALOON TYPE HAS FORK END.

1

£22.88

Ex VAT @ 20%
£19.07



Available to order
BH16
503163

CLICK FOR
MORE INFO

Bolt - Solenoid lever to shaft

This item has been superceded by SH604091 - see below

1
SH604091
SCREW 1/4 UNF X 1-1/8 INCH

1

£0.95

Ex VAT @ 20%
£0.79



Available to order
BH17
505550

CLICK FOR
MORE INFO

Washer, plain - Solenoid lever to shaft

This item has been superceded by WP127 - see below

1
WP127

CLICK FOR
MORE INFO

WASHER 1/4"x9/16"

1

£0.73

Ex VAT @ 20%
£0.61



Available to order
BH18
503164

CLICK FOR
MORE INFO

Nut - Solenoid lever to shaft

1
No longer available
BH19
500658

CLICK FOR
MORE INFO

Valve, operating

1

£57.05

Ex VAT @ 20%
£47.54



BH20
BL0020

CLICK FOR
MORE INFO

Ball, steel, 5/16" - Operating valve

This item has been superceded by BLS110 - see below


BLS110
BALL BEARING 5/15" diameter

£0.59

Ex VAT @ 20%
£0.49



Available to order
BH21
500591

CLICK FOR
MORE INFO

Plunger - Operating valve

1

£22.16

Ex VAT @ 20%
£18.47



BH22
506070

CLICK FOR
MORE INFO

Spring - Operating valve

This item has been superceded by 007972 - see below

1
007972
SPRING

1

£6.56

Ex VAT @ 20%
£5.47



BH23
506117

CLICK FOR
MORE INFO

Plug - Operating valve

1

£27.68

Ex VAT @ 20%
£23.07



Available to order
BH24
500568

CLICK FOR
MORE INFO

Washer, on plug - Operating valve

This item has been superceded by 3H693 - see below

1
3H693
WASHER COPPER 1/2 INCH

1

£1.10

Ex VAT @ 20%
£0.92



Available to order
BH25
500627

CLICK FOR
MORE INFO

Cam, oil pump operating

Revington TR information: Consider second hand part 500627SH

1

£73.60

Ex VAT @ 20%
£61.33



Available to order
BH26
513891

CLICK FOR
MORE INFO

Plunger assembly, oil pump

1

£95.93

Ex VAT @ 20%
£79.94



Available to order
BH27
500633

CLICK FOR
MORE INFO

Spring - Pump plunger

1

£11.87

Ex VAT @ 20%
£9.89



Available to order
BH27A
500581

CLICK FOR
MORE INFO

Guide, peg - Pump plunger

This item has been superceded by 268112 - see below

1
268112
GUIDE-PEG *NCA*

1
No longer available
BH28
505507

CLICK FOR
MORE INFO

Body, oil pump

1

£143.90

Ex VAT @ 20%
£119.92



Available to order
BH29
513902

CLICK FOR
MORE INFO

Plug, in pump body

1

£9.92

Ex VAT @ 20%
£8.27



Available to order
BH30
513225

CLICK FOR
MORE INFO

Screw, set - Pump to casing

This item has been superceded by UFS1194R - see below

2
UFS1194R
SCREW O/D SOLENOID

2

£0.42

Ex VAT @ 20%
£0.35



Available to order
BH31
513903

CLICK FOR
MORE INFO

Washer, spring - Pump to casing

This item has been superceded by WL105001 - see below

2
WL105001

CLICK FOR
MORE INFO

WASHER SPRING 5mm

2

£2.74

Ex VAT @ 20%
£2.28



BH32
506117

CLICK FOR
MORE INFO

Plug - Oil pump valve

1

£27.68

Ex VAT @ 20%
£23.07



Available to order
BH33
500568

CLICK FOR
MORE INFO

Washer - Oil pump valve

This item has been superceded by 3H693 - see below

1
3H693
WASHER COPPER 1/2 INCH

1

£1.10

Ex VAT @ 20%
£0.92



Available to order
BH34
506070

CLICK FOR
MORE INFO

Spring - Oil pump valve

This item has been superceded by 007972 - see below

1
007972
SPRING

1

£6.56

Ex VAT @ 20%
£5.47



BH35
500591

CLICK FOR
MORE INFO

Plunger - Oil pump valve

1

£22.16

Ex VAT @ 20%
£18.47



BH36
BL0016

CLICK FOR
MORE INFO

Ball, steel, 1/4" - Oil pump valve

This item has been superceded by BLS108 - see below

1
BLS108

CLICK FOR
MORE INFO

BALLBEARING 1/4 inch DIA

1

£2.41

Ex VAT @ 20%
£2.01



BH37
509884

CLICK FOR
MORE INFO

Filter, oil

1
No longer available
BH38
513205

CLICK FOR
MORE INFO

Magnet, oil filter

1

£19.76

Ex VAT @ 20%
£16.47



BH39
513904

CLICK FOR
MORE INFO

Plug, oil drain

This item has been superceded by 521814 - see below

1
521814
DRAIN PLUG A TYPE C SPANNER TYPE

1

£80.50

Ex VAT @ 20%
£67.08



BH40
500641

CLICK FOR
MORE INFO

Washer, drain plug

1

£1.03

Ex VAT @ 20%
£0.86



BH41
515131

CLICK FOR
MORE INFO

Spring, pressure, accumulator

1

£33.12

Ex VAT @ 20%
£27.60



Available to order
BH42
501909

CLICK FOR
MORE INFO

Piston assembly, accumulator

1

£113.35

Ex VAT @ 20%
£94.46



Available to order
BH43
505555

CLICK FOR
MORE INFO

Ring, piston

Set

£81.91

Ex VAT @ 20%
£68.26



Available to order
BH44
501908

CLICK FOR
MORE INFO

Housing assembly, accumulator

1

£69.00

Ex VAT @ 20%
£57.50



Available to order
BH45
501910

CLICK FOR
MORE INFO

'O' ring

1

£3.28

Ex VAT @ 20%
£2.73



BH46
502563

CLICK FOR
MORE INFO

Spacing tube and washer assembly

1

£33.05

Ex VAT @ 20%
£27.54



BH47
502566

CLICK FOR
MORE INFO

Bracket assembly, solenoid

1

£121.15

Ex VAT @ 20%
£100.96



Available to order
BH48
500645

CLICK FOR
MORE INFO

Washer, joint, side cover

1

£1.03

Ex VAT @ 20%
£0.86



BH49
500577

CLICK FOR
MORE INFO

Stud - Attaching solenoid bracket to front casing

This item has been superceded by ST605111 - see below

2
ST605111
STUD 5/16 X 1 3/8 UNF+ UNF

2

£2.39

Ex VAT @ 20%
£1.99



BH50
HN2008

CLICK FOR
MORE INFO

Nut - Attaching solenoid bracket to front casing

This item has been superceded by NP605081 - see below

2
NP605081
NUT PLAIN 5/16 UNF

2

£0.17

Ex VAT @ 20%
£0.14



BH51
WL0208

CLICK FOR
MORE INFO

Washer, lock - Attaching solenoid bracket to front casing

This item has been superceded by WS105090853 - see below

2
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

2

£0.25

Ex VAT @ 20%
£0.21



BH52
103268

CLICK FOR
MORE INFO

Screw, set - Attaching solenoid bracket to front casing

This item has been superceded by SH605141 - see below

2
SH605141
SCREW 5/16 UNF X 1-3/4 INCH

2

£1.31

Ex VAT @ 20%
£1.09



BH53
V11 P0008
Washer, plain - Attaching solenoid bracket to front casing

2
No longer available
BH54
WL0208

CLICK FOR
MORE INFO

Washer, lock - Attaching solenoid bracket to front casing

This item has been superceded by WS105090853 - see below

2
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

2

£0.25

Ex VAT @ 20%
£0.21



BH55
513918

CLICK FOR
MORE INFO

Adjusting screw - Solenoid

Revington TR information: No Longer Available

1
No longer available
BH56
513919

CLICK FOR
MORE INFO

Adjusting screw - Nut, lock

1
No longer available
BH56A
502560

CLICK FOR
MORE INFO

Breather

1

£11.62

Ex VAT @ 20%
£9.68



Available to order
BH57
513890

CLICK FOR
MORE INFO

Piston, operating, assembly

2

£34.60

Ex VAT @ 20%
£28.83



Available to order
BH58
513912

CLICK FOR
MORE INFO

'0' ring

2

£1.72

Ex VAT @ 20%
£1.43



Available to order
BH59
500660

CLICK FOR
MORE INFO

Ring, clutch thrust, assembly, with pins

1

£167.90

Ex VAT @ 20%
£139.92



Available to order
BH60
500587

CLICK FOR
MORE INFO

Piece, bridge

2

£17.64

Ex VAT @ 20%
£14.70



BH61
502554

CLICK FOR
MORE INFO

Spring, clutch, set

Revington TR information: Set of 8 overdirve springs Kit of 8 springs. Overall length 114mm. 4 springs are approx 2mm wire thickness and the other 4 springs 2.4mm wire thickness. Flat at either end. 31 turns. for... READ MORE

Set

£71.92

Ex VAT @ 20%
£59.93



BH62
HN2007

CLICK FOR
MORE INFO

Nut - Clutch thrust ring attachment

This item has been superceded by NP604071 - see below

4
NP604071
NUT PLAIN 1/4 UNF X 7/32

4

£0.44

Ex VAT @ 20%
£0.37



BH63
500642

CLICK FOR
MORE INFO

Washer, tab - Clutch thrust ring attachment

This item has been superceded by NS604061 - see below

4
NS604061
NUT 1/4 UNF PHILIDAS

4

£1.55

Ex VAT @ 20%
£1.29



BH64
500640

CLICK FOR
MORE INFO

Bearing, ball, clutch thrust ring

Revington TR information: Call for price and availability.

1

£50.10

Ex VAT @ 20%
£41.75



Available to order
BH65
500636

CLICK FOR
MORE INFO

Circlip - Ball bearing location

1

£2.41

Ex VAT @ 20%
£2.01



BH66
500637

CLICK FOR
MORE INFO

Circlip - Ball bearing location

1

£16.19

Ex VAT @ 20%
£13.49



BH67
502555

CLICK FOR
MORE INFO

Ring, brake, clutch

1

£206.44

Ex VAT @ 20%
£172.03



Available to order
BH68
500661

CLICK FOR
MORE INFO

Clutch assembly, sliding member, with linings

Revington TR information: Overdrive 'A' type cone clutch. Not available new use 500661EX, 500661SH or RTR1277. Press click 'MORE' for details

1
No longer available
BH69
500602

CLICK FOR
MORE INFO

Annulus assembly

Revington TR information: Consider Exchange part RTR1104EX. press 'READ MORE' for more details

1
No longer available
BH70
505545

CLICK FOR
MORE INFO

Carrier assembly, planet

This item has been superceded by 505545SH - see below

1
505545SH
CARRIER ASS PLANET G

1

£175.28

Ex VAT @ 20%
£146.07



Available to order
BH70A
513224

CLICK FOR
MORE INFO

Bearing, planet carrier

This item has been superceded by 505546 - see below

6 Sets
505546

CLICK FOR
MORE INFO

ROLLER BEARING ATYPE

6 Sets
No longer available
BH70B
513914

CLICK FOR
MORE INFO

Washer, thrust

This item has been superceded by 505546 - see below

3
505546

CLICK FOR
MORE INFO

ROLLER BEARING ATYPE

3
No longer available
BH71
500611

CLICK FOR
MORE INFO

Washer, thrust

This item has been superceded by 505548 - see below

1
505548
THRUST WASHER

1

£23.17

Ex VAT @ 20%
£19.31



BH72
505549

CLICK FOR
MORE INFO

Sunwheel assembly

Revington TR information: use 505549SH

1

£206.48

Ex VAT @ 20%
£172.07



Available to order
BH73A
500588A

CLICK FOR
MORE INFO

Washer, adjusting, front of sunwheel - .113/.114"

A/R

£14.39

Ex VAT @ 20%
£11.99



BH73B
500588B

CLICK FOR
MORE INFO

Washer, adjusting, front of sunwheel - .107/.108"

A/R

£14.39

Ex VAT @ 20%
£11.99



BH73C
500588C

CLICK FOR
MORE INFO

Washer, adjusting, front of sunwheel - .101/.102"

A/R

£13.45

Ex VAT @ 20%
£11.21



BH73D
500588D

CLICK FOR
MORE INFO

Washer, adjusting, front of sunwheel - .095/.096"

A/R

£13.45

Ex VAT @ 20%
£11.21



BH73E
500588E

CLICK FOR
MORE INFO

Washer, adjusting, front of sunwheel - .089/.090"

A/R

£13.45

Ex VAT @ 20%
£11.21



BH73F
500588E

CLICK FOR
MORE INFO

Washer, adjusting, front of sunwheel - .083/.084"

A/R

£13.45

Ex VAT @ 20%
£11.21



BH73G
500588G

CLICK FOR
MORE INFO

Washer, adjusting, front of sunwheel - .077/.078"

A/R

£13.45

Ex VAT @ 20%
£11.21



BH74
500610

CLICK FOR
MORE INFO

Washer, thrust, sunwheel

1

£21.05

Ex VAT @ 20%
£17.54



BH75
502558

CLICK FOR
MORE INFO

Clutch, uni-directional inner member

This item has been superceded by BAU2061A - see below

1
BAU2061A
FREE WHEEL MEMBER

Revington TR information: Overdrive Roller Clutch, also known as a sprag or uni-directional clutch, as it allows drive to take up only in one direction. This part is a later version and replaces parts 502558 502550 502559 500630. in... READ MORE

1

£147.35

Ex VAT @ 20%
£122.79



Available to order
BH76
502550

CLICK FOR
MORE INFO

Roller, set

This item has been superceded by 506063A - see below

1
506063A
ROLLER SET

1

£11.84

Ex VAT @ 20%
£9.87



Available to order
BH77
502559

CLICK FOR
MORE INFO

Cage, roller

Revington TR information: Use assembly BAU2061A

1
No longer available
BH78
500630

CLICK FOR
MORE INFO

Spring, clutch

1
No longer available
BH79
500613

CLICK FOR
MORE INFO

Washer, thrust, rear of uni-directional clutch

This item has been superceded by 500613A - see below

1
500613A

CLICK FOR
MORE INFO

THRUST WASHER

1

£21.84

Ex VAT @ 20%
£18.20



BH80
SP74G

CLICK FOR
MORE INFO

Bearing, ball, front, for annulus

1

£33.52

Ex VAT @ 20%
£27.93



Available to order
BH81
513897

CLICK FOR
MORE INFO

Bearing, ball, rear, for annulus

This item has been superceded by SP75G - see below

1
SP75G

CLICK FOR
MORE INFO

BEARING 4SYNC O/D RR ANN

Revington TR information: Remove circlip when using in a Lockheed axle application.

1

£18.70

Ex VAT @ 20%
£15.58



BH82E
500623/E

CLICK FOR
MORE INFO

Washer, adjusting annulus end - .146"

This item has been superceded by 500623E - see below

A/R
500623E

CLICK FOR
MORE INFO

THRUST WASHER .146

A/R

£14.39

Ex VAT @ 20%
£11.99



BH82F
500623/F

CLICK FOR
MORE INFO

Washer, adjusting annulus end - .151"

This item has been superceded by 500623F - see below

A/R
500623F

CLICK FOR
MORE INFO

WASHER ADJ. 0.151

A/R

£22.16

Ex VAT @ 20%
£18.47



Available to order
BH82G
500623/G

CLICK FOR
MORE INFO

Washer, adjusting annulus end - .156"

This item has been superceded by 500623G - see below

A/R
500623G

CLICK FOR
MORE INFO

O/D ADJ WASHER .156"

A/R

£12.07

Ex VAT @ 20%
£10.06



BH82H
500623/H

CLICK FOR
MORE INFO

Washer, adjusting annulus end - .161"

This item has been superceded by 500623H - see below

A/R
500623H

CLICK FOR
MORE INFO

WASHER ADJ. 0.161

A/R

£22.16

Ex VAT @ 20%
£18.47



Available to order
BH82I
500623/I
Washer, adjusting annulus end - .166"

A/R
No longer available
BH83
500655

CLICK FOR
MORE INFO

Casing, rear, with studs

Revington TR information: Consider Exchange part RTR1105EX The speedometer drive exits this casing pointing downwards where as the saloon rear casing has the speedometer exit horizontally. For a rally car where it is intended that the speedometer cable should run... READ MORE

1

£311.06

Ex VAT @ 20%
£259.22



Available to order
BH84
500756

CLICK FOR
MORE INFO

Stud - Rear casing attachment

This item has been superceded by ST605121 - see below

4
ST605121

CLICK FOR
MORE INFO

STUD 5/16 X 1-1/2" UNF+ UNF

4

£1.92

Ex VAT @ 20%
£1.60



BH85
500579

CLICK FOR
MORE INFO

Stud - Rear casing attachment

2
No longer available
BH86
HN2008

CLICK FOR
MORE INFO

Nut - Rear casing attachment

This item has been superceded by NP605081 - see below

6
NP605081
NUT PLAIN 5/16 UNF

6

£0.17

Ex VAT @ 20%
£0.14



BH87
WL0208

CLICK FOR
MORE INFO

Washer, lock - Rear casing attachment

This item has been superceded by WS105090853 - see below

6
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

6

£0.25

Ex VAT @ 20%
£0.21



BH88
513898

CLICK FOR
MORE INFO

Seal, oil, in rear casing

This item has been superceded by 146129 - see below

1
146129

CLICK FOR
MORE INFO

OIL SEAL REAR GEAR BOX & A TYPE O/D

1

£12.26

Ex VAT @ 20%
£10.22



BH88A
058948

CLICK FOR
MORE INFO

Flange, mainshaft - Securing flange to mainshaft

Revington TR information: Square Gearbox/Overdrive output flange. TR2-6 all non-overdrive gearboxes and all 'A' type overdrive gearboxes up to Gearbox number CD15651 with O/D number 22/61953. Not available new. Consider second hand part 058948SH or the interchangeable later TR6... READ MORE

1
No longer available
BH88B
057868

CLICK FOR
MORE INFO

Nut, slotted - Securing flange to mainshaft

Revington TR information: see also 057868SH

1

£6.78

Ex VAT @ 20%
£5.65



Available to order
BH88C
WP0024

CLICK FOR
MORE INFO

Washer, plain - Securing flange to mainshaft

1

£1.03

Ex VAT @ 20%
£0.86



Available to order
BH88D
P00012

CLICK FOR
MORE INFO

Pin, split - Securing flange to mainshaft

This item has been superceded by PS108091 - see below

1
PS108091
PIN SPLIT 1/8 X 1-1/8

1

£0.26

Ex VAT @ 20%
£0.22



Available to order
BH88E
506071

CLICK FOR
MORE INFO

Screw, set - Securing speedometer drive bearing to casing

This item has been superceded by SH505051 - see below

2
SH505051
SCREW 5/16 UNC 5/8"

2

£0.59

Ex VAT @ 20%
£0.49



BH88F
506108

CLICK FOR
MORE INFO

Washer, copper - Securing speedometer drive bearing to casing

This item has been superceded by WC10508038 - see below

2
WC10508038
WASHER COPPER 5/16 I/D X 1/2 O/D X 0.040"

2

£0.54

Ex VAT @ 20%
£0.45



OVERDRIVE GEARBOX ASSEMBLY (Less gear lever)

Triumph Catalogue Remarks: For details see Gearbox Section)
