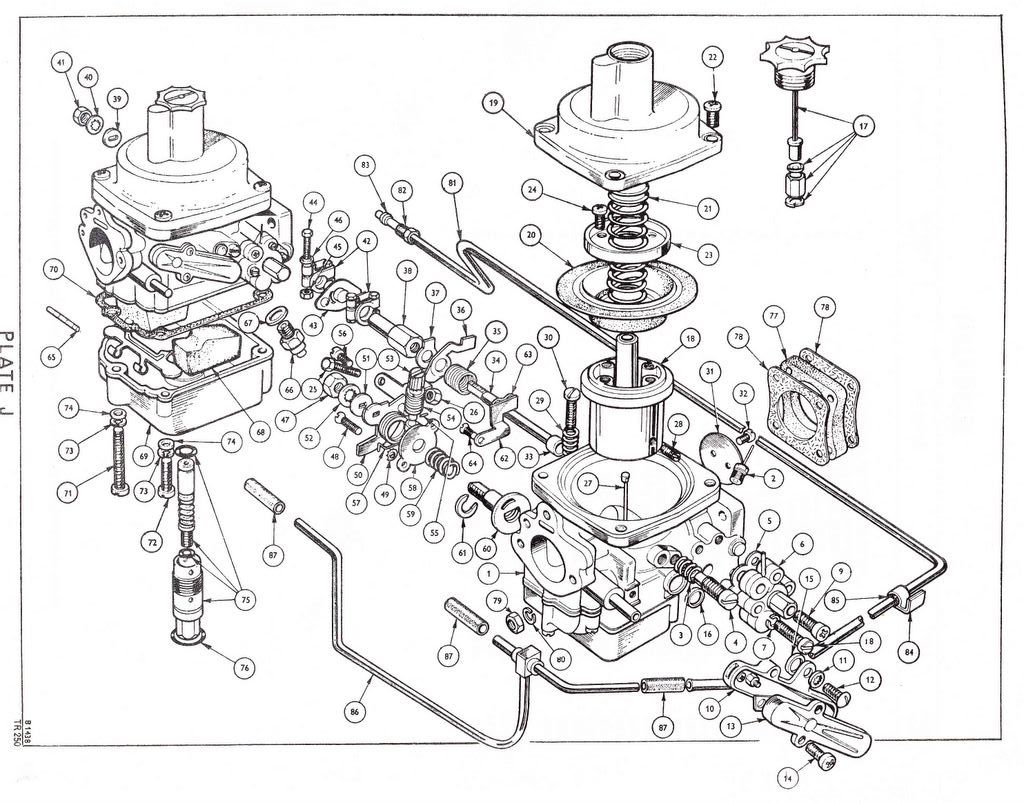

TR250 Plate J - ENGINE: Carburettors

Also in this listing

Carburettor Assembly, Temperature Compensator, Dampers, Starter Box, Floats, Couplings, Carburettor Pipes and Carburettor Repair Kits

Also in this listing

Carburettor Assembly, Temperature Compensator, Dampers, Starter Box, Floats, Couplings, Carburettor Pipes and Carburettor Repair Kits
  Plate No. Part No. Description and Comments No Per Unit Price Add to Cart
J1AA
308377
CARBURETTOR ASSEMBLY -FRONT

1
J1BB
308376
CARBURETTOR ASSEMBLY-REAR

1
J1
Not serviced
Main body assembly


J2
516993
Adaptor, ignition

1
J3
516976
Spring, Idler trimming screw

2
J4
516975

CLICK FOR
MORE INFO

Screw, idler trimming

2

£3.61

Ex VAT @ 20%
£3.01


J5
516967

CLICK FOR
MORE INFO

Gasket, by pass valve

2

£1.43

Ex VAT @ 20%
£1.19


J6
517002

CLICK FOR
MORE INFO

Valve, by pass

2
J7
514980

CLICK FOR
MORE INFO

Washer, lock - Securing by pass to valve body

6
J8
514973
Screw - Securing by pass to valve body

6
J9
516969

CLICK FOR
MORE INFO

Screw, by pass valve

2
J10
516970
TEMPERATURE COMPENSATOR ASSEMBLY

2
J11
516974
Washer, shakeproof - Securing compensator

4
J12
516973

CLICK FOR
MORE INFO

Screw - Securing compensator

4

£1.57

Ex VAT @ 20%
£1.31


J13
516968

CLICK FOR
MORE INFO

Cover, temperature compensator

2

£9.49

Ex VAT @ 20%
£7.91


J14
516969

CLICK FOR
MORE INFO

Screw, securing cover

4
J15
516971

CLICK FOR
MORE INFO

Seal - Large, on compensator body

Revington TR information: No longer available

2
J16
516972

CLICK FOR
MORE INFO

Seal - Small, inside carburettors

2

£2.99

Ex VAT @ 20%
£2.49


J17
512327

CLICK FOR
MORE INFO

DAMPER ASSEMBLY

2
J18
Not serviced
Air valve and shaft

2
J19
Not serviced
Cover assembly, air valve


J20
517004

CLICK FOR
MORE INFO

Diaphragm

2

£21.19

Ex VAT @ 20%
£17.66


J21
516946

CLICK FOR
MORE INFO

Spring, air valve return

This item has been superceded by 516946A - see below

2
516946A
DAMPER SPRING ZENITH

2

£8.80

Ex VAT @ 20%
£7.33


J22
517122
Screw, securing cover

4
J24
517119

CLICK FOR
MORE INFO

Screw, securing diaphragm retaining ring

4

£1.01

Ex VAT @ 20%
£0.84


J23
Not serviced
Ring, diaphragm retaining


J27
516944

CLICK FOR
MORE INFO

Needle, metering

2

£22.60

Ex VAT @ 20%
£18.83


J28
512280

CLICK FOR
MORE INFO

Screw, securing needle

This item has been superceded by 605845 - see below

2
605845
SCREW-NEEDLE RETAINI

2
J31
512283

CLICK FOR
MORE INFO

Disc, throttle

This item has been superceded by 605800A - see below

2
605800A
175 THROTTLE DISC

2

£12.70

Ex VAT @ 20%
£10.58


J32
512284

CLICK FOR
MORE INFO

Screw, securing disc to spindle

This item has been superceded by C28932 - see below

4
C28932
SCREW-DISC TO SPINDL

4

£1.79

Ex VAT @ 20%
£1.49


J33
517003

CLICK FOR
MORE INFO

Seal, throttle spindle

4

£5.70

Ex VAT @ 20%
£4.75


J33A
517005

CLICK FOR
MORE INFO

Spindle, throttle, rear carburettor

1

£23.80

Ex VAT @ 20%
£19.83


J34
516994

CLICK FOR
MORE INFO

Spindle, throttle, front carburettor

1

£25.91

Ex VAT @ 20%
£21.59


J35
516951
Spring, throttle return

2
J36
516995

CLICK FOR
MORE INFO

Lever, throttle stop and fast idle lever

2

£4.93

Ex VAT @ 20%
£4.11


J25
516965

CLICK FOR
MORE INFO

Screw, fast idler adjustment

2
J26
512287

CLICK FOR
MORE INFO

Locknut, on screw

2

£1.52

Ex VAT @ 20%
£1.27


J29
512282

CLICK FOR
MORE INFO

Spring, throttle stop screw

2

£0.17

Ex VAT @ 20%
£0.14


J30
512281

CLICK FOR
MORE INFO

Screw, throttle stop

2

£2.64

Ex VAT @ 20%
£2.20


J37
516996
Washer, tab - Front carburettor throttle spindle

1
J38
516997

CLICK FOR
MORE INFO

Nut, extension - Front carburettor throttle spindle

1

£5.65

Ex VAT @ 20%
£4.71


J39
512333

CLICK FOR
MORE INFO

Washer, spacing - Rear carburettor throttle spindle

2
J40
512291

CLICK FOR
MORE INFO

Washer, shakeproof - Rear carburettor throttle spindle

1
J41
512292

CLICK FOR
MORE INFO

Nut - Rear carburettor throttle spindle

1

£0.43

Ex VAT @ 20%
£0.36


CLICK FOR
MORE INFO

COUPLING DETAILS


J42
512335

CLICK FOR
MORE INFO

Coupling assembly

This item has been superceded by AUE75 - see below

2
AUE75
COUPLING H4-6 CARBS

2

£16.97

Ex VAT @ 20%
£14.14


J43
517006

CLICK FOR
MORE INFO

Coupling spindle assembly

1
J44
512340

CLICK FOR
MORE INFO

Screw - Securing couplings

4
J45
512334

CLICK FOR
MORE INFO

Nut - Securing couplings

4
J46
512339

CLICK FOR
MORE INFO

Washer - Securing couplings

4

CLICK FOR
MORE INFO

STARTER BOX


J47
513687

CLICK FOR
MORE INFO

Nut, on spindle - Securing starter to main body

2
J48
516960

CLICK FOR
MORE INFO

Screw - Securing starter to main body

4
J49
516961

CLICK FOR
MORE INFO

Washer, shakeproof - Securing starter to main body

4
J50
516999

CLICK FOR
MORE INFO

Lever, cam, assembly

2
J51
517000

CLICK FOR
MORE INFO

Washer, spacing - Securing cam lever

2
J52
513688
Washer, shakeproof - Securing cam lever

2
J53
Not serviced
Stop adjuster, cam lever

2
J54
Not serviced
Spring - On adjuster

2
J55
Not serviced
Roll, pin - On adjuster

2
J56
513723

CLICK FOR
MORE INFO

Screw, swivel

2
157
516957

CLICK FOR
MORE INFO

Spring, return

2
J58
516998

CLICK FOR
MORE INFO

Cover, starter box

2
J59
516955

CLICK FOR
MORE INFO

Spring, starter

2
160
516954

CLICK FOR
MORE INFO

Spindle, starter, assembly

2
J61
516956

CLICK FOR
MORE INFO

'C' washer, on spindle

2
J62
517001

CLICK FOR
MORE INFO

Bracket, starter control assembly, with clip

Revington TR information: No longer available. The clip is available see 517001CLIP

2
J63
516962

CLICK FOR
MORE INFO

Clip, for bracket

This item has been superceded by 149041 - see below

2
149041

CLICK FOR
MORE INFO

CHOKE CABLE END CLIP

2

£1.33

Ex VAT @ 20%
£1.11


J64
516963

CLICK FOR
MORE INFO

Screw, securing bracket

2
J65
516978

CLICK FOR
MORE INFO

FLOAT DETAILS

2

CLICK FOR
MORE INFO

Pin, float pivot


J66
516947

CLICK FOR
MORE INFO

Valve, needle

This item has been superceded by GAC9200X - see below

2
GAC9200X

CLICK FOR
MORE INFO

GROSE JET 150/175CD

Revington TR information: Grose-jet Stromsburg carbs

2

£14.24

Ex VAT @ 20%
£11.87


J67
516005

CLICK FOR
MORE INFO

Washer, for needle valve

2

£0.91

Ex VAT @ 20%
£0.76


J68
516977

CLICK FOR
MORE INFO

Float and arm

This item has been superceded by 605833A - see below

2
605833A
FLOAT STROMBERG CARB

2

£28.45

Ex VAT @ 20%
£23.71


J69
516981
Float chamber

2
J70
516980

CLICK FOR
MORE INFO

Gasket, float chamber

2

£2.00

Ex VAT @ 20%
£1.67


J71
514972
Screw

6
J72
514973
Screw - Float chamber to main body

6
J73
514980

CLICK FOR
MORE INFO

Washer, spring - Float chamber to main body

12
J74
512304

CLICK FOR
MORE INFO

Washer, spring - Float chamber to main body

12
J75
516979

CLICK FOR
MORE INFO

Plug, sealing, float chamber

2

£13.66

Ex VAT @ 20%
£11.38


J76
512311

CLICK FOR
MORE INFO

'0' ring, for plug

2

£1.99

Ex VAT @ 20%
£1.66


J77
148036

CLICK FOR
MORE INFO

Gasket, insulating - Securing carburettors to manifold

Revington TR information: Insulating gasket. This reproduction insulating gasket is made in solid plastic.

2

£6.16

Ex VAT @ 20%
£5.13


J78
148035

CLICK FOR
MORE INFO

Gasket - Securing carburettors to manifold

4

£1.28

Ex VAT @ 20%
£1.07


J79
HN2008

CLICK FOR
MORE INFO

Nut - Securing carburettors to manifold

This item has been superceded by NP605081 - see below

8
NP605081
NUT PLAIN 5/16 UNF

8

£0.13

Ex VAT @ 20%
£0.11


J80
WL0208

CLICK FOR
MORE INFO

Washer, lock - Securing carburettors to manifold

This item has been superceded by WS105090853 - see below

8
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

8

£0.19

Ex VAT @ 20%
£0.16


CLICK FOR
MORE INFO



CLICK FOR
MORE INFO

CARBURETTOR PIPES


J81
306570
Pipe, petrol, pump to carburettor

1
J82
060176

CLICK FOR
MORE INFO

Nut, tubing, male

Revington TR information: Nut male 1/4'' x 1/2" x 20 UNF. Olive type

1

£3.26

Ex VAT @ 20%
£2.72


J83
102729

CLICK FOR
MORE INFO

Sleeve, tubing

This item has been superceded by RTR5057 - see below

1
RTR5057

RTR Upgrade

OLIVE BARREL BRASS 1/4 INCH BORE

Revington TR information: 1/4" bore brass barrel olive.

1

£1.18

Ex VAT @ 20%
£0.98


J84
138516

CLICK FOR
MORE INFO

Bracket, supporting pipe

Revington TR information: No longer available

1

£1.13

Ex VAT @ 20%
£0.94


J85
114178

CLICK FOR
MORE INFO

Grommet, in bracket

Revington TR information: No longer available

1

£0.47

Ex VAT @ 20%
£0.39


J86
138386

CLICK FOR
MORE INFO

Pipe, petrol, between carburettors

This item has been superceded by 138386K - see below

1
138386K
LINKPIPE KIT-REPRO

1

£27.20

Ex VAT @ 20%
£22.67


J86A
120331

CLICK FOR
MORE INFO

Connector, black

Triumph Catalogue Remarks: Fitted up to Engine No. only
Revington TR information: 115783

3

£1.07

Ex VAT @ 20%
£0.89


J87
148992

CLICK FOR
MORE INFO

Connector, black and gold

Triumph Catalogue Remarks: Fitted from Engine No. only
This item has been superceded by 120331 - see below

3
120331

CLICK FOR
MORE INFO

Connector, black

Revington TR information: 115783

3

£1.07

Ex VAT @ 20%
£0.89


CLICK FOR
MORE INFO

CARBURETTOR REPAIR KITS


J88
516989
Lubrication pack

1
J89
516990

CLICK FOR
MORE INFO

Repair kit, comprising:-

1

£23.68

Ex VAT @ 20%
£19.73


J90
516005

CLICK FOR
MORE INFO

Washer, needle valve

2

£0.91

Ex VAT @ 20%
£0.76


J91
512311

CLICK FOR
MORE INFO

'0' ring, sealing plug

2

£1.99

Ex VAT @ 20%
£1.66


J92
516980

CLICK FOR
MORE INFO

Gasket, float chamber

2

£2.00

Ex VAT @ 20%
£1.67


J93
516992

CLICK FOR
MORE INFO

Repair kit, comprising:-

This item has been superceded by GP58 - see below

1
GP58

CLICK FOR
MORE INFO

G/SET STROM CARBS

Revington TR information: TR4 LATE-4A Stromberg CD175 gasket kit for one carburettor. A service kit for one carburettor including jets, gaskets and diagram is also available, part number CDSK15. In addition we can supply a full kit part... READ MORE

1

£9.68

Ex VAT @ 20%
£8.07


J94
516967

CLICK FOR
MORE INFO

Gasket, by pass valve

2

£1.43

Ex VAT @ 20%
£1.19


J95
516971

CLICK FOR
MORE INFO

Washer, sealing

Revington TR information: No longer available

2
J96
516972

CLICK FOR
MORE INFO

Washer, sealing

2

£2.99

Ex VAT @ 20%
£2.49


J97
516005

CLICK FOR
MORE INFO

Washer, needle valve

2

£0.91

Ex VAT @ 20%
£0.76


J98
512311

CLICK FOR
MORE INFO

'0' ring, sealing plug

2

£1.99

Ex VAT @ 20%
£1.66


J99
516980

CLICK FOR
MORE INFO

Gasket, float chamber

2

£2.00

Ex VAT @ 20%
£1.67


J100
517003

CLICK FOR
MORE INFO

Seal, throttle spindle

4

£5.70

Ex VAT @ 20%
£4.75


J101
517004

CLICK FOR
MORE INFO

Diaphragm

2

£21.19

Ex VAT @ 20%
£17.66


J102
516947

CLICK FOR
MORE INFO

Valve, needle

This item has been superceded by GAC9200X - see below

2
GAC9200X

CLICK FOR
MORE INFO

GROSE JET 150/175CD

Revington TR information: Grose-jet Stromsburg carbs

2

£14.24

Ex VAT @ 20%
£11.87


J103
516988

CLICK FOR
MORE INFO

'0' ring, damper

This item has been superceded by RTC1481A - see below

2
RTC1481A
GASKET PACK-STROMBER

2

£23.23

Ex VAT @ 20%
£19.36
