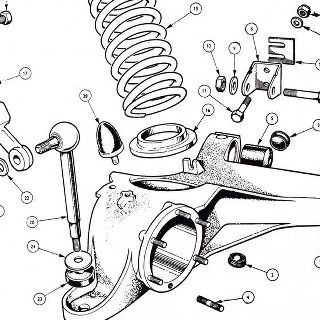

TR250 Plate T - INDEPENDENT REAR SUSPENSION

> Open plate

> Open plate in new window

> Print Plate

> Close plate

> Open plate in new window

> Print Plate

Plate No.	Part No.	Description and Comments	No Per Unit	Price	Add to Cart
T1	308268 CLICK FOR MORE INFO	TRAILING ARM ASSEMBLY (Complete with bush but less studs) - R.H. Revington TR information: Cast Aluminum Trailing arm right hand TR5-6. Not available new, consider second hand part 308268SH or second hand powder coated part 308268SHPC. This item has a secondhand part available - see below	1		No longer available
	308268SH CLICK FOR MORE INFO	Second Hand TRAILING ARM RH TR5-6 S.HAND Revington TR information: This second hand right hand TR5-6 trialing arm may or may not have bushes and may or may not have threads that need attention. in other words, the part, being second hand is what it is,... READ MORE	1	£379.50 Ex VAT @ 20% £316.25	Currently unavailable
T1A	308267 CLICK FOR MORE INFO	TRAILING ARM ASSEMBLY (Complete with bush but less studs) - L.H. Revington TR information: Cast Aluminum Trailing arm left hand TR5-6. Not available new, consider second hand part 308267SH or second hand powder coated part 308267SHPC. This item has a secondhand part available - see below	1		No longer available
	308267SH CLICK FOR MORE INFO	Second Hand TRAILING ARM TR5-6 LH Revington TR information: This second hand left hand TR5-6 trialing arm may or may not have bushes and may or may not have threads that need attention. in other words, the part, being second hand is what it is,... READ MORE	1	£332.69 Ex VAT @ 20% £277.24	Currently unavailable
T2	138801 CLICK FOR MORE INFO	Plug, blanking, 7/8" dia. hole Revington TR information: This item has a secondhand part available - see below	4	£3.80 Ex VAT @ 20% £3.17
	138801SH	TRAILING ARM PLUG SH	4	£1.24 Ex VAT @ 20% £1.03
T3	138532 CLICK FOR MORE INFO	Plug, blanking, 11/8" dia. hole Revington TR information: This item has a secondhand part available - see below	4		No longer available
	138532SH	TRAILING ARM PLUG second hand	4	£0.84 Ex VAT @ 20% £0.70
T4	TD0812 CLICK FOR MORE INFO	Stud, brake backplate and hub assembly attachment This item has been superceded by ST605121 - see below	12
	ST605121 CLICK FOR MORE INFO	STUD 5/16 X 1-1/2" UNF+ UNF	12	£1.92 Ex VAT @ 20% £1.60
T5	137599 CLICK FOR MORE INFO	Bush, fitted in trailing arms Revington TR information: Superpro Polyurethane offer an improved kit please see SPF0077K below	4	£12.62 Ex VAT @ 20% £10.52
T6	141399 CLICK FOR MORE INFO	Bracket, inner - Trailing arm support Revington TR information: There are 3 types of trailing arm brackets used on TR4A-IRS, 250, 5 and 6, they are identified with 1notch, 2 notches and 3 notches. The bracket arrangement was the same until part way through TR6... READ MORE This item has a secondhand part available - see below	2	£36.49 £11.52 Ex VAT @ 20% £9.60
	141399SH CLICK FOR MORE INFO	Second Hand TRAILING ARM BRACKET 1 NOTCH Revington TR information: There are 3 types of trailing arm brackets used on TR4A-IRS, 250, 5 and 6 as shown below. They are identified with 1notch, 2 notches and 3 notches. The bracket arrangement was the same until part... READ MORE	2	£8.99 £8.87 Ex VAT @ 20% £7.39
T7	141398 CLICK FOR MORE INFO	Bracket, outer - Trailing arm support Revington TR information: There are 3 types of trailing arm brackets used on TR4A-IRS, 250, 5 and 6, they are identified with 1notch, 2 notches and 3 notches. The bracket arrangement was the same until part way through TR6... READ MORE This item has a secondhand part available - see below	2	£36.49 Ex VAT @ 20% £30.41
	141398SH CLICK FOR MORE INFO	Second Hand TRAILING ARM BRACKET 2 NOTCH Revington TR information: There are 3 types of trailing arm brackets used on TR4A-IRS, 250, 5 and 6, they are identified with 1notch, 2 notches and 3 notches. The bracket arrangement was the same until part way through TR6... READ MORE	2	£16.19 Ex VAT @ 20% £13.49
T8	HB1029 CLICK FOR MORE INFO	Bolt - Trailing arms to inner and outer brackets This item has been superceded by BH607301 - see below	4
	BH607301	BOLT 7/16 UNF X 3-3/4 INCH	4	£3.46 Ex VAT @ 20% £2.88
T9	WM0803 CLICK FOR MORE INFO	Washer, plain - Trailing arms to inner and outer brackets This item has been superceded by WP10714050 - see below	4
	WP10714050	WASHER PLAIN 7/16 X 7/8 X .050"	4	£0.47 Ex VAT @ 20% £0.39
T10	TN3210 CLICK FOR MORE INFO	Nut - Trailing arms to inner and outer brackets This item has been superceded by NY607141 - see below	4
	NY607141 CLICK FOR MORE INFO	NYLOC 7/16 UNF X 7/16"(.4375") TALL 11/16"AF Revington TR information: Consider also All Steel Locking nut NV607141 which has the advantage of being reuseable.	4	£1.19 Ex VAT @ 20% £0.99
T11	HB0926 CLICK FOR MORE INFO	Bolt - Support brackets to chassis frame This item has been superceded by BH606261 - see below	4
	BH606261	BOLT 3/8 UNF X 3-1/4 INCH	4	£3.53 Ex VAT @ 20% £2.94
T11A	143677 CLICK FOR MORE INFO	Bolt - Support brackets to chassis frame This item has been superceded by BH606281 - see below	4
	BH606281	BOLT 3/8 UNF X 3-1/2 INCH	4	£3.58 Ex VAT @ 20% £2.98
T12	WP0009 CLICK FOR MORE INFO	Washer, plain - Support brackets to chassis frame This item has been superceded by WP10613050 - see below	8
	WP10613050	WASHER PLAIN 3/8 X 13/16 INCH NLA use 7/8"	8		No longer available
T13	YN2909 CLICK FOR MORE INFO	Nut - Support brackets to chassis frame This item has been superceded by NY606151 - see below	8
	NY606151 CLICK FOR MORE INFO	NUT NYLOC 3/8UNF X 15/32 thick	8	£0.71 Ex VAT @ 20% £0.59
T14	139363 CLICK FOR MORE INFO	Shim - Support brackets to chassis frame Revington TR information: Shim trailing arm mounting TR4A, 250, 5 and 6. Consider using second hand part 139363SH ans we have plenty of serviceable original parts or stainless steel part 139363SS. This item has a secondhand part available - see below	A/R	£2.36 Ex VAT @ 20% £1.97	Currently unavailable
	139363SH	Second Hand SHIM T/ARM MOUNT	A/R	£3.06 Ex VAT @ 20% £2.55
T15	214293 CLICK FOR MORE INFO	REAR ROAD SPRING This item has been superceded by 216275PR - see below	2
	216275PR	SPRING Pair STD RR TR4A-6 Revington TR information: 354lb/in 11.5" Long This item has a secondhand part available - see below	2	£82.80 Ex VAT @ 20% £69.00
	216275PRSH	SPRING Pair STD RR TR4A-6 second hand	2	£42.00 Ex VAT @ 20% £35.00
T16	138823 CLICK FOR MORE INFO	Insulator, rear road spring Revington TR information: Road spring Insulator rear TR4AIRS to 6. Consider SuperPro Polyurethane improved kit, which will last much longer than standard rubber and provide a quieter ride. A 5mm thicker insulator is available too, which can be used... READ MORE This item has a secondhand part available - see below	4	£5.76 Ex VAT @ 20% £4.80
	138823SH	SPRING PACKING Second hand	4	£3.28 Ex VAT @ 20% £2.73
T17	211937 CLICK FOR MORE INFO	REAR DAMPER - R.H. This item has been superceded by GSA286 - see below	1
	GSA286 CLICK FOR MORE INFO	DAMPER REAR RH TR4A-6 Revington TR information: Consider rebuilt original part GSA286EX, second hand part GSA286SH, uprated part RTR3120REX or our range of telescopic conversion kits RTR3003SPK, RTR3003-1SPK, RTR3003RJ1K and RTR3003RJ2K. This item has a secondhand part available - see below	1	£166.74 Ex VAT @ 20% £138.95	Currently unavailable
	GSA286SH	Second Hand DAMPER TR4A-6 RH	1	£60.00 Ex VAT @ 20% £50.00
T17A	211936 CLICK FOR MORE INFO	REAR DAMPER - L.H. This item has been superceded by GSA287 - see below	1
	GSA287 CLICK FOR MORE INFO	DAMPER REAR LH TR4A-6 Revington TR information: Consider rebuilt original part GSA287EX, second hand part GSA287SH, uprated part RTR3120LEX or our range of telescopic conversion kits RTR3003SPK, RTR3003-1SPK, RTR3003RJ1K and RTR3003RJ2K. This item has a secondhand part available - see below	1	£166.74 Ex VAT @ 20% £138.95	Currently unavailable
	GSA287SH	Second Hand DAMPER TR4A-6 LH	1	£60.00 Ex VAT @ 20% £50.00
T18	HU1010 CLICK FOR MORE INFO	Screw, set - Damper to mounting bracket This item has been superceded by SH607101 - see below	4
	SH607101	SCREW 7/16 UNF X 1-1/4 INCH	4	£3.22 Ex VAT @ 20% £2.68
T19	508289 CLICK FOR MORE INFO	Washer, special - Damper to mounting bracket	4	£0.94 Ex VAT @ 20% £0.78
T20	141464 CLICK FOR MORE INFO	Link assembly, rear damper to trailing arm This item has been superceded by 141464A - see below	2
	141464A CLICK FOR MORE INFO	LINK ARM REAR DAMPER TR4A-6 Revington TR information: Consider also second hand part 141464ASH This item has a secondhand part available - see below	2	£21.50 Ex VAT @ 20% £17.92
	141464ASH	Second Hand LINK ARM REAR DAMPER R4A-6	2	£12.62 Ex VAT @ 20% £10.52
T21	HN2010 CLICK FOR MORE INFO	Nut - Link to rear damper This item has been superceded by NP607121 - see below	2
	NP607121	NUT PLAIN 7/16UNF X 3/8"	2	£0.50 Ex VAT @ 20% £0.42
T22	WL0210 CLICK FOR MORE INFO	Washer - Link to rear damper This item has been superceded by WS107121203 - see below	2
	WS107121203 CLICK FOR MORE INFO	WASHER SPRING 7/16" RECT SECTION	2	£0.42 Ex VAT @ 20% £0.35
T23	516038 CLICK FOR MORE INFO	Rubber, mounting - Link to trailing arm This item has been superceded by 21A860 - see below	4
	21A860 CLICK FOR MORE INFO	TOP damper BUSH Revington TR information: Superpro Polyurethane offer an improved kit please see SPF0809K	4	£3.56 Ex VAT @ 20% £2.97
T24	140416 CLICK FOR MORE INFO	Washer, upper - Link to trailing arm Revington TR information: Flat washer 7/16" internal diameter, 1-5/8" external diameter, 0.164" thick Can use stainless steel washer WP107261572 or cupped washer TBC	2	£1.55 Ex VAT @ 20% £1.29
T25	140479 CLICK FOR MORE INFO	Washer, lower - Link to trailing arm This item has been superceded by WP10626164 - see below	2
	WP10626164	WASHER PLAIN 3/8 X 1-5/8 X .164	2	£1.44 Ex VAT @ 20% £1.20
T26	HN2009 CLICK FOR MORE INFO	Nut - Link to trailing arm This item has been superceded by NP606111 - see below	2
	NP606111	NUT PLAIN 3/8 UNF X 11/32" (STD)	2	£0.14 Ex VAT @ 20% £0.12
T27	JN2109 CLICK FOR MORE INFO	Nut, jam - Link to trailing arm This item has been superceded by NP606071 - see below	2
	NP606071	NUT PLAIN 3/8 UNF X 7/32"	2	£0.56 Ex VAT @ 20% £0.47
T28	136758 CLICK FOR MORE INFO	Rubber assembly, rebound, on chassis frame Revington TR information: 1.625" from back of plate to tip of bump stop rubber. There are various bump and rebound stops used on IRS cars The following guide might be useful: - 140290: large bump stop fitted to TR4A body 136758:... READ MORE This item has a secondhand part available - see below	4	£6.36 Ex VAT @ 20% £5.30
	136758SH CLICK FOR MORE INFO	Second Hand BUMP STOP Revington TR information: There are various bump and rebound stops used on IRS cars The following guide might be useful: - 140290: large bump stop fitted to TR4A body 136758: 1.626" tall. Re	4	£3.30 Ex VAT @ 20% £2.75
