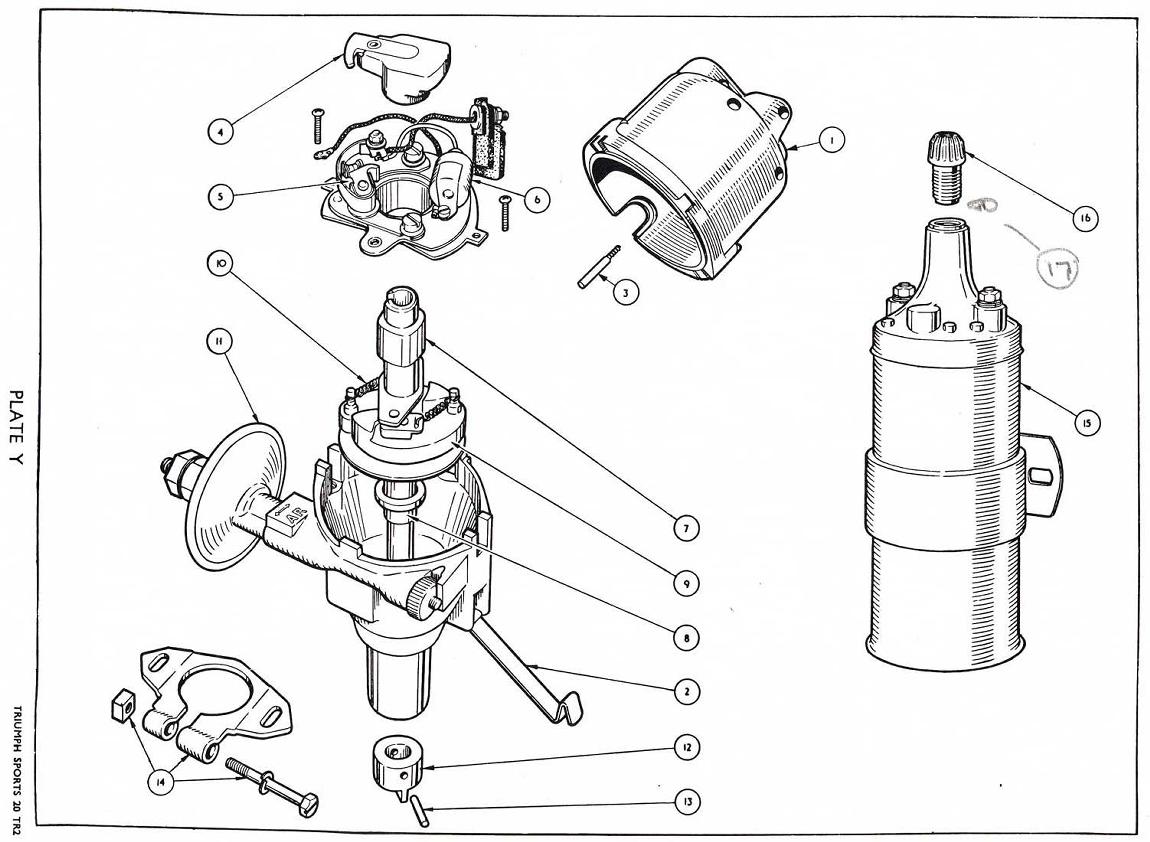

TR3 Plate Y - ELECTRICAL EQUIPMENT: DISTRIBUTOR AND IGNITION COIL.
Plate No. | Part No. | Description and Comments | No Per Unit | Price | Add to Cart | |
---|---|---|---|---|---|---|
![]() |
Y1AA | 201871 |
DISTRIBUTORTriumph Catalogue Remarks: 1 to 8212 |
1 | ||
![]() |
LU40403EX |
REBUILT DISTRBT-TR2-Revington TR information: Comission number 1 to 8212 |
1 |
£400.27 Ex VAT @ 20% |
||
![]() |
Y1 | 501717 |
CapTriumph Catalogue Remarks: 1 to 8212 |
1 | ||
![]() |
GDC114 |
DISTRIBUTOR CAP 4 CYL TRRevington TR information: Many TR's 2-4A will have been altered over time to a distributor with vertical push in ignition lead connections. If this cap is required, order GDC103 |
1 |
£12.61 Ex VAT @ 20% |
||
![]() |
Y2 | 501464 |
Clip, retaining capTriumph Catalogue Remarks: 1 to 8212 |
2 | ||
![]() |
Y3 | 501718 |
Brush and spring, cap centreTriumph Catalogue Remarks: 1 to 8212 |
1 | ||
![]() |
262703A |
BRUSH AND SPRING |
1 |
£3.32 Ex VAT @ 20% |
||
![]() |
Y4 | 058307 |
Arm, rotorTriumph Catalogue Remarks: 1 to 8212 |
1 | ||
![]() |
GRA2101 |
ROTOR ARM 25D4 4 CYL HIGH QUALITY TR2-4ARevington TR information: A high quality part modeled on the rotor arms of the 50's & 60's. these do not short out from the rivet to the spring steel clip on the underside as do all other repro parts.... READ MORE |
1 |
£8.95 Ex VAT @ 20% |
||
![]() |
Y5 | 501466 |
Contact setTriumph Catalogue Remarks: 1 to 8212 |
1 |
£27.58 Ex VAT @ 20% |
|
![]() |
Y6 | 501467 |
CondenserTriumph Catalogue Remarks: 1 to 8212 |
1 | ||
![]() |
GSC111 |
CONDENSER TR2-6Revington TR information: For a higher quality product see GSC111HQ. |
1 |
£3.68 Ex VAT @ 20% |
||
![]() |
Y7 | 501719 |
CamTriumph Catalogue Remarks: 1 to 8212 |
1 | ||
![]() |
Y8 | 501723 |
Plate, shaft and actionTriumph Catalogue Remarks: 1 to 8212 |
1 | ||
![]() |
Y9 | 501802 |
Weight, auto advanceTriumph Catalogue Remarks: 1 to 8212 |
2 | ||
![]() |
Y10 | 502345 |
Spring, auto advance weightTriumph Catalogue Remarks: 1 to 8212 |
2 | ||
![]() |
RTR8310 |
DIST. ADV SPRING SETRevington TR information: Assorted pack of distributor springs. |
2 |
£12.35 Ex VAT @ 20% |
||
![]() |
Y10A | 501725 |
BushingTriumph Catalogue Remarks: 1 to 8212 |
1 | ||
![]() |
606895 |
BUSH-DISTRIBUTOR |
1 |
£73.90 Ex VAT @ 20% |
||
![]() |
Y11 | 502346 |
Unit, vacuum controlTriumph Catalogue Remarks: 1 to 8212 |
1 | ||
![]() |
Y12 | 057991 |
Dog, driving distributorTriumph Catalogue Remarks: 1 to 8212 |
1 | ||
![]() |
Y13 | 057992 |
Peg, securing dogTriumph Catalogue Remarks: 1 to 8212 |
1 | ||
![]() |
500974 |
MILLS PIN 3/16 x 1 |
1 |
£0.49 Ex VAT @ 20% |
||
![]() |
Y14 | 501134 |
Plate, clamping distributorTriumph Catalogue Remarks: 1 to 8212 |
1 | ||
![]() |
3H2138 |
DISTRIBUTOR CLAMPRevington TR information: Consider original second hand part number 3H2138SH if new is not available. . This is the bracket only and the nut and bolt need to be ordered seperately if required. |
1 |
£14.36 Ex VAT @ 20% |
||
![]() |
Y14A | 500218 |
Set, sundry partsTriumph Catalogue Remarks: 1 to 8212 |
1 | ||
![]() |
Y14B | 203108 |
DISTRIBUTORTriumph Catalogue Remarks: 8213 |
1 | ||
![]() |
LU40480EX |
DISTRIBUTOR TR3/3A EXHANGE DM2 |
1 |
£294.00 Ex VAT @ 20% |
||
![]() |
Y14C | 206751 |
DISTRIBUTORTriumph Catalogue Remarks: ________ |
1 | ||
![]() |
LU40480EX |
DISTRIBUTOR TR3/3A EXHANGE DM2 |
1 |
£294.00 Ex VAT @ 20% |
||
![]() |
Y1 | 501717 |
CapTriumph Catalogue Remarks: 8213 |
1 | ||
![]() |
GDC114 |
DISTRIBUTOR CAP 4 CYL TRRevington TR information: Many TR's 2-4A will have been altered over time to a distributor with vertical push in ignition lead connections. If this cap is required, order GDC103 |
1 |
£12.61 Ex VAT @ 20% |
||
![]() |
Y2 | 501464 |
Clip, cap retainingTriumph Catalogue Remarks: 8213 |
2 | ||
![]() |
Y2A | 507083 |
Clip, cap retainingTriumph Catalogue Remarks: ________ |
2 | ||
![]() |
Y3 | 501465 |
Brush and spring, cap centreTriumph Catalogue Remarks: 8213 |
1 | ||
![]() |
Y3A | 501718 |
Brush and spring, cap centreTriumph Catalogue Remarks: ________ |
1 | ||
![]() |
262703A |
BRUSH AND SPRING |
1 |
£3.32 Ex VAT @ 20% |
||
![]() |
Y4 | 058307 |
Arm, rotorTriumph Catalogue Remarks: 8213 |
1 | ||
![]() |
GRA2101 |
ROTOR ARM 25D4 4 CYL HIGH QUALITY TR2-4ARevington TR information: A high quality part modeled on the rotor arms of the 50's & 60's. these do not short out from the rivet to the spring steel clip on the underside as do all other repro parts.... READ MORE |
1 |
£8.95 Ex VAT @ 20% |
||
![]() |
Y4A | 057469 |
Arm, rotorTriumph Catalogue Remarks: ________ |
1 | ||
![]() |
GRA2101 |
ROTOR ARM 25D4 4 CYL HIGH QUALITY TR2-4ARevington TR information: A high quality part modeled on the rotor arms of the 50's & 60's. these do not short out from the rivet to the spring steel clip on the underside as do all other repro parts.... READ MORE |
1 |
£8.95 Ex VAT @ 20% |
||
![]() |
Y5 | 503681 |
Contact setTriumph Catalogue Remarks: 8213 |
1 | ||
![]() |
GCS2101 |
CONTACT SET TR3-6Revington TR information: Standard set of points. For a higher quality set |
1 |
£3.25 Ex VAT @ 20% |
||
![]() |
Y6 | 503683 |
CondenserTriumph Catalogue Remarks: 8213 |
1 | ||
![]() |
GCS2101 |
CONTACT SET TR3-6Revington TR information: Standard set of points. For a higher quality set |
1 |
£3.25 Ex VAT @ 20% |
||
![]() |
Y6A | 509319 |
CondenserTriumph Catalogue Remarks: ________ |
1 | ||
![]() |
GSC111 |
CONDENSER TR2-6Revington TR information: For a higher quality product see GSC111HQ. |
1 |
£3.68 Ex VAT @ 20% |
||
![]() |
Y6A | 509320 |
Connector, LucarTriumph Catalogue Remarks: ________ |
1 | ||
![]() |
600329A |
LOW TENSION TERMINAL TR4-6 25D |
1 |
£5.90 Ex VAT @ 20% |
||
![]() |
Y7 | 501468 |
CamTriumph Catalogue Remarks: 8213 |
1 | ||
![]() |
Y8 | 501723 |
Plate, shaft and actionTriumph Catalogue Remarks: 8213 |
1 | ||
![]() |
Y9 | 501802 |
Weight, auto advanceTriumph Catalogue Remarks: 8213 |
2 | ||
![]() |
Y10 | 502345 |
Spring, auto advance weightTriumph Catalogue Remarks: 8213 |
2 | ||
![]() |
RTR8310 |
DIST. ADV SPRING SETRevington TR information: Assorted pack of distributor springs. |
2 |
£12.35 Ex VAT @ 20% |
||
![]() |
Y10A | 501725 |
BushingTriumph Catalogue Remarks: 8213 |
1 | ||
![]() |
606895 |
BUSH-DISTRIBUTOR |
1 |
£73.90 Ex VAT @ 20% |
||
![]() |
Y10B | 507082 |
BushingTriumph Catalogue Remarks: ________ |
1 | ||
![]() |
Y11 | 503697 |
Unit, vacuum controlTriumph Catalogue Remarks: 8213 |
1 |
£68.00 Ex VAT @ 20% |
|
![]() |
Y12 | 057991 |
Dog, driving distributorTriumph Catalogue Remarks: 8213 |
1 | ||
![]() |
Y13 | 057992 |
Peg, securing dogTriumph Catalogue Remarks: 8213 |
1 | ||
![]() |
500974 |
MILLS PIN 3/16 x 1 |
1 |
£0.49 Ex VAT @ 20% |
||
![]() |
Y14 | 501134 |
Plate, clamping distributorTriumph Catalogue Remarks: 8213 |
1 | ||
![]() |
3H2138 |
DISTRIBUTOR CLAMPRevington TR information: Consider original second hand part number 3H2138SH if new is not available. . This is the bracket only and the nut and bolt need to be ordered seperately if required. |
1 |
£14.36 Ex VAT @ 20% |
||
![]() |
Y14A | 503678 |
Plate, clamping distributorTriumph Catalogue Remarks: ________ |
1 | ||
![]() |
Y14B | 501728 |
Set, sundry partsTriumph Catalogue Remarks: 8213 |
1 | ||
![]() |
245015 |
SUNDRIES KIT -DISTRIBUTOR REPAIRRevington TR information: (NO LONGER AVAILABLE) Distributor repair kit-sundry parts suits most distributors. |
1 | |||
![]() |
Y15 | 048796 |
IGNITION COILTriumph Catalogue Remarks: 1 to 11812 |
1 | ||
![]() |
GCL101 |
COIL SCREW IN HT 12 VOLTRevington TR information: This coil has a screw in acorn nut securing the king lead. Consider original second hand part number GCL101SH. A sports coil is available too |
1 |
£24.43 Ex VAT @ 20% |
||
![]() |
Y15A | 113919 |
IGNITION COILTriumph Catalogue Remarks: 11813 |
1 | ||
![]() |
GCL110 |
IGNITION COIL PUSH IN LUCAR CONNRevington TR information: Non-ballasted ignition coil, push in king lead type suitable for all cars up to 1973 TR6 when a ballasted coil was introduced. We also have second hand coils GCL110SH and Sports Coil RTR8062. |
1 |
£14.20 Ex VAT @ 20% |
||
![]() |
Y15B | 125195 |
IGNITION COILTriumph Catalogue Remarks: _________ |
1 | ||
![]() |
GCL110 |
IGNITION COIL PUSH IN LUCAR CONNRevington TR information: Non-ballasted ignition coil, push in king lead type suitable for all cars up to 1973 TR6 when a ballasted coil was introduced. We also have second hand coils GCL110SH and Sports Coil RTR8062. |
1 |
£14.20 Ex VAT @ 20% |
||
![]() |
Y15C | 105036 |
Nut, terminal, HT cable |
1 |
£2.30 Ex VAT @ 20% |
|
![]() |
Y15D | 105037 |
Washer, split, under nutThis item has been superceded by 214279A - see below |
1 | ||
![]() |
214279A |
HT COPPER WASHER |
1 |
£0.49 Ex VAT @ 20% |
||
![]() |
Y15E | HU0755 |
Screw, set, ignition coil to cylinder headThis item has been superceded by SH504051 - see below |
2 | ||
![]() |
SH504051 |
SCREW 1/4 UNC X 5/8" |
2 |
£0.29 Ex VAT @ 20% |
||
![]() |
Y15F | WL0207 |
Washer, spring, on screwThis item has been superceded by WS104070643 - see below |
2 | ||
![]() |
WS104070643 |
WASHER SPRING 1/4" RECT SECTION |
2 |
£0.16 Ex VAT @ 20% |
||
![]() |
Y15G | WP0007 |
Washer, plain, on screwTriumph Catalogue Remarks: 11813 |
2 | ||
![]() |
WP10408057 |
WASHER PLAIN 1/4" x 1/2" x 0.057" |
2 |
