Fuel and braking systems

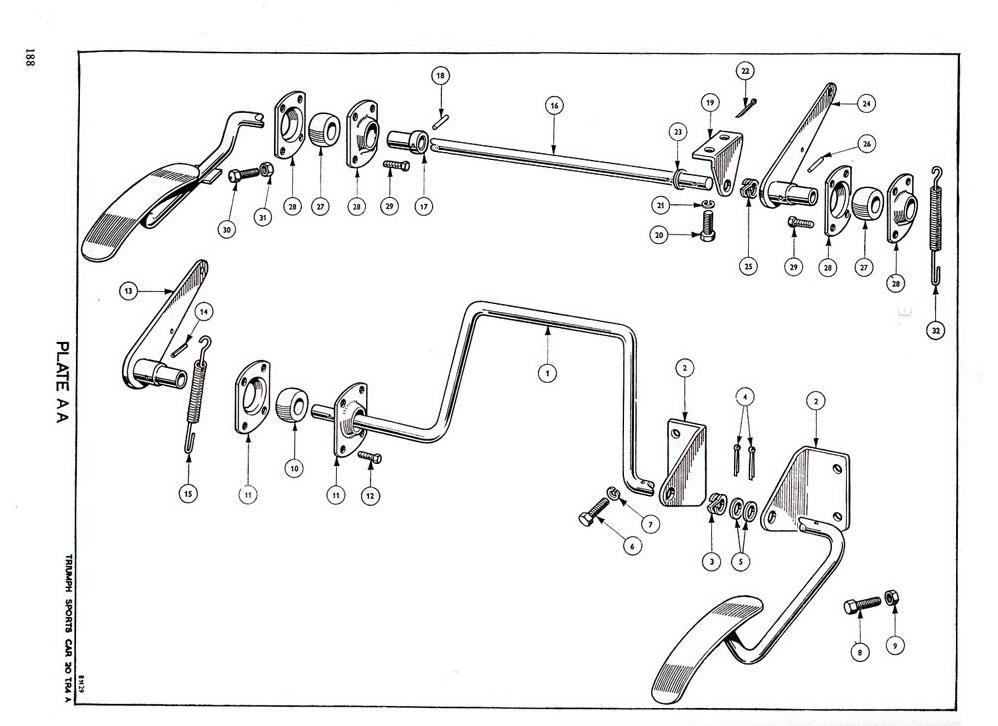

TR4A Plate AA - ACCELERATOR PEDAL ASSEMBLY

  Plate No. Part No. Description and Comments No Per Unit Price Add to Cart
AA1
209411

CLICK FOR
MORE INFO

ACCELERATOR PEDAL ASSEMBLY R.H.S.

Revington TR information: The TR4-4A accelerator pedal part number 209411, has a slight kink in the pedal support, to the right whereas the accelerator pedal assembly for TR2-3B part number 208437 has a straight pedal support. Another identifying feature... READ MORE

1

£83.17

Ex VAT @ 20%
£69.31


AA2
131253

CLICK FOR
MORE INFO

Bracket, fulcrum, pedal to toe board

This item has been superceded by 106752 - see below

2
106752

CLICK FOR
MORE INFO

BRACKET ACCELERATOR CONTROL RHD TR2-4A

Revington TR information: consider original second hand part 106752SH

2

£25.57

Ex VAT @ 20%
£21.31


AA3
WD0159

CLICK FOR
MORE INFO

Washer, lock (double coil), pedal shaft

This item has been superceded by WT10611 - see below

1
WT10611
WASHER THACKERY 3/8 INCH

1

£2.16

Ex VAT @ 20%
£1.80


AA4
P00009

CLICK FOR
MORE INFO

Pin, cotter, locating pedal shaft in fulcrum bracket

This item has been superceded by PS106121 - see below

2
PS106121

CLICK FOR
MORE INFO

SPLIT PIN 3/32 X 1-1/2 INCH

2

£0.19

Ex VAT @ 20%
£0.16


AA5
WP0036

CLICK FOR
MORE INFO

Washer, plain, between cotter pin and bracket

This item has been superceded by WP10610057 - see below

2
WP10610057
WASHER PLAIN 3/8 X 5/8 X 0.057"

2

£0.48

Ex VAT @ 20%
£0.40


AA6
HU0705P

CLICK FOR
MORE INFO

Screw, set Fulcrum bracket to bulkhead

This item has been superceded by SH604051 - see below

4
SH604051
SCREW 1/4 UNF X 5/8 INCH

4

£0.46

Ex VAT @ 20%
£0.38


AA7
WL0207

CLICK FOR
MORE INFO

Washer, spring Fulcrum bracket to bulkhead

This item has been superceded by WS104070643 - see below

4
WS104070643
WASHER SPRING 1/4" RECT SECTION

4

£0.16

Ex VAT @ 20%
£0.13


AA8
HU0708

CLICK FOR
MORE INFO

Screw, set Accelerator pedal limit stop

This item has been superceded by SH604081 - see below

1
SH604081

CLICK FOR
MORE INFO

SCREW 1/4 UNF X 1 INCH

1

£0.19

Ex VAT @ 20%
£0.16


AA9
JN2107

CLICK FOR
MORE INFO

Nut, jam Accelerator pedal limit stop

This item has been superceded by NP604051 - see below

1
NP604051
NUT PLAIN 1/4 UNF X 5/32"

1

£0.30

Ex VAT @ 20%
£0.25


AA9A
HU0705P

CLICK FOR
MORE INFO

Screw, set Blanking redundant holes on R.H.S. models

This item has been superceded by SH604051 - see below

3
SH604051
SCREW 1/4 UNF X 5/8 INCH

3

£0.46

Ex VAT @ 20%
£0.38


AA9B
WL0207

CLICK FOR
MORE INFO

Washer, lock Blanking redundant holes on R.H.S. models

This item has been superceded by WS104070643 - see below

3
WS104070643
WASHER SPRING 1/4" RECT SECTION

3

£0.16

Ex VAT @ 20%
£0.13


AA9C
600400

CLICK FOR
MORE INFO

Plug, blanking Blanking redundant holes on R.H.S. models

1

£2.47

Ex VAT @ 20%
£2.06


AA10
058282

CLICK FOR
MORE INFO

Bearing, self aligning, on pedal shaft

Revington TR information: Consider second hand original part 058282SH.

1

£9.58

Ex VAT @ 20%
£7.98


AA11
105226

CLICK FOR
MORE INFO

Housing, bearing (half)

Revington TR information: Consider second hand original part 105226SH

2
AA12
YH7503

CLICK FOR
MORE INFO

Screw, s/tapping, bearing housing attachment

This item has been superceded by SS1100321 - see below

4
SS1100321
SCREW ST NO.10 X 3/8 POZI PAN BZP

4

£0.31

Ex VAT @ 20%
£0.26


AA13
106753

CLICK FOR
MORE INFO

Lever assembly

Revington TR information: Not available new use second hand original part 106753SH.

1
AA14
DS1312

CLICK FOR
MORE INFO

Dowel, spring, securing lever to pedal shaft

Revington TR information: This part can be used when 500555 is not available. It maybe a little shorter than the correct part but is useable.

1

£0.59

Ex VAT @ 20%
£0.49


AA15
027645

CLICK FOR
MORE INFO

Spring, return

Revington TR information: Heavy spring 88mm long. Our stock is genuine Leyland

1

£2.98

Ex VAT @ 20%
£2.48


AA16
206590

CLICK FOR
MORE INFO

ACCELERATOR PEDAL ASSEMBLY L.H.S.

Revington TR information: TR3 LHD throttle pedal fitted to TR3-3A. this is the pedal part of a two piece assemble that was fitted in conjunction with straight bar 106762 3 types of accelerator pedal were fitted... READ MORE

1

£74.28

Ex VAT @ 20%
£61.90


AA17
120443

CLICK FOR
MORE INFO

Bush, pedal

Revington TR information: No longer available use second hand part.

1
AA18
500555

CLICK FOR
MORE INFO

Pin, mills

This item has been superceded by DS1312 - see below

1
DS1312

CLICK FOR
MORE INFO

Dowel, spring, securing lever to pedal shaft

Revington TR information: This part can be used when 500555 is not available. It maybe a little shorter than the correct part but is useable.

1

£0.59

Ex VAT @ 20%
£0.49


AA19
106763

CLICK FOR
MORE INFO

Bracket

Revington TR information: Consider second hand original part 106763SH.

1
AA20
HU0705P

CLICK FOR
MORE INFO

Screw, set Bracket attachment

This item has been superceded by SH604051 - see below

2
SH604051
SCREW 1/4 UNF X 5/8 INCH

2

£0.46

Ex VAT @ 20%
£0.38


AA21
WL0207

CLICK FOR
MORE INFO

Washer, lock Bracket attachment

This item has been superceded by WS104070643 - see below

2
WS104070643
WASHER SPRING 1/4" RECT SECTION

2

£0.16

Ex VAT @ 20%
£0.13


AA22
P00009

CLICK FOR
MORE INFO

Pin, cotter

This item has been superceded by PS106121 - see below

1
PS106121

CLICK FOR
MORE INFO

SPLIT PIN 3/32 X 1-1/2 INCH

1

£0.19

Ex VAT @ 20%
£0.16


AA23
WP0036

CLICK FOR
MORE INFO

Washer, plain

This item has been superceded by WP10610057 - see below

1
WP10610057
WASHER PLAIN 3/8 X 5/8 X 0.057"

1

£0.48

Ex VAT @ 20%
£0.40


AA24
106753

CLICK FOR
MORE INFO

Lever assembly

Revington TR information: Not available new use second hand original part 106753SH.

1
AA25
WD0159

CLICK FOR
MORE INFO

Washer, spring, between lever and bracket

This item has been superceded by WT10611 - see below

1
WT10611
WASHER THACKERY 3/8 INCH

1

£2.16

Ex VAT @ 20%
£1.80


AA26
500555

CLICK FOR
MORE INFO

Pin, mills, securing lever

This item has been superceded by DS1312 - see below

1
DS1312

CLICK FOR
MORE INFO

Dowel, spring, securing lever to pedal shaft

Revington TR information: This part can be used when 500555 is not available. It maybe a little shorter than the correct part but is useable.

1

£0.59

Ex VAT @ 20%
£0.49


AA27
058282

CLICK FOR
MORE INFO

Bearing, self aligning, on shaft

Revington TR information: Consider second hand original part 058282SH.

2

£9.58

Ex VAT @ 20%
£7.98


AA28
105226

CLICK FOR
MORE INFO

Housing, bearing (half)

Revington TR information: Consider second hand original part 105226SH

4
AA29
YH7503

CLICK FOR
MORE INFO

Screw, s/tapping, bearing housing attachment

This item has been superceded by SS1100321 - see below

8
SS1100321
SCREW ST NO.10 X 3/8 POZI PAN BZP

8

£0.31

Ex VAT @ 20%
£0.26


AA30
HU0716F

CLICK FOR
MORE INFO

Screw, pedal limit stop

This item has been superceded by SH604161 - see below

1
SH604161
SCREW 1/4 UNF X 2 INCH

1

£0.48

Ex VAT @ 20%
£0.40


AA31
JN2107

CLICK FOR
MORE INFO

Nut, jam

This item has been superceded by NP604051 - see below

1
NP604051
NUT PLAIN 1/4 UNF X 5/32"

1

£0.30

Ex VAT @ 20%
£0.25


AA32
027645

CLICK FOR
MORE INFO

Spring, return

Revington TR information: Heavy spring 88mm long. Our stock is genuine Leyland

1

£2.98

Ex VAT @ 20%
£2.48


Note:-For Link Rods, see Engine Section, Carburettor details
