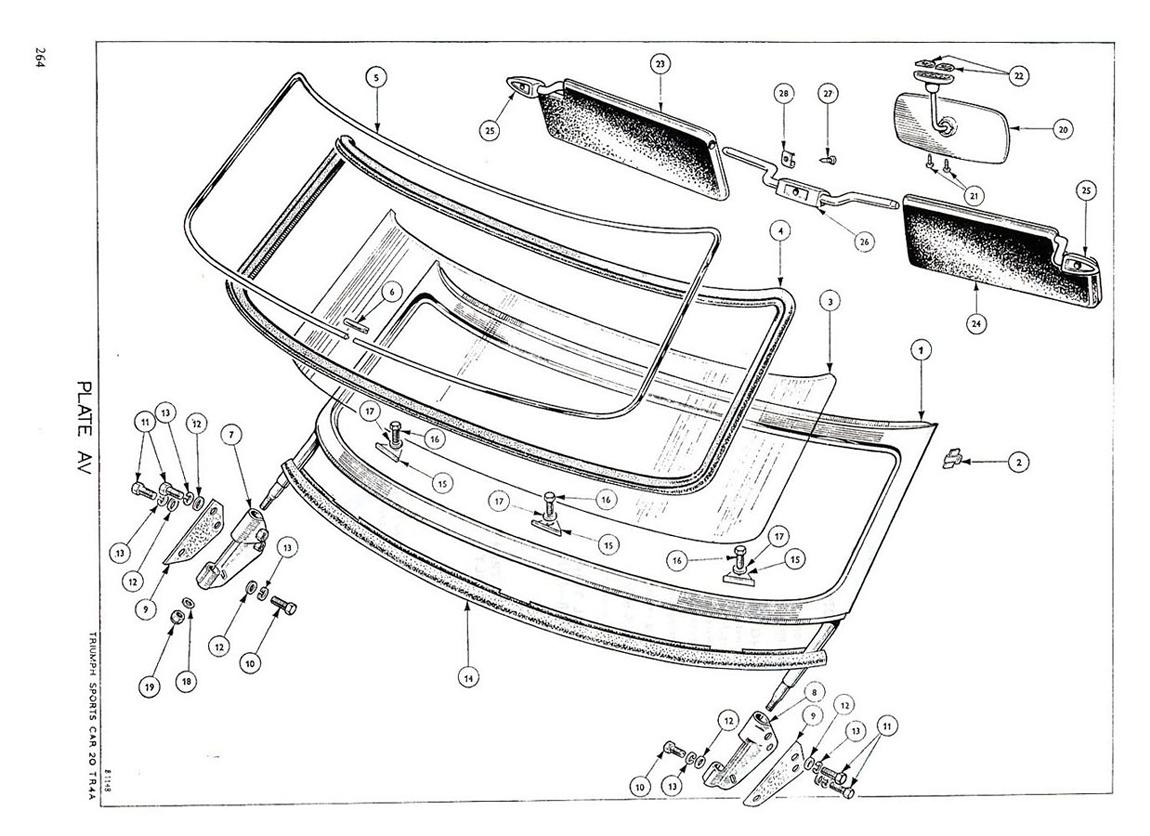

TR4A Plate AV - BODY AND FITTINGS: WINDSCREEN ASSEMBLY, MIRROR AND SUN VISORS.
| Plate No. | Part No. | Description and Comments | No Per Unit | Price | Add to Cart | |
|---|---|---|---|---|---|---|
 |
WINDSCREEN ASSEMBLY |
|||||
|
AV1 | 950119 |
Frame assembly, windscreenRevington TR information: not available new, use second hand part 950119SH |
1 | ||
|
AV2 | 611895 |
Bracket, windscreen to soft topThis item has been superceded by 611895SS - see below |
2 | ||
 |
611895SS |
CLIP HOOD TR4&SURREY TOP TR4-5 SS |
2 |
£7.57 Ex VAT @ 20% |
||
|
AV3 | 902367 |
Glass, windscreen (Laminated)This item has been superceded by 906707 - see below |
1 | ||
|
906707 |
WINDSCREEN TR4-6 LAM CLEARRevington TR information: Consider also RTR7279K heated windscreen and parts to fit the screen, 913442 seal, 613954 insert, 611437 finisher Also avaialble in tinted and top tinted |
1 |
£153.82 Ex VAT @ 20% |
||
|
AV4 | 902369 |
Rubber, glazingThis item has been superceded by 913442 - see below |
1 | ||
|
913442 |
SCREEN SEAL TR4-6 |
1 |
£92.16 Ex VAT @ 20% |
||
|
AV5 | 613954 |
Moulding, finisher |
1 |
£15.73 Ex VAT @ 20% |
|
|
AV6 | 611437 |
Clip, finisher, moulding |
2 |
£3.43 Ex VAT @ 20% |
|
|
AV7 | 750158 |
Bracket, mounting, assembly, Windscreen support R.H.Revington TR information: Bracket supporting the windscreen TR4-6. consider second hand parts 750157SH and 750158SH |
1 | ||
|
AV8 | 750157 |
Bracket, mounting, assembly, Windscreen support L.H.Revington TR information: Bracket supporting the windscreen TR4-6. consider second hand parts 750157SH and 750158SH |
1 | ||
|
AV9 | 650313 |
Packing, fibre, windscreen mounting bracket |
1 |
£2.66 Ex VAT @ 20% |
|
|
AV10 | HU0708P |
Screw, set Mounting bracket assembly to 'A' postThis item has been superceded by SH604081 - see below |
2 | ||
|
SH604081 |
SCREW 1/4 UNF X 1 INCH |
2 |
£0.26 Ex VAT @ 20% |
||
|
AV11 | HU0705 |
Screw, set Mounting bracket assembly to 'A' postThis item has been superceded by SH604051 - see below |
4 | ||
|
SH604051 |
SCREW 1/4 UNF X 5/8 INCH |
4 |
£0.62 Ex VAT @ 20% |
||
|
AV12 | WP0035 |
Washer, plain Mounting bracket assembly to 'A' postThis item has been superceded by WP10408035 - see below |
6 | ||
|
WP10408035 |
WASHER PLAIN 1/4" x 1/2" x 0.035" |
6 |
£0.62 Ex VAT @ 20% |
||
|
AV13 | WL0207 |
Washer, lock Mounting bracket assembly to 'A' postThis item has been superceded by WS104070643 - see below |
6 | ||
|
WS104070643 |
WASHER SPRING 1/4" RECT SECTION |
6 |
£0.20 Ex VAT @ 20% |
||
|
AV14 | 650130 |
Rubber, sealing, windscreen to scuttle |
1 |
£31.08 Ex VAT @ 20% |
|
|
AV15 | 611669 |
Cover, screen attachment plate |
3 |
£9.82 Ex VAT @ 20% |
|
|
AV16 | 611638 |
Bolt Windscreen assembly to bodyThis item has been superceded by 624817 - see below |
3 | ||
|
624817 |
CHROME HEAD SCREWRevington TR information: Chrome dome headed screw 5/16UNF The following screws are all domed headed and chrome plated (except 611637SS) which you might find useful in certain applications 611640 5/16UNF X 7/8" long 602078 5/16UNF 7/16"AF head 611641 5/16UNF 611637 5/16UNF X 1-1/2"... READ MORE |
3 |
£4.01 Ex VAT @ 20% |
||
|
AV17 | 510065 |
Washer, plain Windscreen assembly to bodyThis item has been superceded by WP105100753 - see below |
3 | ||
|
WP105100753 |
WASHER 5/16" x 5/8" x 0.075" CHROME |
3 |
£1.97 Ex VAT @ 20% |
||
|
AV18 | WP0139 |
Washer, plain Windscreen assembly to bodyThis item has been superceded by WP10514080 - see below |
2 | ||
|
WP10514080 |
WASHER PLAIN 5/16 X 7/8" x 0.080" |
2 |
£0.97 Ex VAT @ 20% |
||
|
AV19 | TN3208 |
Nut, nyloc. Windscreen assembly to bodyThis item has been superceded by NY605111 - see below |
2 | ||
|
NY605111 |
NUT NYLOCK 5/16 UNF X 0.344" MEDIUM |
2 |
£0.38 Ex VAT @ 20% |
||
|
AV19A | 708757 |
Trim cover, windscreen side-Black R.H.Triumph Catalogue Remarks: Fitted from Body No and future |
1 | ||
|
AV19B | 708756 |
Trim cover, windscreen side-Black L HTriumph Catalogue Remarks: Fitted from Body No and future |
1 | ||
|
AV19C | 708758 |
Trim cover, windscreen top-BlackTriumph Catalogue Remarks: Fitted from Body No and future |
1 | ||
|
AV19D | 708759 |
Trim cover, windscreen bottom-BlackTriumph Catalogue Remarks: Fitted from Body No and future |
|||
 |
AV20 | 614090 |
INTERIOR MIRROR ASSEMBLYTriumph Catalogue Remarks: Fitted up to Body No |
1 |
£40.13 Ex VAT @ 20% |
|
|
AV20A | 614173 |
INTERIOR MIRROR ASSEMBLYTriumph Catalogue Remarks: Fitted from Body No and future |
1 | ||
|
614090 |
INTERIOR MIRROR ASSEMBLYRevington TR information: This mirror was fitted to early TR4A's. Later cars used mirror 614173. Early TR4's used mirror 611102 and later TR4's used mirror 613871. However out of all these four part numbers only 614090 is currently available.... READ MORE |
1 |
£40.13 Ex VAT @ 20% |
||
|
AV23 | 708289 |
SUN VISOR ASSEMBLY R.H.This item has been superceded by 708288/9 - see below |
1 | ||
|
708288/9 |
SUNVISORS TR4A PAIRRevington TR information: Sunvisor Pair New (LH & RH) This is for a pair (LH & RH) of New Sunvisors |
1 |
£132.36 Ex VAT @ 20% |
||
|
AV24 | 708288 |
SUN VISOR ASSEMBLY L.H.This item has been superceded by 708288/9 - see below |
1 | ||
|
708288/9 |
SUNVISORS TR4A PAIRRevington TR information: Sunvisor Pair New (LH & RH) This is for a pair (LH & RH) of New Sunvisors |
1 |
£132.36 Ex VAT @ 20% |
||
|
AV25 | 616318 |
Mounting, visor, outerRevington TR information: no longer available , use 616317SH |
2 | ||
|
AV26 | 616317 |
Mounting, visor, centreRevington TR information: Not available new, use 616317SH |
1 | ||
 |
AV27 | 510125 |
Screw, S/T Mounting attachment |
3 |
£1.78 Ex VAT @ 20% |
|
|
AV28 | FJ2445 |
Nut, fix Mounting attachmentThis item has been superceded by RTR5095 - see below |
3 | ||
|
RTR5095
|
NUT SPIRE No10 J TYPE 20 X 13MM |
3 |
£0.47 Ex VAT @ 20% |
