TR5 Plate AD - RADIATOR: HOSES AND OVERFLOW BOTTLE

  Plate No. Part No. Description and Comments No Per Unit Price Add to Cart
AD1
307782

CLICK FOR
MORE INFO

RADIATOR BLOCK ASSEMBLY

This item has been superceded by 308850 - see below

1
308850

CLICK FOR
MORE INFO

RADIATOR TR250, 5, 6 up to CP/CC75000

Revington TR information: This Radiator fitted to TR250, 5, 6 up to CC/CP75000, has a drain tap situated 85mm in from the left and the bottom hose connection 95mm in from right.The top connection is on the extreme left.... READ MORE

1

£420.90

Ex VAT @ 20%
£350.75



Available to order
AD2
132565

CLICK FOR
MORE INFO

Drain tap assembly

Revington TR information: This item has a secondhand part available - see below

1

£12.18

Ex VAT @ 20%
£10.15



132565SH
DRAIN TAP (RADIATOR) SECOND HAND

1

£8.71

Ex VAT @ 20%
£7.26



Available to order
AD3
137691

CLICK FOR
MORE INFO

Cap, filler

This item has been superceded by GRC112 - see below

1
GRC112

CLICK FOR
MORE INFO

TR4A-6 RAD CAP

Revington TR information: This cap is fitted to TR4 without a filler neck as well as TR4A-5 and TR6 up to CP75000; it is 19mm (3/4") deep and rated at 7 pounds pressure. See GRC102 or GRC103 for a... READ MORE

1

£4.03

Ex VAT @ 20%
£3.36



AD4
048101

CLICK FOR
MORE INFO

Packing, radiator mounting

This item has been superceded by 601994 - see below

A/R
601994

CLICK FOR
MORE INFO

PAD THIN ROUND BODY TO CHASSIS

Revington TR information: For reference: - 10 measured straight from old Leyland packaging, these measure 0.125" thick, (varying from 0.112 to 0.128") 1-3/4" O/D ad 3/8" I/D.

A/R

£2.22

Ex VAT @ 20%
£1.85



AD5
HU0909P
Screw, set Radiator to chassis frame

2
No longer available
AD7
147574

CLICK FOR
MORE INFO

Stay, radiator cross tube

Revington TR information: Consider original second hand part number 147574SH. .
This item has a secondhand part available - see below

2

£16.31

Ex VAT @ 20%
£13.59



Available to order
147574SH
RAD STAT BAR TR5-6 Second Hand

2

£11.96

Ex VAT @ 20%
£9.97



AD8
HB0806

CLICK FOR
MORE INFO

Bolt Stay to front cross tube

This item has been superceded by SH605061 - see below

2
SH605061

CLICK FOR
MORE INFO

SCREW 5/16 UNF X 3/4 INCH

2

£0.54

Ex VAT @ 20%
£0.45



AD9
WL0208

CLICK FOR
MORE INFO

Washer, lock Stay to front cross tube

This item has been superceded by WS105090853 - see below

2
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

2

£0.25

Ex VAT @ 20%
£0.21



AD10
HN2008

CLICK FOR
MORE INFO

Nut Stay to front cross tube

This item has been superceded by NP605081 - see below

2
NP605081
NUT PLAIN 5/16 UNF

2

£0.17

Ex VAT @ 20%
£0.14



AD11
HN2008

CLICK FOR
MORE INFO

Nut Stay to radiator block

This item has been superceded by NP605081 - see below

2
NP605081
NUT PLAIN 5/16 UNF

2

£0.17

Ex VAT @ 20%
£0.14



AD12
WL0208

CLICK FOR
MORE INFO

Washer, lock Stay to radiator block

This item has been superceded by WS105090853 - see below

2
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

2

£0.25

Ex VAT @ 20%
£0.21



AD12A
145640

CLICK FOR
MORE INFO

Hose, top, radiator (Black)

Triumph Catalogue Remarks: Fitted up to Comm. No. only
Revington TR information: Various part numbers have been used by Triumph for this radiator top feed hose, for TR5, TR250 and TR6 (not USA). Revington TR supply a high quality black hose 145640 for these applications. Most part number... READ MORE

1

£31.43

Ex VAT @ 20%
£26.19



AD13
148996

CLICK FOR
MORE INFO

Hose, top, radiator (Black and gold)

Triumph Catalogue Remarks: "Fitted from Comm. No.
This item has been superceded by 145640 - see below

1
145640

CLICK FOR
MORE INFO

Hose, top, radiator (Black)

Revington TR information: Various part numbers have been used by Triumph for this radiator top feed hose, for TR5, TR250 and TR6 (not USA). Revington TR supply a high quality black hose 145640 for these applications. Most part number... READ MORE

1

£31.43

Ex VAT @ 20%
£26.19



AD14
CS4023

CLICK FOR
MORE INFO

Clip Top hose fixing

Triumph Catalogue Remarks: Alternative
Revington TR information: If you prefer modern stainless steel flat hose clips, order GHC10415.

2

£2.58

Ex VAT @ 20%
£2.15



AD14A
CS4024

CLICK FOR
MORE INFO

Clip Top hose fixing

Triumph Catalogue Remarks: Alternative
Revington TR information: If you prefer modern stainless steel flat hose clips, order GHC10415.

2

£2.41

Ex VAT @ 20%
£2.01



Available to order
AD14B
133309

CLICK FOR
MORE INFO

Hose, radiator, bottom (Black)

Triumph Catalogue Remarks: Fitted up to Comm. No. only
Revington TR information: Various part numbers have been used by Triumph for this radiator bottom return hose, for TR5, TR250 and TR6 (not USA). Revington TR supply a high quality black hose 133309 made by Mackay industries, which carries... READ MORE

1

£20.40

Ex VAT @ 20%
£17.00



AD15
148995

CLICK FOR
MORE INFO

Hose, radiator, bottom (Black and gold)

Triumph Catalogue Remarks: "Fitted from Comm. No.
This item has been superceded by GRH392 - see below

1
GRH392

CLICK FOR
MORE INFO

RAD HOSE TR6 STRAIGHT GREEN

Revington TR information: Various part numbers have been used by Triumph for this radiator bottom return hose, for TR5, TR250 and TR6 (not USA). Revington TR supply a high quality black hose 133309 made by Mackay industries, which carries... READ MORE

1

£5.63

Ex VAT @ 20%
£4.69



Available to order
AD16
145398

CLICK FOR
MORE INFO

Pipe, steel, water, return, bottom

This item has been superceded by 145398SS - see below

1
145398SS

CLICK FOR
MORE INFO

PIPE RADIATOR S/STEEL TR5-6

Revington TR information: TR5-6 All non USA cars, radiator pipe stainless steel.

1

£48.13

Ex VAT @ 20%
£40.11



Available to order
AD16A
145397

CLICK FOR
MORE INFO

Hose, radiator, bottom (Black)

Triumph Catalogue Remarks: Fitted up to Comm. No. only
Revington TR information: Various part numbers have been used by Triumph for this radiator bottom return hose, for TR5, TR250 and TR6 (not USA). Revington TR supply a high quality black hose 145397 made by Mackay industries, which carries... READ MORE

1

£22.33

Ex VAT @ 20%
£18.61



AD17
148993

CLICK FOR
MORE INFO

Hose, radiator, bottom (Black and gold)

Triumph Catalogue Remarks: "Fitted from Comm. No.
Revington TR information: Various part numbers have been used by Triumph for this radiator bottom return hose, for TR5, TR250 and TR6 (not USA). Revington TR supply a high quality black hose 145397 made by Mackay industries, which carries... READ MORE

1
No longer available
AD18
CS4025

CLICK FOR
MORE INFO

Clip Bottom hose fixing

Triumph Catalogue Remarks: Alternative
Revington TR information: If you prefer modern stainless steel flat hose clips, order GHC10416.

4

£3.53

Ex VAT @ 20%
£2.94



AD18A
CS4024

CLICK FOR
MORE INFO

Clip Bottom hose fixing

Triumph Catalogue Remarks: Alternative
Revington TR information: If you prefer modern stainless steel flat hose clips, order GHC10415.

4

£2.41

Ex VAT @ 20%
£2.01



Available to order
AD19
137632

CLICK FOR
MORE INFO

OVERFLOW BOTTLE

Revington TR information: TR4A, 250, 5, 6 Bottle radiator overflow. Consider second hand part 137632SH
This item has a secondhand part available - see below

1
No longer available
137632SH

CLICK FOR
MORE INFO

BOTTLE SECOND HAND

1

£9.62

Ex VAT @ 20%
£8.02



AD20
137743

CLICK FOR
MORE INFO

Cap, overflow bottle

Revington TR information: Consider original second hand part number 137743SH
This item has a secondhand part available - see below

1

£5.89

Ex VAT @ 20%
£4.91



137743SH
Second Hand CAP O/FLOW BOTTLE

1

£3.50

Ex VAT @ 20%
£2.92



AD21
616925

CLICK FOR
MORE INFO

Grommet, securing overflow pipe to cap

This item has been superceded by 12H1060 - see below

1
12H1060

CLICK FOR
MORE INFO

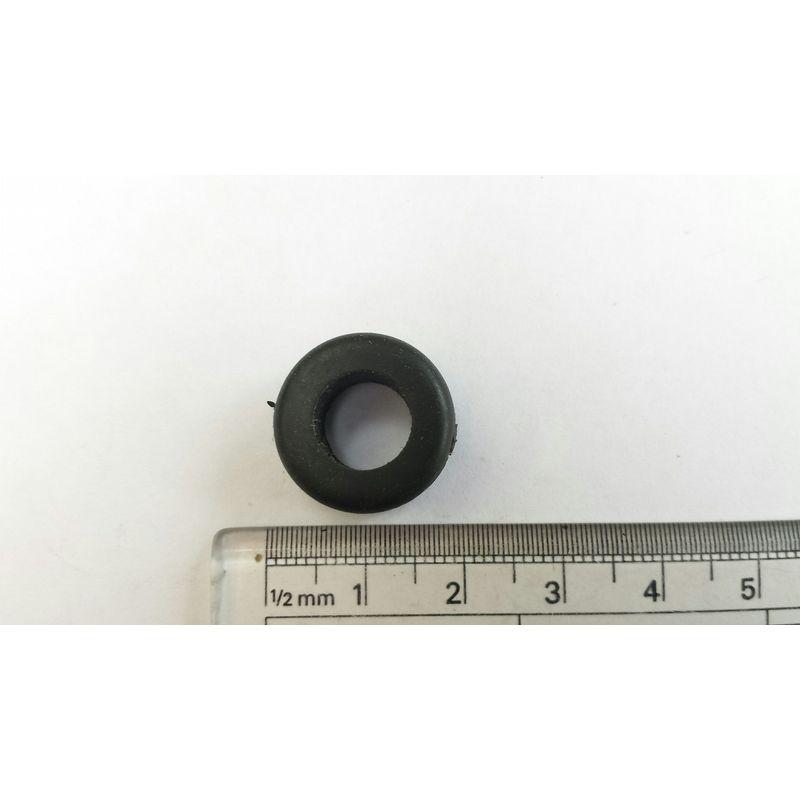

GROMMET

1

£2.36

Ex VAT @ 20%
£1.97



AD22
137742

CLICK FOR
MORE INFO

Pipe, overflow

Revington TR information: As an alternative to the formed pipe sold under this number, we supply RTR5129M a clear pipe, which is off the roll, sold by the metre.

1
No longer available
AD23
713544

CLICK FOR
MORE INFO

Bracket assembly, radiator overflow bottle

Revington TR information: Bracket supporting radiator overflow bottle TR250, 5, 6. Consider second hand part 713544SH.
This item has a secondhand part available - see below

1

£23.44

Ex VAT @ 20%
£19.53



Available to order
713544SH
RAD OVERFLOW BRKT Second Hand

1

£9.77

Ex VAT @ 20%
£8.14



AD24
HN2005

CLICK FOR
MORE INFO

Nut Bracket to wheel arch

This item has been superceded by NP603041 - see below

2
NP603041
NUT PLAIN 10-32 UNF 3/8 AF

2

£0.18

Ex VAT @ 20%
£0.15



AD25
WL0205

CLICK FOR
MORE INFO

Washer, lock Bracket to wheel arch

This item has been superceded by WS10306048 - see below

2
WS10306048

CLICK FOR
MORE INFO

SPRING WASHER 3/16" x 3/8"x 0.048"

2

£0.16

Ex VAT @ 20%
£0.13



AD26
WP0005

CLICK FOR
MORE INFO

Washer, plain Bracket to wheel arch

This item has been superceded by WP10308050 - see below

2
WP10308050
WASHER PLAIN 3/16" x 1/2" x 0.050"

2

£0.40

Ex VAT @ 20%
£0.33



AD27
HU0504

CLICK FOR
MORE INFO

Screw, set Bracket to wheel arch

This item has been superceded by SH603041 - see below

2
SH603041
SCREW 3/16 UNF x 1/2 INCH

2

£0.71

Ex VAT @ 20%
£0.59
