MODIFIED PARTS - Browse Original Triumph Catalogue Plates

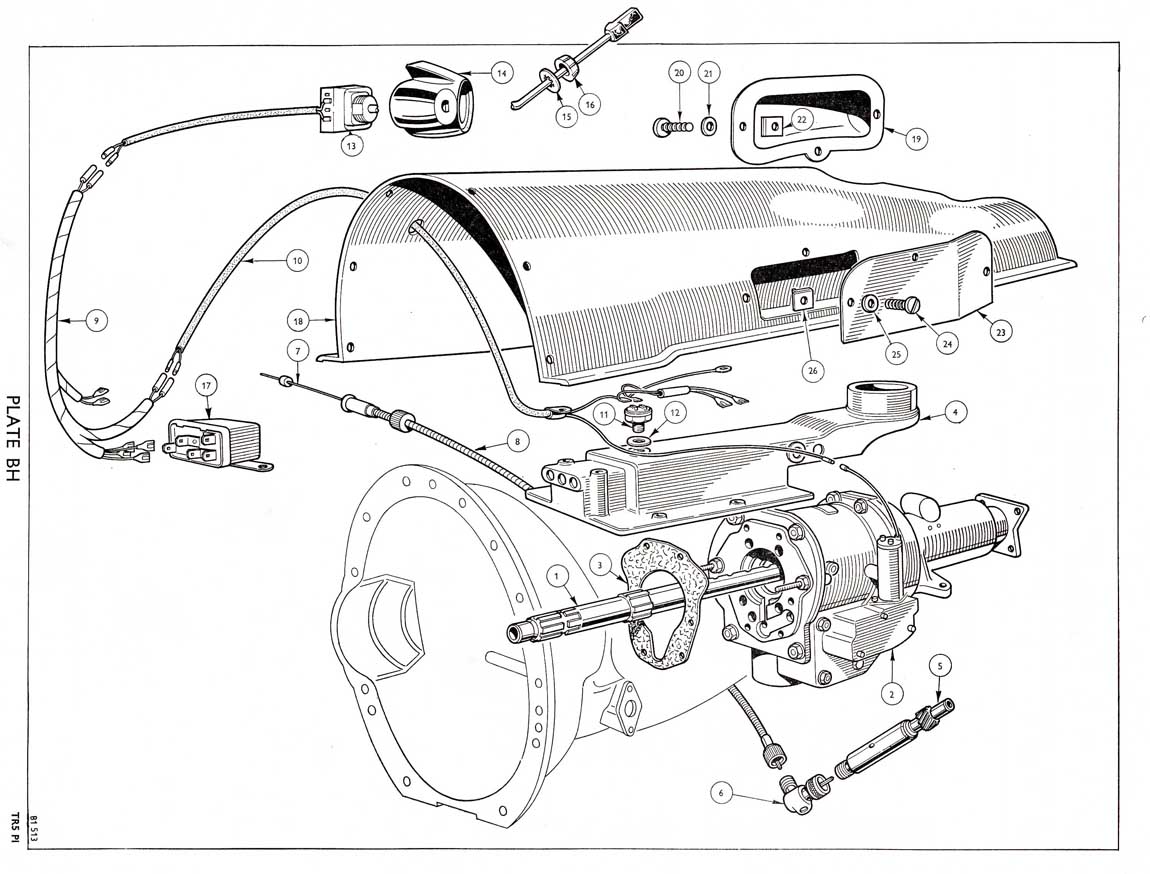

TR5 Plate BH - OVERDRIVE: OVERDRIVE KIT
Plate No. | Part No. | Description and Comments | No Per Unit | Price | Add to Cart | |
---|---|---|---|---|---|---|
BH1AA | 517198 |
OVERDRIVE KIT-R.H.S. ONLY |
1 | |||
BH1AB | 517197 |
OVERDRIVE KIT-L.H.S. ONLY |
1 | |||
BH1 | 208052 |
Mainshaft, gearboxRevington TR information: Overdrive gearbox mainshaft fitted to early gearboxes TR4-6 with the larger bearing diameter of 22.25mm/0.875". Fitted up to gearbox number CD20281 Consider also exchange part 208052XEX which has either been manufactured by modifying a non-overdrive shaft... READ MORE |
1 |
£248.92 Ex VAT @ 20% |
||
208052SH |
Second Hand SHAFTRevington TR information: Second Hand Overdrive gearbox mainshaft fitted to early gearboxes TR4-6 with the larger bearing diameter of 22.25mm/0.875". Fitted up to gearbox number CD20281 |
1 |
£227.57 Ex VAT @ 20% |
|||
BH2 | 307603 |
Overdrive unit (For details see pages 100 to 102)Revington TR information: Not available new. Please call or email for options |
1 | |||
BH3 | 132465 |
Washer, joint, overdrive unit to gearbox |
1 |
£2.42 Ex VAT @ 20% |
||
BH3A | WU3857 |
Bolt, wedglok Adaptor plate to gearboxThis item has been superceded by 155542 - see below |
6 | |||
155542 |
WEDGLOK SCREW 5/16 |
6 |
£2.32 Ex VAT @ 20% |
|||
BH3B | WP0107 |
Washer, plain Adaptor plate to gearboxThis item has been superceded by WP10510075 - see below |
6 | |||
WP10510075 |
WASHER PLAIN 5/16" x 5/8" x 0.075" |
6 |
£0.44 Ex VAT @ 20% |
|||
BH4 | 516260 |
Cover, top, assemblyRevington TR information: Not available new please consider second hand part 516260SH |
1 | |||
BH4A | 104449 |
Plug, welch In gearbox top cover |
4 |
£1.90 Ex VAT @ 20% |
||
BHAB | 054505 |
Plug, welch In gearbox top cover |
2 |
£2.39 Ex VAT @ 20% |
||
BH5 | 147964 |
Gear, speed, driven and bearing assemblyRevington TR information: These two parts, the gear and the bearing housing were originally supplied as a pair. We also keep them separately. The correct number of gear teeth for an 'A' type TR is 15 TR2-4A Gearboxes without... READ MORE |
1 | |||
BH5A | 506071 |
Screw, set Securing speedometer drive bearing to casingThis item has been superceded by SH505051 - see below |
2 | |||
SH505051 |
SCREW 5/16 UNC 5/8" |
2 |
£0.59 Ex VAT @ 20% |
|||
BH5B | 506108 |
Washer, copper Securing speedometer drive bearing to casingThis item has been superceded by WC10508038 - see below |
2 | |||
WC10508038 |
WASHER COPPER 5/16 I/D X 1/2 O/D X 0.040" |
2 | ||||
BH6 | 120694 |
Angle drive, speedometer cableRevington TR information: This high quality angle drive is used on TR4A-6 but was common on Austin Healey, MGB and other cars of the period. Some angle drives we supply may have a leaflet included referring to assembly with... READ MORE |
1 |
£83.65 Ex VAT @ 20% |
||
BH6A | 504613/1 |
Cable, speedometer -R.H.S. only Inner |
1 | |||
BH6B | 504613/0 |
Cable, speedometer -R.H.S. only Outer |
1 | |||
BH7 | 516545/1 |
Cable, speedometer -L.H.S. only Inner |
1 | |||
BH8 | 516545/0 |
Cable, speedometer -L.H.S. only OuterThis item has been superceded by GSD169 - see below |
1 | |||
GSD169 |
CABLE SPEEDO 69 inches VARIOUS APPLICATIONSRevington TR information: Made for RevingtonTR by a local UK manufacturer to RevingtonTR specification. GSD169 is 1753mm (69") long and is the correct cable for LHD TR5, 6 and TR250. RHD TR5, 6 and TR250 converted to RHD... READ MORE |
1 | ||||
BH9 | 148696 |
Harness Overdrive gearboxRevington TR information: Body Loom (Harness), TR250, 5 and TR6CC/CP. This loom connects the switch and the relay together and finishes where the wiring enters the gearbox tunnel. The loom on the gearbox and overdrive is part number 131339,... READ MORE |
1 |
£41.48 Ex VAT @ 20% |
||
148696SH |
LOOM A TYPE O/D TR4-6 SECOND HAND |
1 |
£23.57 Ex VAT @ 20% |
|||
BH10 | 131339 |
Harness Overdrive gearboxRevington TR information: Overdrive gearbox Loom, TR4, 4A, 250, 5, and TR6CC/CP. This loom connects the solenoid and the inhibitor switches to the relay; it is 'P' clipped to the top cover of the gearbox and finishes where... READ MORE |
1 |
£26.11 Ex VAT @ 20% |
||
BH11 | 127380 |
Switch, gearboxThis item has been superceded by BAU1074A - see below |
2 | |||
BAU1074A |
INHIBITOR SWITCHRevington TR information: Overdrive inhibitor switch. There were two types of switch, screw connections and Lucar connections. Only the Lucar type is available new. We also have second hand parts both screw and Lucar type kept as BAU1074ASH....... READ MORE |
2 |
£16.36 Ex VAT @ 20% |
|||
BH12 | 502146 |
Washer, switch, adjustingThis item has been superceded by WF11021036 - see below |
A/R | |||
WF11021036 |
WASHER FIBRE 5/8 x 1-5/16 x 0.036Revington TR information: This fibre washer (0.036" thick) is primarily used to pack up overdrive inhibitor switches on TR2-6. Follow the setting procedure in the workship manual. If thinner washers are required to achieve the correct setting .... these... READ MORE |
A/R |
£0.82 Ex VAT @ 20% |
|||
BH13 | 147280 |
Switch, overdrive, in steering column shroud-R.H.S. onlyRevington TR information: Second Hand Overdrive Switch, chrome stemmed, TR5-6 Right Hand Drive only. This switch has a long stem covered in black plastic sleeving. This switch can be used on TR4-4A too and if a bright finish to... READ MORE |
1 |
£76.92 Ex VAT @ 20% |
||
147280SH |
Second Hand SWITCH OVERDRIVERevington TR information: Second Hand Overdrive Switch, chrome stemmed, TR5-6 Right Hand Drive only. This switch has a long stem covered in black plastic sleeving. This switch can be used on TR4-4A too and if a bright finish to... READ MORE |
1 |
£26.51 Ex VAT @ 20% |
|||
BH13A | 147281 |
Switch, overdrive, in steering column shroud-L.H.S. onlyRevington TR information: Overdrive Switch, chrome stemmed, TR5-6 Left Hand Drive only. This switch has a long stem covered in black plastic sleeving. This switch can be used on TR4-4A too and if a bright finish to the stem... READ MORE |
1 | |||
BH14 | 611974 |
Escutcheon, overdrive and trafficator switchesRevington TR information: This item has a secondhand part available - see below |
1 |
£18.49 Ex VAT @ 20% |
||
611974SH |
ESCUTCHEON O/D SWITCH |
1 |
£10.60 Ex VAT @ 20% |
|||
BH15 | WN0712 |
Washer, shakeproof Overdrive switch attachmentThis item has been superceded by WF600091 - see below |
1 | |||
WF600091 |
9/16 L WASHER |
1 |
£0.73 Ex VAT @ 20% |
|||
BH16 | 609792 |
Bezel Overdrive switch attachment |
1 |
£10.93 Ex VAT @ 20% |
||
BH17 | 126792 |
RelayTriumph Catalogue Remarks: (This relay is attached by using hazard warning light relay fixings on L.H.S. cars only) |
1 | |||
142169A |
RELAY METAL 6RA TYPERevington TR information: Consider second hand part 142169ASH or alternative relays part number CHM68 and RTR8012 |
1 |
£54.17 Ex VAT @ 20% |
|||
BH17A | PX0505 |
Screw Relay attachment -R.H.S. onlyThis item has been superceded by SE910201 - see below |
2 | |||
SE910201 |
SCREW PAN HD 10.32 |
2 |
£0.82 Ex VAT @ 20% |
|||
BH17B | WP0005 |
Washer, plain Relay attachment -R.H.S. onlyThis item has been superceded by WP10308050 - see below |
2 | |||
WP10308050 |
WASHER PLAIN 3/16" x 1/2" x 0.050" |
2 |
£0.40 Ex VAT @ 20% |
|||
BH17C | WL0205 |
Washer, lock Relay attachment -R.H.S. onlyThis item has been superceded by WS10306048 - see below |
2 | |||
WS10306048 |
SPRING WASHER 3/16" x 3/8"x 0.048" |
2 |
£0.16 Ex VAT @ 20% |
|||
BH17D | HN2005 |
Nut Relay attachment -R.H.S. onlyThis item has been superceded by NP603041 - see below |
2 | |||
NP603041 |
NUT PLAIN 10-32 UNF 3/8 AF |
2 |
£0.18 Ex VAT @ 20% |
|||
BH18 | 809272 |
Cover assembly, gearboxThis item has been superceded by 713569FG - see below |
1 | |||
713569FG |
GEARBOX TUNNEL FIBREGLASS TR4-6Revington TR information: TR4-6 fibreglass transmission tunnel. You may need a fitting kit 713569FK (consisting of all the screws and plates needed to fit the gearbox cover) and a seal kit 713569GS. TR6 gearbox cover assemblies in particular have... READ MORE |
1 |
£167.44 Ex VAT @ 20% |
|||
BH19 | 809271 |
Plate, cover, speedometerRevington TR information: Cover Plate right hand side, speedometer cable access. The original part was a steel pressing, we supply a handmade aluminium part, not cheap but handmade is never cheap! 809271FG is an economical fibreglass option. Consider also... READ MORE |
1 |
£105.86 Ex VAT @ 20% |
||
BH20 | YX5405 |
Screw, self tapping Securing cover plate to gearbox coverThis item has been superceded by SS1080421 - see below |
3 | |||
SS1080421 |
SCREW ST No 8x1/2" PAN POZI BZP |
3 |
£0.47 Ex VAT @ 20% |
|||
BH21 | WP0004 |
Washer, plain Securing cover plate to gearbox cover |
3 |
£0.42 Ex VAT @ 20% |
||
BH22 | FU2569J4 |
Nut, fix Securing cover plate to gearbox cover |
3 | |||
BH23 | 705851 |
Plate, cover, solenoid accessRevington TR information: consider second hand original part 705851SH. |
1 |
£30.36 Ex VAT @ 20% |
||
705851SH |
PLATE SOLENIOD ACCESS |
1 |
£10.88 Ex VAT @ 20% |
|||
BH24 | YB1404 |
Screw, self tapping Solenoid accees plate to gearbox coverThis item has been superceded by SS1080421 - see below |
3 | |||
SS1080421 |
SCREW ST No 8x1/2" PAN POZI BZP |
3 |
£0.47 Ex VAT @ 20% |
|||
BH25 | WP0004 |
Washer, plain Solenoid accees plate to gearbox cover |
3 |
£0.42 Ex VAT @ 20% |
||
BH26 | FU2578/4 |
Nut, fix Solenoid accees plate to gearbox coverThis item has been superceded by RTR5089 - see below |
3 | |||
RTR5089 |
NUT SPIRE No8 U TYPE 16 X 11MM |
3 |
£0.43 Ex VAT @ 20% |
|||
BH26A | 612715 |
Grommet, retaining overdrive cable in gearbox coverThis item has been superceded by 600395 - see below |
1 | |||
600395 |
GROMMET GAUGE TR2-6 1 INCH |
1 |
£2.36 Ex VAT @ 20% |
