MODIFIED PARTS - Browse Original Triumph Catalogue Plates

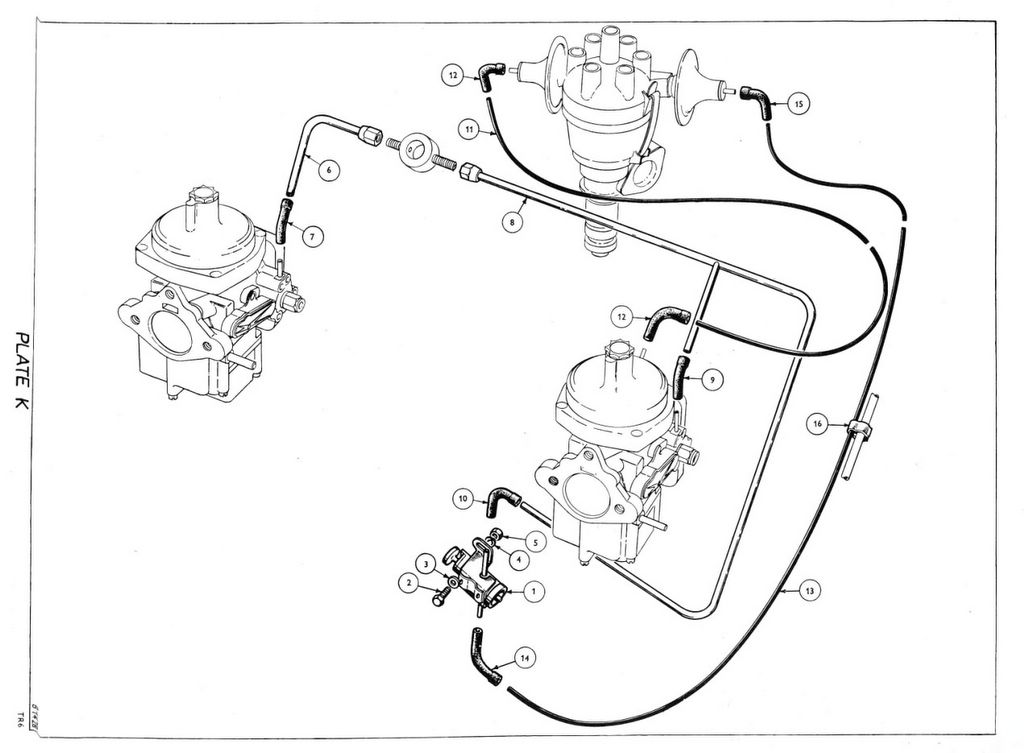

TR6 CC Plate K - ENGINE (Carburettor Model): Emission Control
Plate No. | Part No. | Description and Comments | No Per Unit | Price | Add to Cart | |
---|---|---|---|---|---|---|
EMISSION CONTROL DETAILS |
||||||
K1 | 148400 |
VALVE, vacuum controlTriumph Catalogue Remarks: Fitted up to Engine No. CC50,000 |
1 | |||
K2 | HU0503 |
SET screw - Vacuum control valve attachmentTriumph Catalogue Remarks: Fitted up to Engine No. CC50,000 |
2 | |||
K3 | WP0005 |
WASHER, plain - Vacuum control valve attachmentTriumph Catalogue Remarks: Fitted up to Engine No. CC50,000 |
2 | |||
WP10308050 |
WASHER PLAIN 3/16" x 1/2" x 0.050" |
2 |
£0.40 Ex VAT @ 20% |
|||
K4 | WL0205 |
WASHER, lock - Vacuum control valve attachmentTriumph Catalogue Remarks: Fitted up to Engine No. CC50,000 |
2 | |||
WS10306048 |
SPRING WASHER 3/16" x 3/8"x 0.048" |
2 |
£0.16 Ex VAT @ 20% |
|||
K5 | HN2005 |
NUT - Vacuum control valve attachmentTriumph Catalogue Remarks: Fitted up to Engine No. CC50,000 |
2 | |||
K6 | 149312 |
PIPE ASSEMBLY, manifold to rear carburettorTriumph Catalogue Remarks: Fitted up to Engine No. CC50,000 |
1 | |||
K7 | 149381 |
CONNECTOR, pipe to rear carburettorTriumph Catalogue Remarks: Fitted up to Engine No. CC50,000 |
1 | |||
K8 | 149311 |
PIPE ASSEMBLY, manifold to front carburettor and vacuum valveTriumph Catalogue Remarks: Fitted up to Engine No. CC50,000 |
1 | |||
K9 | 149381 |
CONNECTOR, pipe to front carburettorTriumph Catalogue Remarks: Fitted up to Engine No. CC50,000 |
1 | |||
K10 | 128262 |
CONNECTOR, pipe to vacuum valveTriumph Catalogue Remarks: Fitted up to Engine No. CC50,000 |
1 | |||
12B2062 |
V/ADAPTOR 90 DEGREE |
1 |
£1.91 Ex VAT @ 20% |
|||
K11 | 305452 |
PIPE, suction, carburettor to distributor (advance)Triumph Catalogue Remarks: Fitted up to Engine No. CC50,000 |
1 | |||
K12 | 128262 |
SLEEVE, pipe to carburettor and distributorTriumph Catalogue Remarks: Fitted up to Engine No. CC50,000 |
2 | |||
12B2062 |
V/ADAPTOR 90 DEGREE |
2 |
£1.91 Ex VAT @ 20% |
|||
K13 | 149387 |
PIPE, suction, vacuum valve to distributor (retard)Triumph Catalogue Remarks: Fitted up to Engine No. CC50,000 |
1 | |||
K14 | 149380 |
SLEEVE, suction pipe to vacuum valveTriumph Catalogue Remarks: Fitted up to Engine No. CC75,000 |
1 |
£12.26 Ex VAT @ 20% |
||
K14A | 152184 |
SLEEVE, suction pipe carburettor endTriumph Catalogue Remarks: Fitted from Engine No. ......... up to Engine No. CC75,000 |
1 |
£3.04 Ex VAT @ 20% |
||
K15 | 128262 |
SLEEVE, suction pipe to distributor (retard)Triumph Catalogue Remarks: Fitted up to Engine No. CC75,000 |
1 | |||
12B2062 |
V/ADAPTOR 90 DEGREE |
1 |
£1.91 Ex VAT @ 20% |
|||
K15A | 145890 |
CLIP, suction pipe to servo hoseTriumph Catalogue Remarks: Fitted up to Engine No. CC75,000 |
3 | |||
RTR5488-140 |
TYWRAP 3.6 x 140mm BLACK eachRevington TR information: Ty Wrap, 3.6mm wide, 140mm long black plastic sold individually. We sell a range of Ty Wraps (also called Cable Ties), plastic for general use both permeant and reusable, stainless steel for exhaust applications and Velcro... READ MORE |
3 |
£0.52 Ex VAT @ 20% |
|||
K15B | 149387 |
PIPE, suction carb to dist. (advance)Triumph Catalogue Remarks: Fitted from Engine No. CC50,001 up to Engine No. CC75,000 |
1 | |||
K15C | 305452 |
PIPE, suction carb to dist. (retard)Triumph Catalogue Remarks: Fitted from Engine No. CC50,001 up to Engine No. CC75,000 |
1 | |||
K15D | 151103 |
PIPE, suction carb to dist. (semi rigid nylon)Triumph Catalogue Remarks: Fitted from Engine No. ............. up to Engine No. CC75,000 |
1 | |||
K15E | 145890 |
CLIP, fir tree - suction pipe carb. to distributorTriumph Catalogue Remarks: Fitted from Engine No. ............. up to Engine No. CC75,001 |
3 | |||
RTR5488-140 |
TYWRAP 3.6 x 140mm BLACK eachRevington TR information: Ty Wrap, 3.6mm wide, 140mm long black plastic sold individually. We sell a range of Ty Wraps (also called Cable Ties), plastic for general use both permeant and reusable, stainless steel for exhaust applications and Velcro... READ MORE |
3 |
£0.52 Ex VAT @ 20% |
|||
K15F | 128262 |
SLEEVE, suction pipe distributorTriumph Catalogue Remarks: Fitted from Engine No. CC75,001 |
1 | |||
12B2062 |
V/ADAPTOR 90 DEGREE |
1 |
£1.91 Ex VAT @ 20% |
|||
K15G | 151102 |
PIPE, suction distributor to vacuum switch D partTriumph Catalogue Remarks: Fitted from Engine No. CC75,001 |
1 | |||
K15H | 128262 |
SLEEVE, suction pipe vacuum switch C and D partsTriumph Catalogue Remarks: Fitted from Engine No. CC75,001 |
2 | |||
12B2062 |
V/ADAPTOR 90 DEGREE |
2 |
£1.91 Ex VAT @ 20% |
|||
K15I | 151104 |
PIPE, suction vacuum switch C part to carburettorTriumph Catalogue Remarks: Fitted from Engine No. CC75,001 |
1 | |||
K15J | 152184 |
SLEEVE, suction pipe carburettorTriumph Catalogue Remarks: Fitted from Engine No. CC75,001 |
1 |
£3.04 Ex VAT @ 20% |
||
K15K | 145889 |
CLIP, fir tree - suction pipes to petrol pipeTriumph Catalogue Remarks: Fitted from Engine No. CC75,001 |
2 |
Also in this listing
Emission Control Details
