Suspension and steering

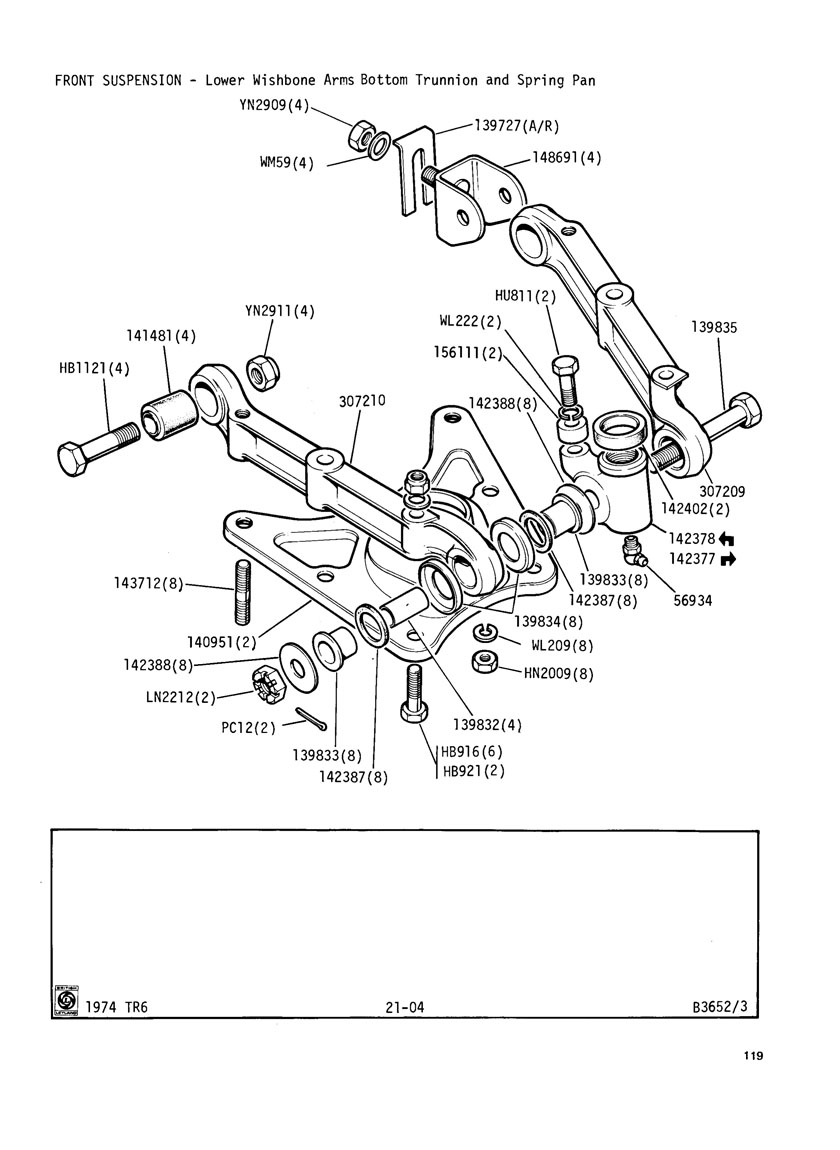

TR6 CF Plate 21-04 - FRONT SUSPENSION

> Open plate

> Open plate in new window

> Print Plate

Also in this listing

Lower Wishbone Arms, Bottom Trunnion & Spring Pan

> Close plate

> Open plate in new window

> Print Plate

Also in this listing

Lower Wishbone Arms, Bottom Trunnion & Spring Pan

Plate No.	Part No.	Description and Comments	No Per Unit	Price	Add to Cart
21-04	056934 CLICK FOR MORE INFO	NIPPLE	1	£2.41 Ex VAT @ 20% £2.01
21-04	139727 CLICK FOR MORE INFO	SHIM Revington TR information: Shim adjusting, steel, front suspension TR4A-6. Revington suggest as an alternative, you use second hand part 139727SH or stainless steel part 139727SH .	A/R	£6.16 Ex VAT @ 20% £5.13
21-04	139832 CLICK FOR MORE INFO	PIECE DISTANCE Revington TR information: Our stock of this sleeve is genuine British Leyland or stainless steel part 139832SS. Consider also trunnion bush kit FSK6TK, two required per car	4	£10.55 Ex VAT @ 20% £8.79
21-04	139833 CLICK FOR MORE INFO	BEARING NYLON Revington TR information: This nylon bush is available separately under this part number or in trunnion bush kit FSK6TUK. Superpro Polyurethane offer an improved kit SPF1844K Full kits for the front suspension are available too.	16	£5.36 Ex VAT @ 20% £4.47
21-04	139834 CLICK FOR MORE INFO	SHIELD WATER Revington TR information: This shield is available separately under this part number or in trunnion bush kit FSK6TUK. Our stock is genuine Leyland. Superpro Polyurethane offer an improved bush kit SPF1844K Full kits for the front suspension are available... READ MORE	8	£2.27 Ex VAT @ 20% £1.89
21-04	139835 CLICK FOR MORE INFO	BOLT, PIVOT	1	£9.80 Ex VAT @ 20% £8.17
21-04	140951 CLICK FOR MORE INFO	LOWER SPRING PAN ASSY Revington TR information: This part is no longer available new. Please order second hand part 140951SH or powder coated second hand part 140951SHPC	2		No longer available
21-04	141481 CLICK FOR MORE INFO	BUSH Revington TR information: Superpro Polyurethane kit SPF0288K offers a much improved ride and considerably longer life. We also have 141481UK, which is a Nylatron kit	4	£2.78 Ex VAT @ 20% £2.32	Available to order
21-04	142377 CLICK FOR MORE INFO	BOTTOM TRUNNION ASSY RH Revington TR information: consider second hand part 142377SH For the trunnion seal kits see Superpro polyurethane kits below.	1	£112.52 Ex VAT @ 20% £93.77
21-04	142378 CLICK FOR MORE INFO	BOTTOM TRUNNION ASSY LH Revington TR information: consider second hand part 142378SH For the trunnion seal kits see Superpro polyurethane kit below.	1	£112.52 Ex VAT @ 20% £93.77	Available to order
21-04	142387 CLICK FOR MORE INFO	RING SEALING Revington TR information: This ring is available separately under this part number or in trunnion bush kit FSK6TUK. Superpro Polyurethane offer an improved bush kit SPF1844K Full kits for the front suspension are available too.	16	£3.12 Ex VAT @ 20% £2.60
21-04	142388 CLICK FOR MORE INFO	WASHER Revington TR information: This washer is available separately under this part number or in trunnion bush kit FSK6TUK. Our stock is genuine Leyland. Superpro Polyurethane offer an improved kit SPF1844K Full kits for the front suspension are available too.... READ MORE	16	£2.66 Ex VAT @ 20% £2.22
21-04	142402 CLICK FOR MORE INFO	GREASE SEAL LOWER TRUNNION Revington TR information: Use the Superpro polyurethane version SPF2253K for longer life.	2	£11.57 Ex VAT @ 20% £9.64	Available to order
21-04	143712 CLICK FOR MORE INFO	STUD This item has been superceded by ST606121 - see below	8
	ST606121	STUD 3/8 X 1-1/2" UNF+ UNF	8	£2.09 Ex VAT @ 20% £1.74
21-04	148691 CLICK FOR MORE INFO	BRACKET ASSY Revington TR information: TR4A-6 Bracket Front Suspension lower fulcrum. This part has two attachment bolts. Some aftermarket new parts are dimensionaly inaccurate. Use our powder-coated original parts, second hand parts or uprated part RTR3287. We have been... READ MORE	4	£31.50 Ex VAT @ 20% £26.25	Available to order
21-04	156111 CLICK FOR MORE INFO	STOP STEERING LOCK Revington TR information: TR4A-6 Front Suspension lock stop. This stop is 20.56mm diameter, 14.2mm tall with an 8mm mounting hole. For wider wishbones and problems with trunnion bolts touching the discs, use Part Number 156111-22, a similar part 22mm... READ MORE	2	£6.96 Ex VAT @ 20% £5.80
21-04	307209 CLICK FOR MORE INFO	LOWER WISHBONE ARM ASSY FRONT LH REAR RH Revington TR information: TR4A-6 Lower Wishbone, left hand front and right hand back. Original part Leyland packaged. Consider also second hand part 307209SH or second hand part powder coated 307209SHPC	1	£108.49 Ex VAT @ 20% £90.41
21-04	307210 CLICK FOR MORE INFO	LOWER WISHBONE ARM ASSY FRONT RH REAR LH Revington TR information: Consider also second hand part 307210SH or second hand part powder coated 307210SHPC	1	£111.76 Ex VAT @ 20% £93.13
21-04	HB916 CLICK FOR MORE INFO	BOLT 3/8 UNF X 2 INCH This item has been superceded by BH606161 - see below	6
	BH606161	BOLT 3/8 UNF X 2 INCH	6	£0.89 Ex VAT @ 20% £0.74
21-04	HB921 CLICK FOR MORE INFO	BOLT 3/8 UNF X 2-5/8 INCH This item has been superceded by BH606211 - see below	2
	BH606211	BOLT 3/8 UNF X 2-5/8 INCH	2	£2.87 Ex VAT @ 20% £2.39
21-04	HB1121 CLICK FOR MORE INFO	BOLT 1/2 This item has been superceded by BH608221 - see below	4
	BH608221	BOLT 1/2 UNF X 2-3/4 INCH	4	£2.80 Ex VAT @ 20% £2.33
21-04	HN2009 CLICK FOR MORE INFO	NUT PLAIN 3/8 UNF X 11/32" (STD) This item has been superceded by NP606111 - see below	8
	NP606111	NUT PLAIN 3/8 UNF X 11/32" (STD)	8	£0.14 Ex VAT @ 20% £0.12
21-04	HU811 CLICK FOR MORE INFO	SCREW 5/16UNF X 7/8" POINTED This item has been superceded by SH605111 - see below	2
	SH605111	SCREW 5/16 UNF X 1-3/8 INCH	2	£2.46 Ex VAT @ 20% £2.05
21-04	LN2212 CLICK FOR MORE INFO	NUT CASTLE 9/16"UNF x 5/16 THICK This item has been superceded by NC609151 - see below	2
	NC609151	NUT CASTLE 9/16UNF x 15/32"- 7/8"AF	2	£4.39 Ex VAT @ 20% £3.66
21-04	PC12 CLICK FOR MORE INFO	PIN SPLIT 1/8 X 1-1/8 This item has been superceded by PS108091 - see below	2
	PS108091	PIN SPLIT 1/8 X 1-1/8	2	£0.26 Ex VAT @ 20% £0.22	Available to order
21-04	YN2909 CLICK FOR MORE INFO	NUT NYLOC 3/8UNF X 15/32 thick This item has been superceded by NY606151 - see below	4
	NY606151 CLICK FOR MORE INFO	NUT NYLOC 3/8UNF X 15/32 thick	4	£0.71 Ex VAT @ 20% £0.59
21-04	WL209 CLICK FOR MORE INFO	WASHER SPRING 3/8" RECT SECTION This item has been superceded by WS106111243 - see below	8
	WS106111243	WASHER SPRING 3/8" RECT SECTION	8	£0.37 Ex VAT @ 20% £0.31
21-04	WL222 CLICK FOR MORE INFO	WASHER This item has been superceded by GHF332 - currently not available	2
21-04	WM59 CLICK FOR MORE INFO	PLAIN WASHER This item has been superceded by WP10614075 - see below	4
	WP10614075	WASHER PLAIN 3/8 ID X 7/8 OD X 0.075" TAB4	4	£0.38 Ex VAT @ 20% £0.32
21-04	YN2911 CLICK FOR MORE INFO	NUT NYLOC 7/16 UNF This item has been superceded by NY608191 - see below	4
	NY608191	NYLOC 1/2 UNF X 19/32 INCH	4	£1.08 Ex VAT @ 20% £0.90
