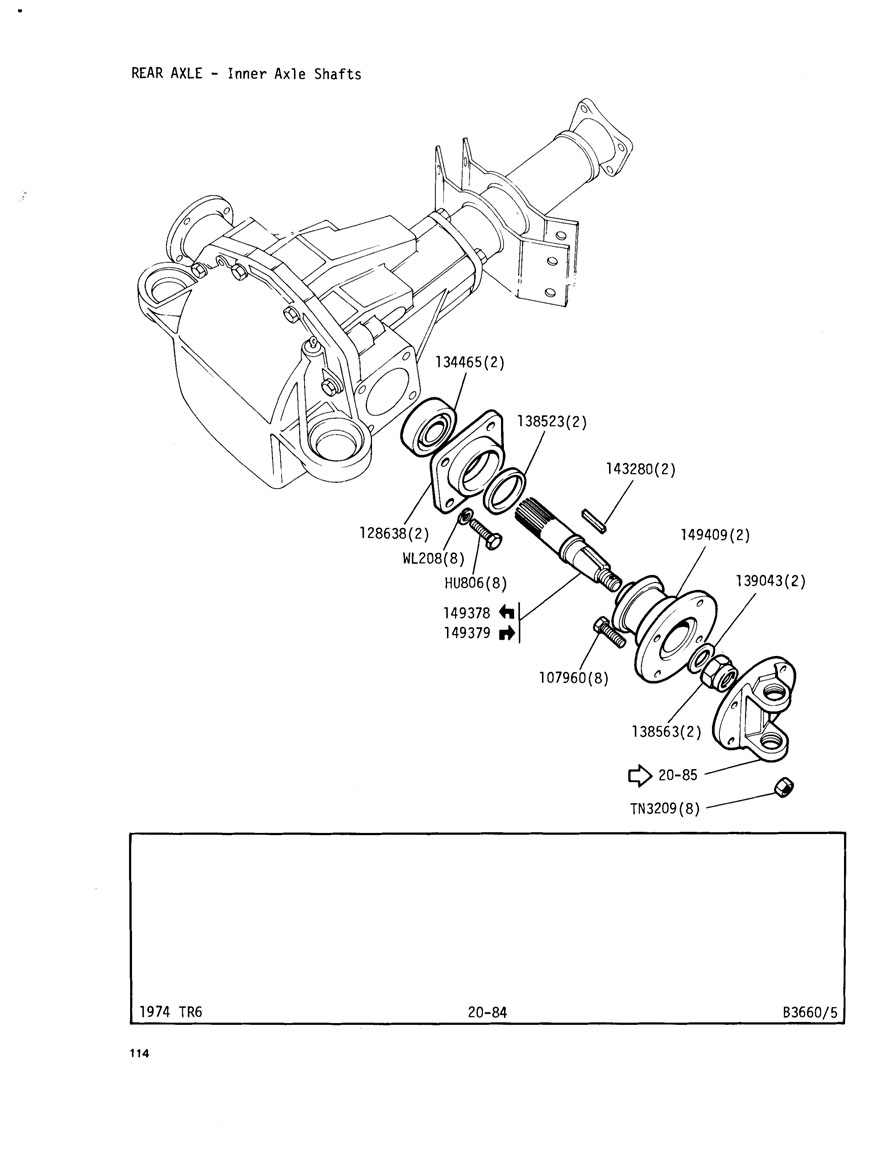

TR6 CR Plate 20-84 - REAR AXLE
Plate No. | Part No. | Description and Comments | No Per Unit | Price | Add to Cart | |
---|---|---|---|---|---|---|
20-84 | 107960 |
BOLTRevington TR information: This bolt is used for other applications but primarily the propshaft. Also used in the axle. |
8 |
£4.25 Ex VAT @ 20% |
||
20-84 | 128638 |
OIL SEAL HOUSING |
2 |
£26.92 Ex VAT @ 20% |
||
20-84 | 134465 |
BEARING DIFF & O/D TR4A-6 |
2 |
£26.95 Ex VAT @ 20% |
||
20-84 | 138523 |
OIL SEAL (SIDE) 4A-6 |
2 |
£6.49 Ex VAT @ 20% |
||
20-84 | 138563 |
NUTThis item has been superceded by NY610243 - see below |
2 | |||
NY610243 |
NUT NYLOC 5/8UNF x ¾" TALL 1-1/8" AFRevington TR information: Nut 5/8" UNF ¾" tall and 1-1/8" AF. This nut is horrendously expensive; it was originally part number 138563 used on TR4A-6 differential Axle Shafts. See 'MORE' for a list of other special duty nuts for... READ MORE |
2 |
£21.72 Ex VAT @ 20% |
|||
20-84 | 139043 |
TR4A-6 REAR DIFF PINION WASHERThis item has been superceded by WP11020164 - see below |
2 | |||
WP11020164 |
WASHER PLAIN 5/8" x 1-1/4" x 0.164"Revington TR information: WASHER PLAIN 5/8" X 1-1/4" X 0.164" Commonly used for TR4A-6 Differential Pinion attachment. Our stock is original Leyland part number 142333 |
2 |
£7.94 Ex VAT @ 20% |
|||
20-84 | 143280 |
KEY REAR AXLE |
2 |
£14.59 Ex VAT @ 20% |
||
20-84 | 149378 |
AXLE SHAFT LHRevington TR information: LH Axle Shaft for TR4A-6 differentials. This is the long shaft, 178mm long including the thread. Whilst we have new parts available we also keep second hand part 149378SH. |
1 | |||
20-84 | 149379 |
AXLE SHAFT RH TR4A-6Revington TR information: RH Axle Shaft for TR4A-6 differentials. This is the short shaft 157mm long including the thread. Not available new. Use second hand part 149379SH. |
1 | |||
20-84 | 149409 |
DRIVE FLANGERevington TR information: Drive Flange differential TR5-6. This drive flange whilst available new, is also available second hand. Be aware that this part is not the same as the earlier flange 138726 as the keyway is wider on the... READ MORE |
2 |
£74.87 Ex VAT @ 20% |
||
20-84 | HU806 |
SCREW 5/16 UNF X 3/4 INCHThis item has been superceded by SH605061 - see below |
8 | |||
SH605061 |
SCREW 5/16 UNF X 3/4 INCH |
8 |
£0.54 Ex VAT @ 20% |
|||
20-84 | TN3209 |
NUT NYLOC HALF 3/8UNF X 3/8"This item has been superceded by NY606121 - see below |
8 | |||
NY606121 |
NUT NYLOC HALF 3/8UNF X 3/8" THINRevington TR information: For propshaft and driveshaft applications or where heat might be an issue for nyloc nuts we recommend a stiff nut which is all metal and has a deformed thread to lock it in place. This nut... READ MORE |
8 |
£1.44 Ex VAT @ 20% |
|||
20-84 | WL208 |
WASHER SPRING 5/16" ID RECT SECTIONThis item has been superceded by WS105090853 - see below |
8 | |||
WS105090853 |
WASHER SPRING 5/16" ID RECT SECTION |
8 |
£0.25 Ex VAT @ 20% |
Also in this listing
Inner Axle Shafts
