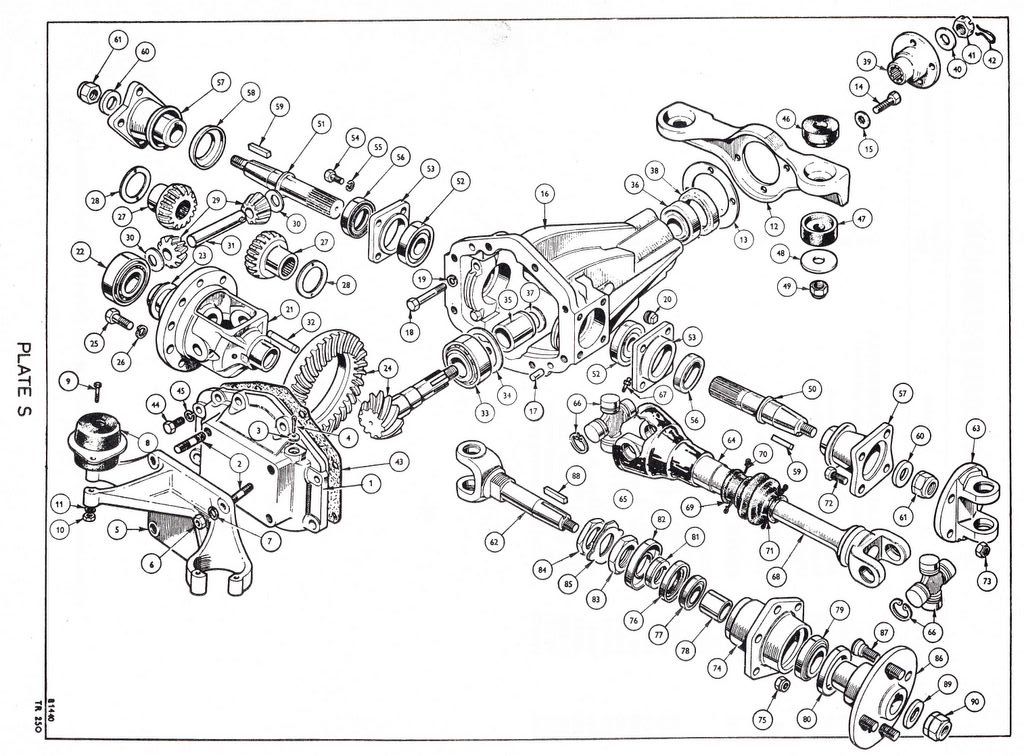

TR250 Plate S - INDEPENDENT REAR AXLE

  Plate No. Part No. Description and Comments No Per Unit Price Add to Cart
S1AA
516629

CLICK FOR
MORE INFO

REAR AXLE CENTRE ASSEMBLY (3.7 - 1 Ratio)

This item has been superceded by 313129 - see below

1
313129

CLICK FOR
MORE INFO

DIFFERENTIAL UNIT TR250 ,6CARB 3.7:1

Revington TR information: TR250, TR6CC and CF 3.7:1 ratio Centre Rear Axle Differential Unit. As new axle units are no longer available, please purchase our reconditioned unit detailed under part number 518116, or alternatively we have second hand units... READ MORE

1
No longer available
S1
141360

CLICK FOR
MORE INFO

Cover assembly - Rear

Revington TR information: not available new. Use 141360SH

1
No longer available
S2
143472

CLICK FOR
MORE INFO

Stud, mounting bracket

This item has been superceded by ST606121 - see below

4
ST606121
STUD 3/8 X 1-1/2" UNF+ UNF

4

£2.09

Ex VAT @ 20%
£1.74



S3
118826

CLICK FOR
MORE INFO

Plug, core, breather hole

This item has been superceded by 104449 - see below

1
104449

CLICK FOR
MORE INFO

CORE PLUG

1

£1.90

Ex VAT @ 20%
£1.58



S4
510408

CLICK FOR
MORE INFO

Pin, cotter, breather

This item has been superceded by PS106121 - see below

1
PS106121

CLICK FOR
MORE INFO

SPLIT PIN 3/32 X 1-1/2 INCH

1

£0.26

Ex VAT @ 20%
£0.22



Available to order
S5
308223

CLICK FOR
MORE INFO

Bracket assembly, rear axle mounting

1
No longer available
S6
YN2909

CLICK FOR
MORE INFO

Nut, nyloc - Mounting bracket to rear cover

This item has been superceded by NY606151 - see below

4
NY606151

CLICK FOR
MORE INFO

NUT NYLOC 3/8UNF X 15/32 thick

4

£0.71

Ex VAT @ 20%
£0.59



S7
WP0048

CLICK FOR
MORE INFO

Washer - Mounting bracket to rear cover

This item has been superceded by WP10612075 - see below

4
WP10612075

CLICK FOR
MORE INFO

WASHER PLAIN 3/8 X 3/4 TABLE3

Revington TR information: Washer Plain stands Table 3. in applications where a hardened washer is needed (rocker pedestal attachment for instance) us WP009

4

£0.42

Ex VAT @ 20%
£0.35



S7A
WM0184

CLICK FOR
MORE INFO

Washer, plain - Mounting bracket to rear cover

This item has been superceded by WM184 - see below

4
WM184
PLAIN WASHER

4
No longer available
S8
147783

CLICK FOR
MORE INFO

Rubber, rebound, assembly

Triumph Catalogue Remarks: On axle mounting bracket
Revington TR information: As the British Leyland product is now no longer available, we recommend fitting SPF1992K, which is the Superpro polyurethane version If you prefer rubber you will need to order this part number or after market 'B'... READ MORE

2

£26.40

Ex VAT @ 20%
£22.00



Available to order
S9
HB0811

CLICK FOR
MORE INFO

Bolt - Rebound rubber to axle mounting bracket

This item has been superceded by BH605111 - see below

4
BH605111

CLICK FOR
MORE INFO

BOLT 5/16 UNF X 1-3/8 INCH

Revington TR information: For dynamo mounting detail see plate M in the TR4A original parts book or web site.

4

£1.08

Ex VAT @ 20%
£0.90



S10
TN3208

CLICK FOR
MORE INFO

Nut, nyloc - Rebound rubber to axle mounting bracket

This item has been superceded by NY605111 - see below

4
NY605111
NUT NYLOCK 5/16 UNF X 0.344" MEDIUM

4

£0.38

Ex VAT @ 20%
£0.32



S11
WM0058

CLICK FOR
MORE INFO

Washer - Rebound rubber to axle mounting bracket

This item has been superceded by WP10512075 - see below

4
WP10512075
WASHER PLAIN 5/16" x 3/4" x 0.075"

4

£0.40

Ex VAT @ 20%
£0.33



S12
211793

CLICK FOR
MORE INFO

Plate assembly, axle mounting

Revington TR information: Consider second hand part 211793SH or reinforced second hand part 211793EX.

1

£327.08

Ex VAT @ 20%
£272.57



Available to order
S13
140007

CLICK FOR
MORE INFO

Washer, distance, axle mounting plate

1
No longer available
S14
132856

CLICK FOR
MORE INFO

Bolt - Mounting plate to hypoid housing

4

£10.80

Ex VAT @ 20%
£9.00



S15
WN0710

CLICK FOR
MORE INFO

Washer, shakeproof - Mounting plate to hypoid housing

This item has been superceded by WS107120301 - see below

4
WS107120301
WASHER 7/16" STAR INT

4

£0.19

Ex VAT @ 20%
£0.16



S16
305815

CLICK FOR
MORE INFO

Housing assembly, hypoid

1
No longer available
S17
140419

CLICK FOR
MORE INFO

Dowel, locating rear cover

This item has been superceded by DP508 - see below

2
DP508

CLICK FOR
MORE INFO

DOWEL

2

£2.18

Ex VAT @ 20%
£1.82



S17A
Not serviced
Cap, bearing


No longer available
S18
100878

CLICK FOR
MORE INFO

Screw, set - Bearing caps to hypoid housing

4
No longer available
S19
WL0209

CLICK FOR
MORE INFO

Washer, lock - Bearing caps to hypoid housing

This item has been superceded by WS106111243 - see below

4
WS106111243
WASHER SPRING 3/8" RECT SECTION

4

£0.37

Ex VAT @ 20%
£0.31



S20
114774

CLICK FOR
MORE INFO

Plug, oil level

Revington TR information: The original square headed taper plug 114774 is used as an axle filler, drain plug and as a blank in the cooling system when a heater is not fitted. Revington TR recommend using a magnetic drain... READ MORE

1

£5.87

Ex VAT @ 20%
£4.89



Available to order
S21
302155

CLICK FOR
MORE INFO

Case, differential

Revington TR information: TR3-6 Girling only diff Carrier which uses thick 153385 planet gears and accommodates TR3-4A Girling half shafts and TR5-6 independent side shafts. Not available new use Second Hand part 302155SH or complete carrier with second hand... READ MORE

1
No longer available
S22
110515

CLICK FOR
MORE INFO

Bearing, differential casing to hypoid housing

2

£62.52

Ex VAT @ 20%
£52.10



S23
100894

CLICK FOR
MORE INFO

Shim, adjusting differential bearing - .003"

A/R

£3.11

Ex VAT @ 20%
£2.59



S23
100895

CLICK FOR
MORE INFO

Shim, adjusting differential bearing - .005"

This item has been superceded by 100895/5 - see below

A/R
100895/5
SHIM-DIFF PINION 0.005

A/R

£4.08

Ex VAT @ 20%
£3.40



S23
100896

CLICK FOR
MORE INFO

Shim, adjusting differential bearing - .010"

This item has been superceded by 100896/10 - see below

A/R
100896/10
SHIM-DIFF PINION 0.010

A/R

£1.39

Ex VAT @ 20%
£1.16



S24
502127

CLICK FOR
MORE INFO

Crown wheel and pinion assembly (3.7 - 1 Ratio)

Revington TR information: CWP 3.7:1 ratio TR2-4. This crown wheel and pinion set is available from time to time for TR2-6. When used with the appropriate bearings, TR2-4 will fit TR4AIRS-6 and vice versa.

1

£529.28

Ex VAT @ 20%
£441.07



Available to order
S25
110737

CLICK FOR
MORE INFO

Bolt - Crown wheel to differential case

10

£2.12

Ex VAT @ 20%
£1.77



S26
118977

CLICK FOR
MORE INFO

Washer, lock - Crown wheel to differential case

This item has been superceded by WS106111243 - see below

10
WS106111243
WASHER SPRING 3/8" RECT SECTION

10

£0.37

Ex VAT @ 20%
£0.31



S27
113187

CLICK FOR
MORE INFO

Gear, side, differentia l- 16 teeth

This item has been superceded by 153384 - see below

2
153384

CLICK FOR
MORE INFO

SIDE GEAR DIFF TR3G-6 16 TEETH

Revington TR information: This part is not available new, please consider second hand part number 153384SH or complete differential carrier assemblies 302155X and 302155XSH

2

£124.64

Ex VAT @ 20%
£103.87



S28
102801

CLICK FOR
MORE INFO

Washer, thrust, differential side gear

2

£4.22

Ex VAT @ 20%
£3.52



S29
113188

CLICK FOR
MORE INFO

Pinion, differential -10 teeth

This item has been superceded by 153385 - see below

2
153385

CLICK FOR
MORE INFO

GEAR DIFF PLANET TR3-6

Revington TR information: 10 tooth pinion gear 15.5mm thick. This part is not available new, please consider second hand part number 153385SH or complete differential carrier assemblies 302155X and 302155XSH. . All TR s from Girling TR3-TR6 use... READ MORE

2

£113.32

Ex VAT @ 20%
£94.43



S30
056793

CLICK FOR
MORE INFO

Washer, thrust, differential pinion - .465"/.495"

This item has been superceded by 139951 - see below

A/R
139951

CLICK FOR
MORE INFO

Washer, thrust, differential pinion - .057"/.059"

Revington TR information: Thrust washer 0.052" thick. These thrust washers are dished, have an internal diameter of 16.26mm, an outside diameter of 33.24mm and are dished by approximately 2.68mm. A selection of various thicknesses of cupped washer are available... READ MORE

A/R

£9.07

Ex VAT @ 20%
£7.56



S30
139951

CLICK FOR
MORE INFO

Washer, thrust, differential pinion - .057"/.059"

Revington TR information: Thrust washer 0.052" thick. These thrust washers are dished, have an internal diameter of 16.26mm, an outside diameter of 33.24mm and are dished by approximately 2.68mm. A selection of various thicknesses of cupped washer are available... READ MORE

A/R

£9.07

Ex VAT @ 20%
£7.56



S30
139952

CLICK FOR
MORE INFO

Washer, thrust, differential pinion - .061"/.063"

Revington TR information: Thrust Washer 0.056" thick. These thrust washers are dished, have an internal diameter of 16.26mm, an outside diameter of 33.24mm and are dished by approximately 2.68mm. A selection of various thicknesses of cupped washer are available... READ MORE

A/R

£8.70

Ex VAT @ 20%
£7.25



S30
139953

CLICK FOR
MORE INFO

Washer, thrust, differential pinion - .065"/.067"

Revington TR information: Thrust Washer 0.060" thick. These thrust washers are dished, have an internal diameter of 16.26mm, an outside diameter of 33.24mm and are dished by approximately 2.68mm. A selection of various thicknesses of cupped washer are available... READ MORE

A/R

£11.57

Ex VAT @ 20%
£9.64



S30
139954

CLICK FOR
MORE INFO

Washer, thrust, differential pinion - .069"/.071"

Revington TR information: Thrust Washer 0.064" thick. These thrust washers are dished, have an internal diameter of 16.26mm, an outside diameter of 33.24mm and are dished by approximately 2.68mm. A selection of various thicknesses of cupped washer are available... READ MORE

A/R

£15.88

Ex VAT @ 20%
£13.23



S30
139955

CLICK FOR
MORE INFO

Washer, thrust, differential pinion - .073"/.075"

Revington TR information: Thrust Washer 0.068" thick. These thrust washers are dished, have an internal diameter of 16.26mm, an outside diameter of 33.24mm and are dished by approximately 2.68mm. A selection of various thicknesses of cupped washer are available... READ MORE

A/R

£7.60

Ex VAT @ 20%
£6.33



Available to order
S30
139956

CLICK FOR
MORE INFO

Washer, thrust, differential pinion - .077"/.079"

Revington TR information: Thrust Washer 0.072" thick. These thrust washers are dished, have an internal diameter of 16.26mm, an outside diameter of 33.24mm and are dished by approximately 2.68mm. A selection of various thicknesses of cupped washer are available... READ MORE

A/R

£7.60

Ex VAT @ 20%
£6.33



S31
100844

CLICK FOR
MORE INFO

Pin, cross, differential

1

£43.52

Ex VAT @ 20%
£36.27



Available to order
S32
111215

CLICK FOR
MORE INFO

Pin, locating cross pin in differential casing

Revington TR information: not available new, use second hand part 111215SH

1

£9.07

Ex VAT @ 20%
£7.56



Available to order
S33
100897

CLICK FOR
MORE INFO

Bearing, taper roller, pinion head

This item has been superceded by 100897A - see below

1
100897A

CLICK FOR
MORE INFO

DIFF BEARING PIN BIG TR2-4

Revington TR information: The outer diameter is 72.6mm The bore size is 31.72mm Overall height 30.4mm

1

£46.30

Ex VAT @ 20%
£38.58



Available to order
S34
100965

CLICK FOR
MORE INFO

Shim, adjusting pinion head bearing - .003"

This item has been superceded by 100965/3 - see below

A/R
100965/3
SHIM PINION BEARING .003

A/R
No longer available
S34
100966

CLICK FOR
MORE INFO

Shim, adjusting pinion head bearing - .005"

This item has been superceded by 1009665 - see below

A/R
1009665
SHIM BRG 0.005

A/R

£1.73

Ex VAT @ 20%
£1.44



Available to order
S34
100967

CLICK FOR
MORE INFO

Shim, adjusting pinion head bearing - .010"

A/R

£1.72

Ex VAT @ 20%
£1.43



Available to order
S35
100846

CLICK FOR
MORE INFO

Spacer, between bearings

1

£19.32

Ex VAT @ 20%
£16.10



S36
100422

CLICK FOR
MORE INFO

Bearing, roller, pinion shank

1
No longer available
S37
100562

CLICK FOR
MORE INFO

Shim, adjusting pinion shank bearing - .003"

Revington TR information: Outer pinion shim Two outer axle pinion shim part numbers are similar in size but not quite the same. 100562 (0.003" thick) 100563 (0.005" thick) and 100564 (0.010" thick) are 1.10" internal diameter and 1.375"... READ MORE

A/R

£2.14

Ex VAT @ 20%
£1.78



Available to order
S37
100563

CLICK FOR
MORE INFO

Shim, adjusting pinion shank bearing - .005"

Revington TR information: Outer pinion shim Two outer axle pinion shim part numbers are similar in size but not quite the same. 100562 (0.003" thick) 100563 (0.005" thick) and 100564 (0.010" thick) are 1.10" internal diameter and 1.375" external diameter. 140793... READ MORE

A/R

£2.86

Ex VAT @ 20%
£2.38



Available to order
S37
100564

CLICK FOR
MORE INFO

Shim, adjusting pinion shank bearing - .010"

Revington TR information: Outer pinion shim Two outer axle pinion shim part numbers are similar in size but not quite the same. 100562 (0.003" thick) 100563 (0.005" thick) and 100564 (0.010" thick) are 1.10" internal diameter and 1.375" external diameter. 140793... READ MORE

A/R

£1.84

Ex VAT @ 20%
£1.53



S38
140337

CLICK FOR
MORE INFO

Seal, oil, pinion

Revington TR information: TR4A-6. Independent axle nose seal. Not shown in late TR6 parts book. The Original Triumph TR4A parts catalogue does not list the Axle Pinion Seal correctly in so far as seal 140337 is listed for both... READ MORE

1

£12.88

Ex VAT @ 20%
£10.73



S39
138105

CLICK FOR
MORE INFO

Flange, pinion

Revington TR information: Round Differential input flange, TR4A (both Live axle and IRS) to TR6 CP52867/CC61570. Consider original second hand part 138105SH.

1

£84.07

Ex VAT @ 20%
£70.06



S40
115990

CLICK FOR
MORE INFO

Washer - Flange to pinion

This item has been superceded by WP11020164 - see below

1
WP11020164
WASHER PLAIN 5/8" x 1-1/4" x 0.164"

Revington TR information: WASHER PLAIN 5/8" X 1-1/4" X 0.164" Commonly used for TR4A-6 Differential Pinion attachment. Our stock is original Leyland part number 142333

1

£7.94

Ex VAT @ 20%
£6.62



S41
112635

CLICK FOR
MORE INFO

Nut, slotted - Flange to pinion

This item has been superceded by NY610163 - see below

1
NY610163

CLICK FOR
MORE INFO

NUT NYLOC 5/8UNF x ½" TALL 1-1/8" AF

Revington TR information: Nyloc Nut 5/8" UNF, ½" tall and 1-1/8" AF, grey protective coating. This is a special heavy duty nut which is actually Leyland original part number 159394 (TR7 4 speed axle). Our stock is original Leyland... READ MORE

1
No longer available
S42
514773

CLICK FOR
MORE INFO

Wire, soft iron, 14G x 4" - Flange to pinion

This item has been superceded by EAW4321 - see below

A/R
EAW4321
WIRE TIE

A/R

£0.58

Ex VAT @ 20%
£0.48



S43
134480

CLICK FOR
MORE INFO

Washer, joint - Hypoid housing to rear cover

1

£2.23

Ex VAT @ 20%
£1.86



S44
HU0808

CLICK FOR
MORE INFO

Screw, set - Hypoid housing to rear cover

This item has been superceded by SH605081 - see below

8
SH605081

CLICK FOR
MORE INFO

SCREW 5/16 UNF X 1 INCH

8

£0.79

Ex VAT @ 20%
£0.66



S45
WL0208

CLICK FOR
MORE INFO

Washer, lock - Hypoid housing to rear cover

This item has been superceded by WS105090853 - see below

8
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

8

£0.25

Ex VAT @ 20%
£0.21



S46
134235

CLICK FOR
MORE INFO

Mounting, rubber - Upper, front

Revington TR information: These bushes are very soft and can allow too much axle movement. We recommend using the following Superpro polyurethane bush kits: - SPF0138AVK TR4A IRS: Road use. SPF0138AK TR4A IRS: Fast Road and Rally use. SPF0138A-90K... READ MORE

2

£4.75

Ex VAT @ 20%
£3.96



547
134236

CLICK FOR
MORE INFO

Mounting, rubber - Lower, front

Revington TR information: These bushes are very soft and can allow too much axle movement. We recommend using the following Superpro polyurethane bush kits: - SPF0138AVK TR4A IRS: Road use. SPF0138AK TR4A IRS: Fast Road and Rally use. SPF0138A-90K... READ MORE

2

£3.48

Ex VAT @ 20%
£2.90



Available to order
S48
134234

CLICK FOR
MORE INFO

Washer, special - Rear axle centre

This item has been superceded by WP106381571 - see below

4
WP106381571

CLICK FOR
MORE INFO

WASHER DIFF MOUNT 3/8" X 2-3/8" X 0.157"

Revington TR information: Revington TR recommend using Stainless Steel Washer WP106381572

4

£3.46

Ex VAT @ 20%
£2.88



S49
TN3209

CLICK FOR
MORE INFO

Nut, nyloc - Rear axle centre

This item has been superceded by NY606121 - see below

4
NY606121

CLICK FOR
MORE INFO

NUT NYLOC HALF 3/8UNF X 3/8" THIN

Revington TR information: For propshaft and driveshaft applications or where heat might be an issue for nyloc nuts we recommend a stiff nut which is all metal and has a deformed thread to lock it in place. This nut... READ MORE

4

£1.44

Ex VAT @ 20%
£1.20



S50
149379

CLICK FOR
MORE INFO

INNER AXLE SHAFT - R . H.

Revington TR information: RH Axle Shaft for TR4A-6 differentials. This is the short shaft 157mm long including the thread. Not available new. Use second hand part 149379SH.

1
No longer available
551
149378

CLICK FOR
MORE INFO

INNER AXLE SHAFT - L.H.

Revington TR information: LH Axle Shaft for TR4A-6 differentials. This is the long shaft, 178mm long including the thread. Whilst we have new parts available we also keep second hand part 149378SH.

1
No longer available
S52
134465

CLICK FOR
MORE INFO

Bearing, ball, axle shaft

2

£26.95

Ex VAT @ 20%
£22.46



S53
128638

CLICK FOR
MORE INFO

Housing, oil seal

2

£26.92

Ex VAT @ 20%
£22.43



Available to order
S54
HU0806

CLICK FOR
MORE INFO

Screw, set - Housing to hypoid housing

This item has been superceded by SH605061 - see below

8
SH605061

CLICK FOR
MORE INFO

SCREW 5/16 UNF X 3/4 INCH

8

£0.54

Ex VAT @ 20%
£0.45



S55
WL0208

CLICK FOR
MORE INFO

Washer, lock - Housing to hypoid housing

This item has been superceded by WS105090853 - see below

8
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

8

£0.25

Ex VAT @ 20%
£0.21



S56
138523

CLICK FOR
MORE INFO

Seal, oil

2

£6.49

Ex VAT @ 20%
£5.41



S57
149409

CLICK FOR
MORE INFO

Flange assembly, driving, inner

Revington TR information: Drive Flange differential TR5-6. This drive flange whilst available new, is also available second hand. Be aware that this part is not the same as the earlier flange 138726 as the keyway is wider on the... READ MORE

2

£74.87

Ex VAT @ 20%
£62.39



Available to order
S58
134450

CLICK FOR
MORE INFO

Stoneguard

2
No longer available
S59
143280

CLICK FOR
MORE INFO

Key - Inner driving flange to inner axle shaft

2

£14.59

Ex VAT @ 20%
£12.16



S60
139043

CLICK FOR
MORE INFO

Washer, plain - Inner driving flange to inner axle shaft

This item has been superceded by WP11020164 - see below

2
WP11020164
WASHER PLAIN 5/8" x 1-1/4" x 0.164"

Revington TR information: WASHER PLAIN 5/8" X 1-1/4" X 0.164" Commonly used for TR4A-6 Differential Pinion attachment. Our stock is original Leyland part number 142333

2

£7.94

Ex VAT @ 20%
£6.62



S61
138563

CLICK FOR
MORE INFO

Nut, nyloc - Inner driving flange to inner axle shaft

This item has been superceded by NY610243 - see below

2
NY610243

CLICK FOR
MORE INFO

NUT NYLOC 5/8UNF x ¾" TALL 1-1/8" AF

Revington TR information: Nut 5/8" UNF ¾" tall and 1-1/8" AF. This nut is horrendously expensive; it was originally part number 138563 used on TR4A-6 differential Axle Shafts. See 'MORE' for a list of other special duty nuts for... READ MORE

2

£21.72

Ex VAT @ 20%
£18.10



S61A
402347

CLICK FOR
MORE INFO

REAR OUTER AXLE SHAFT AND HUB ASSEMBLY (comprising items 562 to S90 inclusive)

This item has been superceded by 137496NEW - see below

2
137496NEW

CLICK FOR
MORE INFO

REAR HUB ASSY. TR4A-6 NEW

Revington TR information: TR4A-6 new-build standard rear Hub assembly. This unit is not currently available, consider rebuilt original part 137496EX or uprated version 137496-1. Whist the standard hub unit to the standard specification is not available, we... READ MORE

2

£303.92

Ex VAT @ 20%
£253.27



Available to order
S61B
212293

CLICK FOR
MORE INFO

OUTER AXLE SHAFT ASSEMBLY (comprising items S62 to S71 inclusive)

Revington TR information: Triumph sold the TR4A drive shafts as a complete assembly including all parts from the hub to the flange connected to the differential unit. Today we sell the drive shafts separately from the hub. See Drive... READ MORE

2
No longer available
S61C
145085

CLICK FOR
MORE INFO

SLEEVE YOKE AND YOKE SHAFT ASSEMBLY (comprising items S64, 568, S69, S70 and S71)

2
No longer available
S62
137478

CLICK FOR
MORE INFO

Shaft, axle outer

This item has been superceded by UKC643 - see below

2
UKC643

CLICK FOR
MORE INFO

SHAFT AXLE OUTER TR4A-6

2

£165.24

Ex VAT @ 20%
£137.70



Available to order
S63
211137

CLICK FOR
MORE INFO

Flange, yoke

Revington TR information: TR4A-6 drive flange for standard drive shafts.

2

£110.80

Ex VAT @ 20%
£92.33



Available to order
S64
140749
Joint, slip, assembly

2
No longer available
565
213844

CLICK FOR
MORE INFO

Boot, P.V.C., inner axle shaft

Revington TR information: Consider original second hand part number 213844SH. .

2

£12.58

Ex VAT @ 20%
£10.48



S66
144859

CLICK FOR
MORE INFO

Joint, universal-Flange end and hub end

This item has been superceded by GUJ116HD - see below

4
GUJ116HD

CLICK FOR
MORE INFO

UNIVERSAL JOINT HEAVY DUTY TR2/6

Revington TR information: Heavy duty greasable Universal Joint (UJ) which is a direct replacement for the standard TR2-6 UJ. This UJ has stronger, larger diameter and longer rollers, the caps are longer on inboard end to accommodate the longer... READ MORE

4

£48.19

Ex VAT @ 20%
£40.16



S67
144825

CLICK FOR
MORE INFO

Nipple, grease

This item has been superceded by 7H3858 - see below

4
7H3858
NIPPLE GREASE 1/4UNF X 29mm LONG

Revington TR information: 1/4" UNF straight 29mm long O/A

4

£3.46

Ex VAT @ 20%
£2.88



S68
142437

CLICK FOR
MORE INFO

Shaft, sliding half

Revington TR information: No longer available in this form as a standard part. TR's 4A IRS, 250, 5 and 6 can exhibit a tendency for the rear end to do a single twitch, both left and right, on the... READ MORE

2

£134.88

Ex VAT @ 20%
£112.40



Available to order
S68A
213844

CLICK FOR
MORE INFO

Boot, P.V.C.

Revington TR information: Consider original second hand part number 213844SH. .

2

£12.58

Ex VAT @ 20%
£10.48



S69
140753

CLICK FOR
MORE INFO

Boot, rubber

2

£9.12

Ex VAT @ 20%
£7.60



S70
140606

CLICK FOR
MORE INFO

Clip, boot - Large

This item has been superceded by EAW4321 - see below

2
EAW4321
WIRE TIE

2

£0.58

Ex VAT @ 20%
£0.48



S71
140607

CLICK FOR
MORE INFO

Clip, boot - Small

2
No longer available
S72
107960

CLICK FOR
MORE INFO

Bolt - Outer axle shaft assembly to inner driving flange

Revington TR information: This bolt is used for other applications but primarily the propshaft. Also used in the axle.

8

£4.25

Ex VAT @ 20%
£3.54



S73
TN3209

CLICK FOR
MORE INFO

Nut, nyloc - Outer axle shaft assembly to inner driving flange

This item has been superceded by NY606121 - see below

8
NY606121

CLICK FOR
MORE INFO

NUT NYLOC HALF 3/8UNF X 3/8" THIN

Revington TR information: For propshaft and driveshaft applications or where heat might be an issue for nyloc nuts we recommend a stiff nut which is all metal and has a deformed thread to lock it in place. This nut... READ MORE

8

£1.44

Ex VAT @ 20%
£1.20



S74
137496

CLICK FOR
MORE INFO

Rear hub housing

Revington TR information: This part is a bare hub bearing housing only. Consider also second hand part 137496SH. If you are looking for a complete hub assembly with the flange and central shaft with the universal joint yoke, these... READ MORE

2

£204.70

Ex VAT @ 20%
£170.58



Available to order
S75
YN2908

CLICK FOR
MORE INFO

Nut, nyloc, hub housing and brake block plate to trailing arm

This item has been superceded by NY605141 - see below

12
NY605141
NYLOC 5/16 UNF X 7/16 THICK

Revington TR information: Nyloc Nut tall version. This Nyloc nut is used in locations where extra thread depth is desirable.

12
No longer available
S76
138089

CLICK FOR
MORE INFO

Seal, oil, inner

This item has been superceded by GHS131 - see below

2
GHS131

CLICK FOR
MORE INFO

SEAL INNER REAR HUB TR6 small

2

£5.62

Ex VAT @ 20%
£4.68



S77
132066

CLICK FOR
MORE INFO

Bearing, inner

This item has been superceded by GHB101 - see below

2
GHB101

CLICK FOR
MORE INFO

BEARING REAR HUB TR4A/6

Revington TR information: Also fits GT6 and Dolomite inner front hub

2

£19.01

Ex VAT @ 20%
£15.84



578
138272

CLICK FOR
MORE INFO

Spacer, collapsible, bearings

2
No longer available
S79
134589

CLICK FOR
MORE INFO

Bearing, outer

This item has been superceded by GHB265 - see below

2
GHB265
REAR TR6 BEARING

2

£30.53

Ex VAT @ 20%
£25.44



S80
138090

CLICK FOR
MORE INFO

Seal, oil, outer

This item has been superceded by GHS133 - see below

2
GHS133

CLICK FOR
MORE INFO

SEAL REAR HUB OUTER TR4A-6 large

2

£9.59

Ex VAT @ 20%
£7.99



S81
134584

CLICK FOR
MORE INFO

Adjuster

This item has been superceded by ULC2188 - see below

2
ULC2188
ADJUSTER

2

£27.02

Ex VAT @ 20%
£22.52



S82
137497

CLICK FOR
MORE INFO

Stoneguard

2

£8.71

Ex VAT @ 20%
£7.26



S83
138861

CLICK FOR
MORE INFO

Nut, adjusting

2

£16.08

Ex VAT @ 20%
£13.40



S84
134585

CLICK FOR
MORE INFO

Nut, lock

2

£9.55

Ex VAT @ 20%
£7.96



S85
139057

CLICK FOR
MORE INFO

Washers to

2

£5.09

Ex VAT @ 20%
£4.24



S86
210970
DRIVING FLANGE AND HUB ASSEMBLY

Triumph Catalogue Remarks: Disc Wheels only

2
No longer available
S87
132317

CLICK FOR
MORE INFO

Stud, wheel

Triumph Catalogue Remarks: Disc Wheels only
Revington TR information: This wheel stud which presses into the hub is fitted to TR4A-6 independent suspension rear hubs for use with steel wheels. Stud 132317 is specifically intended for the rear only and has a conical face under... READ MORE

8

£6.11

Ex VAT @ 20%
£5.09



S87A
212403

CLICK FOR
MORE INFO

DRIVING FLANGE AND HUB ASSEMBLY

Triumph Catalogue Remarks: Wire wheels only

2

£273.07

Ex VAT @ 20%
£227.56



Available to order
S87B
142799

CLICK FOR
MORE INFO

Stud, wheel

Triumph Catalogue Remarks: Wire wheels only
Revington TR information: This wheel stud which presses into the hub is fitted to TR4A-6 independent suspension rear hubs for use with wire wheels. Stud 142799 is specifically intended for the rear only and has a conical face under... READ MORE

8

£7.43

Ex VAT @ 20%
£6.19



S87C
202446

CLICK FOR
MORE INFO

Extension, hub - R.H.

Triumph Catalogue Remarks: Wire wheels only
This item has been superceded by 217602 - see below

1
217602

CLICK FOR
MORE INFO

HUB ADAPTOR RH WIRE WHEEL

Revington TR information: consider second hand parts 217602SH and 217603SH

1
No longer available
S87D
202447

CLICK FOR
MORE INFO

Extension, hub - L.H.

Triumph Catalogue Remarks: Wire wheels only
This item has been superceded by 217603 - see below

1
217603

CLICK FOR
MORE INFO

HUB ADAPTOR LH WIRE WHEEL TR3-6

Revington TR information: consider second hand parts 217602SH and 217603SH

1

£89.35

Ex VAT @ 20%
£74.46



Available to order
S87E
110366

CLICK FOR
MORE INFO

Nut Extention to Hub

Triumph Catalogue Remarks: Wire wheels only
Revington TR information: Nut, wire wheels only TR2-TR6 attaching the adapter to the hub. Consider original second hand part number 110366SH. Steel wheel TR2-6 early (when covered by a wheel trim) use a larger nut 109586. Later TR6 with... READ MORE

8

£2.66

Ex VAT @ 20%
£2.22



S88
134591

CLICK FOR
MORE INFO

Key - Driving Flange to outer axle shaft

2

£5.41

Ex VAT @ 20%
£4.51



S89
WM0063

CLICK FOR
MORE INFO

Washer, plain - Driving Flange to outer axle shaft

2

£2.05

Ex VAT @ 20%
£1.71



S89A
139057

CLICK FOR
MORE INFO

Washer, tab - Driving Flange to outer axle shaft

2

£5.09

Ex VAT @ 20%
£4.24



S90
138563

CLICK FOR
MORE INFO

Nut, nyloc - Driving Flange to outer axle shaft

This item has been superceded by NY610243 - see below

2
NY610243

CLICK FOR
MORE INFO

NUT NYLOC 5/8UNF x ¾" TALL 1-1/8" AF

Revington TR information: Nut 5/8" UNF ¾" tall and 1-1/8" AF. This nut is horrendously expensive; it was originally part number 138563 used on TR4A-6 differential Axle Shafts. See 'MORE' for a list of other special duty nuts for... READ MORE

2

£21.72

Ex VAT @ 20%
£18.10
