Electrical systems, Instruments etc.

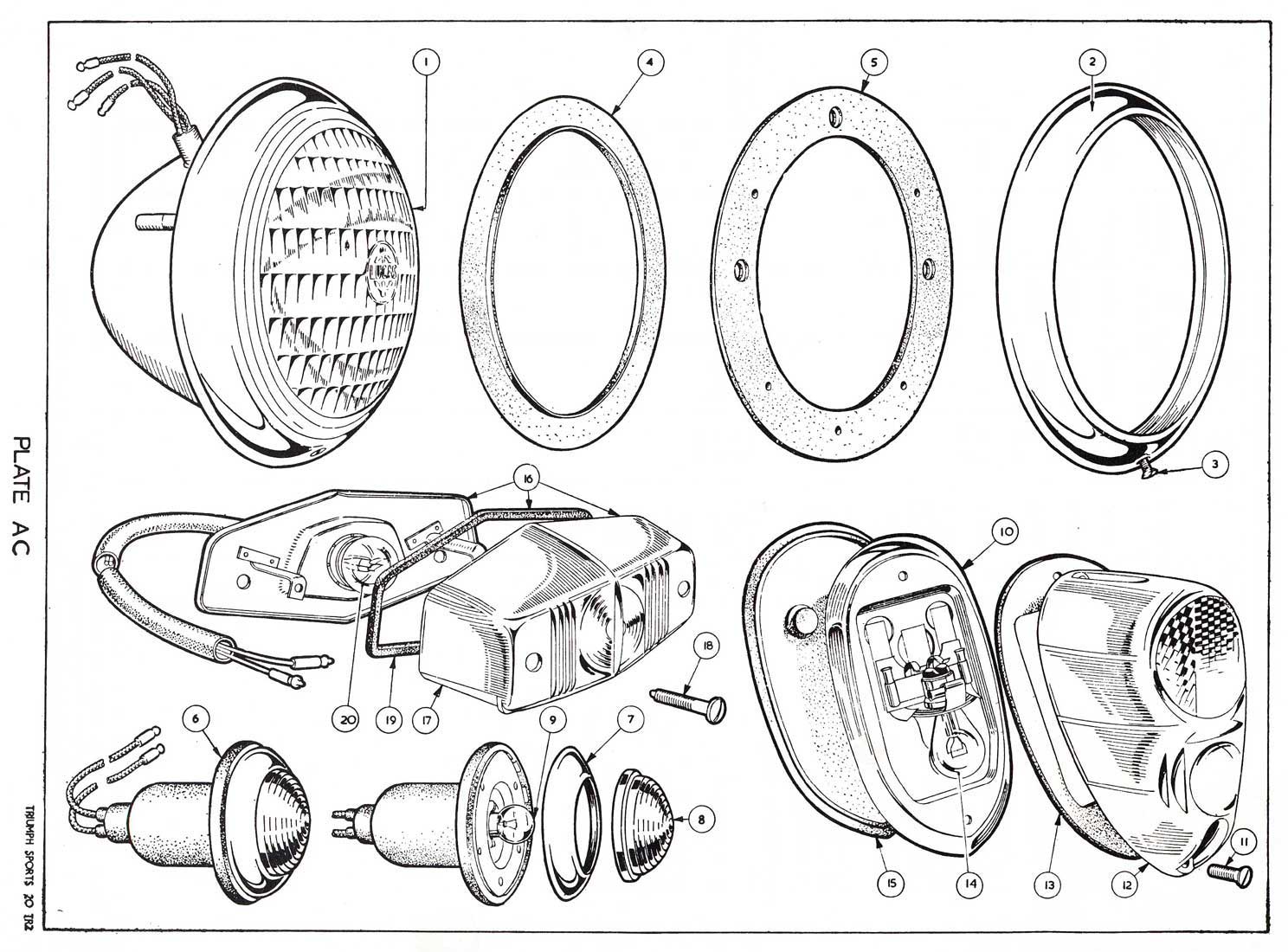

TR3 Plate AC - ELECTRICAL EQUIPMENT: HEAD, SIDE, FLASHER AND TAIL LAMPS. FLASHER UNIT.

  Plate No. Part No. Description and Comments No Per Unit Price Add to Cart
AC1
501422

CLICK FOR
MORE INFO

HEADLAMP ASSEMBLY (Block Lens, Dip Left)

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS22013 Home production only
Revington TR information: Headlamp assembly TR2-3B. This headlamp assembly part number included evening that constitutes the headlamp, the bucket, lamp itself, clamp, adjusters, gasket and the outer chrome rim. Innumerable parts numbers were listed in the original parts... READ MORE

2
AC1A
506407

CLICK FOR
MORE INFO

HEADLAMP ASSEMBLY (Block Lens, Dip Left)

Triumph Catalogue Remarks: From Comm. No. TS22014 Home production only
Revington TR information: Headlamp assembly TR2-3B. This headlamp assembly part number included evening that constitutes the headlamp, the bucket, lamp itself, clamp, adjusters, gasket and the outer chrome rim. Innumerable parts numbers were listed in the original parts... READ MORE

2
AC1B
506370

CLICK FOR
MORE INFO

HEADLAMP ASSEMBLY (Block Lens, Dip Left)

Triumph Catalogue Remarks: From Comm. No. TS32585 Home production only
Revington TR information: Headlamp assembly TR2-4. This headlamp assembly part number included evening that constitutes the headlamp, the bucket, lamp itself, clamp, adjusters, gasket and the outer chrome rim. Innumerable parts numbers were listed in the original parts... READ MORE

2
AC1C
501713

CLICK FOR
MORE INFO

Light unit Dip Left

Triumph Catalogue Remarks: Home Market
This item has been superceded by LU554308 - see below

2
LU554308
LIGHT UNIT TRIPOD RH DRIVE

2

£60.00

Ex VAT @ 20%
£50.00


AC1D
500928

CLICK FOR
MORE INFO

HEADLAMP ASSEMBLY (Block Lens, dip left)

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS22013
Revington TR information: Headlamp assembly TR2-3B. This headlamp assembly part number included evening that constitutes the headlamp, the bucket, lamp itself, clamp, adjusters, gasket and the outer chrome rim. Innumerable parts numbers were listed in the original parts... READ MORE

2
AC1E
506408

CLICK FOR
MORE INFO

HEADLAMP ASSEMBLY (Block Lens, dip left)

Triumph Catalogue Remarks: From Comm. No. TS22014 Export only
Revington TR information: Headlamp assembly TR2-3B. This headlamp assembly part number included evening that constitutes the headlamp, the bucket, lamp itself, clamp, adjusters, gasket and the outer chrome rim. Innumerable parts numbers were listed in the original parts... READ MORE

2
AC1F
506371

CLICK FOR
MORE INFO

HEADLAMP ASSEMBLY (Block Lens, dip left)

Triumph Catalogue Remarks: From Comm. No. TS32585 Export only
Revington TR information: Headlamp assembly TR2-4. This headlamp assembly part number included evening that constitutes the headlamp, the bucket, lamp itself, clamp, adjusters, gasket and the outer chrome rim. Innumerable parts numbers were listed in the original parts... READ MORE

2
AC4G
500998

CLICK FOR
MORE INFO

Light unit Dip Left

Triumph Catalogue Remarks: Export

2
AC1H
500930

CLICK FOR
MORE INFO

HEADLAMP ASSEMBLY (Block Lens, Dip Right)

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS22013 Left-hand Steering only
Revington TR information: Headlamp assembly TR2-3B. This headlamp assembly part number included evening that constitutes the headlamp, the bucket, lamp itself, clamp, adjusters, gasket and the outer chrome rim. Innumerable parts numbers were listed in the original parts... READ MORE

2
AC1I
506409

CLICK FOR
MORE INFO

HEADLAMP ASSEMBLY (Block Lens, Dip Right)

Triumph Catalogue Remarks: From Comm. No. TS22014 Left-hand Steering only
Revington TR information: Headlamp assembly TR2-3B. This headlamp assembly part number included evening that constitutes the headlamp, the bucket, lamp itself, clamp, adjusters, gasket and the outer chrome rim. Innumerable parts numbers were listed in the original parts... READ MORE

2
AC1J
506372

CLICK FOR
MORE INFO

HEADLAMP ASSEMBLY (Block Lens, Dip Right)

Triumph Catalogue Remarks: From Comm. No. TS32585 Left-hand Steering only
Revington TR information: Headlamp assembly TR2-4. This headlamp assembly part number included evening that constitutes the headlamp, the bucket, lamp itself, clamp, adjusters, gasket and the outer chrome rim. Innumerable parts numbers were listed in the original parts... READ MORE

2
AC1K
500482

CLICK FOR
MORE INFO

Bulb, 12 volt, dip left

2
AC1L
501421

CLICK FOR
MORE INFO

Bulb, 12 volt, dip left

Triumph Catalogue Remarks: Alternative
This item has been superceded by GLB414 - see below

2
GLB414

CLICK FOR
MORE INFO

BULB H/LIGHT BPF RHD

Revington TR information: Consider GLB457 halogen bulb 60/55W, which is a direct replacement for GLB414.

2

£7.57

Ex VAT @ 20%
£6.31


AC1M
500999

CLICK FOR
MORE INFO

Light unit Dip Right

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS32584
This item has been superceded by LU555296 - see below

2
LU555296
LHD TRIPOD H/LAMP

2

£87.80

Ex VAT @ 20%
£73.17


AC1N
507088

CLICK FOR
MORE INFO

Light unit Dip Right

Triumph Catalogue Remarks: From Comm. No. TS32585

2
AC1O
500933

CLICK FOR
MORE INFO

HEADLAMP ASSEMBLY

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS22013 Export France
Revington TR information: Headlamp assembly TR2-3B. This headlamp assembly part number included evening that constitutes the headlamp, the bucket, lamp itself, clamp, adjusters, gasket and the outer chrome rim. Innumerable parts numbers were listed in the original parts... READ MORE

2
AC1P
506410

CLICK FOR
MORE INFO

HEADLAMP ASSEMBLY

Triumph Catalogue Remarks: From Comm. No. TS22014 Export France
Revington TR information: Headlamp assembly TR2-3B. This headlamp assembly part number included evening that constitutes the headlamp, the bucket, lamp itself, clamp, adjusters, gasket and the outer chrome rim. Innumerable parts numbers were listed in the original parts... READ MORE

2
AC1Q
506373

CLICK FOR
MORE INFO

HEADLAMP ASSEMBLY

Triumph Catalogue Remarks: From Comm. No. TS32585 Export France
Revington TR information: Headlamp assembly TR2-3B. This headlamp assembly part number included evening that constitutes the headlamp, the bucket, lamp itself, clamp, adjusters, gasket and the outer chrome rim. Innumerable parts numbers were listed in the original parts... READ MORE

2
AC1R
059469

CLICK FOR
MORE INFO

Bulb, 12 volt, dip right

Triumph Catalogue Remarks: Export France

2
AC1S
501343

CLICK FOR
MORE INFO

HEADLAMP ASSEMBLY

Triumph Catalogue Remarks: From Comm. No. TS1 to 22013 Export Norway and Sweden
Revington TR information: Headlamp assembly TR2-3B. This headlamp assembly part number included evening that constitutes the headlamp, the bucket, lamp itself, clamp, adjusters, gasket and the outer chrome rim. Innumerable parts numbers were listed in the original parts... READ MORE

2
AC1T
506412

CLICK FOR
MORE INFO

HEADLAMP ASSEMBLY

Triumph Catalogue Remarks: From Comm. No. TS22014 Export Norway and Sweden
Revington TR information: Headlamp assembly TR2-3B. This headlamp assembly part number included evening that constitutes the headlamp, the bucket, lamp itself, clamp, adjusters, gasket and the outer chrome rim. Innumerable parts numbers were listed in the original parts... READ MORE

2
AC1U
506375
HEADLAMP ASSEMBLY

Triumph Catalogue Remarks: From Comm. No. TS32585 Export Norway and Sweden

2
AC4V
502212

CLICK FOR
MORE INFO

Light unit

Triumph Catalogue Remarks: Export Norway and Sweden

2
AC5W
060796

CLICK FOR
MORE INFO

Bulb

Triumph Catalogue Remarks: Export Norway and Sweden

2
AC1X
501477

CLICK FOR
MORE INFO

HEADLAMP ASSEMBLY (Block Lens, Vertical Dip)

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS 22013 Export only
Revington TR information: Headlamp assembly TR2-3B. This headlamp assembly part number included evening that constitutes the headlamp, the bucket, lamp itself, clamp, adjusters, gasket and the outer chrome rim. Innumerable parts numbers were listed in the original parts... READ MORE

2
AC1Y
506413

CLICK FOR
MORE INFO

HEADLAMP ASSEMBLY (Block Lens, Vertical Dip)

Triumph Catalogue Remarks: From Comm. No. TS22014 Export only
Revington TR information: Headlamp assembly TR2-3B. This headlamp assembly part number included evening that constitutes the headlamp, the bucket, lamp itself, clamp, adjusters, gasket and the outer chrome rim. Innumerable parts numbers were listed in the original parts... READ MORE

2
AC1Z
506376

CLICK FOR
MORE INFO

HEADLAMP ASSEMBLY (Block Lens, Vertical Dip)

Triumph Catalogue Remarks: From Comm. No. TS32585 Export only
Revington TR information: Headlamp assembly TR2-3B. This headlamp assembly part number included evening that constitutes the headlamp, the bucket, lamp itself, clamp, adjusters, gasket and the outer chrome rim. Innumerable parts numbers were listed in the original parts... READ MORE

2
AC1AA
502212

CLICK FOR
MORE INFO

Light unit vertical dip

Triumph Catalogue Remarks: Export only

2
AC1AB
501475

CLICK FOR
MORE INFO

Bulb, 12 volt, vertical dip

This item has been superceded by GLB370 - see below

2
GLB370
BULB BPF-TRIPOD LAMP

2

£9.30

Ex VAT @ 20%
£7.75


AC1AC
501476

CLICK FOR
MORE INFO

HEADLAMP ASSEMBLY (Block Lens, Vertical Dip)

Triumph Catalogue Remarks: From Comm. No. TS1 Export Switzerland
Revington TR information: Headlamp assembly TR2-3B. This headlamp assembly part number included evening that constitutes the headlamp, the bucket, lamp itself, clamp, adjusters, gasket and the outer chrome rim. Innumerable parts numbers were listed in the original parts... READ MORE

2
AC1AD
506414

CLICK FOR
MORE INFO

HEADLAMP ASSEMBLY (Block Lens, Vertical Dip)

Triumph Catalogue Remarks: From Comm. No. TS22014 Export Switzerland
Revington TR information: Headlamp assembly TR2-3B. This headlamp assembly part number included evening that constitutes the headlamp, the bucket, lamp itself, clamp, adjusters, gasket and the outer chrome rim. Innumerable parts numbers were listed in the original parts... READ MORE

2
AC1AE
506377

CLICK FOR
MORE INFO

HEADLAMP ASSEMBLY (Block Lens, Vertical Dip)

Triumph Catalogue Remarks: From Comm. No. TS32585 Export Switzerland
Revington TR information: Headlamp assembly TR2-3B. This headlamp assembly part number included evening that constitutes the headlamp, the bucket, lamp itself, clamp, adjusters, gasket and the outer chrome rim. Innumerable parts numbers were listed in the original parts... READ MORE

2
AC1AF
504029

CLICK FOR
MORE INFO

Light unit vertical dip

Triumph Catalogue Remarks: Export Switzerland

2
AC1AG
501475

CLICK FOR
MORE INFO

Bulb, 12 volt, vertical dip

Triumph Catalogue Remarks: Export Switzerland
This item has been superceded by GLB370 - see below

2
GLB370
BULB BPF-TRIPOD LAMP

2

£9.30

Ex VAT @ 20%
£7.75


AC2
500929

CLICK FOR
MORE INFO

Rim

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS22013
Revington TR information: Headlamp rim screw on type. If the retaining mechanism needs replacing order 37H7421A. We also have reproduction parts, Stainless Steel, lightweight aluminium and occasionally second hand parts. The later push on rim is 119072

2

£19.20

Ex VAT @ 20%
£16.00


AC2A
119165

CLICK FOR
MORE INFO

Rim

Triumph Catalogue Remarks: From Comm. No. TS22014

2
AC2B
119072

CLICK FOR
MORE INFO

Rim

Triumph Catalogue Remarks: From Comm. No. TS32585
This item has been superceded by 119072B - see below

2
119072B

CLICK FOR
MORE INFO

REPRO H/LAMP RIM

Revington TR information: These cheap rims may require some alteration to the securing clip to enable fitment. Alternatively use Lucas part 119072

2

£13.66

Ex VAT @ 20%
£11.38


AC2C
124020

CLICK FOR
MORE INFO

Rim

Triumph Catalogue Remarks: LH Steering Only

2

£62.40

Ex VAT @ 20%
£52.00


AC3
502025

CLICK FOR
MORE INFO

Screw, rim fixing

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS22013
This item has been superceded by RTC465 - see below

2
RTC465
HEADLIGHT RIM SCREW

2

£0.60

Ex VAT @ 20%
£0.50


AC3A
V5117

CLICK FOR
MORE INFO

Screw, rim fixing

Triumph Catalogue Remarks: From Comm. No. TS22014

2
AC3B
507837
Screw, rim fixing

Triumph Catalogue Remarks: From Comm. No. TS_____

2
AC4
059781

CLICK FOR
MORE INFO

Excluder, dust, rim to light unit

This item has been superceded by 3H2962 - see below

2
3H2962
HEADLIGHT RIM GASKET

2

£3.90

Ex VAT @ 20%
£3.25


AC4B
502291

CLICK FOR
MORE INFO

Plate, retaining light unit

Revington TR information: Retaining plate for 3 screw headlamps. Consider also second hand part 502291SH or 17H5205, which is a rim and retaining plate kit

2

£12.90

Ex VAT @ 20%
£10.75


AC4C
503537

CLICK FOR
MORE INFO

Rim, unit seating

Revington TR information: This chrome Rim is not available separatly new. Consider second hand part 503537SH or 17H5205, which is a rim and retaining plate kit.

2
AC4D
507086

CLICK FOR
MORE INFO

Screw, unit rim

This item has been superceded by SS1060321 - see below

6
SS1060321
SCREW ST No 6x3/8" PAN POZI BZP

6

£0.38

Ex VAT @ 20%
£0.32


AC4F
507087

CLICK FOR
MORE INFO

Screw, c/w washer

Triumph Catalogue Remarks: From Comm. No. TS22014
This item has been superceded by 17H5394K - see below

6
17H5394K
RETAINER SPRING BPF

Revington TR information: TR2-4 adjuster kit. 3 screw type.

6

£4.25

Ex VAT @ 20%
£3.54


AC4G
7H6838

CLICK FOR
MORE INFO

Bucket head lamp 3 screw type

Revington TR information: TR2-3B bowl headlamp 3 adjuster type

2

£15.90

Ex VAT @ 20%
£13.25


AC4H
501433

CLICK FOR
MORE INFO

Lead and cap assembly

This item has been superceded by 27H2333 - see below

2
27H2333

CLICK FOR
MORE INFO

BPF LAMP HARNESS

Revington TR information: TR2-3A BFP adapter and cable from headlamp to joint by the horns. Consider original second hand part number 27H2333SH. The various cable assemblies that are commonly found on TR s2-6 are as follows: - BAU2110 3... READ MORE

2

£19.99

Ex VAT @ 20%
£16.66


AC4I
061906

CLICK FOR
MORE INFO

Lead and cap assembly

Triumph Catalogue Remarks: Alternative

2
AC5
502211

CLICK FOR
MORE INFO

Gasket, rubber to body

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS32584
This item has been superceded by 3H1031 - see below

2
3H1031
BPF GASKET - 7 INCH

2

£4.10

Ex VAT @ 20%
£3.42


AC5A
121780

CLICK FOR
MORE INFO

Gasket, rubber to body

Triumph Catalogue Remarks: From Comm. No. TS32585
This item has been superceded by 3H1031 - see below

2
3H1031
BPF GASKET - 7 INCH

2

£4.10

Ex VAT @ 20%
£3.42


AC5B
503540

CLICK FOR
MORE INFO

Spring, trimmer

Triumph Catalogue Remarks: From Comm. No. TS22014

6
AC5C
501473

CLICK FOR
MORE INFO

Adaptor, light unit

Revington TR information: Adaptor for BFP headlamps The various cable assemblies that are commonly found on TR s2-6 are as follows: - BAU2110 3 pin Lucar type for sealed beam and H4 BAU2111 3 pin Lucar type for sealed beam units... READ MORE

2

£16.40

Ex VAT @ 20%
£13.67


AC5D
500934

CLICK FOR
MORE INFO

Adaptor, three pin

Triumph Catalogue Remarks: Alternative

2
AC5E
501478

CLICK FOR
MORE INFO

Cable, and adaptor assembly

This item has been superceded by BAU2110 - see below

2
BAU2110

CLICK FOR
MORE INFO

LIGHT WIRE W/O PILOT

Revington TR information: Loom and connector for sealed beam and Halogen H4 headlamps. As this loom carries all the headlamp current, and it is common for heaver duty bulbs to be fitted these days, our looms are manufactured... READ MORE

2

£13.31

Ex VAT @ 20%
£11.09


HEADLAMP ATTACHMENTS


AC5F
TR6506

CLICK FOR
MORE INFO

Screw, headlamp to wing

3
AC5G
WL0205

CLICK FOR
MORE INFO

Washer, spring, on screw

This item has been superceded by WS10306048 - see below

3
WS10306048

CLICK FOR
MORE INFO

SPRING WASHER 3/16" x 3/8"x 0.048"

3

£0.11

Ex VAT @ 20%
£0.09


AC5H
NQ2705

CLICK FOR
MORE INFO

Nut, locking screw

Revington TR information: This nut and its retainer CD24855 fit in the 6.35mm (1/4") square holes cut in the front valence of a TR2-3B and secure the headlamps. These parts are not available. Use either FS2701 which requires a... READ MORE

3
AC5I
CD24855
Retainer, nut

3


AC6
107593

CLICK FOR
MORE INFO

SIDE-FLASHER LAMP

Triumph Catalogue Remarks: From Comm. No. TS1
This item has been superceded by 3H3055 - see below

2
3H3055

CLICK FOR
MORE INFO

SIDE-INDICATOR ASSY FRONT TR2-3

Revington TR information: Recessed bulb, shallow lens. LUCAS TYPE L488. Consider second hand part 3H3055SH Consists of the following parts, which can be supplied separately. . Rim 7H5182 Lens AJA5076 Bulb GLB380 Bulb Holder 17H5426 Rubber boot 37H5481 Bullet connector 27H6713

2

£22.00

Ex VAT @ 20%
£18.33


AC6A
117010

CLICK FOR
MORE INFO

SIDE-FLASHER LAMP

Triumph Catalogue Remarks: From Comm. No. TS17341
This item has been superceded by 1B9100 - see below

2
1B9100

CLICK FOR
MORE INFO

LAMP ASSY SIDE/INDIC TR3A FRONT

Revington TR information: Clear double filament 'Beehive' lamp complete with glass lens. Consists of the following parts, which can be supplied separately. . Rim 7H5182 Lens 37H6928 or 37H6928P for plastic lens Bulb GLB380 Bulb Holder 27H5545 Rubber boot 508162 Bullet connector 27H6713 Other similar... READ MORE

2

£18.65

Ex VAT @ 20%
£15.54


AC7
500495

CLICK FOR
MORE INFO

Rim

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS17340
This item has been superceded by 7H5182 - see below

2
7H5182

CLICK FOR
MORE INFO

RIM S/LIGHT RETAINING

Revington TR information: Consider original second hand part number 7H5182SH. .

2

£2.40

Ex VAT @ 20%
£2.00


AC7A
505884

CLICK FOR
MORE INFO

Rim

Triumph Catalogue Remarks: From Comm. No. TS17341
This item has been superceded by 7H5182 - see below

2
7H5182

CLICK FOR
MORE INFO

RIM S/LIGHT RETAINING

Revington TR information: Consider original second hand part number 7H5182SH. .

2

£2.40

Ex VAT @ 20%
£2.00


AC8
502307

CLICK FOR
MORE INFO

Glass (diffused)

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS17340 Alt. to 502357
This item has been superceded by AJA5076 - see below

2
AJA5076

CLICK FOR
MORE INFO

WHITE FLAT LENS L488 CLEAR

Revington TR information: TR2/3 SIDE LIGHT/INDICATORTR Consider second hand part AJA5076SH

2

£6.90

Ex VAT @ 20%
£5.75


AC8A
505886

CLICK FOR
MORE INFO

Glass (diffused)

Triumph Catalogue Remarks: From Comm. No. TS17341 Alt. to 502357
This item has been superceded by 37H6928 - see below

2
37H6928

CLICK FOR
MORE INFO

CLEAR BEEHIVE LENS GLASS

Revington TR information: Clear glass lens beehive type, Clear lens front of TR3A Other similar 'Bee Hive' lenses are: - Clear plastic 37H6928P Amber glass 37H5520 Amber plastic 37H8130 Red glass ... READ MORE

2

£6.90

Ex VAT @ 20%
£5.75


AC8
502357

CLICK FOR
MORE INFO

Glass (clear)

Triumph Catalogue Remarks: From Comm. No. TS1 to 17340 Alt. to 502307
This item has been superceded by AJA5076 - see below

2
AJA5076

CLICK FOR
MORE INFO

WHITE FLAT LENS L488 CLEAR

Revington TR information: TR2/3 SIDE LIGHT/INDICATORTR Consider second hand part AJA5076SH

2

£6.90

Ex VAT @ 20%
£5.75


AC9
502287

CLICK FOR
MORE INFO

Bulb

This item has been superceded by GLB380 - see below

2
GLB380

CLICK FOR
MORE INFO

BULB 21/5 WATT 12V STOP TAIL

Revington TR information: A version of this Stop/tail bulb is available with red glass. Order GLB380R.

2

£0.66

Ex VAT @ 20%
£0.55


AC9A
505883

CLICK FOR
MORE INFO

Body

Triumph Catalogue Remarks: From Comm. No. TS17341
This item has been superceded by 508162 - see below

2
508162
INDICATOR LAMP BOOT 594 SHALLOW

2

£3.30

Ex VAT @ 20%
£2.75


AC9B
YA0384

CLICK FOR
MORE INFO

Screw, side lamp to wing

This item has been superceded by SS1060421 - see below

6
SS1060421
SCREW ST No 6x1/2" PAN POZ1 BZP

Revington TR information: 0

6

£0.12

Ex VAT @ 20%
£0.10


AC9C
FJ2442

CLICK FOR
MORE INFO

Nut, locking screws

This item has been superceded by AK606021 - see below

6
AK606021
SPRING NUT

6

£0.95

Ex VAT @ 20%
£0.79


AC9D
108647

CLICK FOR
MORE INFO

Lead, side lamp, flasher

2

£0.50

Ex VAT @ 20%
£0.42


AC9E
108648

CLICK FOR
MORE INFO

Lead, side lamp, harness

2

£0.50

Ex VAT @ 20%
£0.42


AC9F
108649

CLICK FOR
MORE INFO

Lead, side lamp, earth

2

£0.50

Ex VAT @ 20%
£0.42


AC9G
504806

CLICK FOR
MORE INFO

Sleeve, side lamp, cable

2

£2.20

Ex VAT @ 20%
£1.83


AC9H
107592

CLICK FOR
MORE INFO

TAIL-FLASHER LAMP

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS1300
This item has been superceded by 107592Z - see below

2
107592Z

CLICK FOR
MORE INFO

LAMP-TAIL REPRO TR2

Revington TR information: The base plate on this reproduction is not quite correct, but it is, unfortunatly all that is avaialble new. Consider second hand part 107592SH. The later lamp fitted to TR2 from TS1307 is 13H23

2

£80.50

Ex VAT @ 20%
£67.08


AC9J
502347

CLICK FOR
MORE INFO

Rim

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS1300
Revington TR information: Use lamp 107592.

2
AC9K
502348
Screw, rim fixing

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS1300

4
AC9L
501934

CLICK FOR
MORE INFO

Lens

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS1300

2

£36.04

Ex VAT @ 20%
£30.03


AC9M
502332

CLICK FOR
MORE INFO

Excluder, dust

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS1300

2

£5.65

Ex VAT @ 20%
£4.71


AC9N
500070

CLICK FOR
MORE INFO

Bulb

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS1300
This item has been superceded by GLB380 - see below

2
GLB380

CLICK FOR
MORE INFO

BULB 21/5 WATT 12V STOP TAIL

Revington TR information: A version of this Stop/tail bulb is available with red glass. Order GLB380R.

2

£0.66

Ex VAT @ 20%
£0.55


AC9O
YJ2443

CLICK FOR
MORE INFO

Screw, tail-flasher lamp attachment

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS1300
This item has been superceded by SS1080624 - see below

4
SS1080624

CLICK FOR
MORE INFO

SCREW SPIRE NO8 X 3/4" POZI PAN

Revington TR information: This number 8 X 3/4" Spire Screw has a POZI drive pan head and a blunt end for use with spire Nuts. It is NOT a self-tapping screw.

4

£0.19

Ex VAT @ 20%
£0.16


AC9P
FU2594

CLICK FOR
MORE INFO

Nut, spire, locking screw

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS1300
This item has been superceded by RTR5089 - see below

4
RTR5089

CLICK FOR
MORE INFO

RTR Upgrade

NUT SPIRE No8 U TYPE 16 X 11MM

4

£0.30

Ex VAT @ 20%
£0.25


AC9Q
501485

CLICK FOR
MORE INFO

REFLEX UNIT

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS1300

2

£9.30

Ex VAT @ 20%
£7.75


AC9R
602116
Bracket, reflex unit

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS1300

2
AC9S
108481

CLICK FOR
MORE INFO

TAIL-FLASHER LAMP c/w REFLEX 'UNIT

Triumph Catalogue Remarks: From Comm. No. TS1301
This item has been superceded by 13H23 - see below

2
13H23

CLICK FOR
MORE INFO

REAR LAMP ASSY TR2-3B & AH, MINOR etc.

Revington TR information: Rear Lamp TR2 from TS1307 and all subsequent TR3, 3A and 3B Individual parts are available as follows: - AJA5069 Lens AJA5071 Gasket, lens to base AJA5072 Base AJA5073 Gasket, Base to body GLB380 Bulb 57H5569 Screw lens to Base The earlier lamp... READ MORE

2

£32.10

Ex VAT @ 20%
£26.75


AC9T
012546
TAIL-FLASHER LAMP c/w REFLEX 'UNIT

Triumph Catalogue Remarks: From Comm. No. TS46360

2
AC10
502349

CLICK FOR
MORE INFO

Rim assembly

Triumph Catalogue Remarks: From Comm. No. TS1301
This item has been superceded by AJA5072 - see below

2
AJA5072

CLICK FOR
MORE INFO

REAR LAMP BASE TR2-3B

Revington TR information: Rear Lamp Base fitted to TR2 from TS1307 and all subsequent TR3, 3A and 3B The full lamp assembly part number is 13H23 where all the individual parts are identified as well as being listed below

2

£24.55

Ex VAT @ 20%
£20.46


AC11
502350

CLICK FOR
MORE INFO

Screw, firm fixing

Triumph Catalogue Remarks: From Comm. No. TS1301
This item has been superceded by 57H5569 - see below

4
57H5569
RIM RETAINING SCREW

4

£0.90

Ex VAT @ 20%
£0.75


AC12
502265

CLICK FOR
MORE INFO

Lens

Triumph Catalogue Remarks: From Comm. No. TS1301
This item has been superceded by AJA5069 - see below

2
AJA5069

CLICK FOR
MORE INFO

REAR LENS TR2-3B, MGA, SPRITE, MINOR

Revington TR information: Rear Lamp Lens fitted to TR2 from TS1307 and all subsequent TR3, 3A and 3B The full lamp assembly part number is 13H23 where all the individual parts are identified as well as being listed below

2

£7.80

Ex VAT @ 20%
£6.50


AC12A
508825

CLICK FOR
MORE INFO

Lens

Triumph Catalogue Remarks: From Comm. No. TS46360
This item has been superceded by AJA5069 - see below

2
AJA5069

CLICK FOR
MORE INFO

REAR LENS TR2-3B, MGA, SPRITE, MINOR

Revington TR information: Rear Lamp Lens fitted to TR2 from TS1307 and all subsequent TR3, 3A and 3B The full lamp assembly part number is 13H23 where all the individual parts are identified as well as being listed below

2

£7.80

Ex VAT @ 20%
£6.50


AC13
502333

CLICK FOR
MORE INFO

Excluder, dust

Triumph Catalogue Remarks: From Comm. No. TS1301
This item has been superceded by AJA5071 - see below

2
AJA5071

CLICK FOR
MORE INFO

LENS TO BASE SEAL TR2-3B REAR LAMP

Revington TR information: Sealing Gasket, Rear Lamp Lens to Base fitted to TR2 from TS1307 and all subsequent TR3, 3A and 3B The full lamp assembly part number is 13H23 where all the individual parts are identified as well... READ MORE

2

£2.90

Ex VAT @ 20%
£2.42


AC14
502287

CLICK FOR
MORE INFO

Bulb

Triumph Catalogue Remarks: From Comm. No. TS1301
This item has been superceded by GLB380 - see below

2
GLB380

CLICK FOR
MORE INFO

BULB 21/5 WATT 12V STOP TAIL

Revington TR information: A version of this Stop/tail bulb is available with red glass. Order GLB380R.

2

£0.66

Ex VAT @ 20%
£0.55


AC15
502384

CLICK FOR
MORE INFO

Washer, rubber, rim base

Triumph Catalogue Remarks: From Comm. No. TS1301
This item has been superceded by AJA5073 - see below

2
AJA5073

CLICK FOR
MORE INFO

BASE TO BODY SEAL TR2-3B REAR LAMP

Revington TR information: Sealing Gasket, Rear Lamp Base to body fitted to TR2 from TS1307 and all subsequent TR3, 3A and 3B The full lamp assembly part number is 13H23 where all the individual parts are identified as well... READ MORE

2

£3.20

Ex VAT @ 20%
£2.67


AC15A
YJ2443

CLICK FOR
MORE INFO

Screw, tail-flasher lamp attachment

Triumph Catalogue Remarks: From Comm. No. TS1301
This item has been superceded by SS1080624 - see below

4
SS1080624

CLICK FOR
MORE INFO

SCREW SPIRE NO8 X 3/4" POZI PAN

Revington TR information: This number 8 X 3/4" Spire Screw has a POZI drive pan head and a blunt end for use with spire Nuts. It is NOT a self-tapping screw.

4

£0.19

Ex VAT @ 20%
£0.16


AC15B
FU2594

CLICK FOR
MORE INFO

Nut, spire, locking screw

Triumph Catalogue Remarks: From Comm. No. TS1301
This item has been superceded by RTR5089 - see below

4
RTR5089

CLICK FOR
MORE INFO

RTR Upgrade

NUT SPIRE No8 U TYPE 16 X 11MM

4

£0.30

Ex VAT @ 20%
£0.25


AC15C
112735

CLICK FOR
MORE INFO

REAR FLASHER LAMP

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS15600 Export only Holland and Belgium

2
AC15D
116460

CLICK FOR
MORE INFO

REAR FLASHER LAMP

Triumph Catalogue Remarks: From Comm. No. TS15601 Export only Holland and Belgium
This item has been superceded by 2A9013 - see below

2
2A9013

CLICK FOR
MORE INFO

AMBER SINGLE FILAMENT LAMP BEEHIVE

Revington TR information: Amber single filament 'Beehive' lamp complete with glass lens Replacement lenses. 37H5520 glass lens only and 37H8130 for plastic lens only. Other similar 'Bee Hive' lamps are: - Clear single filament 532806 Clear double filament... READ MORE

2

£17.58

Ex VAT @ 20%
£14.65


AC15E
502379

CLICK FOR
MORE INFO

Bulb

Triumph Catalogue Remarks: Export only Holland and Belgium
This item has been superceded by GLB382 - see below

2
GLB382

CLICK FOR
MORE INFO

BULB 21W INDICATOR/ REVERSE LIGHT

Revington TR information: Amber version is GLB343.

2

£0.78

Ex VAT @ 20%
£0.65


AC15F
116459

CLICK FOR
MORE INFO

REAR FLASHER LAMP

Triumph Catalogue Remarks: From Comm. No. TS15601 Exp. only U.S.A.
This item has been superceded by 2A9040 - see below

2
2A9040

CLICK FOR
MORE INFO

RED SINGLE FILAMENT LAMP BEEHIVE

Revington TR information: Red single filament 'Beehive' lamp complete with glass lens. Replacement lenses. 37H5531 glass lens only and 37H5531P for plastic lens only. Other similar 'Bee Hive' lamps are: - Clear single filament 532806 Clear double filament... READ MORE

2

£16.30

Ex VAT @ 20%
£13.58


AC15G
502379

CLICK FOR
MORE INFO

Bulb

This item has been superceded by GLB382 - see below

2
GLB382

CLICK FOR
MORE INFO

BULB 21W INDICATOR/ REVERSE LIGHT

Revington TR information: Amber version is GLB343.

2

£0.78

Ex VAT @ 20%
£0.65


AC15H
WN0703
Washer, shakeproof

6
AC15J
SP84CO

CLICK FOR
MORE INFO

Screw, self-tapping, lamp attachment

6
AC15K
SP22B

CLICK FOR
MORE INFO

Nut, spire, lamp attachment

6
AC15L
107594

CLICK FOR
MORE INFO

FLASHER UNIT

Triumph Catalogue Remarks: From Comm. No. TS1 to Comm. No. TS9893
This item has been superceded by GFU2101 - see below

1
GFU2101

CLICK FOR
MORE INFO

FLASHER UNIT TR2/3 SCREW LUCAS

Revington TR information: This is the TR2-3 lucar and screw connection type. This will work on -ve and +ve earth. Hot wire bi metal strip type unit, not solid state.

1

£8.76

Ex VAT @ 20%
£7.30


AC15M
113710

CLICK FOR
MORE INFO

FLASHER UNIT

Triumph Catalogue Remarks: From Comm. No. TS9894
This item has been superceded by GFU2101 - see below

1
GFU2101

CLICK FOR
MORE INFO

FLASHER UNIT TR2/3 SCREW LUCAS

Revington TR information: This is the TR2-3 lucar and screw connection type. This will work on -ve and +ve earth. Hot wire bi metal strip type unit, not solid state.

1

£8.76

Ex VAT @ 20%
£7.30


AC15N
121267

CLICK FOR
MORE INFO

FLASHER UNIT

Triumph Catalogue Remarks: From Comm. No. TS_______

1
AC15O
UH0703 P
Screw, pointed Flasher unit to bulkhead

1
AC15P
WL0207

CLICK FOR
MORE INFO

Washer, lock Flasher unit to bulkhead

This item has been superceded by WS104070643 - see below

1
WS104070643
WASHER SPRING 1/4" RECT SECTION

1

£0.16

Ex VAT @ 20%
£0.13


AC15Q
WM0057

CLICK FOR
MORE INFO

Washer, plain Flasher unit to bulkhead

This item has been superceded by WP10412057 - see below

1
WP10412057

CLICK FOR
MORE INFO

WASHER PLAIN 1/4" x 3/4" x 0.057"

1

£0.43

Ex VAT @ 20%
£0.36


AC16
109497

CLICK FOR
MORE INFO

NUMBER PLATE_ AND STOP LAMP

Revington TR information: A great reproduction of the original tail lamp. This is a stop and number plate lamp as fitted to TR2-3. This part number is for 1 lamp only, two are shown to show the back and... READ MORE

1

£36.18

Ex VAT @ 20%
£30.15


AC17
501798

CLICK FOR
MORE INFO

Lens

Revington TR information: No longer available new. Consider original second hand part number 501798SH. . Also consider this lamp reproduced by our part number 109497 below

1
AC18
501799

CLICK FOR
MORE INFO

Screw, fixing lens

2
AC19
502351

CLICK FOR
MORE INFO

Gasket, seating

1
AC20
500070

CLICK FOR
MORE INFO

Bulb

This item has been superceded by GLB380 - see below

1
GLB380

CLICK FOR
MORE INFO

BULB 21/5 WATT 12V STOP TAIL

Revington TR information: A version of this Stop/tail bulb is available with red glass. Order GLB380R.

1

£0.66

Ex VAT @ 20%
£0.55


AC20A
202529
NUMBER PLATE AND STOP LAMP

Triumph Catalogue Remarks: From Comm. No. TS1 Export Holland only

1
AC20B
502352
Lens

Triumph Catalogue Remarks: From Comm. No. TS1 Export Holland only

1
AC20C
502353
Screw, lens fixing

Triumph Catalogue Remarks: From Comm. No. TS1 Export Holland only

2
AC20D
502354
Gasket, seating

Triumph Catalogue Remarks: From Comm. No. TS1 Export Holland only

1
AC20E
059467

CLICK FOR
MORE INFO

Bulb, number plate lamp

Triumph Catalogue Remarks: From Comm. No. TS1 Export Holland only
This item has been superceded by GLB989 - see below

2
GLB989

CLICK FOR
MORE INFO

BULB 12V 5W BAYONET

2

£0.90

Ex VAT @ 20%
£0.75


AC20F
105307
Bulb, stop lamp

Triumph Catalogue Remarks: From Comm. No. TS1 Export Holland only

1
AC20G
061272
NUMBER PLATE LAMP

Triumph Catalogue Remarks: From Comm. No. TS18913 Export U.S.A., Holland, and Belgium only

1
AC20H
SP22A

CLICK FOR
MORE INFO

Nut, securing lamp to body

Triumph Catalogue Remarks: From Comm. No. TS18913 Export U.S.A., Holland, and Belgium only

2
AC20J
WL0205

CLICK FOR
MORE INFO

Washer, spring

Triumph Catalogue Remarks: From Comm. No. TS18913 Export U.S.A., Holland, and Belgium only
This item has been superceded by WS10306048 - see below

2
WS10306048

CLICK FOR
MORE INFO

SPRING WASHER 3/16" x 3/8"x 0.048"

2

£0.11

Ex VAT @ 20%
£0.09


AC20K
059467

CLICK FOR
MORE INFO

Bulb

Triumph Catalogue Remarks: From Comm. No. TS18913 Export U.S.A., Holland, and Belgium only
This item has been superceded by GLB989 - see below

1
GLB989

CLICK FOR
MORE INFO

BULB 12V 5W BAYONET

1

£0.90

Ex VAT @ 20%
£0.75
