UNIVERSAL 11" RADIATOR FAN KIT

Part No:

RTR1488K

Price

£196.58

Price Ex VAT @ 20%

£163.82

AVAILABLE This part is available to order

main

1 image

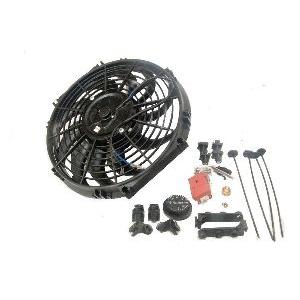

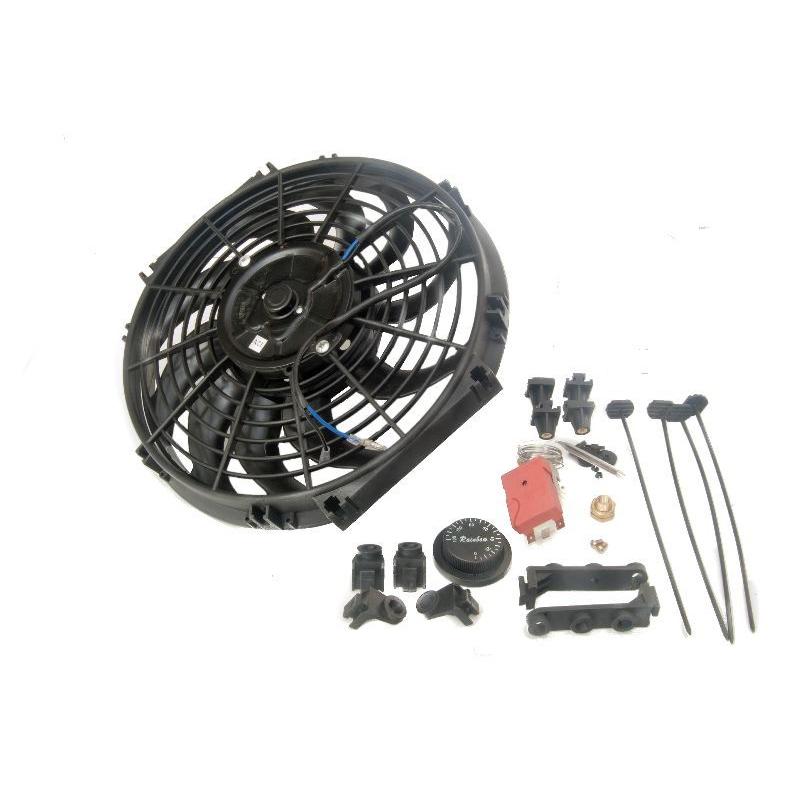

Economy Universal 11" Radiator Cooling Fan kit including a range of Adaptor Mounts, 'Pull Through' Clamps to attach the fan directly to the radiator core, and an Adjustable Thermostatic Temperature Controller (Bulb Type)

The fan in this kit is the sucking type which means it is intended to be fitted behind the radiator so that the fresh air is sucked through the radiator. The blades are 11" diameter, the case is 12" diameter. The controller can be adjusted so that the fan comes on at a user defined temperature. The bulb that transmits the temperature to the controller can be screw mounted into a pipe or header tank, or can be slipped in to the top radiator hose and clamped in place by the hose clamp; a great kit at a great price. Note: - As this is a universal kit there are no fitting instructions provided. Revington TR offer a range of Radiator Cooling Fan kits split into 3 groups as follows: -

RTR1488K one Universal kit
RTR1416 series is our Standard range which includes a higher quality Fan than kit RTR1488K, 'Pull Through' Clamps to attach the fan directly to the radiator core, and an Adjustable Thermostatic Temperature Controller (In Line Electronic Type).
RTR1483 series is our Deluxe range which includes the same high quality Fan that is used in the RTR1416 series, Bespoke Brackets to attach the Fan to the radiator frame, and an Adjustable Thermostatic Temperature Controller (In Line Electronic Type).

In addition for those who wish to compose their own kit, the various individual components can be ordered separately. These are listed below but fit into the following categories: -

Fans
Switch and relay kits

Adjustable Temperature Switch and relay kits

Adjustable Temperature Switch incorporated into TR2-4A or TR5-6 down pipe and relay kits

Fixed Temperature Switch incorporated into TR2-4A or TR5-6 down pipe and relay kits

Fixed Temperature Switches

Crank Bolt Sets

'Pull Through' Clamps

Engine, Transmission, wheels/Tyres and Heating/Cooling

To view the Triumph Catalogue Plates, please pick a car type

Part No.	Description and Comments	Price	Add to Cart
RTR1028K CLICK FOR MORE INFO	CRANK WASHER & BOLT SET TR5-6 Revington TR information: TR250, 5, 6 and Saloon etc. Crank washer and short bolt set. Used when fan, hub and extension are removed, usually in conjunction with the installation of an electric fan behind the radiator. Converting a Triumph... READ MORE	£33.43 Ex VAT @ 20% £27.86
RTR1483-1B CLICK FOR MORE INFO	FAN CONTROLLER IN HOSE 32mm Revington TR information: This Engine Fan Controller (EFC) is suitable for all hoses with an internal diameter of 32mm; that makes it suitable for TR250, 5, 6 and 7. Revotec adjustable EFC's can be retro fitted to any existing... READ MORE	£135.97 Ex VAT @ 20% £113.31	Available to order
RTR1483-1A CLICK FOR MORE INFO	FAN CONTROLLER IN HOSE 35mm TR2-4A Revington TR information: This Engine Fan Controller (EFC) is suitable for all hoses with an internal diameter of 35mm; that makes it suitable for TR2-4A, when an additional short hose 133309OS is required. Revotec adjustable EFC's can be retro... READ MORE	£137.10 Ex VAT @ 20% £114.25
RTR1483-1D CLICK FOR MORE INFO	FAN CONTROLLER SCREW M22x1.5mm Revington TR information: This Engine Fan Controller (EFC) is suitable for all cars which have an M22x1.5mm threaded boss in the radiator, header tank or down tube Revotec adjustable EFC's can be retro fitted to any existing electric radiator... READ MORE	£135.97 Ex VAT @ 20% £113.31
TDC5001-125 CLICK FOR MORE INFO	HELDITE 125ml TIN WITH APPLICATOR Revington TR information: This excellent jointing compound is supplied in a tin with an applicator brush. Heldite provides a perfect gas and fluid seal. Not available to Customer outside of the UK. Applied with an applicator brush integral with... READ MORE	£14.39 Ex VAT @ 20% £11.99
RTR1389AK CLICK FOR MORE INFO	KIT ADJ. FAN SWITCH/PIPE TR2-4A Revington TR information: This kit is used to switch an electrical engine fan on and off; it fits TR2-4A and includes a down pipe adapted to take a screw in thermo switch, relay, adjustable thermo switch, fittings and fitting... READ MORE	£211.61 Ex VAT @ 20% £176.34	Available to order
RTR1389BK CLICK FOR MORE INFO	KIT ADJ. FAN SWITCH/PIPE TR250, 5, 6 UK Revington TR information: This kit is used to switch an electrical engine fan on and off; it fits TR250, 5, 6 with a UK spec. radiator fitted and includes a down pipe adapted to take a screw in thermo... READ MORE	£211.61 Ex VAT @ 20% £176.34	Available to order
RTR1389/2-4AK CLICK FOR MORE INFO	KIT FAN SWITCH/PIPE Revington TR information: This kit is used to switch an electrical engine fan on and off; it fits TR2-4A and includes a down pipe adapted to take a screw in thermo switch, relay, thermo switch, fittings, override switch and... READ MORE	£146.20 Ex VAT @ 20% £121.83	Available to order
RTR1389/5-6K CLICK FOR MORE INFO	KIT FAN SWITCH/PIPE Revington TR information: This kit switches an electrical engine fan on and off; it fits TR250, 5 and 6 with a UK spec. radiator fitted and includes a down pipe adapted to take a screw in thermo switch, relay,... READ MORE	£146.20 Ex VAT @ 20% £121.83	Available to order
RTR9113ZIPS CLICK FOR MORE INFO	PULL THROUGH FAN MOUNT KIT OF 4 Revington TR information: These ties are strong enough to hold a radiator electric fan firmly against the radiator core. The kit includes 4 ties, nuts and soft pads	£14.93 Ex VAT @ 20% £12.44
RTR1483-2A CLICK FOR MORE INFO	RADIATOR COOLING FAN 280mm (11") SUCTION Revington TR information: This 280mm (11") suction fan (in a 12" casing) assembly by Revotec is manufactured to OEM quality standards and will provide excellent cooling. These fans ( for other part numbers) are a great way to... READ MORE	£132.12 Ex VAT @ 20% £110.10
RTR1483-A CLICK FOR MORE INFO	REVOTEC DELUX ELECTRIC FAN KIT 12" TR2-4 Revington TR information: This kit includes a 280mm (11") suction fan in a 12" casing, crank bolt set (RTR1027K) mounting brackets and a precise adjustable temperature controller. This kit offers optimum cooling performance to ensure your engine runs... READ MORE	£357.82 Ex VAT @ 20% £298.18	Available to order
RTR1483-B CLICK FOR MORE INFO	REVOTEC DELUX ELECTRIC FAN KIT 14" TR4A Revington TR information: This kit includes a 355mm (14") suction fan, mounting brackets and a precise adjustable temperature controller. This kit offers optimum cooling performance to ensure your engine runs in its designed temperature range to give best performance... READ MORE	£339.78 Ex VAT @ 20% £283.15	Available to order
RTR1483-C CLICK FOR MORE INFO	REVOTEC DELUX ELECTRIC FAN KIT 14" TR5-TR250-TR6 Revington TR information: This kit includes a 355mm (14") suction fan, mounting brackets and a precise adjustable temperature controller. This kit offers optimum cooling performance to ensure your engine runs in its designed temperature range to give best performance... READ MORE	£357.82 Ex VAT @ 20% £298.18	Available to order
RTR1416-AK CLICK FOR MORE INFO	REVOTEC STANDARD ELECTRIC FAN KIT TR2-4A Revington TR information: This kit includes a 280mm (11") suction fan and a precise adjustable temperature controller. This kit offers optimum cooling performance to ensure your engine runs in its designed temperature range to give best performance and fuel... READ MORE	£301.46 Ex VAT @ 20% £251.22	Available to order
RTR1416-BK CLICK FOR MORE INFO	REVOTEC STANDARD ELECTRIC FAN KIT TR5-TR250-TR6 Revington TR information: This kit includes a 355mm (14") suction fan and a precise adjustable temperature controller. This kit offers optimum cooling performance to ensure your engine runs in its designed temperature range to give best performance and fuel... READ MORE	£301.46 Ex VAT @ 20% £251.22	Available to order
RTR1416-CK CLICK FOR MORE INFO	REVOTEC STANDARD ELECTRIC FAN KIT TR7 Revington TR information: This kit includes a 355mm (14") blower fan and a precise adjustable temperature controller. This kit offers optimum cooling performance to ensure your engine runs in its designed temperature range to give best performance and fuel... READ MORE	£301.46 Ex VAT @ 20% £251.22	Available to order
IM50090 CLICK FOR MORE INFO	THERMO SWITCH ON @ 86°C OFF @ 81°C Revington TR information: This switch is intended to control a relay RTR8012 which in turn operates an engine electric fan. The switch turns on at 86 degrees C, off at 81 degrees C. Thread size: M22 x 1.5mm. Seal... READ MORE	£36.06 Ex VAT @ 20% £30.05
