FULCRUM KIT UPPER TR2-4
IN STOCK This part is immediately available
TR2-4 adjustable top fulcrum. Enables accurate setting of camber. This useful kit obviates the need to "cut and shut" wishbones. Designed and developed by Revington TR in 1990 and still a best seller world wide!

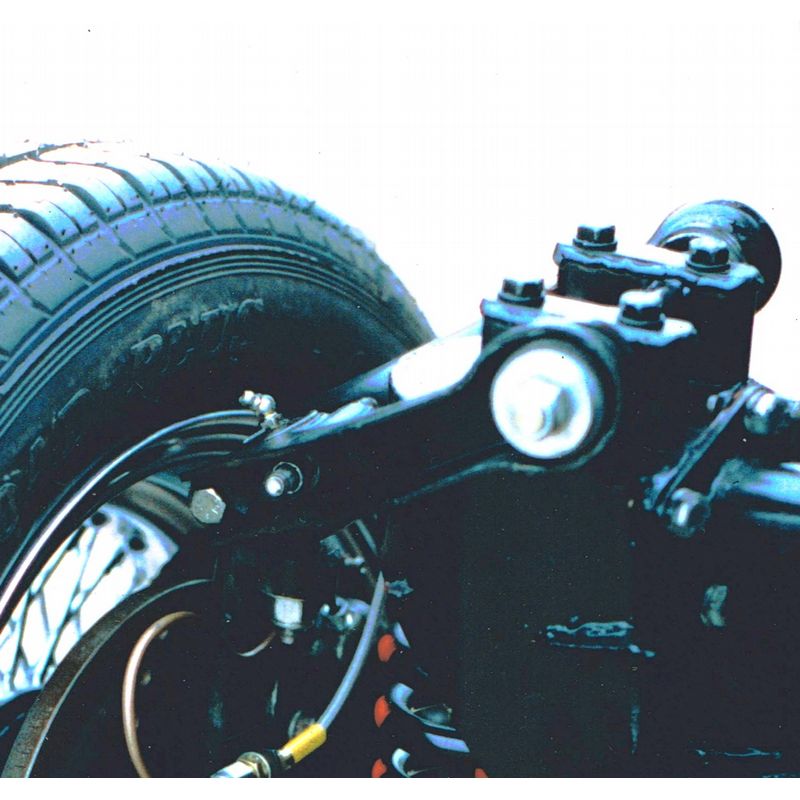

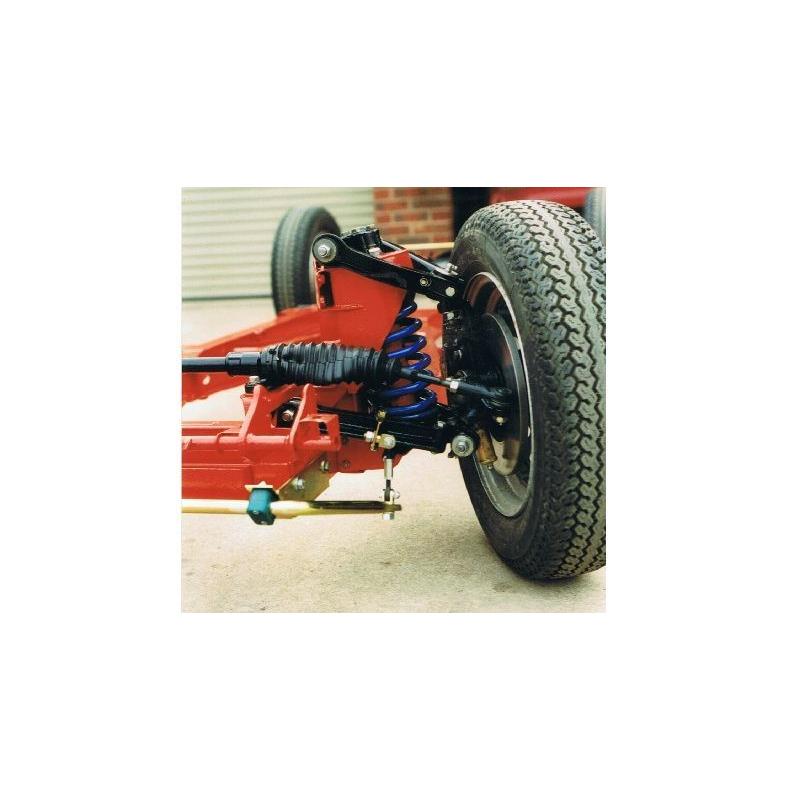

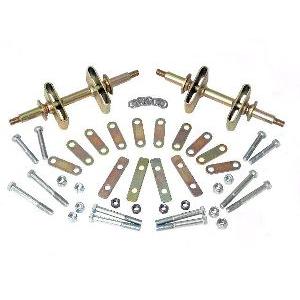

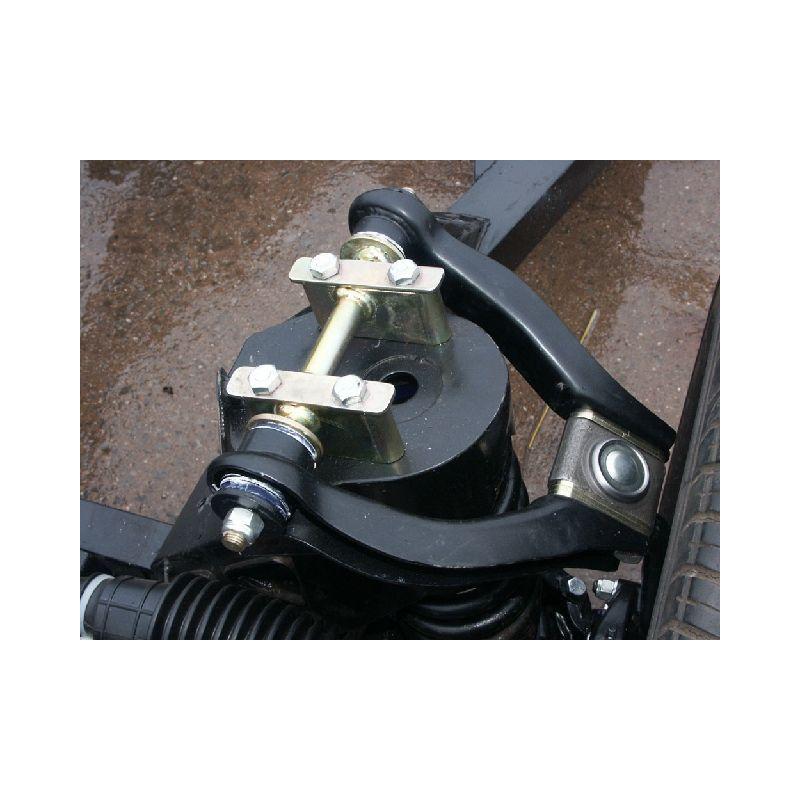

This kit incorporates a new style fulcrum which can be slid over the top of the turret allowing accurate camber setting. Once set, a top plate provided is welded in place to secure the assembly (extra top plates are available should future alteration be required). The welding required is very minor. There is a top plate which clamps the main body which slides under it to enable camber to be adjusted. Once set to the correct camber it is good practice to make a couple of small tack welds so the top plate is fixed to the main body.This kit uses late TR4 to TR6 type top wishbones and Top ball joint, and the late TR4 three degree caster trunnion. Full instructions are included.TR2 to early TR4 owners will need to purchase some standard late TR4-6 components. The wishbones are set wider than normal, spacers being provided to be selectively placed either side of the Top ball joint to ensure the vertical link is under no tension. This kit uses the standard TR2-TR4 vertical link so you do not need to change the vertical link.The standard TR4-6 components required are: -
2 x 133504SHPC Top wishbone, second-hand powder coated. 2 x 133507SHPC Top wishbone, second-hand powder coated, 2 x GSJ131GR Top ball joint, 1 x 133838 Lower trunnion RH, 1 x 133839 Lower trunnion LH.
The clearance to the inner wing can be very tight once installed and may need the inner wing to be relieved a very small amount to get clearance to the end of the upper fulcrum pin end.. The best way to get the clearance, if required, is to drill a hole about 1.5" using a hole cutter. This does have the added benefit of being able to get at the nuts on the end of the upper fulcrum pin if required. The hole can then be fitted with a suitable grommet to blank the hole off whilst still giving sufficient clearance.The unit it 48mm tall.
A similar kit RTR3174K is available for TR4A-6 too. see below
Suspension and steering
5 plates in total
| Part No. | Description and Comments | Price | Add to Cart | |
|---|---|---|---|---|
 |
102228UK |
BUSH KIT F.SUSP UPPER NYLATRON TR2-6Revington TR information: TR2-6 uprated bush kit, front suspension upper inner wishbones. Kit contains nylatron bushes, nylatron thrust washers, stainless steel sleeves, Superpro polyurethane grease seals, assembly grease and fitting instructions. It is important to note that the Upper... READ MORE |
£210.53 Ex VAT @ 20% |
|
 |
GSJ131 |
TOP BALL JOINT TR4-6 - High ArticulationRevington TR information: High quality Top Ball Joint (TBJ) with maximum articulation. This part is a must for high performance cars, particularly TR2-4 with 3° caster and adjustable upper fulcrums fitted.
The origin Stanpart/Leyland TBJ had 32°of articulation. This... READ MORE |
£90.92 Ex VAT @ 20% |
|
 |
GSJ131SH |
Second Hand BALL JOINT TOP TR4-6Revington TR information: Second hand useable Top Ball Joint TR4-6. The boot on its own is available under part number 138509 however it should be borne in mind that this is a universal application boot and is not specific... READ MORE |
£21.54 Ex VAT @ 20% |
|
 |
133839 |
TRUNNION TR4 LH 3 DEGREERevington TR information: TR4 front suspension Trunnion 3° caster type Left Hand using a conical seal. If the pin only is required, this is available separately. Order parts number 101539
For a bush kit order 101557K. The pin... READ MORE |
£126.34 Ex VAT @ 20% |
|
|
133839SH |
Second Hand TRUNION LHRevington TR information: This second hand trunnion which has a conical top, uses the late seal and will most likely need a new shaft. Order part number 101539. Fitting Tips The swivel joint between the vertical link and lower trunnion... READ MORE |
£73.67 Ex VAT @ 20% |
|
 |
133838 |
TRUNNION TR4 RH 3 DEGREERevington TR information: TR4 front suspension Trunnion 3° caster type Right Hand using a conical seal. If the pin only is required, this is available separately. Order parts number 101539
For a bush kit order 101557K. The pin... READ MORE |
£126.34 Ex VAT @ 20% |
|
|
133838SH |
Second Hand TRUNION RHRevington TR information: This second hand trunnion which has a conical top, uses the late seal and will most likely need a new shaft. Order part number 101539. Fitting Tips The swivel joint between the vertical link and lower trunnion... READ MORE |
£73.67 Ex VAT @ 20% |
|
|
133507SHPC |
Powder Coated WISHBONE REAR TOP TR4-6 Second HandRevington TR information: This is a second hand part that has been shot blasted and powder coated but not always available. Order new 133507 and 133504 for opposite hand |
£99.54 Ex VAT @ 20% |
|
|
133504SHPC |
Powder Coated WISHBONE TOP FRONT TR4-6 Second HandRevington TR information: This is a second hand part that has been shot blasted and powder coated but not always available order new 133504 and 133507 if opposite hand required. |
£99.54 Ex VAT @ 20% |
|
 |
SPF0288AK |
UPPER INNER WISHBONE KIT TR2-6 no sleeveRevington TR information: TR2-6 Superpro polyurethane Upper inner bush kit. Halfway house between standard 102228 bush and 102228UK kit. One kit required per car. Can be used on TR2-4 lower inner too. As well as TR2 this bush... READ MORE |
£51.44 Ex VAT @ 20% |
|
 |
RTR3174K
|
FULCRUM KIT UPPER TR4A-6Revington TR information: TR4A, 250, 5, 6 adjustable top fulcrum. This kit enables accurate setting of camber and castor on TR4A, TR250 and TR6. This kit incorporates a new style fulcrum which can be slid over the top of... READ MORE |
£326.16 Ex VAT @ 20% |
|
|
RTR3102K
|
UPPER FULCRUM KIT TR2-6Revington TR information: TR2-6 adjustable top fulcrum. Enables accurate setting of camber. This useful kit obviates the need to "cut and shut" wishbones to gain meaningful negative camber. Designed and developed by RevingtonTR in 1990 and still a best... READ MORE |
£321.25 Ex VAT @ 20% |
