KIT INERTIA SWITCH + CONNECTOR

RTR Upgrade
Part No:
RTR8346K
Price
£64.02
Price Ex VAT @ 20%
£53.35

IN STOCK This part is immediately available

Main
Main
1 image

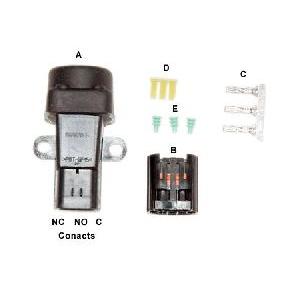

Modern Inertia switch kit, including a much more reliable modern version of the original TR6 item. A must on safety grounds for all Electrically Pumped fuel systems, petrol injection or carburettor electric fuel pump.

This modern inertia switch kit (with connector) is used as an engine cut-out device and is usually fitted in the fuel system electrical feed. In the event of an accident the inertia switch cuts the fuel supply thus stopping the engine and minimising fuel spillage. Where a mechanical fuel pump is employed the inertia switch can be fitted in the ignition circuit.
Can be used as a substitute for the standard TR6 part as it is more reliable.

Be aware that it is good practice to use a relay to feed your fuel pump, with the inertia switch connected in the relay winding circuit so that the full current draw of the pump does not go through the inertia switch.
