TRIUMPH PLATES - Browse Original Triumph Catalogue Plates

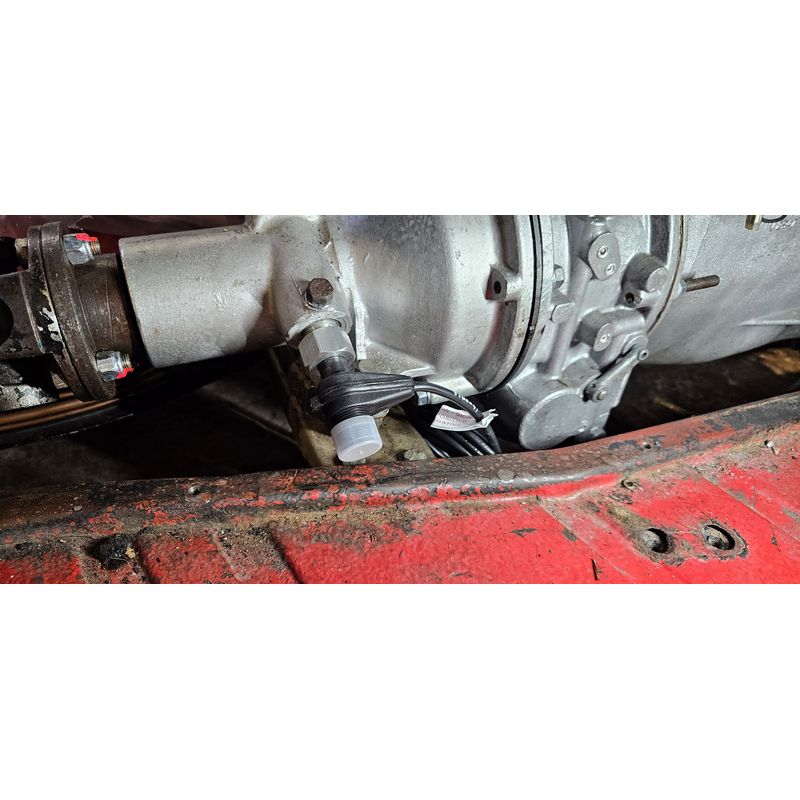

Signal transmitter unit which provided the necessary electrical signal to drive our range of electronic speedometers, TR2-TR6. This unit has been specifically designed to screw into the speedometer cable output drive of the gearbox or overdrive.
The units we supply provides 4 pulses per revolution. The label on the sensor cable indicates the polarity of the sensor and the pulses. If the label does not indicate the pulses then it is a 4 pulse unit. If the polarity label has 8 pulses written on it (you're already ahead of me now) it's 8 pulses.

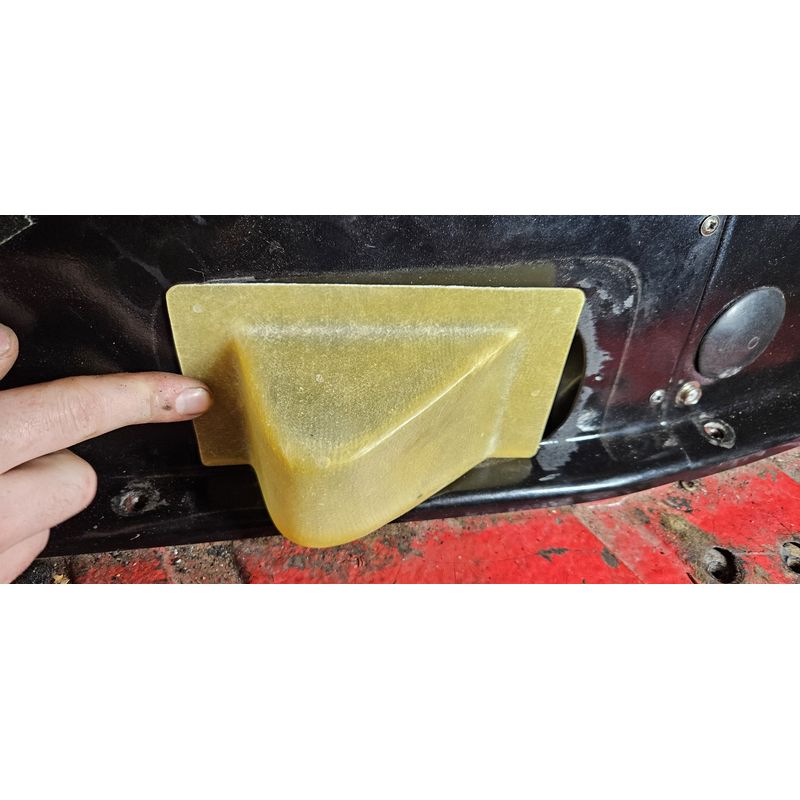

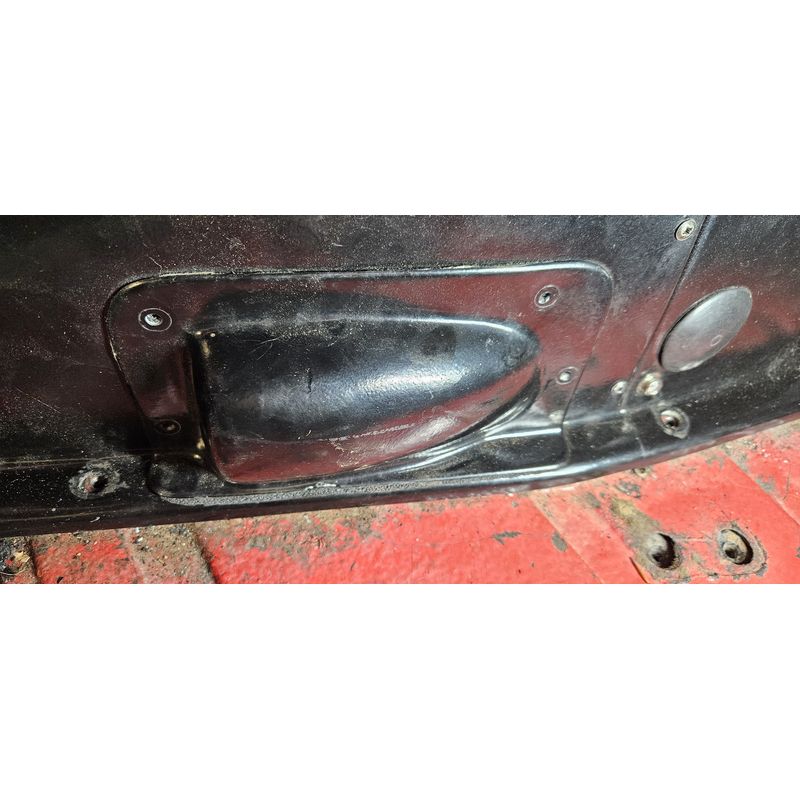

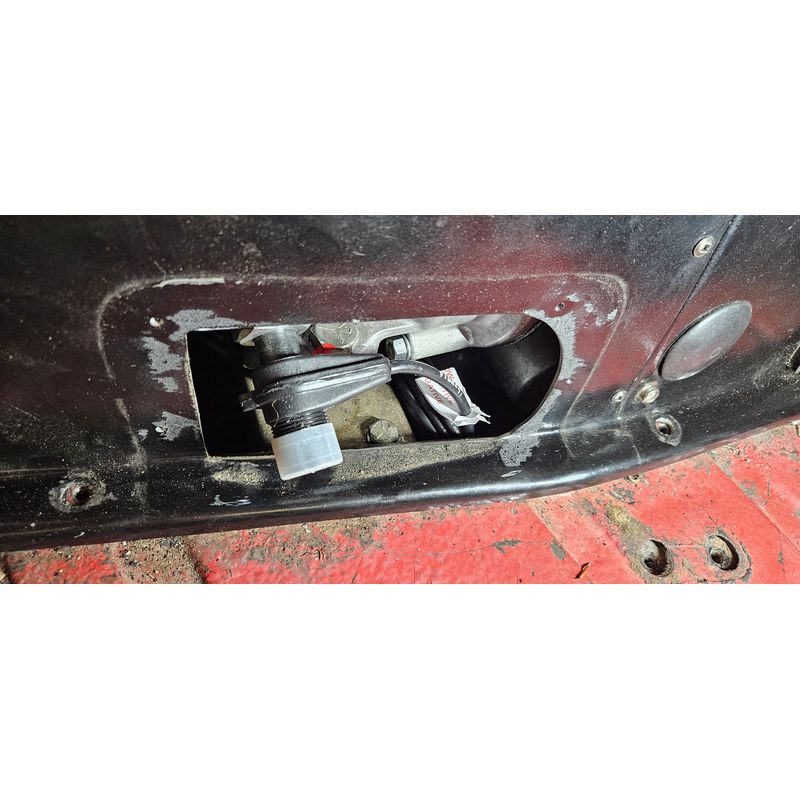

TR's 2-3B with overdrive will find that the signal transmitter sits out slightly beyond the transmission tunnel and is slightly too large to sit within the standard Triumph speedometer cable grommet. Revington TR have manufactured a suitable 'Bulge' from fibreglass to cover the signal transmitter. Order part number RTR7277. What is entailed in fitting part RTR7277 and brief fitting instructions can be found under this part number on our website and below in 'Related Products'. TR4-6 owners may find the same problem in that part of the sensor may want to be outside the tunnel. There are many different types of tunnel for TR4-6 and many will have been changed for aftermarket ones that may or may not have an existing bulge. RTR7277 is a universal bulge and may be useful in TR4-6 applications too. If you tunnel has an obvious bulge where the sensor will want to sit, the likelihood is that an extra bulge will not be needed.
The sensor has a blanking cap over the unused end of the sensor body, the opposite end to that screwed into the gearbox. This end has no function and is not intended to have a speedometer drive cable attached.
A bolt counting sensor RTR8558-2 is available too for those who wish to devise their own installation.
Electrical systems, Instruments etc.
No catalogue plates are available| Part No. | Description and Comments | Price | Add to Cart | |
|---|---|---|---|---|
 |
RTR7277
|
BULGE TRANSMISSION TUNNEL TR2-3B and TR4-6Revington TR information: TR2-3B ( and TR4-6) Fibreglass bulge for the right hand side of the transmission tunnel to allow the fitment of an electronic signal transmitter for an electronic speedometer. Only required on overdrive cars. This part, whilst... READ MORE |
£38.75 Ex VAT @ 20% |
|
 |
RTR8558-A
|
SPEEDO TR2-3B ELECTRONIC MPHRevington TR information: TR2-3A Electronic Speedometer reading MPH. A gearbox sensor (supplied separately) provides the electronic feed. Our range of completely new electronic speedometers complements our exchange service by providing an instrument which is reliable, accurate and free from... READ MORE |
£548.95 Ex VAT @ 20% |
|
 |
RTR8558-A-1
|
SPEEDO TR2-3B ELECTRONIC KPHRevington TR information: TR2-3B Electronic Speedometer reading KPH. A gearbox sensor (supplied separately) provides the electronic feed. Our range of completely new electronic speedometers complements our exchange service by providing an instrument which is reliable, accurate and free from... READ MORE |
£548.95 Ex VAT @ 20% |
|
 |
RTR8558-B
|
SPEEDO TR4 DOMED glass ELECTRONIC MPHRevington TR information: TR4 Electronic Speedometer with a domed glass reading MPH. A gearbox sensor (supplied separately) provides the electronic feed. Our range of completely new electronic speedometers complements our exchange service by providing an instrument which is reliable,... READ MORE |
£548.95 Ex VAT @ 20% |
|
|
RTR8558-B-1
|
SPEEDO TR4 DOMED glass ELECTRONIC KPHRevington TR information: TR4 Electronic Speedometer with a domed glass reading KPH. A gearbox sensor (supplied separately) provides the electronic feed. TR4 Electronic Speedometer with a domed glass reading KPH. A gearbox sensor (supplied separately) provides the electronic feed. Our... READ MORE |
£548.95 Ex VAT @ 20% |
|
|
RTR8558-C
|
SPEEDO TR4-4A FLAT glass ELECTRONIC MPHRevington TR information: TR4-4A Electronic Speedometer reading MPH. A gearbox sensor (supplied separately) provides the electronic feed. Our range of completely new electronic speedometers complements our exchange service by providing an instrument which is reliable, accurate and free from... READ MORE |
£548.95 Ex VAT @ 20% |
|
|
RTR8558-C-1
|
SPEEDO TR4-4A FLAT glass ELECTRONIC KPHRevington TR information: TR4-4A flat glass Electronic Speedometer reading KPH. A gearbox sensor (supplied separately) provides the electronic feed. Our range of completely new electronic speedometers complements our exchange service by providing an instrument which is reliable, accurate and... READ MORE |
£548.95 Ex VAT @ 20% |
|
 |
RTR8558-D
|
SPEEDO TR250,5,6CC,CP ELECTRONIC MPHRevington TR information: TR250, 5 and TR6CC,CP Electronic Speedometer reading MPH. A gearbox sensor (supplied separately) provides the electronic feed. Our range of completely new electronic speedometers complements our exchange service by providing an instrument which is reliable, accurate... READ MORE |
£548.95 Ex VAT @ 20% |
|
 |
RTR8558-D-1
|
SPEEDO TR250,5,6CC,CP ELECTRONIC KPHRevington TR information: TR250, 5, TR6CC,CP Electronic Speedometer reading KPH. A gearbox sensor (supplied separately) provides the electronic feed. Our range of completely new electronic speedometers complements our exchange service by providing an instrument which is reliable, accurate and... READ MORE |
£548.95 Ex VAT @ 20% |
|
 |
RTR8558-E
|
SPEEDO TR6CR,CF ELECTRONIC MPHRevington TR information: TR6CF,CR Electronic Speedometer reading MPH. A gearbox sensor (supplied separately) provides the electronic feed. Our range of completely new electronic speedometers complements our exchange service by providing an instrument which is reliable, accurate and free from... READ MORE |
£532.97 Ex VAT @ 20% |
|
 |
RTR8558-E-1
|
SPEEDO TR6CR,CF ELECTRONIC KPHRevington TR information: TR6CF,CR Electronic Speedometer reading KPH. A gearbox sensor (supplied separately) provides the electronic feed. Our range of completely new electronic speedometers complements our exchange service by providing an instrument which is reliable, accurate and free from... READ MORE |
£517.44 Ex VAT @ 20% |
|
 |
RTR8558-2
|
SENSOR SPEEDO BOLT COUNTINGRevington TR information: Proximity Sensor for electronic Speedometer. For those wishing to personalise their installation we supply RTR8558-2 proximity sensor which when mounted on a bracket will count the passing of something metal, usually a bolt head such as... READ MORE |
£127.61 Ex VAT @ 20% |
|
 |
RTR8558-3
|
SENSOR SPEEDO TOYOTA/MAZDA GEARBOXRevington TR information: Signal transmitter which provides the necessary electrical signal to drive our range of electronic speedometers. The unit is suitable for our 5 Speed Toyota Conversions. A bolt counting sensor is available too for those who wish... READ MORE |
