TRIUMPH PLATES - Browse Original Triumph Catalogue Plates

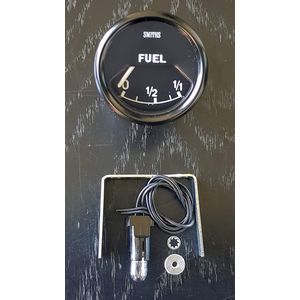

TR5-6 CP FUEL GAUGE
CURRENTLY UNAVAILABLE
These new gauges look identical to an original gauge when fitted but have modern internals and a slightly longer body hidden behind the dash. They work with a standard sender unit but can also be supplied to special order to work with a dip type sender unit which is essential when a foam filled fuel tank is in use.
The instrument is driven by the voltage stabiliser in the normal way however we recommend high quality unit RTRI8024.
High quality sender units are available which can be adjusted to accurately reflect tank contents. see below
Should an original gauge be required we can also supply these under part number 147961EXThe original clamps are 136643/2SH 136643/1SH
This part is listed on the following pages of the website, where further information and background reading may be found.
