RADIATOR COOLING FAN 355mm (14") SUCTION

RTR Upgrade
Part No:
RTR1483-2B
Price
£150.17
Price Ex VAT @ 20%
£125.14

IN STOCK This part is immediately available

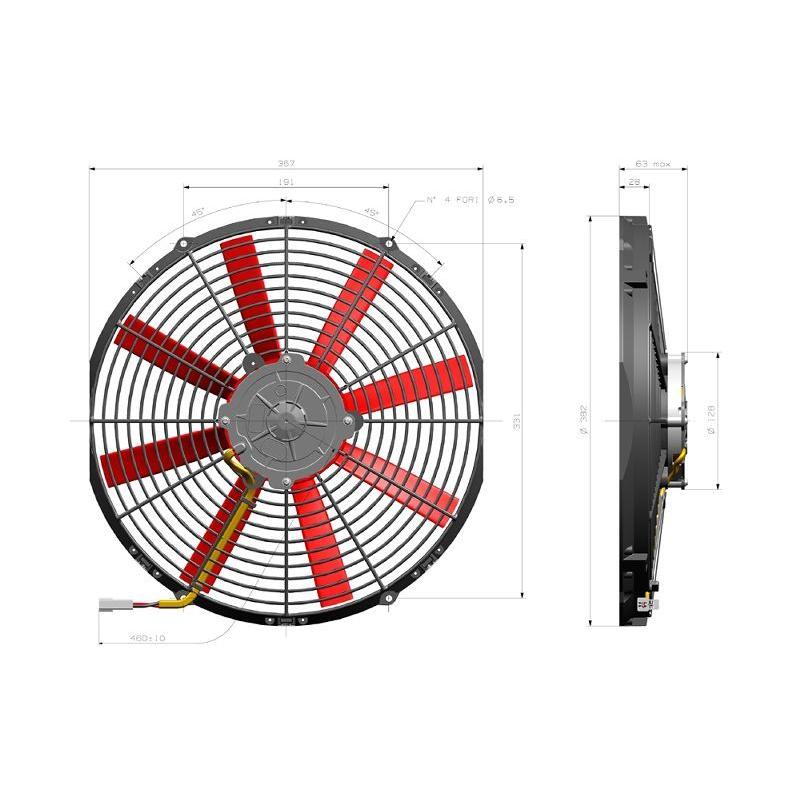

Tech sheet
Tech sheet
2 images

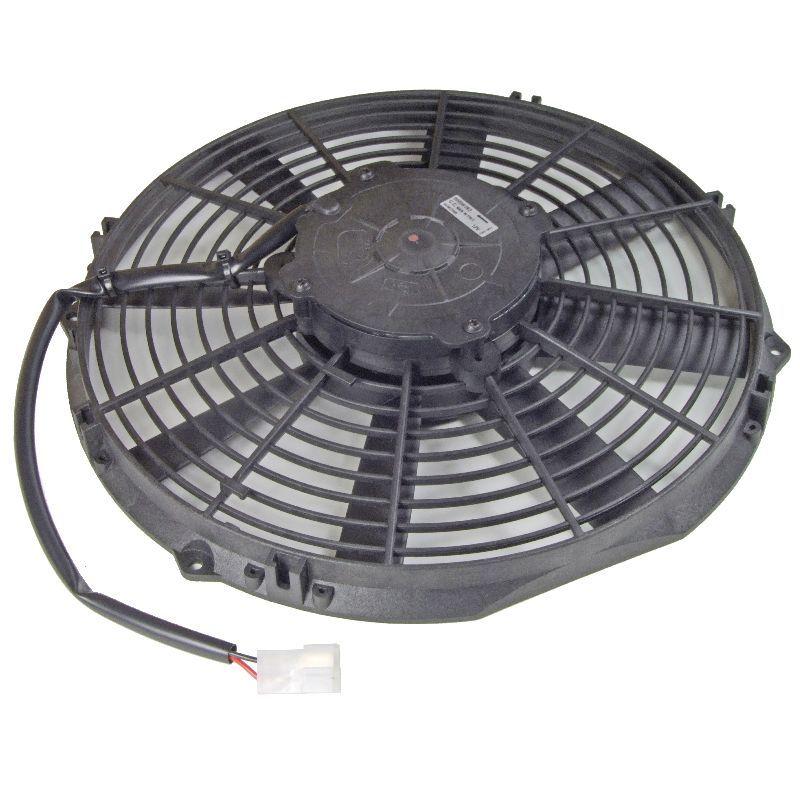

This 355mm (14") suction fan assembly by Revotec is manufactured to OEM quality standards and will provide excellent cooling.

These fans (see below for other part numbers) are a great way to control the temperature of your car's engine, particularly if you are building a kit car, special or competition car. Suitable for road, rally or race use they are designed to run continuously with no loss of performance or reliability. The high quality motor features bearings rather than bushes; the cases are fully waterproof and feature a safety guard around the fan which has the added advantage of ducting the air flow for greater efficiency. They are available in a choice of either suction (mounted behind radiator) or blowing (mounted in front of radiator), and in two sizes 280mm (11") and 355mm (14"). Other sizes are available to special order. Their universal design with mounting holes and lugs ensures there is a fan for virtually all requirements.
  • High performance
  • OEM quality
  • Full bearing motor
  • Low noise
  • Light weight
  • Slim profile (52 to 63mm)
  • Safety guard
  • Versatile installation
See below for a range of Revotec Electronic Temperature Controllers, other mounting parts and our range of bespoke TR kits. Revington TR offer a range of Radiator Cooling Fan kits split into 3 groups as follows: -
  • RTR1488K one Universal kit
  • RTR1416 series is our Standard range which includes a higher quality Fan than kit RTR1488K, 'Pull Through' Clamps to attach the fan directly to the radiator core, and an Adjustable Thermostatic Temperature Controller (In Line Electronic Type).
  • RTR1483 series is our Deluxe range which includes the same high quality Fan that is used in the RTR1416 series, Bespoke Brackets to attach the Fan to the radiator frame, and an Adjustable Thermostatic Temperature Controller (In Line Electronic Type).
In addition for those who wish to compose their own kit, the various individual components can be ordered separately. These are listed below but fit into the following categories: -
  • Fans
  • Switch and relay kits
    • Adjustable Temperature Switch and relay kits
    • Adjustable Temperature Switch incorporated into TR2-4A or TR5-6 down pipe and relay kits
    • Fixed Temperature Switch incorporated into TR2-4A or TR5-6 down pipe and relay kits
    • Fixed Temperature Switches
    • Crank Bolt Sets
    • 'Pull Through' Clamps
    Tip: - Always clean hose connections thoroughly and rough up shiny pipes onto which hoses will be fitted. Use Heldite sealant around the inside of the hose. This ensures a perfect seal without undue hose clip pressure being needed.
